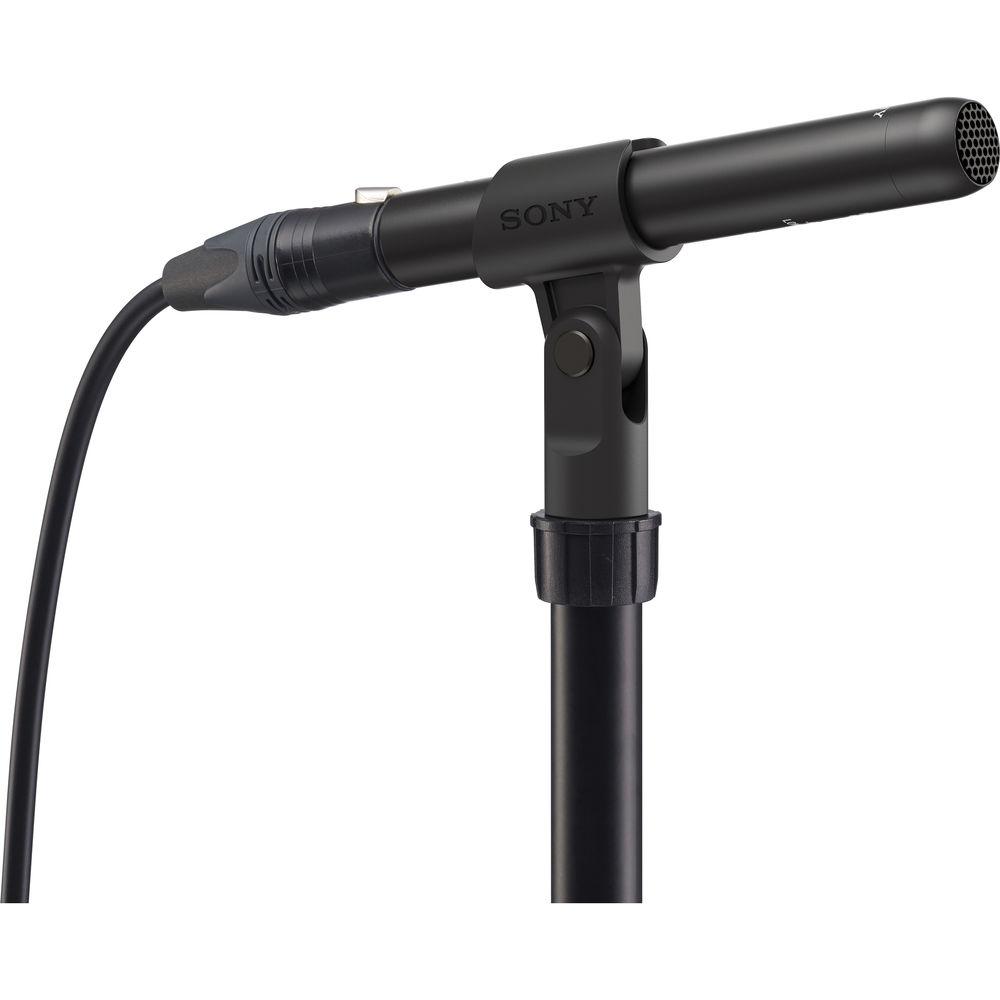

User Manual for Sony EMC-100N High-Resolution Microphone Click to enlarge the picture
Contents of the user manual for the Sony EMC-100N High-Resolution Microphone
- Product category: Small Diaphragm Condenser Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Small Diaphragm Condenser
 |
User manual for the Sony EMC-100N High-Resolution Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description NAMM 2018: New Sony C-100, ECM-100U, ECM-100N Studio Microphones Released Read More - Sony C100 & ECM100 Hi-Res Mics - Todd Whitelock at Power Station/BerkleeNYC

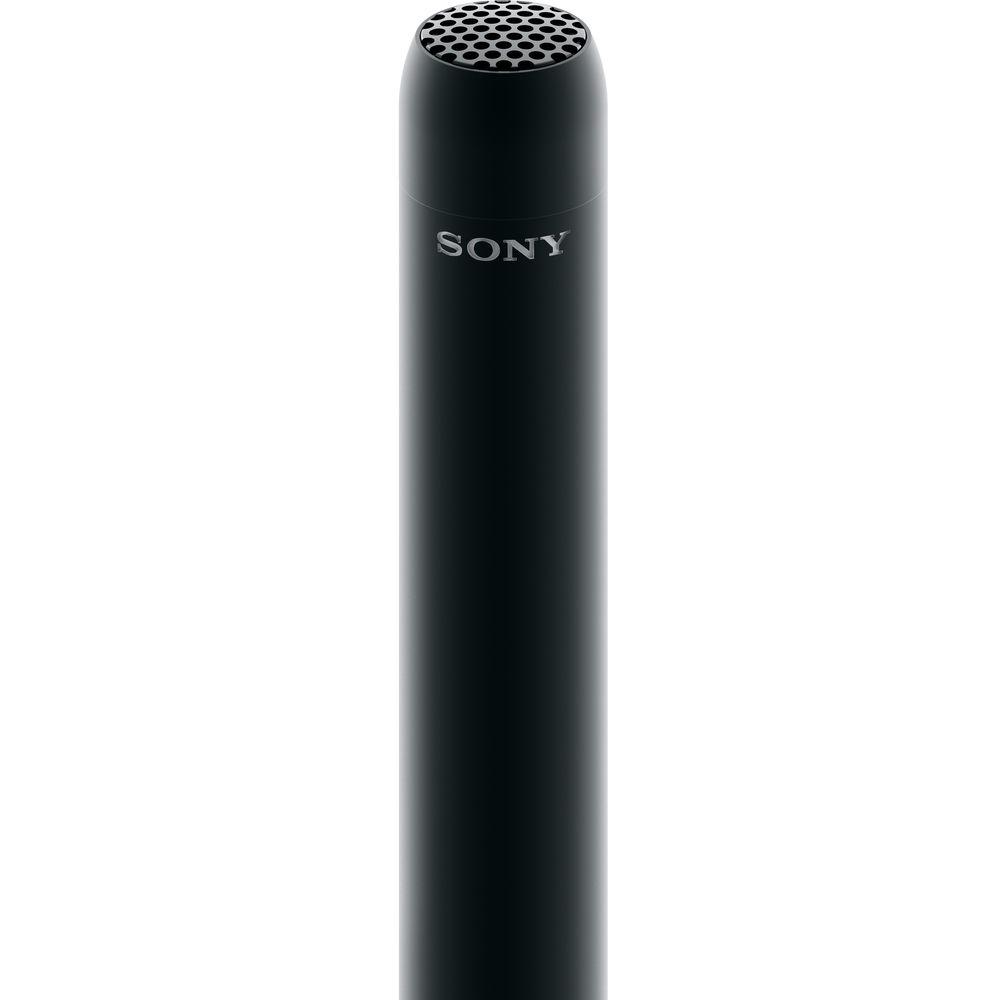

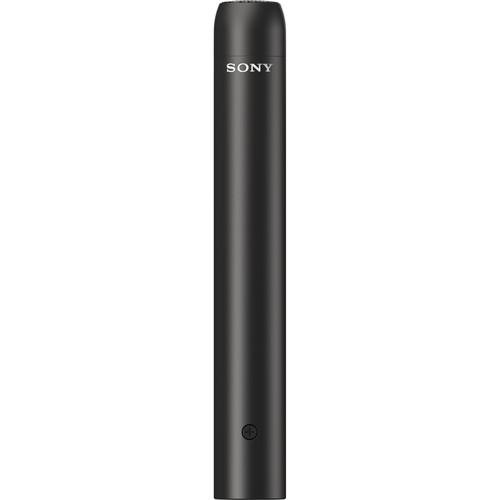

Well suited for instrument recording, the Sony EMC-100N is a high-resolution, small diaphragm electret-condenser microphone with low distortion and noise. The 17mm diaphragm delivers a wide and flat frequency response of 20 Hz to 50 kHz. The two-part metallic body utilizes the same noise elimination construction employed by Sony's C800G microphone, which prevents acoustic vibration and ensures low noise and clear sound.A 30 Hz low cut filter helps tame low frequency rumble, while the -10dB pad maximizes headroom and minimizes distortion caused by transient peaks. The Sony EMC-100N ships with a microphone clip, wind screen, mic stand adapter, and carrying case. -
- Ideal for Instrument Recording: Small diaphragm (17mm) microphone capsule with an omni pick up pattern delivers the authentic sound of instruments with extremely low distortion
- Flat and Wide Frequency Response: The ECM-100N microphone has a flat and wide frequency response (20 Hz to 50 kHz) and provides professional sound reproduction quality for high-resolution audio
- Noise Elimination Construction: Two-part metallic body structure originally employed in the C-800G microphone prevents acoustic vibration, resulting in low noise and clear sound
- Low-Cut Filter: Low-Cut filter switch helps eliminate low-frequency noise and proximity effect
- Pad Switch: -10dB pad switch on ECM-100N microphone provides added headroom and minimizes distortion caused by transient peaks
UPC: 027242910935 In the Box Sony EMC-100N High-Resolution Microphone (Omni) Mic Clip Wind Screen Microphone Stand Adapter Carrying Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony EMC-100N High-Resolution Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony EMC-100N Specs | | | Sound Field | Mono | | Operating Principle | Pressure Gradient | | Transducer | Electret Condenser | | Diaphragm | 0.67" / 17 mm (Electret Condenser) | | Polar Pattern | Omnidirectional | | Frequency Range | 20 Hz to 50 kHz | | Signal to Noise Ratio | 73 dB A-Weighted | | Equivalent Noise Level | 21 dB A-Weighted | | Maximum SPL | Omnidirectional: 145 dB SPL RMS | | Pad | -10 dB | | Impedance | 100 Ohms ± 15% | | Load Impedance | None | | Sensitivity | Omnidirectional: -36 dB at 1 kHz | | Low-Cut Filter | @ 30 Hz | | Dynamic Range | Omnidirectional: 124 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 25 mA | | Operating Voltage | 42 to 52 V | | Length | 5.12" / 130 mm | | Diameter | 0.75" / 19 mm | | Weight | 4.59 oz / 130 g | | | | Package Weight | 1.35 lb | | Box Dimensions (LxWxH) | 10.4 x 5.8 x 3.2" |
