User Manual for Sony FDR-AX100 4K Camcorder Basic Kit Click to enlarge the picture
Contents of the user manual for the Sony FDR-AX100 4K Camcorder Basic Kit
- Product category: Consumer Camcorders Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Consumer Camcorders
|
User manual for the Sony FDR-AX100 4K Camcorder Basic Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|

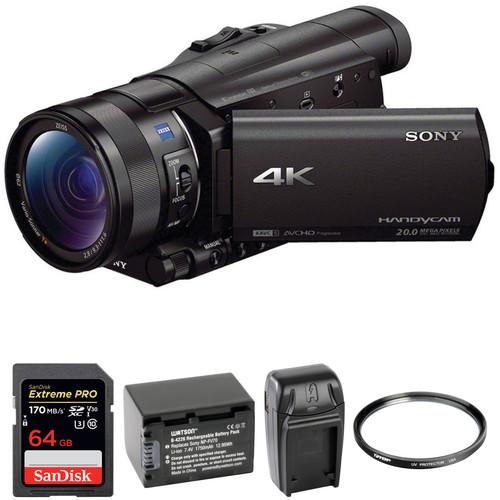

Product description This B&H Kit is assembled to provide you with a basic, but well-outfitted, shooting kit built around the Sony FDR-AX100 4K Camcorder. Included with the basic kit are a Sony 64GB media card, a Watson NP-FV70-type battery and charger, a Tiffen 62mm UV Filter, and a microfiber cleaning cloth.
The Sony FDR-AX100 captures UHD 4K at 30 fps to SD/SDHC/SDXC media cards or Memory Stick XC-HG Duo / PRO Duo (Mark 2) memory cards. It features an integrated 12x optical zoom lens and a 3.5" flip out touch panel LCD viewscreen. A media card is required to capture images, and the included 64GB SDXC card allows you to start recording immediately. The included Watson battery is a good companion for the battery that comes with your camera, while the UV filter protects your images from UV haze and offers protection to the front element of your lens. A microfiber cleaning cloth is useful for keeping your optics clean. - Sony FDR-AX100 4K Ultra HD Camcorder The black Sony FDR-AX100 Full HD Camcorder brings Ultra HD 4K video to the palm of your hand, delivering resolution four times that of Full HD. The 1" Exmor R CMOS sensor is approximately 8x larger than that of typical camcorders, allowing you to capture cinematic images with shallow depth of field for defocused backgrounds. The camcorder features a wide-angle Zeiss Vario-Sonnar T* lens with 12x optical zoom plus 24x Clear Image digital zoom. Optical SteadyShot image stabilization with Active Mode delivers smooth video, and 3-Way-Shake-Canceling adds electronic roll stability for even smoother results.
The FDR-AX100 is a versatile camcorder that lets you capture UHD 4K 3840 x 2160 video at 24 and 30 fps. You can also record Full HD 1920 x 1080 video in XAVC S, AVCHD, or web-optimized MP4, as well as take high-quality 20MP still images. Media is recorded to SD or Memory Stick Duo memory cards. For X-AVC S recording, SDXC Class 10 cards are required.
Frame your shots using either the large 3.5" XtraFine LCD touchscreen or with the high-contrast 0.39" OLED EVF. For connectivity, the camcorder provides a USB 2.0 port, micro-HDMI output, and a composite video output. Built-in Wi-Fi and NFC support lets you use your smartphone or tablet to control the camera, as well as wirelessly transfer files to your mobile device for sharing and back up data on your computer.
A rechargeable lithium-ion battery pack, AC adapter, power cord, micro-HDMI cable, and a USB connection support cable come included. Also included are a lens hood, lens cap, and an RMT-835 Remote Commander with battery. - Capture 4K Ultra HD Video
- Capture the finest details in UHD 4K 3840 x 2160 resolution. This camcorder allows incredibly high resolution to produce vibrant and realistic images. In addition, the fast image processor is the same one employed in professional Sony camcorder models, making it possible to record 60p movies at Full HD resolution for incredibly smooth and sharp playback with no loss in realism, even when panning the camera and shooting moving subjects.
- 1" Exmor CMOS Sensor
- The camcorder features Sony's first 1.0" Exmor R CMOS sensor. The back-illuminated technology improves low-light sensitivity and combines with Sony's Column A/D Conversion to reduce noise by 50%. This is great when shooting in dimly lit environments such as night landscapes or indoor scenes.
- 20MP Still Images
- Capture high-quality 20MP still images, as well as 14.2MP (16:9) and 15MP (4:3) images. You can also take 2.1MP images while recording video.
- Versatile Shooting with XAVC S, AVCHD, and MP4 Codecs
- The FDR-AX100 records Full HD movies in the XAVC S format, which uses MPEG-4 AVC/H.264 codec for compression while saving files in a MP4 wrapper. The highly compressed files allow for longer record times. The camcorder also records in AVCHD, providing high-quality video for HDTV playback and Blu-ray disc burning. Additionally, the camcorder can shoot MP4 HD video, which is ideal for sharing over the internet at up to 28 Mb/s. Having the ability to switch between all three of three formats makes this camcorder a versatile tool content creation. For the greatest flexibility, you can even record AVCHD and MP4 formats simultaneously.
- New Firmware 3.00 Options
- With the recent firmware upgrade, free to camera owners with firmware below 3.00, the camera can now record 4K at 100 Mb/s when recording 4K video with the XAVC S codec. Please note that an SDXC UHS-I U3 or higher card is required for 4K 100 Mb/s recording. The firmware update also brings to the camera the ability to capture images from XAVC S movie, adjustable trimming frame size when using the Trimming Playback function with XAVC S 4K movies, and improved autofocus performance when tracking a person.
- Carl Zeiss Vario-Sonnar T* Lens with 12x Optical Zoom
- The FDR-AX100 comes equipped with a Carl Zeiss Vario-Sonnar T* lens. It features a wide 35mm-equivalent focal length of 29mm, making it suitable for capturing landscapes, as well as 12x optical zoom and 24x Clear Image zoom for getting close to the action.
- BIONZ X Processor Enables High-Speed 120 fps Recording
- The BIONZ X Image processor enables the camcorder to create more naturally vivid and lifelike images with higher resolutions. Detail reproduction technology optimally filters edges and textures differently depending on the scene. It also features area-specific noise reduction which swiftly and efficiently analyzes the subject and reduces noise. The image processor also allows you to record at 120 fps for slow-motion playback at 1/5th the speed when played back at 24 fps after post-processing.
- Optical SteadyShot Image Stabilization with Active Mode
- Optical SteadyShot Image Stabilization with Intelligent Active Mode is an advanced optical Image stabilization technology that corrects camera shake to capture scenes with smoothness and stability. Intelligent Active Mode analyzes video frames and provides compensation with assistance from the BIONZ X image processing engine. Whether recording movies while walking or zooming, you can capture scenes with a higher level of stability.
- High-Contrast 0.39" OLED EVF
- The FDR-AX100 provides a high-contrast 0.39" OLED Tru-Finder EVF which reproduces rich color and deep blacks. The optical design of the EVF utilizes four dual-surface aspherical lenses, allowing for a 33° wide viewing angle that is clear from edge to edge of the viewfinder.
- Large 3.5" Xtra Fine LCD
- The 3.5" Xtra Fine LCD screen features a 16:9 aspect ratio and a 921K dot resolution, delivering sharp, bright, and vivid images. The large screen allows you to compose your shots more easily, even when outdoors.
- Simple Connectivity to Smartphones via Wi-Fi/NFC
- Built-in Wi-Fi/NFC support enables easy connectivity with smartphones for one-touch sharing and one-touch remote control. NFC (near field communication) provides "touch connection" convenience when transferring images to Android smartphones and tablets. You simply touch your NFC-compatible device to the camcorder to establish a connection.
- Multi Interface Accessory Shoe
- Expand photographic and movie shooting possibilities by attaching optional accessories via the Multi Interface Shoe. Attach an electronic viewfinder, external flash, stereo microphone, or even a compatible remote control via the Multi Interface terminal.
- Additional Features
-
- Supports SD/SDHC/SDXC and Memory Stick XC-HG Duo / PRO Duo (Mark 2) memory cards
- SDXC Class 10 cards are required for UHD 4K and HD X-AVC S formats
- Built-in ND filters: Off, 1/4, 1/16, 1/64
- Manual focus assist: magnified display, peaking, and tracking focus
- Built-in speaker (monaural)
- Premium Closer Voice
- My Voice Cancelling
- 7 picture effects for video and photos
- Low Lux mode
- Manual iris control
- Self-timer
- Red-eye reduction
- Black/white fader effects
- Face detection
- CinemaTone gamma/color
- NightShot infrared system
- Airplane mode
UPC: 027242877542 - SanDisk 64GB Extreme PRO UHS-I SDXC Memory Card Designed for SD devices that can capture Full HD, 3D, and 4K video, as well as raw and burst photography, the 64GB Extreme PRO UHS-I SDXC Memory Card from SanDisk has a capacity of 64GB, is compatible with the UHS-I bus, and features a speed class rating of V30, which guarantees minimum write speeds of 30 MB/s. If your device does not support the V30 standard, this card also supports the U3 standard, which likewise guarantees minimum write speeds of 30 MB/s. Read speeds are supported up to 170 MB/s and write speeds max out at 90 MB/s. A built-in write-protect switch helps to safeguard against the accidental erasure of card data.
While this card has been designed for cameras that are UHS-I / V30 / U3 compatible, it may be used in devices that do not support UHS-I / V30 / U3. However, bear in mind that this card will then default to your device's speed class and bus rating, such as UHS-I and U1, which supports minimum write speeds of 10 MB/s, or Class 10, which also supports minimum write speeds of 10 MB/s.
As with most SanDisk cards, this memory card is shockproof, X-ray proof, waterproof, while also being able to withstand temperatures from -13 to 185°F, allowing you to take this card with you into extreme environments, such as snow, deserts, and pools. Should the card's data become compromised, you also benefit from the option to download RescuePRO Deluxe software as well as a limited lifetime warranty. General Features - Transfer Speeds up to 170 MB/s
- Once the shots are taken, your work is only half done. Accelerating your workflow means you can carve out more time to take your creativity to the next level.
- Record 4K UHD Video
- Sometimes speed is what you need. The SanDisk Extreme PRO UHS-I SDXC card delivers the performance to capture uninterrupted 4K UHD video.
- Sequential Burst Mode Shots
- Rated UHS Speed Class 3 (U3) and Video Speed Class 30 (V30), the SanDisk Extreme PRO UHS-I SDXC card lets you capture sequential burst mode shots.
- Durability You Can Count On
- Built for and tested in harsh conditions, the SanDisk Extreme PRO UHS-I SDXC card is shockproof, X-ray proof, and waterproof, while also being able to withstand temperatures from -13 to 185°F.
- Recover Images You Accidentally Deleted
- Includes an offer for RescuePRO Deluxe 2-year data recovery software, which lets you restore images you accidentally deleted. Registration is required.
UPC: 619659169299 - Watson NP-FV70 Lithium-Ion Battery Pack (7.4V, 1750mAh) The Watson NP-FV70 Lithium-Ion Battery Pack works with the same cameras as the Sony NP-FV70. This replacement battery pack features a capacity of 1750mAh and 7.4V of output power. Small and lightweight, lithium-ion batteries can be charged or discharged at any time without developing memory effects.
- Compatible Cameras
- Sony
- DCR-SR60
- DCR-SR68
- DCR-SR88
- DCR-SX44
- DCR-SX45
- DCR-SX63
- DCR-SX65
- DCR-SX83
- DCR-SX85
- HDR-CX110
- HDR-CX130
- HDR-CX150
- HDR-CX160
- HDR-CX190
- HDR-CX200
- HDR-CX210
- HDR-CX220
- HDR-CX230
- HDR-CX250
- HDR-CX260
- HDR-CX290
- HDR-CX300
- HDR-CX350
- HDR-CX360
- HDR-CX380
- HDR-CX430
- HDR-CX550
- HDR-CX560
- HDR-CX580
- HDR-CX700
- HDR-CX740
- HDR-CX760
- HDR-P3200
- HDR-PJ10
- HDR-PJ200
- HDR-PJ230
- HDR-PJ260
- HDR-PJ30
- HDR-PJ380
- HDR-PJ430
- HDR-PJ50
- HDR-PJ580
- HDR-PJ600
- HDR-PJ650
- HDR-PJ710
- HDR-PJ760
- HDR-PJ790
- HDR-TD10
- HDR-TD20
- HDR-TD30
- HDR-XR150
- HDR-XR160
- HDR-XR260
- HDR-XR350
- HDR-XR550
- HXR-MC50
- HXR-NX30
- HXR-NX330
- HXR-NX3D1
- HXR-NX70
- NEX-VG10
- NEX-VG20
- NEX-VG30
- NEX-VG900
UPC: 847628541214 - Watson Compact AC/DC Charger for P, H & V Series Batteries This versatile Compact AC/DC Charger from Watson charges all Sony P, H & V series type lithium-ion batteries via the included dedicated battery plate. The charger runs on 100 to 240 VAC power, allowing for worldwide use. It features a fold-out 2-prong US plug and is supplied with a European plug adapter as well as a 12 VDC car charger that plugs into a cigarette lighter. This makes the charger ideal for use both at home and on the road.
The Compact AC/DC Charger features a USB power output that allows you to charge and power MP3 players, phones, digital cameras, and other devices with a USB power input--even while charging your camera or camcorder batteries. With its easily interchangeable plate, the charger can also be used for other battery models via the purchase of an additional battery adapter plate. - Compatibility
- Compatible with any Sony NP-FP50, NP-FP70, NP-FP71, NP-FP90, NP-FH50, NP-FH70, NP-FH100, NP-FV50, NP-FV70, NP-FV100 type batteries.
- Compact
- Charger features a fold-out AC plug for easy storage and travel.
- Versatile
-
- Comes with an included Euro plug adapter for charging in Europe.
- Included DC adapter with car lighter plug lets you charge while on the road.
- USB Output
- Charge or supply power for MP3 devices, mobile phones, digital cameras, and other related devices with a USB power input.
- Safety Features
- The charger features protection against overcharging and overheating.
UPC: 847628541597 - Tiffen 62mm UV Protector Filter The Tiffen 62mm UV Protector Filter is a general use, clear filter that helps to absorb ultraviolet light and reduce the bluish cast of daylight. This filter is especially useful when photographing at high altitudes or around bodies of water. No additional coloration or contrast is provided, allowing you to pair this filter with others.
The UV filter is also useful as a general protective filter to leave on lenses at all times. Filters help to reduce dust and moisture from reaching your lens element and provide additional protection in case of drops or situations where scratching could occur.
Tiffen filters are made using ColorCore technology; a process that involves laminating the filter substrate between 2 pieces of optical glass, grinding flat to a tolerance of 1/10,000th of an inch, then mounting to precision metal rings. - Absorbs some ultraviolet light and reduces bluish cast of daylight.
- Clear filter provides no additional coloration or contrast, allowing you to pair this filter with others.
- General protection filter reduces dust, moisture, and scratches from reaching lens elements.
UPC: 049383099423 In the Box FDR-AX100 4K Ultra HD Camcorder bdwsztbufuex NP-FV70 V-Series Rechargeable Battery Pack (1960mAh, 6.8-8.4V) AC-L200 AC Adapter for Handycam Using A/P/F-Series InfoLITHIUM Batteries Power Cord Micro-HDMI Cable USB Connection Support Cable RMT-835 Remote Commander CR2025 Battery for Remote Commander Lens Hood Lens Cap Limited 1-Year Warranty on Parts Limited 90-Day Warranty on Labor - SanDisk - 64GB Extreme PRO UHS-I SDXC Memory Card
- Watson - NP-FV70 Lithium-Ion Battery Pack (7.4V, 1750mAh)
- Watson - Compact AC/DC Charger for P, H & V Series Batteries
- Tiffen - 62mm UV Protector Filter
More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony FDR-AX100 4K Camcorder Basic Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Sony FDR-AX100 4K Ultra HD Camcorder
| | | Sensor | 1 x 1" Back-illuminated Exmor R CMOS Sensor | | Processor | BIONZ X | | Color Filter System | RGB | | Pixel Gross | Approx. 20.9 Million Pixels | | | | Lens Type | Carl Zeiss Vario-Sonnar T* | | 35mm Equivalent Focal Length | 29 to 348mm | | Maximum Aperture | 2.8 to 4.5 mm | | Aperture Blade | 7 Blades | | Minimum Focus Distance | Wide: 0.4" (1.0 cm)
Telephoto: 39.4" (100.0 cm) | | Zoom | Optical: 12x
Clear Zoom: 18x (4K), 24x (HD)
Digital: 160x | | Filter Size | 62 mm | | ND Filters | OFF, 1/4, 1/16, 1/64 | | | | System | NTSC | | Recording Media | Memory Stick Pro Duo (Mark 2)
Memory Stick XC-HG Duo
SD/SDHC/SDXC: Class 4 or Higher; Class 10+ SDXC Card Required for Recording XAVC S
SDXC UHS-1 U3 or Higher Card Required for 4K 100 Mb/s Recording | | Video Format | XAVC S
3840 x 2160p at 24/30 fps (100, 60 Mb/s)
1920 x 1080p at 24/30/60 fps (50 Mb/s)
AVCHD
1920 x 1080p at 24/60 fps (28, 24, 17 Mb/s)
1920 x 1080i at 60 fps (24, 17 Mb/s)
1440 x 1080i at 60 fps (9, 5 Mb/s)
MP4
1280 x 720p at 30 fps (3 Mb/s) | | Aspect Ratio | 16:9
4:3 | | Slow Motion | 120 fps | | Still Image Resolution | Max Effective Resolution: 20 MP
JPEG: 14.1 MP, 5024 x 2824 (16:9)
JPEG: 15 MP, 4464 x 3352 (4:3) | | Microphone | Built-In Zoom Microphone (Stereo) | | Audio Format | MPEG-4 Linear PCM 2-Ch 48 kHz/16-Bit (XAVC S 4K Only)
Dolby Digital 2-Ch
Dolby Digital 5.1-Ch
Dolby Digital 5.1 Creator (AVCHD Only)
Dolby Stereo Creator (AVCHD Only) | | Microphone Level Control | 31 Steps | | | | Display Type | LCD | | Touchscreen | Yes | | Screen Size (Diagonal) | 3.5" / 8.9 cm | | Pixel Count | 921,000 | | Aspect Ratio | 16:9 | | Rotation | Opening Angle: 90°
Turning Angle: 270° | | | | Screen Size (Diagonal) | 0.39" / 0.99 cm | | | | Image Stabilization | Optical SteadyShot with Active Mode (Wide to Tele) | | Shutter Speed | Not Specified by Manufacturer | | White Balance Modes | Auto
Indoor
Kelvin Temperature
Onepush
Outdoors | | Creative Effects | Yes | | Built-in Mic | Yes | | Built-in Speaker | Yes, Monaural | | Wi-Fi | 802.11b/g/n | | NFC | Yes | | Accessory Shoe | 1 x Multi Interface Shoe | | Manual Controls | Assignable Dial:
Exposure
AE Shift
WB Temperature
WB B-A
WB G-M Set | | Tripod Mount | 1/4"-20 | | | | Inputs | 1 x 3.5 mm Stereo Input Jack | | Outputs | 1x Micro-HDMI (Type-D)
1x Composite Video (Out)
1x USB 2.0
1x BRAVIA Sync
1x 3.5 mm Stereo Output Jack | | Microphone Input | Yes | | Headphone Jack | Yes | | | | Languages | Brazilian Portuguese
Canadian French
English
Spanish | | Battery | NP-FV70 Rechargeable Lithium-Ion Battery Pack
6.8 to 7.2 VDC
1960 mAh | | Charging Method | AC Adapter
USB | | Power Adapter | 5.0 VDC | | Dimensions | 3.5 x 3.3 x 8.8" / 9.0 x 8.4 x 22.4 cm | | Weight | Approx. 32.3 oz / 915 g (With NP-FV70 Battery) | | | | Box Dimensions (LxWxH) | 9.6 x 6.7 x 5.5" | - SanDisk 64GB Extreme PRO UHS-I SDXC Memory Card
| Card Type | SDXC | | Storage Capacity | 64 GB | | Bus Type | UHS-I | | Speed Class | 10 | | UHS Speed Class | U3 | | Video Speed Class | V30 | | Data Transfer | Read Speed: 170 MB/s Maximum (Burst)
Write Speed: 90 MB/s Maximum (Burst)
Write Speed: 30 MB/s Minimum | | Durability | Shockproof, Temperature Extremes, Waterproof, X-Ray Proof | | Operating Temperature | -13 to 185°F/ -25 to 85°C | | Storage Temperature | -40 to 185°F/ -40 to 85°C | | Built-in Write-Protect Switch | Yes | | Wireless Capability | None | | | | Box Dimensions (LxWxH) | 17.0 x 10.5 x 5.0" | - Watson NP-FV70 Lithium-Ion Battery Pack (7.4V, 1750mAh)
| Capacity (Wh) | 12.95 Wh | | Amp-Hours | 1750 mAh | | Maximum Output Voltage | 7.4 VDC | | Chemistry | Lithium-Ion | | Dimensions (W x H x D) | 1.8 x 1.2 x 1.4" / 4.6 x 3.1 x 3.6 cm | | Weight | 3 oz / 85 g | | | | Box Dimensions (LxWxH) | 5.4 x 3.1 x 1.7" | - Watson Compact AC/DC Charger for P, H & V Series Batteries
| Compatible Battery Series | Sony H
Sony P
Sony V | | Charging Time | 2 to 6 Hours | | USB Output Ports | 1 x USB Type-A (5 VDC at 1 A) | | Output Voltage | 4.2 to 8.4 VDC at 800 mA | | DC Power Input | Car Adapter: 12 to 24 VDC | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 100 mA | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Dimensions | 2 x 1.3 x 3.5" / 5.1 x 3.3 x 9 cm | | Weight | 3.1 oz / 88 g | | | | Box Dimensions (LxWxH) | 6.75 x 4.25 x 3.0" | - Tiffen 62mm UV Protector Filter
| Filter Type | UV | | Filter Factor | 1 (+0-Stop) | | Shape | Circle | | Circular Size | 62 mm | | Front Accessory Thread / Bayonet | 62 mm | | | | Box Dimensions (LxWxH) | 6.0 x 5.0 x 1.0" |
