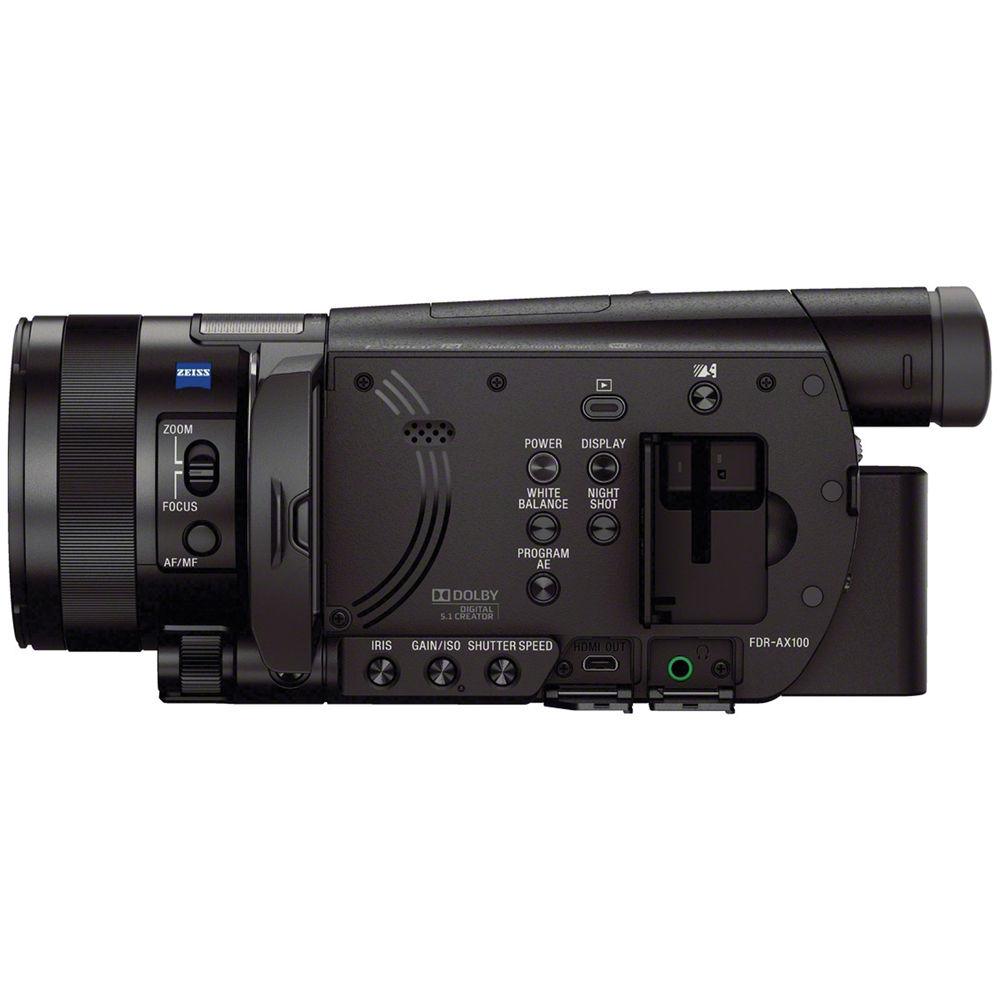

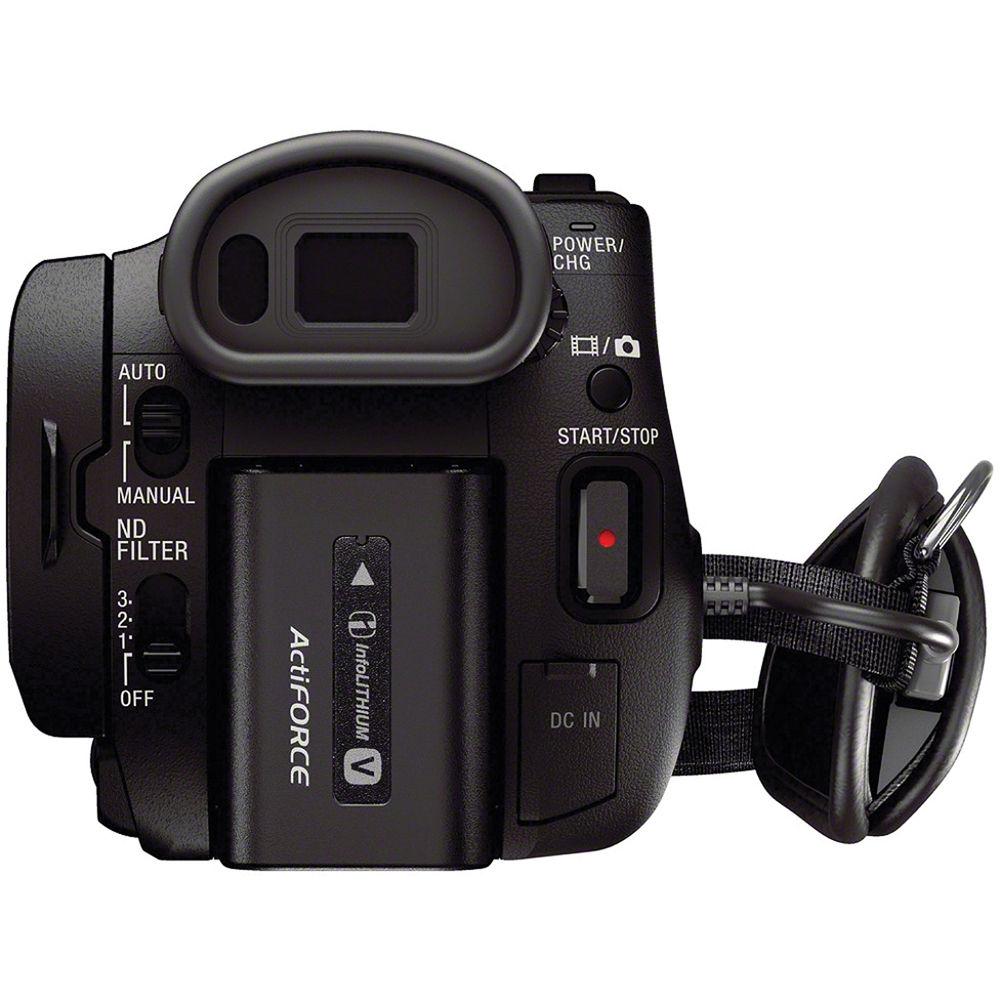

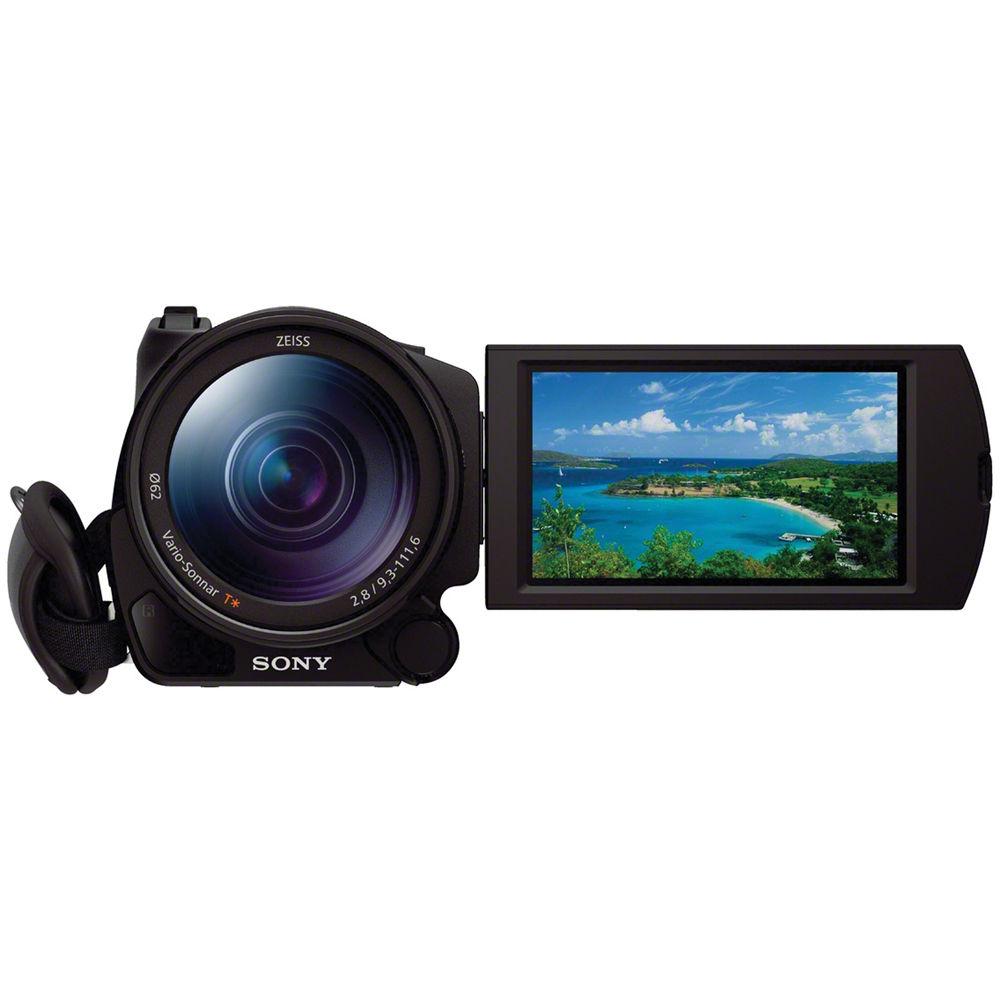

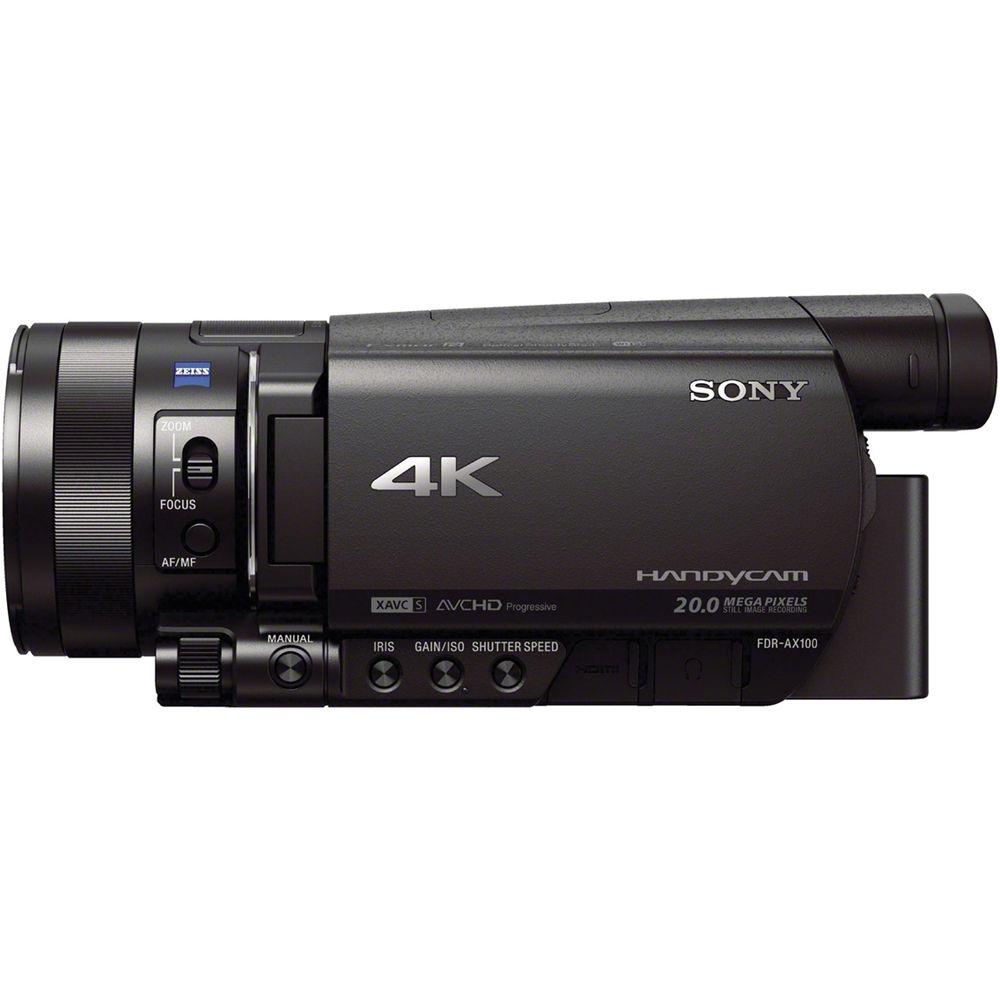

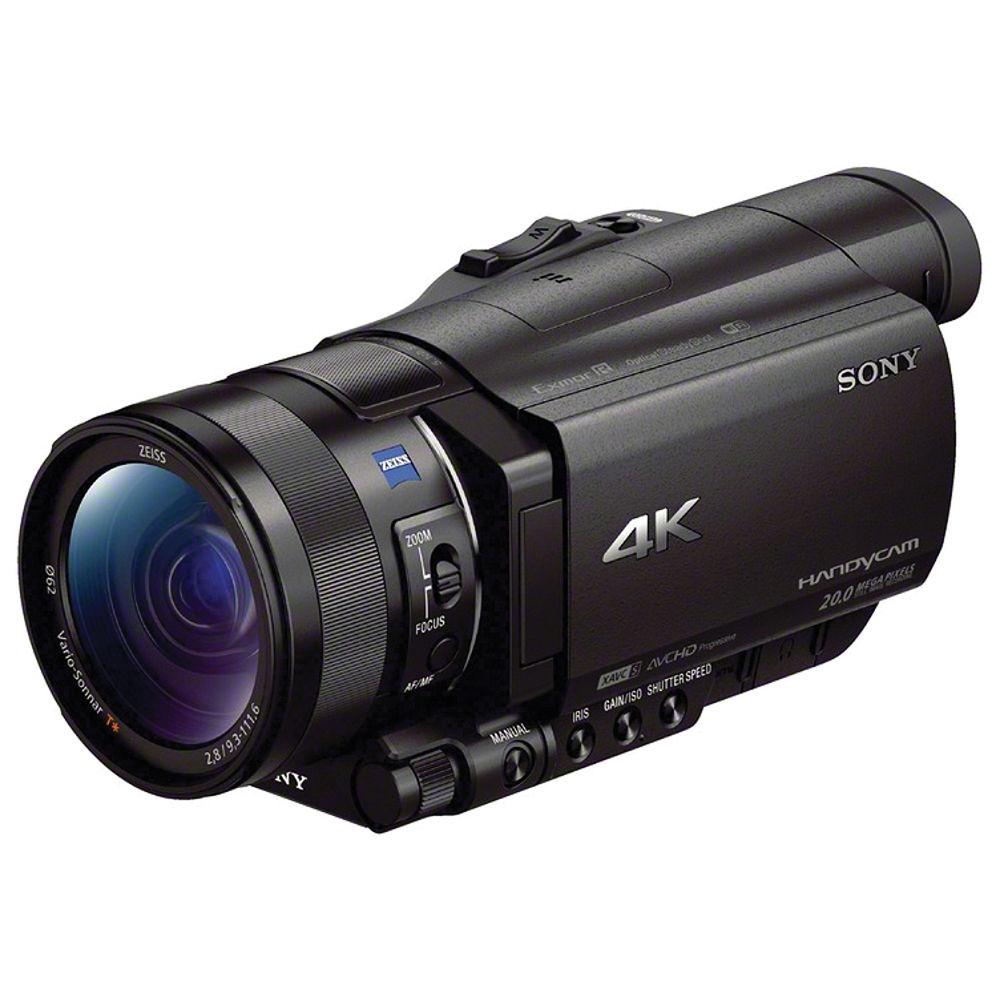

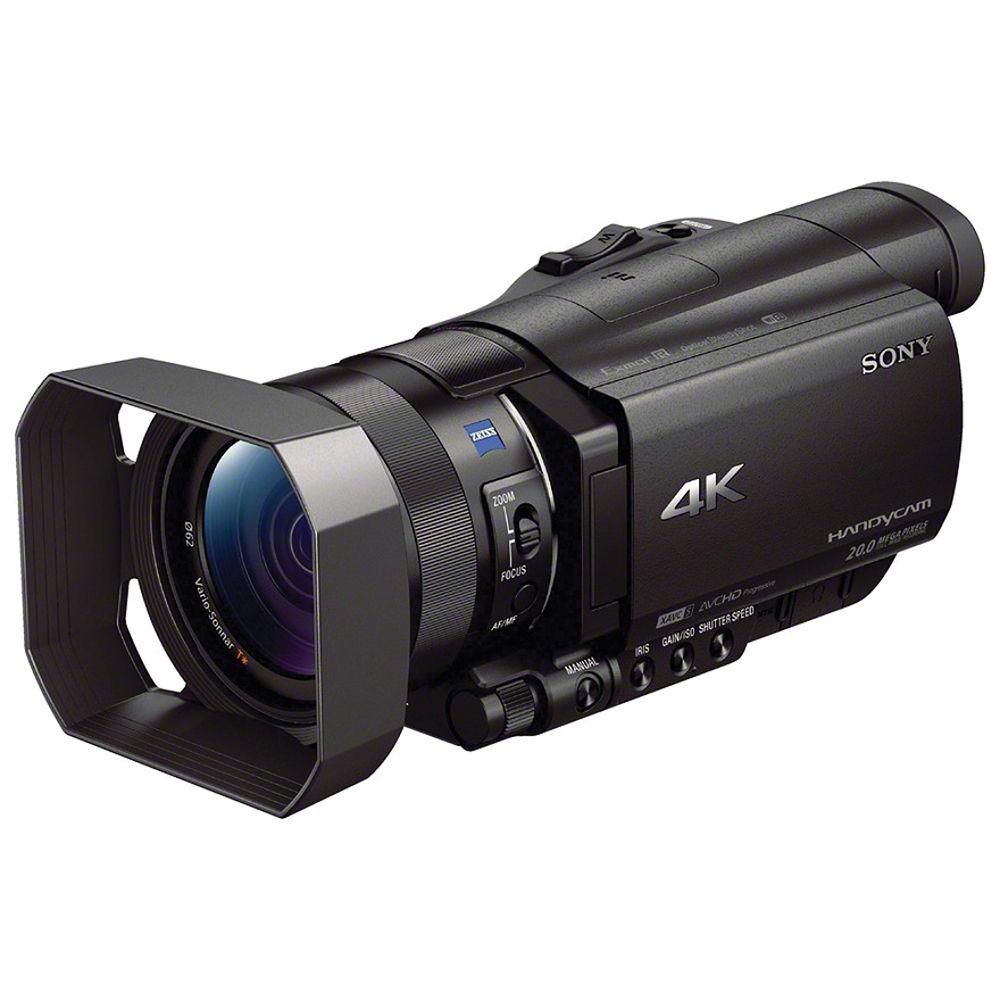

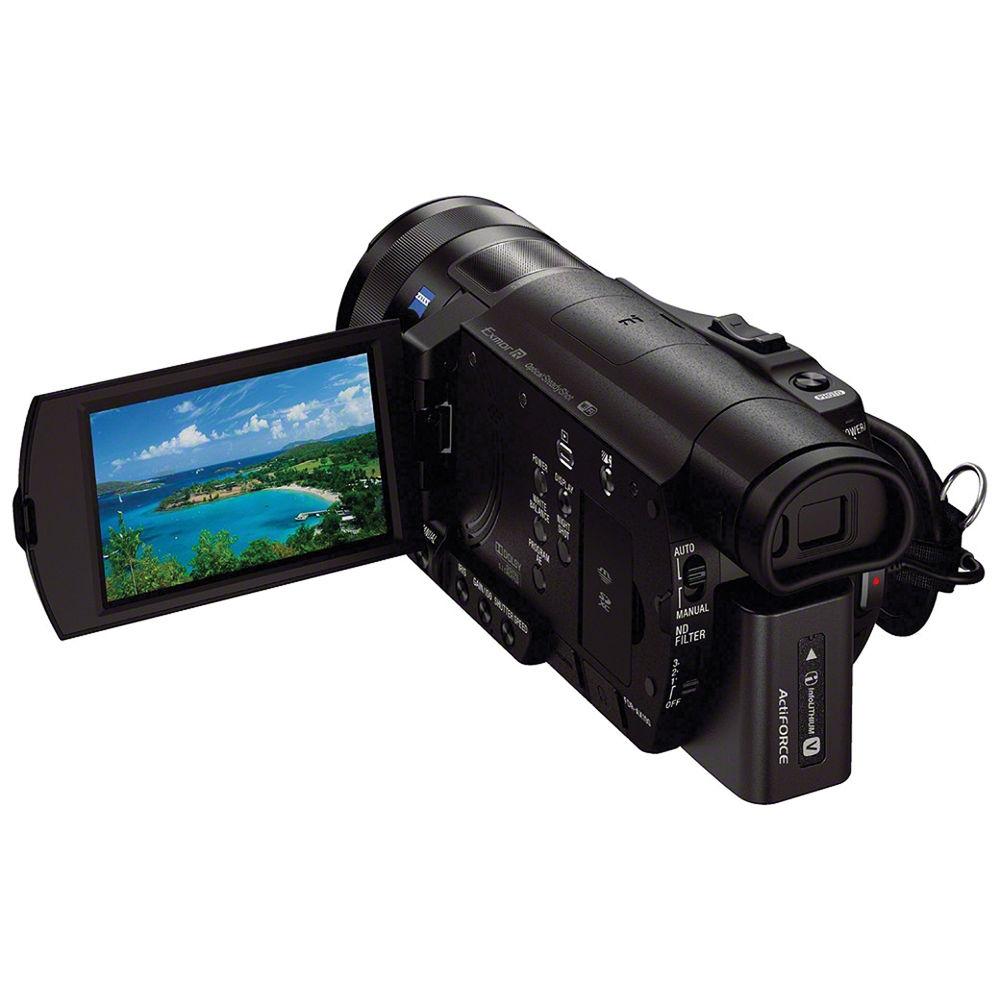

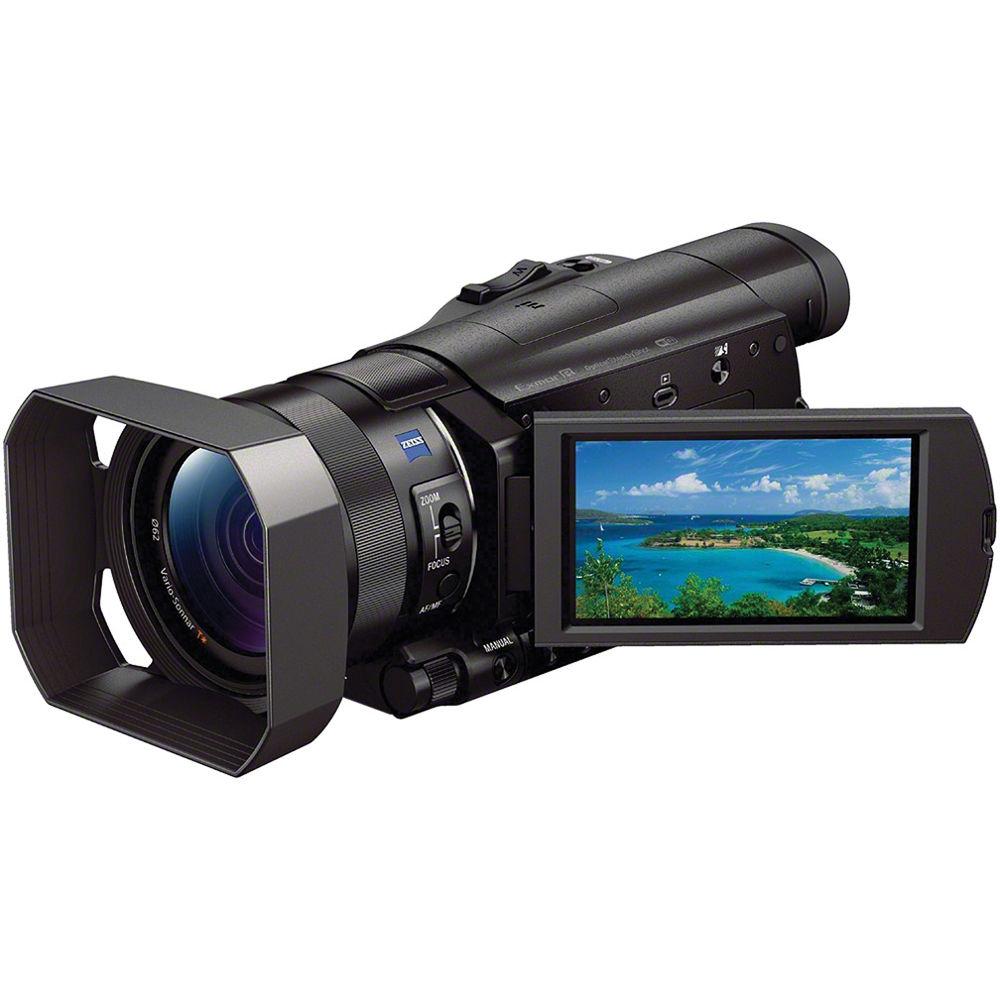

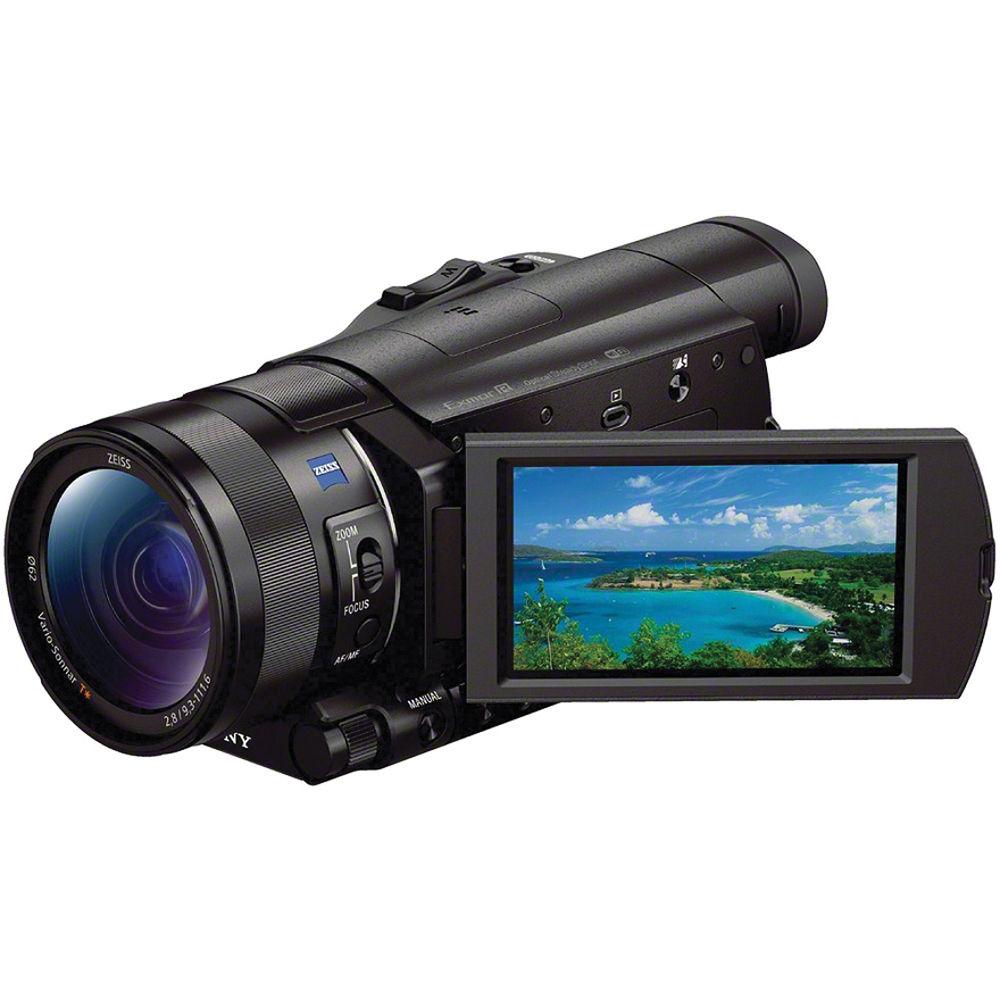

User Manual for Sony FDR-AX100 4K Ultra HD Camcorder Click to enlarge the picture
Contents of the user manual for the Sony FDR-AX100 4K Ultra HD Camcorder
- Product category: Consumer Camcorders Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Consumer Camcorders
|
User manual for the Sony FDR-AX100 4K Ultra HD Camcorder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description Sony FDR-AX100 4K Handycam Read More The black Sony FDR-AX100 Full HD Camcorder brings Ultra HD 4K video to the palm of your hand, delivering resolution four times that of Full HD. The 1" Exmor R CMOS sensor is approximately 8x larger than that of typical camcorders, allowing you to capture cinematic images with shallow depth of field for defocused backgrounds. The camcorder features a wide-angle Zeiss Vario-Sonnar T* lens with 12x optical zoom plus 24x Clear Image digital zoom. Optical SteadyShot image stabilization with Active Mode delivers smooth video, and 3-Way-Shake-Canceling adds electronic roll stability for even smoother results. The FDR-AX100 is a versatile camcorder that lets you capture UHD 4K 3840 x 2160 video at 24 and 30 fps. You can also record Full HD 1920 x 1080 video in XAVC S, AVCHD, or web-optimized MP4, as well as take high-quality 20MP still images. Media is recorded to SD or Memory Stick Duo memory cards. For X-AVC S recording, SDXC Class 10 cards are required. Frame your shots using either the large 3.5" XtraFine LCD touchscreen or with the high-contrast 0.39" OLED EVF. For connectivity, the camcorder provides a USB 2.0 port, micro-HDMI output, and a composite video output. Built-in Wi-Fi and NFC support lets you use your smartphone or tablet to control the camera, as well as wirelessly transfer files to your mobile device for sharing and back up data on your computer. A rechargeable lithium-ion battery pack, AC adapter, power cord, micro-HDMI cable, and a USB connection support cable come included. Also included are a lens hood, lens cap, and an RMT-835 Remote Commander with battery. - Capture 4K Ultra HD Video
- Capture the finest details in UHD 4K 3840 x 2160 resolution. This camcorder allows incredibly high resolution to produce vibrant and realistic images. In addition, the fast image processor is the same one employed in professional Sony camcorder models, making it possible to record 60p movies at Full HD resolution for incredibly smooth and sharp playback with no loss in realism, even when panning the camera and shooting moving subjects.
- 1" Exmor CMOS Sensor
- The camcorder features Sony's first 1.0" Exmor R CMOS sensor. The back-illuminated technology improves low-light sensitivity and combines with Sony's Column A/D Conversion to reduce noise by 50%. This is great when shooting in dimly lit environments such as night landscapes or indoor scenes.
- 20MP Still Images
- Capture high-quality 20MP still images, as well as 14.2MP (16:9) and 15MP (4:3) images. You can also take 2.1MP images while recording video.
- Versatile Shooting with XAVC S, AVCHD, and MP4 Codecs
- The FDR-AX100 records Full HD movies in the XAVC S format, which uses MPEG-4 AVC/H.264 codec for compression while saving files in a MP4 wrapper. The highly compressed files allow for longer record times. The camcorder also records in AVCHD, providing high-quality video for HDTV playback and Blu-ray disc burning. Additionally, the camcorder can shoot MP4 HD video, which is ideal for sharing over the internet at up to 28 Mb/s. Having the ability to switch between all three of three formats makes this camcorder a versatile tool content creation. For the greatest flexibility, you can even record AVCHD and MP4 formats simultaneously.
- New Firmware 3.00 Options
- With the recent firmware upgrade, free to camera owners with firmware below 3.00, the camera can now record 4K at 100 Mb/s when recording 4K video with the XAVC S codec. Please note that an SDXC UHS-I U3 or higher card is required for 4K 100 Mb/s recording. The firmware update also brings to the camera the ability to capture images from XAVC S movie, adjustable trimming frame size when using the Trimming Playback function with XAVC S 4K movies, and improved autofocus performance when tracking a person.
- Carl Zeiss Vario-Sonnar T* Lens with 12x Optical Zoom
- The FDR-AX100 comes equipped with a Carl Zeiss Vario-Sonnar T* lens. It features a wide 35mm-equivalent focal length of 29mm, making it suitable for capturing landscapes, as well as 12x optical zoom and 24x Clear Image zoom for getting close to the action.
- BIONZ X Processor Enables High-Speed 120 fps Recording
- The BIONZ X Image processor enables the camcorder to create more naturally vivid and lifelike images with higher resolutions. Detail reproduction technology optimally filters edges and textures differently depending on the scene. It also features area-specific noise reduction which swiftly and efficiently analyzes the subject and reduces noise. The image processor also allows you to record at 120 fps for slow-motion playback at 1/5th the speed when played back at 24 fps after post-processing.
- Optical SteadyShot Image Stabilization with Active Mode
- Optical SteadyShot Image Stabilization with Intelligent Active Mode is an advanced optical Image stabilization technology that corrects camera shake to capture scenes with smoothness and stability. Intelligent Active Mode analyzes video frames and provides compensation with assistance from the BIONZ X image processing engine. Whether recording movies while walking or zooming, you can capture scenes with a higher level of stability.
- High-Contrast 0.39" OLED EVF
- The FDR-AX100 provides a high-contrast 0.39" OLED Tru-Finder EVF which reproduces rich color and deep blacks. The optical design of the EVF utilizes four dual-surface aspherical lenses, allowing for a 33° wide viewing angle that is clear from edge to edge of the viewfinder.
- Large 3.5" Xtra Fine LCD
- The 3.5" Xtra Fine LCD screen features a 16:9 aspect ratio and a 921K dot resolution, delivering sharp, bright, and vivid images. The large screen allows you to compose your shots more easily, even when outdoors.
- Simple Connectivity to Smartphones via Wi-Fi/NFC
- Built-in Wi-Fi/NFC support enables easy connectivity with smartphones for one-touch sharing and one-touch remote control. NFC (near field communication) provides "touch connection" convenience when transferring images to Android smartphones and tablets. You simply touch your NFC-compatible device to the camcorder to establish a connection.
- Multi Interface Accessory Shoe
- Expand photographic and movie shooting possibilities by attaching optional accessories via the Multi Interface Shoe. Attach an electronic viewfinder, external flash, stereo microphone, or even a compatible remote control via the Multi Interface terminal.
- Additional Features
-
- Supports SD/SDHC/SDXC and Memory Stick XC-HG Duo / PRO Duo (Mark 2) memory cards
- SDXC Class 10 cards are required for UHD 4K and HD X-AVC S formats
- Built-in ND filters: Off, 1/4, 1/16, 1/64
- Manual focus assist: magnified display, peaking, and tracking focus
- Built-in speaker (monaural)
- Premium Closer Voice
- My Voice Cancelling
- 7 picture effects for video and photos
- Low Lux mode
- Manual iris control
- Self-timer
- Red-eye reduction
- Black/white fader effects
- Face detection
- CinemaTone gamma/color
- NightShot infrared system
- Airplane mode
UPC: 027242877542 In the Box Sony FDR-AX100 4K Ultra HD Camcorder NP-FV70 V-Series Rechargeable Battery Pack (1960mAh, 6.8-8.4V) AC-L200 AC Adapter for Handycam Using A/P/F-Series InfoLITHIUM Batteries Power Cord Micro-HDMI Cable USB Connection Support Cable RMT-835 Remote Commander CR2025 Battery for Remote Commander Lens Hood Lens Cap Limited 1-Year Warranty on Parts Limited 90-Day Warranty on Labor User Manual PDF 813.8kb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony FDR-AX100 4K Ultra HD Camcorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony FDR-AX100 Specs | Sensor | 1 x 1" Back-illuminated Exmor R CMOS Sensor | Processor | BIONZ X | Color Filter System | RGB | Pixel Gross | Approx. 20.9 Million Pixels | | Lens Type | Carl Zeiss Vario-Sonnar T* | 35mm Equivalent Focal Length | 29 to 348mm | Maximum Aperture | 2.8 to 4.5 mm | Aperture Blade | 7 Blades | Minimum Focus Distance | Wide: 0.4" (1.0 cm) Telephoto: 39.4" (100.0 cm) | Zoom | Optical: 12x Clear Zoom: 18x (4K), 24x (HD) Digital: 160x | Filter Size | 62 mm | ND Filters | OFF, 1/4, 1/16, 1/64 | | System | NTSC | Recording Media | Memory Stick Pro Duo (Mark 2) Memory Stick XC-HG Duo SD/SDHC/SDXC: Class 4 or Higher; Class 10+ SDXC Card Required for Recording XAVC S SDXC UHS-1 U3 or Higher Card Required for 4K 100 Mb/s Recording | Video Format | XAVC S 3840 x 2160p at 24/30 fps (100, 60 Mb/s) 1920 x 1080p at 24/30/60 fps (50 Mb/s) AVCHD 1920 x 1080p at 24/60 fps (28, 24, 17 Mb/s) 1920 x 1080i at 60 fps (24, 17 Mb/s) 1440 x 1080i at 60 fps (9, 5 Mb/s) MP4 1280 x 720p at 30 fps (3 Mb/s) | Aspect Ratio | 16:9 4:3 | Slow Motion | 120 fps | Still Image Resolution | Max Effective Resolution: 20 MP JPEG: 14.1 MP, 5024 x 2824 (16:9) JPEG: 15 MP, 4464 x 3352 (4:3) | Microphone | Built-In Zoom Microphone (Stereo) | Audio Format | MPEG-4 Linear PCM 2-Ch 48 kHz/16-Bit (XAVC S 4K Only) Dolby Digital 2-Ch Dolby Digital 5.1-Ch Dolby Digital 5.1 Creator (AVCHD Only) Dolby Stereo Creator (AVCHD Only) | Microphone Level Control | 31 Steps | | Display Type | LCD | Touchscreen | Yes | Screen Size (Diagonal) | 3.5" / 8.9 cm | Pixel Count | 921,000 | Aspect Ratio | 16:9 | Rotation | Opening Angle: 90° Turning Angle: 270° | | Screen Size (Diagonal) | 0.39" / 0.99 cm | | Image Stabilization | Optical SteadyShot with Active Mode (Wide to Tele) | Shutter Speed | Not Specified by Manufacturer | White Balance Modes | Auto Indoor Kelvin Temperature Onepush Outdoors | Creative Effects | Yes | Built-in Mic | Yes | Built-in Speaker | Yes, Monaural | Wi-Fi | 802.11b/g/n | NFC | Yes | Accessory Shoe | 1 x Multi Interface Shoe | Manual Controls | Assignable Dial: Exposure AE Shift WB Temperature WB B-A WB G-M Set | Tripod Mount | 1/4"-20 | | Inputs | 1 x 3.5 mm Stereo Input Jack | Outputs | 1x Micro-HDMI (Type-D) 1x Composite Video (Out) 1x USB 2.0 1x BRAVIA Sync 1x 3.5 mm Stereo Output Jack | Microphone Input | Yes | Headphone Jack | Yes | | Languages | Brazilian Portuguese Canadian French English Spanish | Battery | NP-FV70 Rechargeable Lithium-Ion Battery Pack 6.8 to 7.2 VDC 1960 mAh | Charging Method | AC Adapter USB | Power Adapter | 5.0 VDC | Dimensions | 3.5 x 3.3 x 8.8" / 9.0 x 8.4 x 22.4 cm | Weight | Approx. 32.3 oz / 915 g (With NP-FV70 Battery) | | Package Weight | 3.55 lb | Box Dimensions (LxWxH) | 9.6 x 6.7 x 5.5" |
