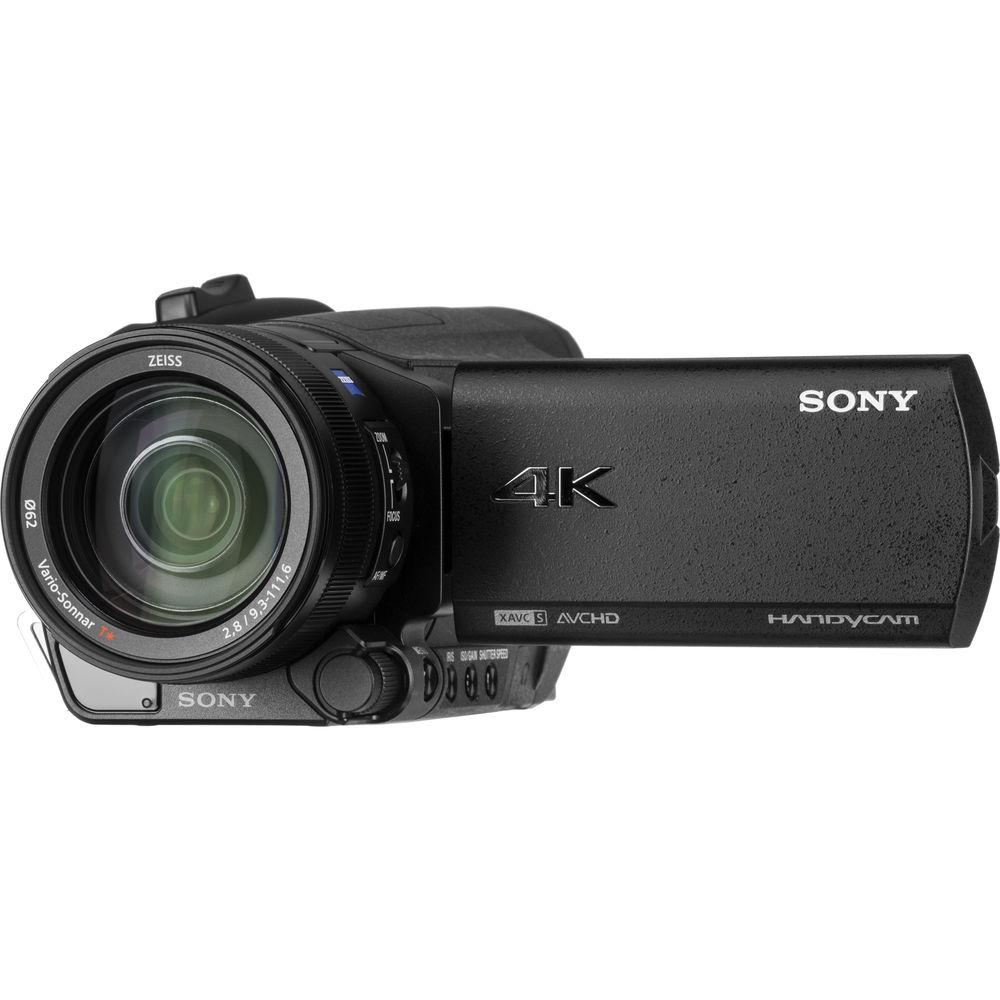

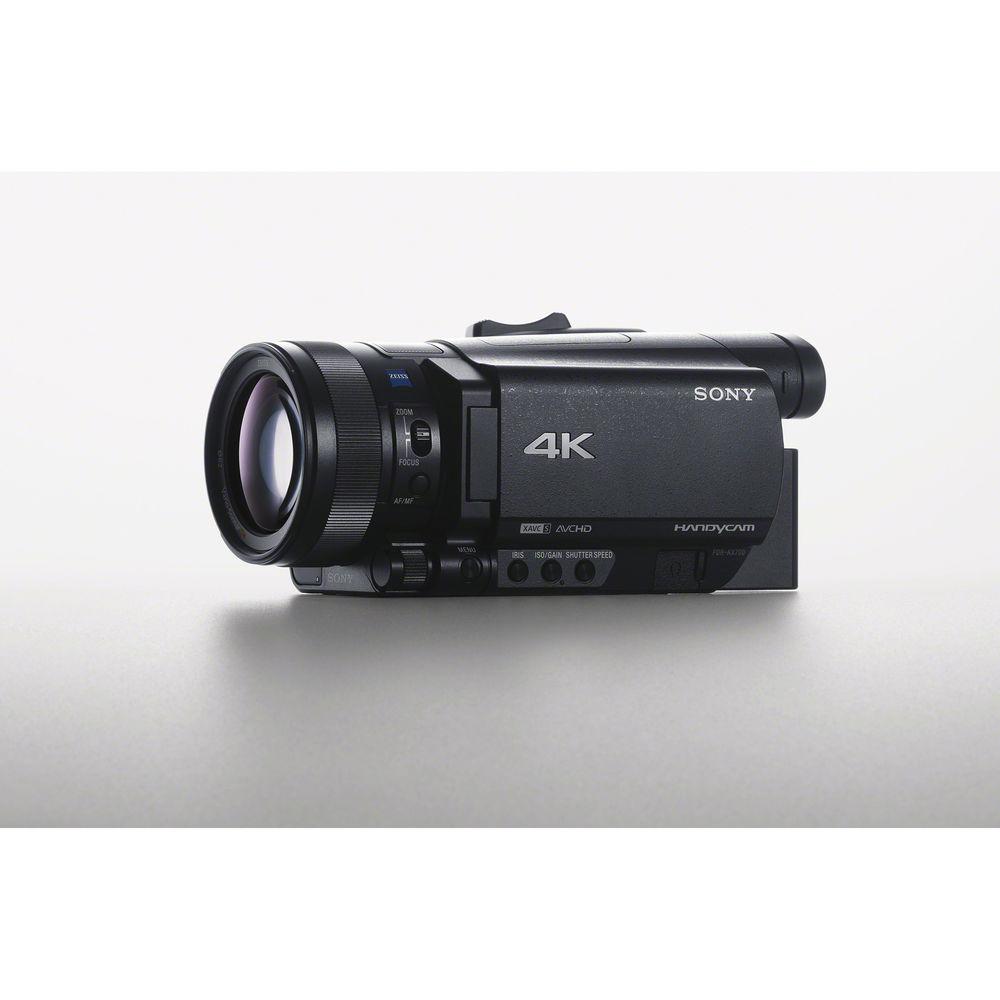

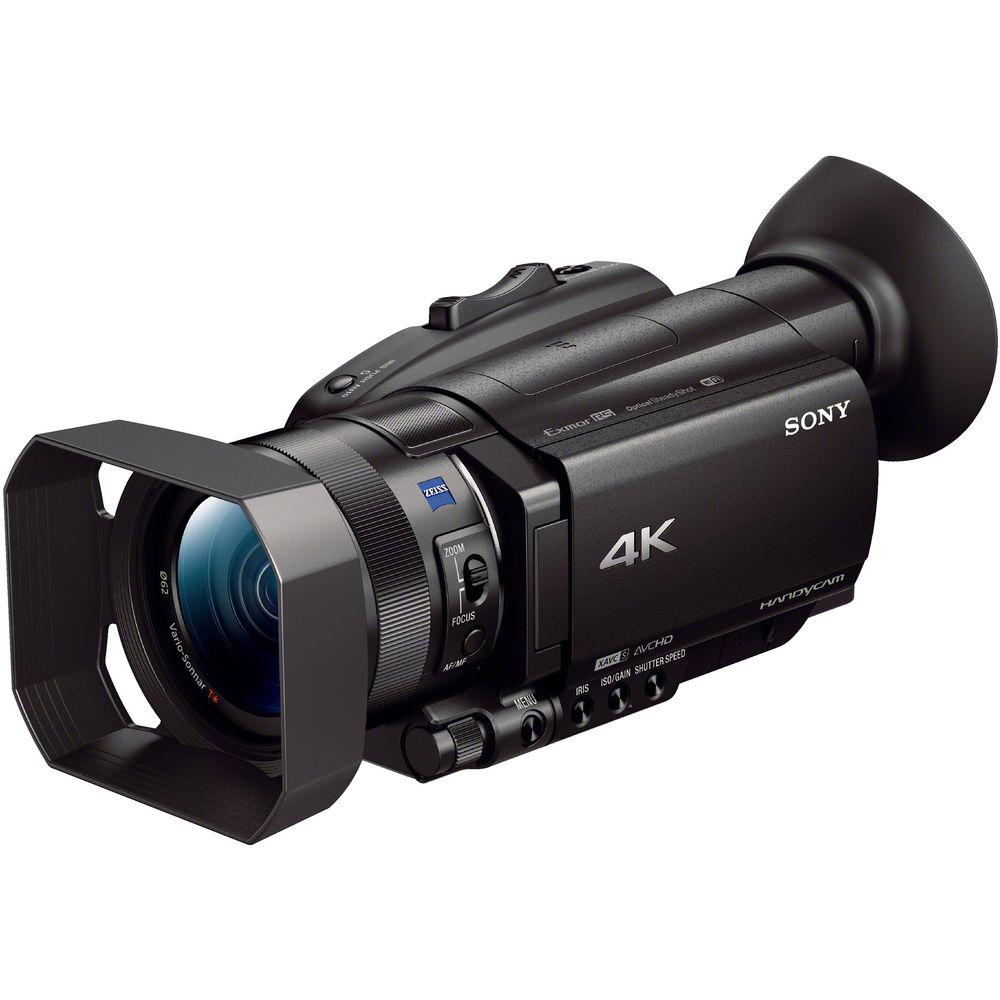

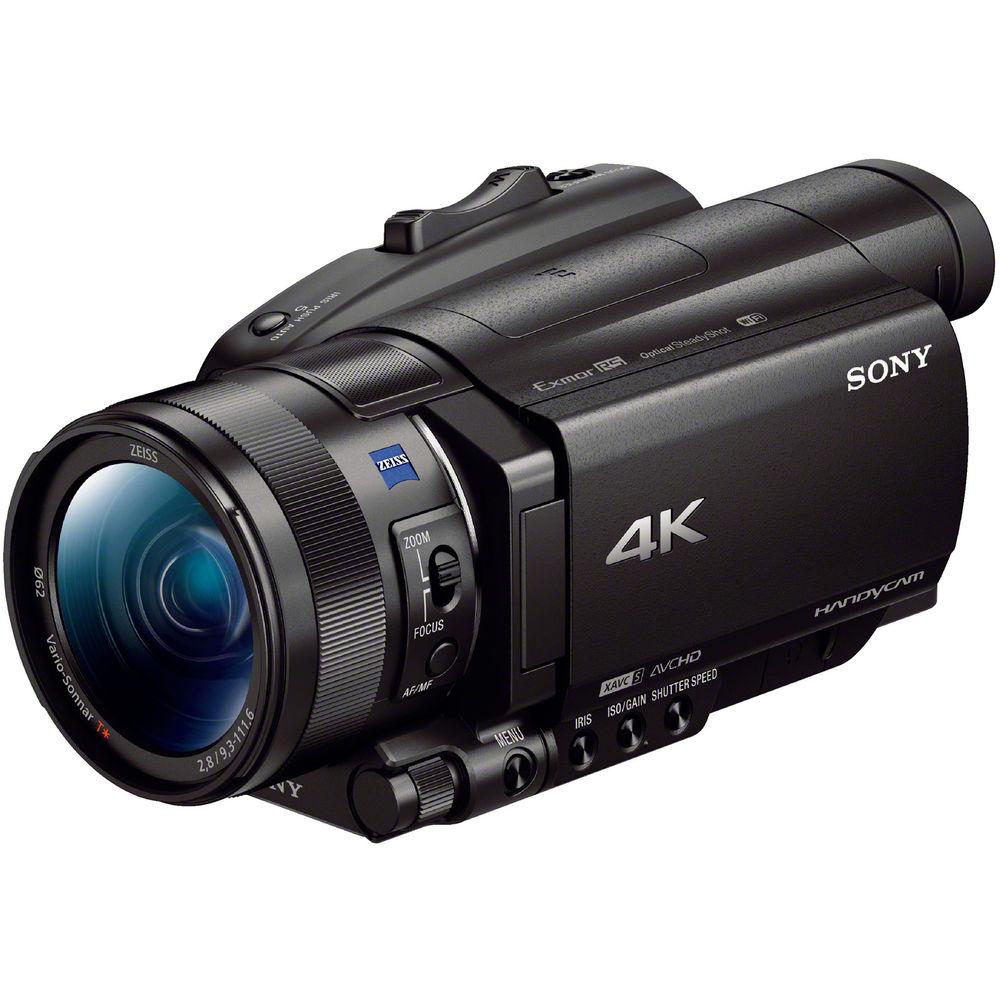

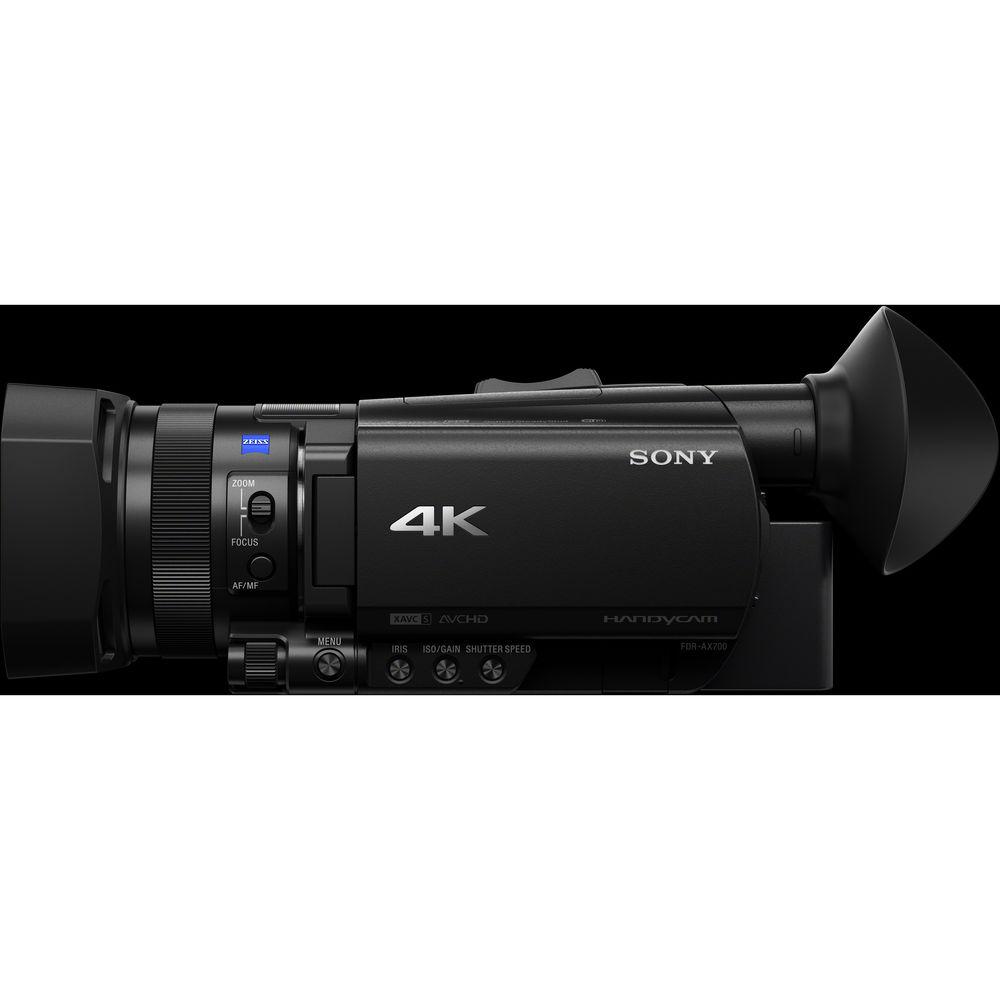

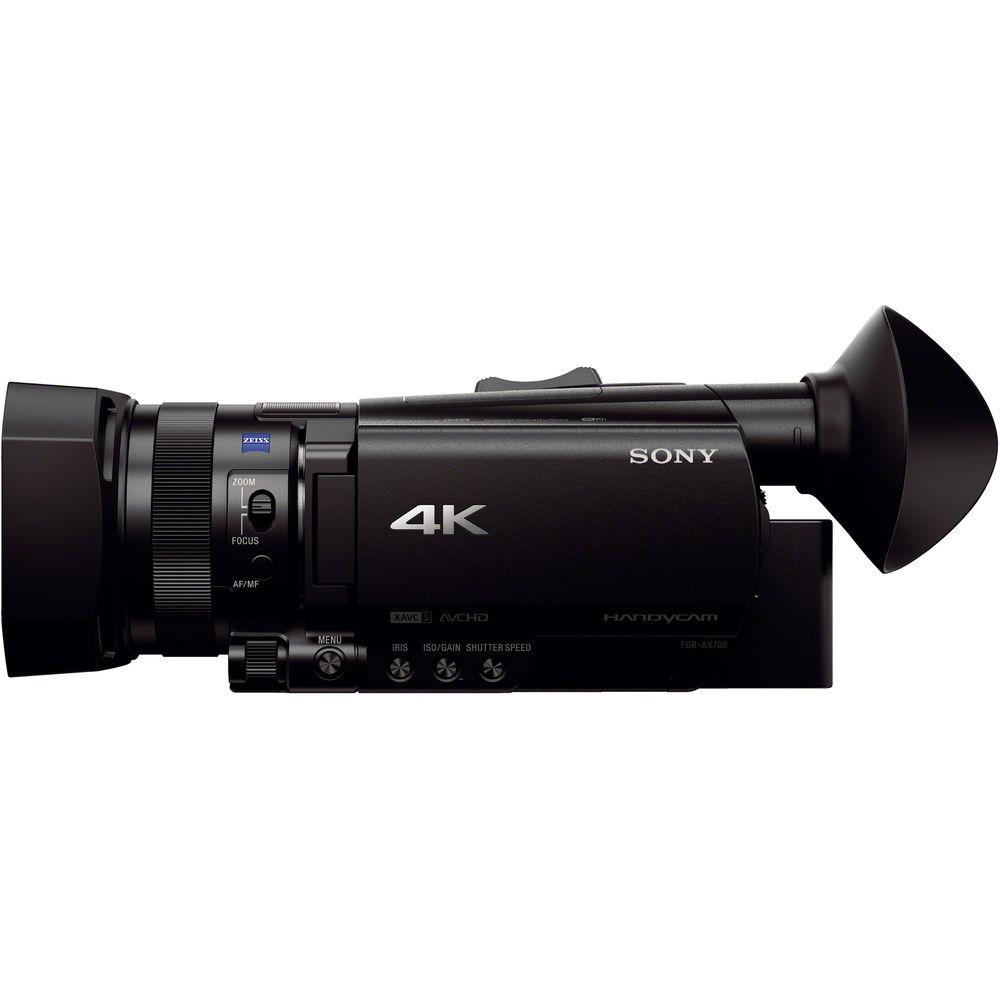

User Manual for Sony FDR-AX700 4K Camcorder Click to enlarge the picture
Contents of the user manual for the Sony FDR-AX700 4K Camcorder
- Product category: Consumer Camcorders Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Consumer Camcorders
|
User manual for the Sony FDR-AX700 4K Camcorder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description Sony Unveils New 4K 1" Sensor Camcorders with Phase Detection AF Read More 4K and HDR are now available in an easy-to-use camcorder format with the Sony FDR-AX700 4K Camcorder. Using the HLG format, HDR (High Dynamic Range) images can be recorded and processed for playback on HDR screens. Compared to SDR (Standard Dynamic Range) formats, HDR offers increased color and contrast representation that is immediately noticeable. Dual SD card slots, an LCD and viewfinder, manual controls, a 12x zoom range, and a comfortable form factor make the AX700 an all-around camera for anything from family events to professional filmmaking and videography. 4K recording has made focusing more difficult. Missed focus becomes exponentially more obvious with the increase in resolution over HD formats. Sony's phase detection autofocus uses 273 points to lock onto and track subjects as they move through the frame. Focus speed and tracking can be adjusted to fit your project. So, whether you're tracking fast-moving vehicles or actors moving through the frame, the AX700 will be able to keep up and maintain sharp focus. For more advanced users, Sony included S-Log2 and S-Log3 picture profiles alongside their S-Gamut color space. Enabling this functionality grants you greater control over the final image through post-production processing. Recording - 4K HDR Video Recording
- Recording in HDR using Hybrid-Log Gamma (HLG) enables you to record and display wider ranges of exposure and color than normally available in SDR media. Without extra processing, HDR recordings can be enjoyed by simply connecting the camera to an HLG-compatible Sony TV using a USB cable.
- XAVC S Recording Format
- The XAVC S format is used for 4K and HD recording. Bit rates of up to 100 Mb/s for 4K, and 50 Mb/s for Full HD recording, ensure detailed video with minimal compression noise. 100 Mb/s recording is also available at 120 fps in Full HD, so high-quality slow-motion sequences can be created during post-processing.
- Proxy Recording
- Speed up your editing and delivery with the option of onboard proxy recording. Lower-resolution proxy files are captured alongside full-resolution 4K video, for easy sharing and online collaboration, as well as more efficient editing on under-powered computers. When you're ready, simply substitute the proxy files with the full-resolution ones to finalize your video.
- Slow and Quick Motion
- Enjoy creative ways to express time's passage. The Super Slow Motion and Slow & Quick Motion let you capture motion in the blink of an eye, at up to 960 fps in NTSC or 1000 fps in PAL (40x super slow motion), or in compelling time-lapse sequences, captured at 1 fps for playback at up to 60x natural speed.
- S-Gamut and S-Log Picture Profiles
- S-Gamut and S-Log shooting gives you more flexibility to custom-tailor your images by performing color grading in post-production. S-Log3 and S-Log2 gamma provide wide dynamic range shooting (1300%), to minimize blown highlights and crushed blacks. While exposure may be more difficult to judge off the LCD and EVF, exposure zebras are available, indicating areas of overexposure using clear stripes on the image preview. An adjustable level lets you accurately dial in the ideal exposure for everything from skin tones to sunlit landscapes.
- Timecode / User Bit
- For professional workflows and multicamera editing requirements, standard SMPTE Timecode and User Bit can be included with your recordings. With embedded timecode, synchronizing multiple cameras for editing is incredibly simple, while custom eight-digit User Bit codes allow fast indexing and media management on larger projects.
Phase-Detection Autofocus - Wide Coverage
- Up to 273 phase-detection focus points cover over 80% of the entire image area. This makes autofocus coverage widespread and dense enough to quickly capture subjects, such as fast-moving ones that are otherwise difficult to focus on.
- Focus Tracking
- Easily keep track of your focus areas with phase-detection AF frames around in-focus subjects. Switching between focus points is seamless as well, with a simple touch on the screen to select a new focus target.Five levels of AF Subject Switching Sensitivity are available. The Responsive setting allows the camera to switch quickly among multiple subjects or focus points, while the Locked-On setting favors a single subject.
- Adjustable Tracking Depth Range
- Select an AF tracking depth configuration within a range from "1" to "5"—from the narrowest setting for relatively little movement, to the widest setting for relatively dynamic movement. This lets you take advantage of specific ways to track subjects according to your expressive intentions, subject movement, and shooting conditions.
Features - Monitoring

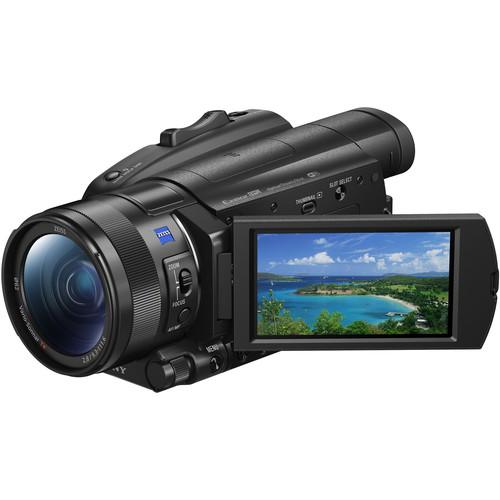

- The OLED electronic viewfinder allows for confident compositions. Its wide contrast and color reproduction help accurately represent the image to be recorded. The 3.5" touchscreen LCD panel provides a convenient way to monitor your compositions. Not only can the touch functionality be used for menu navigation, but focus points can be selected as well.
- Manual Lens Ring
- Using the switch on the side, the lens ring facilitates smooth and precise manual adjustment of either focus or zoom.
- Manual Dial
- The manual dial and buttons on the side of the body allow for swift, easy adjustment of iris (aperture), gain/ISO, and shutter speed.
- Built-In ND Filters
- Choose among Clear, 1/4, 1/16 and 1/64 Neutral Density filters to adjust the light level entering the lens. This gives video makers the freedom to precisely control shutter speed and aperture for greater creative possibilities. Utilize the ND filters outdoors to open up the lens and create out-of-focus backgrounds.

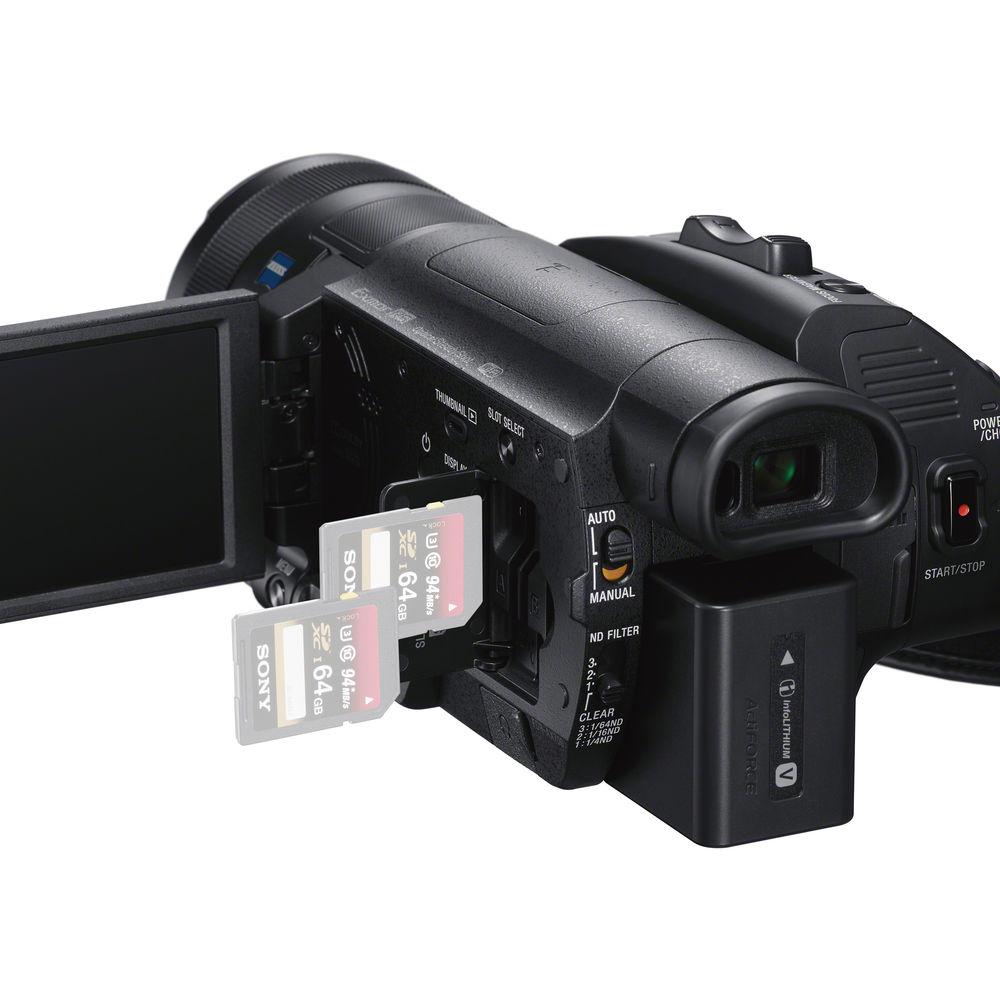

- Dual Memory Card Slots
- Dual slots for SD card and SD card/Memory Stick support, with both simultaneous and relay recording. Use relay mode where long recording sessions need to span across both cards; for critical recordings, the simultaneous recording mode provides a backup for improved flexibility in client and production workflows.
- LANC Port
- The built-in LANC port allows connection to a LANC-compatible accessory, so you can control the camcorder remotely.
- 4K HDMI Output
- Send clean 4K video to external monitors and even off-board recorders, or simply enjoy your recordings on a TV, with the HDMI output. The full-size (Type-A) HDMI terminal provides a more secure connection than commonly-found Mini or micro-HDMI terminals.

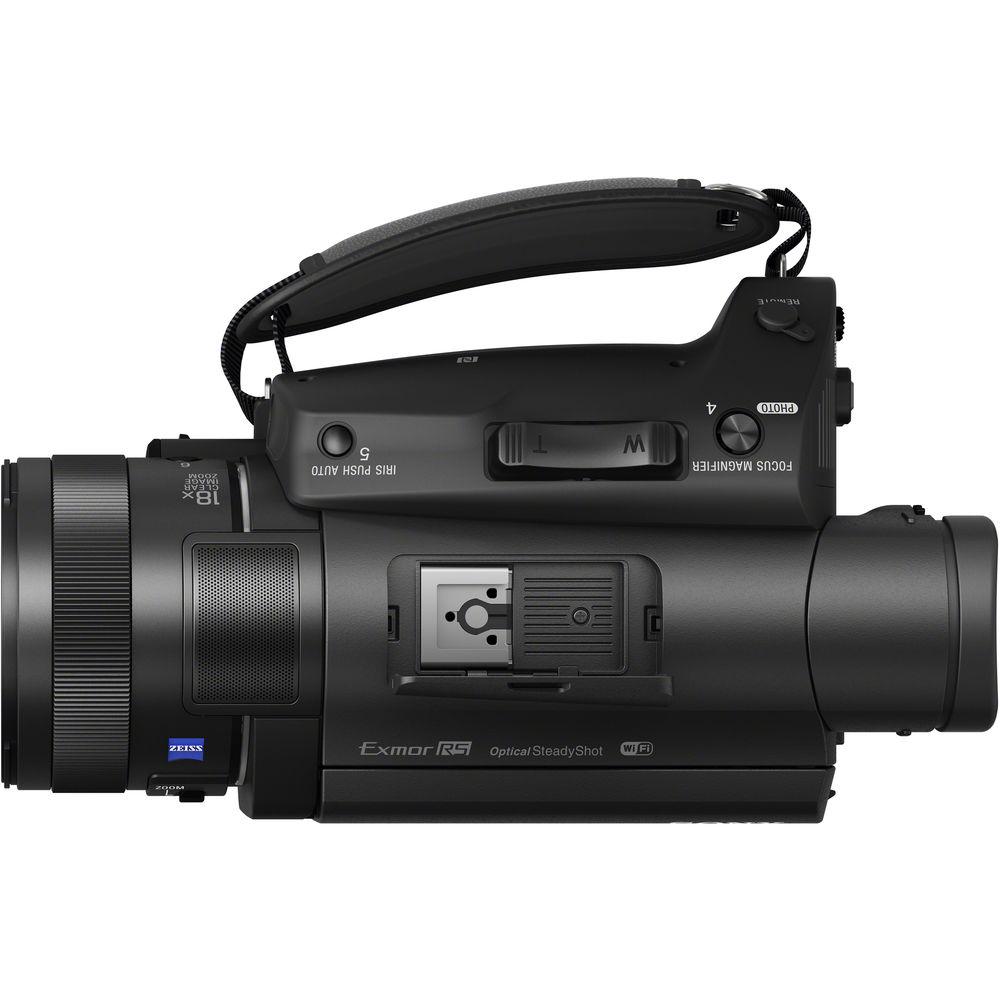

- MI (Multi Interface) Accessory Shoe
- The MI Shoe is compatible with various general-purpose accessories, and further expands the camcorder's shooting capabilities in a range of situations.
UPC: 027242908475 In the Box Sony FDR-AX700 4K Camcorder NP-FV70A V-Series Battery Pack for Handycam Camcorders (1900mAh) AC Adapter with Power Cord Remote Control with Battery Lens Hood Lens Cap Large Eyecup Limited 1-Year Warranty User Guide PDF 4.1mb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony FDR-AX700 4K Camcorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony FDR-AX700 Specs | Sensor | 1-Chip 1" CMOS | Effective Pixels | 14.2 MP (16:9 Video) 14.2 MP (16:9 Photo) 12 MP (3:2 Photo) | | Focal Length | 9.3 to 111.6mm | 35mm-Equivalent Focal Length | 29 to 348 at 16:9 (Video/Photo) 32.8 to 393.6 at 3:2 (Photo) | Maximum Aperture | f/2.8 - f/4.5 | Minimum Focusing Distance | 0.4" / 1.0 cm | Zoom | Optical: 12x Clear Image Zoom: 18x 4K Clear Image Zoom: 24x (in HD) Digital: 192x | Filter Size | 62 mm | Built-In ND Filters | Clear, 1/4, 1/16, 1/64 | | System | NTSC/PAL | Recording Media | 1 x Memory Stick PRO Duo, Memory Stick PRO-HG Duo, Memory Stick XC-HG Duo, SD/SDHC/SDXC | Video Format | 3840 x 2160 at 24/25/30 fps (100, 60 Mb/s XAVC S) 1920 x 1080p at 100/120 fps (100, 60 Mb/s XAVC S) 1920 x 1080p at 24/25/30/50/60 fps (50, 16 Mb/s XAVC S) 1280 x 720 at 24/25/30/50/60 fps (9 Mb/s XAVC S) 640 x 360 at 24/25/30/50/60 fps (3 Mb/s XAVC S) 1920 x 1080i at 50/60 fps (24, 17 Mb/s AVCHD) 1440 x 1080i at 50/60 fps (5 Mb/s AVCHD) | Aspect Ratio | 16:9 | Still Image Resolution | JPEG: 14.2 Megapixel, 5042 x 2824 (16:9) JPEG: 12 Megapixel, 4240 x 2824 (3:2) | Channels | 2.0-Channel Stereo | Audio Format | AAC-LC Dolby Digital 2ch Dolby Digital AC3 LPCM | | Display Type | LCD | Touchscreen | Yes | Screen Size | 3.5" | Screen Resolution | 1,555,000 Dots | Aspect Ratio | 16:9 | Rotation | Opening Angle: 90° Turning Angle: 270° | | Screen Size | .39" | EVF Resolution | 2,359,296 Dots | | Shutter Speed | 1/8 - 1/10000 Second (Video) | Exposure Metering | Multi, Spot | Shooting Modes | Auto M (Manual) | Remote Control | RMT-835 (Included) | | Image Stabilization | Optical | Scene Modes | Preset: Yes | White Balance Modes | Auto Incandescent Manual Onepush Outdoors | Creative Effects | Yes | Built-In Mic | Yes | Built-In Speaker | Yes | Built-In Light/Flash | Light - No Flash - No | Wi-Fi | Yes, Wi-Fi 4 (802.11n) | Accessory Shoe | 1 x Multi Interface Shoe | | Inputs | 1 x 1/8" / 3.5 mm Stereo Microphone 1 x LANC Terminal | Outputs | 1 x Composite Video (Requires separately available cable) 1 x 1/8" / 3.5 mm Stereo Headphone 1 x HDMI Type A | Microphone Input | Yes | Headphone Jack | Yes | | Battery | Rechargeable Lithium-Ion Battery Pack | Charging Method | AC Adapter | Charging Time | 2.8 Hours | Power Consumption | In LCD Operation: 5.1 W In Viewfinder Operation: 4.8 W | Dimensions (W x H x D) | 4.6 x 3.5 x 7.7" / 116.0 x 89.5 x 196.5 mm (Body Only) | Weight | 2.06 lb / 935 g (With Eyecup and Lens Hood) | | Package Weight | 3.73 lb | Box Dimensions (LxWxH) | 9.55 x 7.0 x 6.95" |
Rating84% users recommend this product to others. And what about you?
This product has already been rated by 16 owners. Add your rating and experience with the product.
