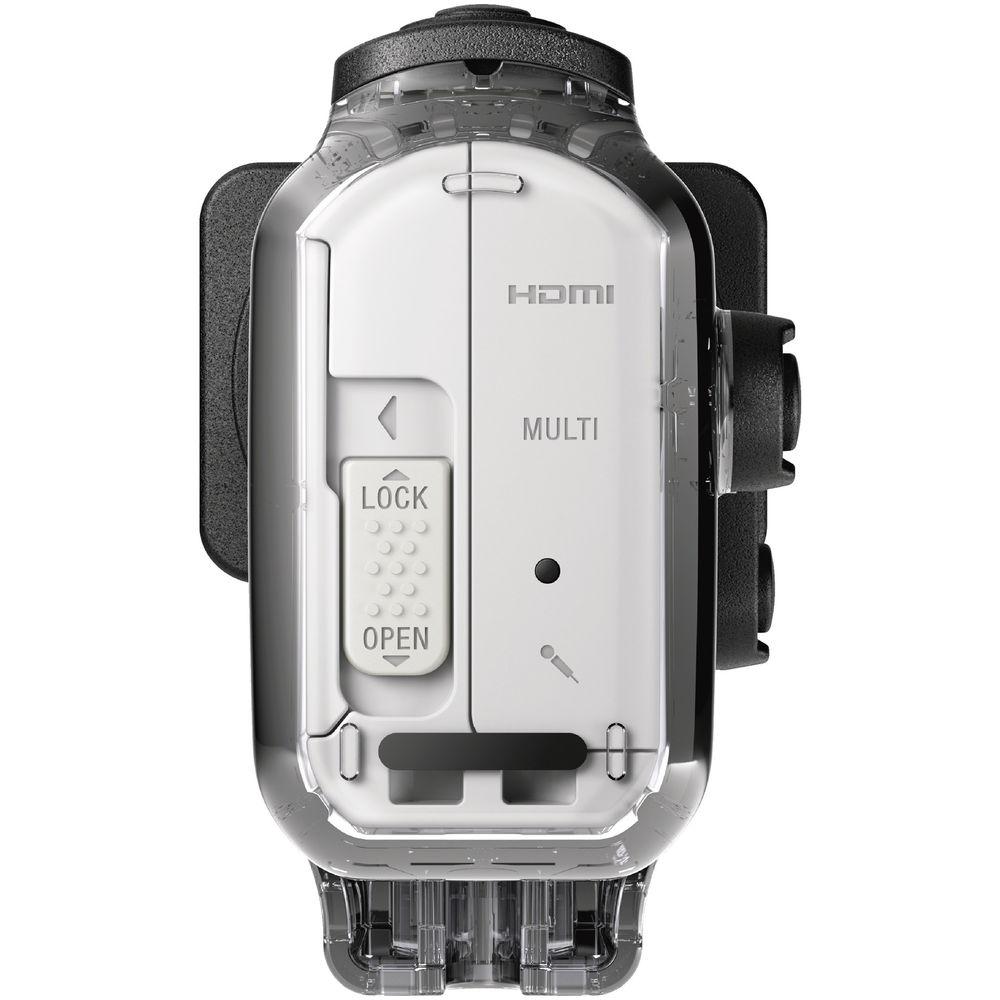

User Manual for Sony FDR-X3000 Action Camera Click to enlarge the picture
Contents of the user manual for the Sony FDR-X3000 Action Camera
- Product category: Sports & Action Cameras Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Sports & Action Cameras
 |
User manual for the Sony FDR-X3000 Action Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|

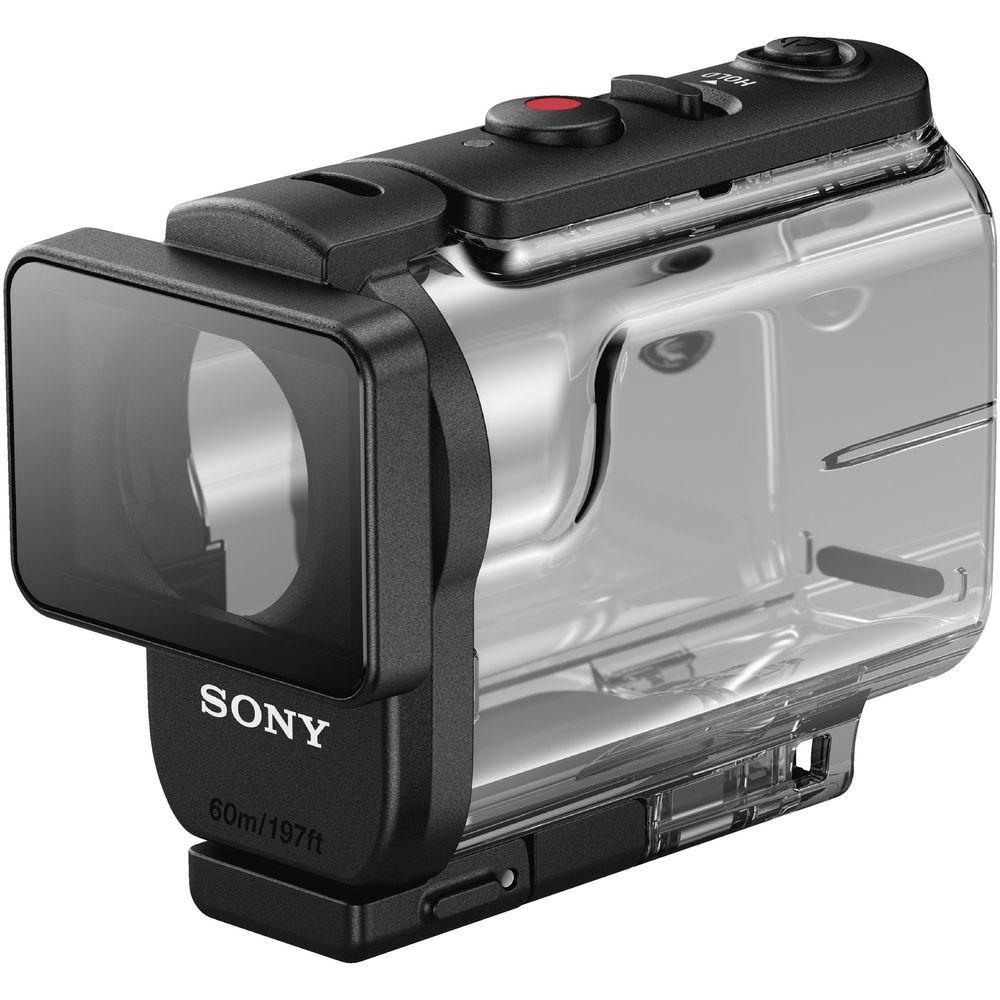

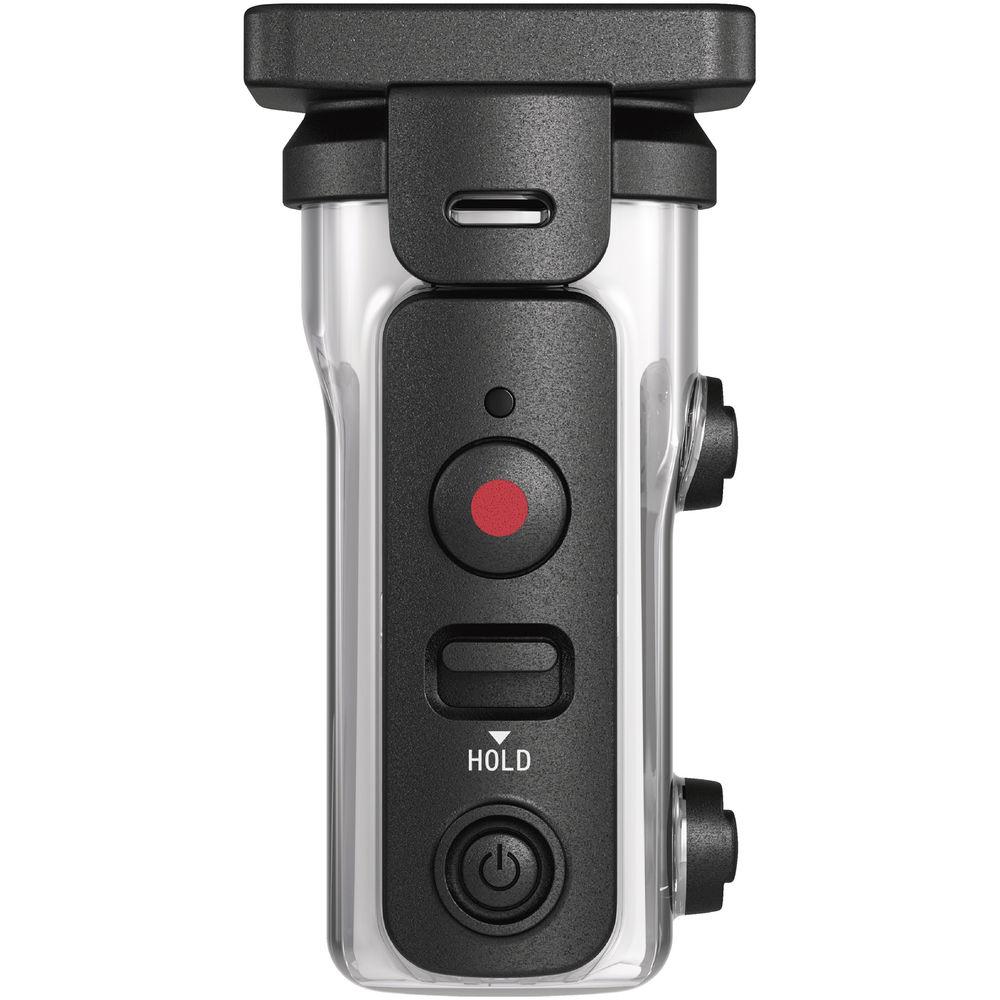

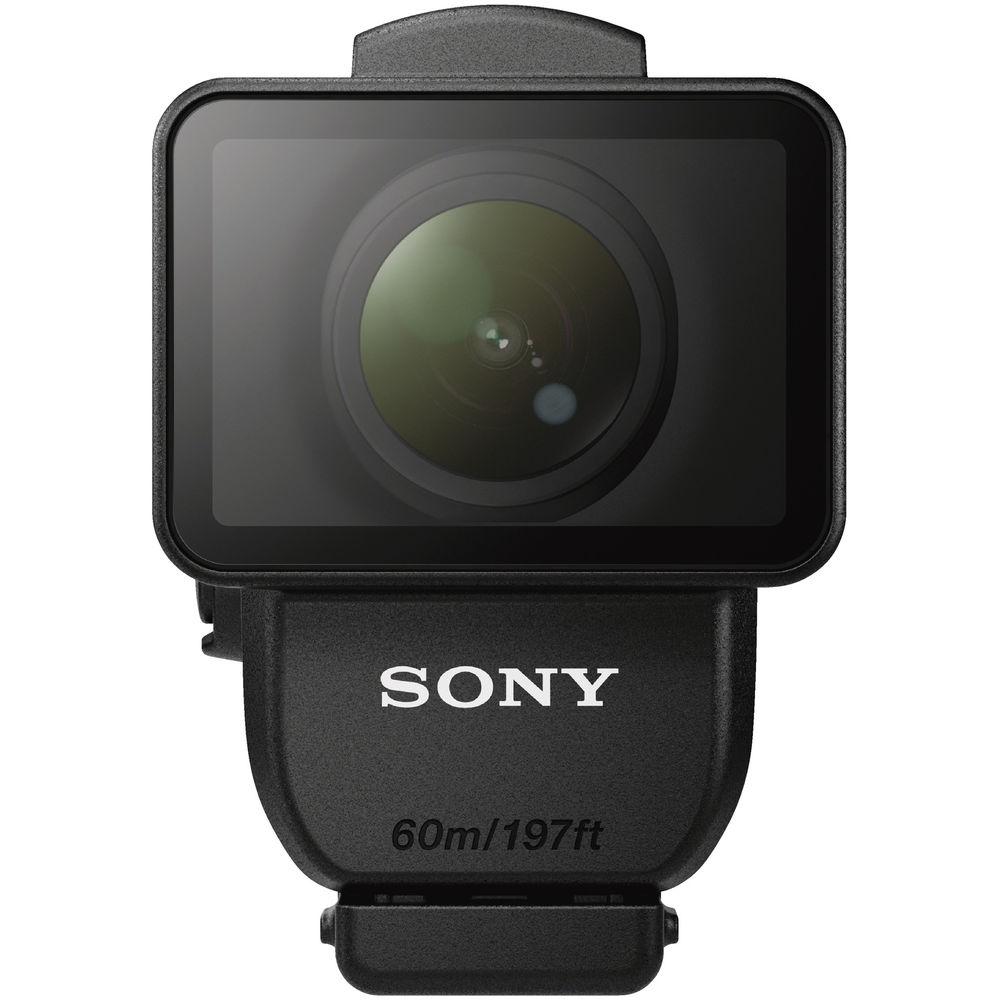

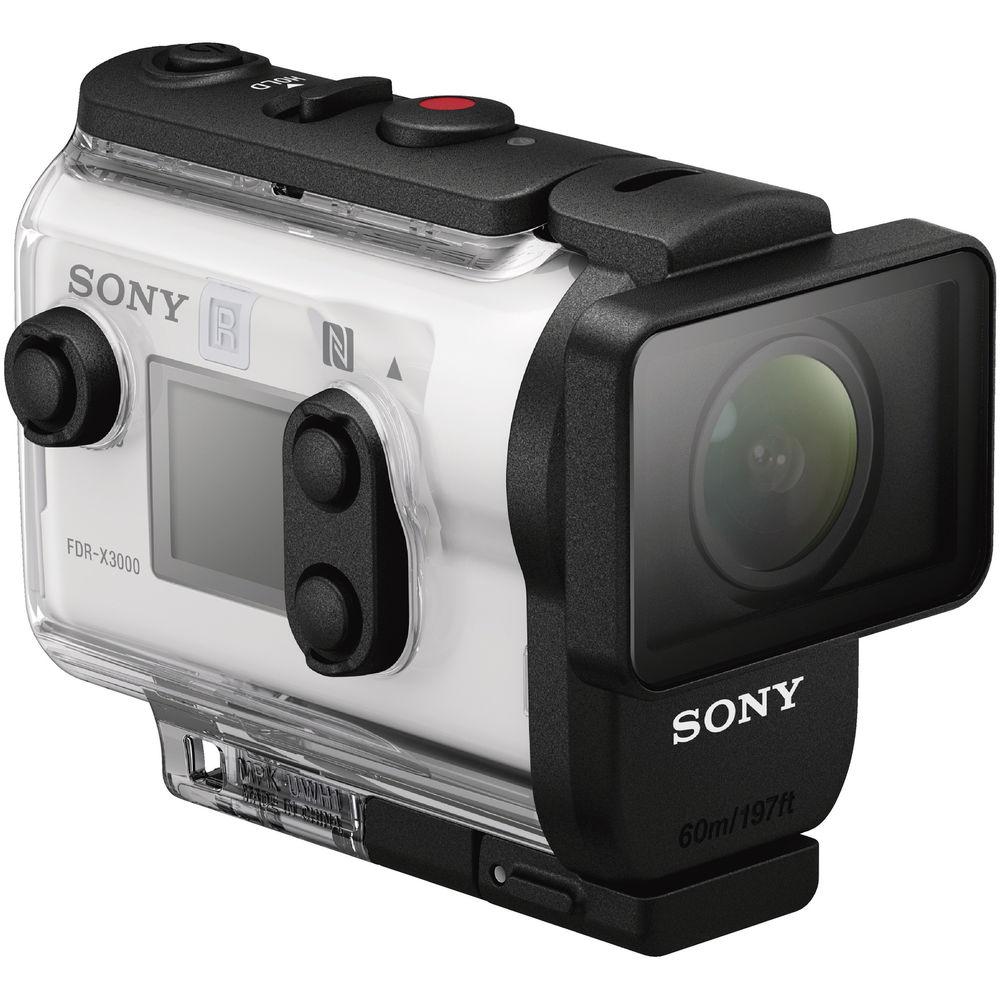

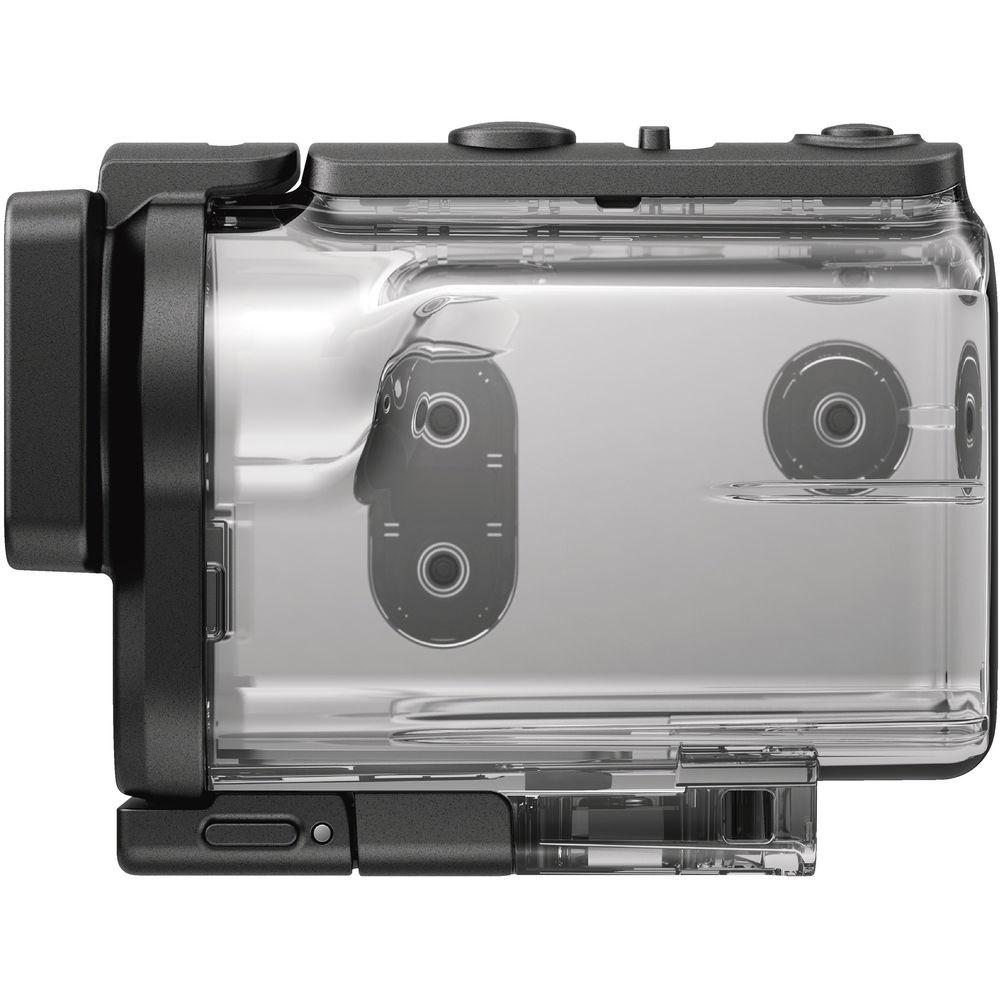

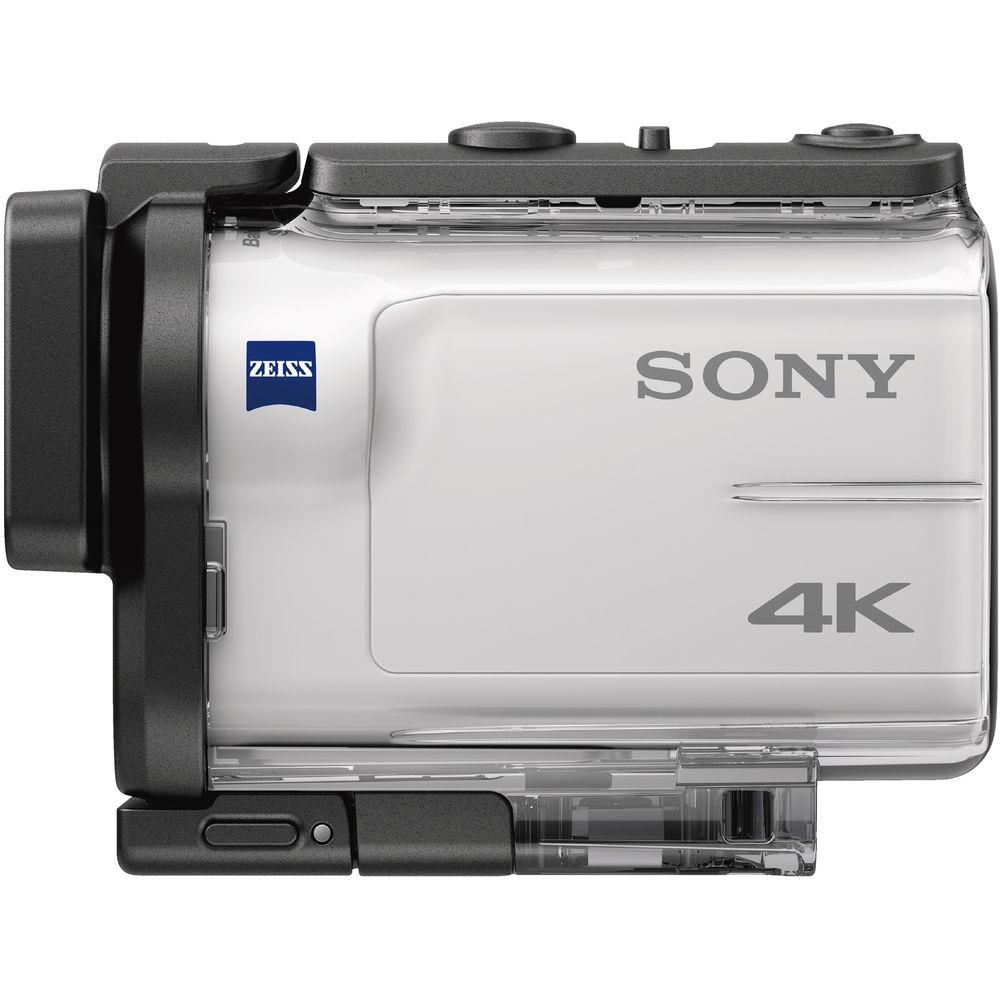

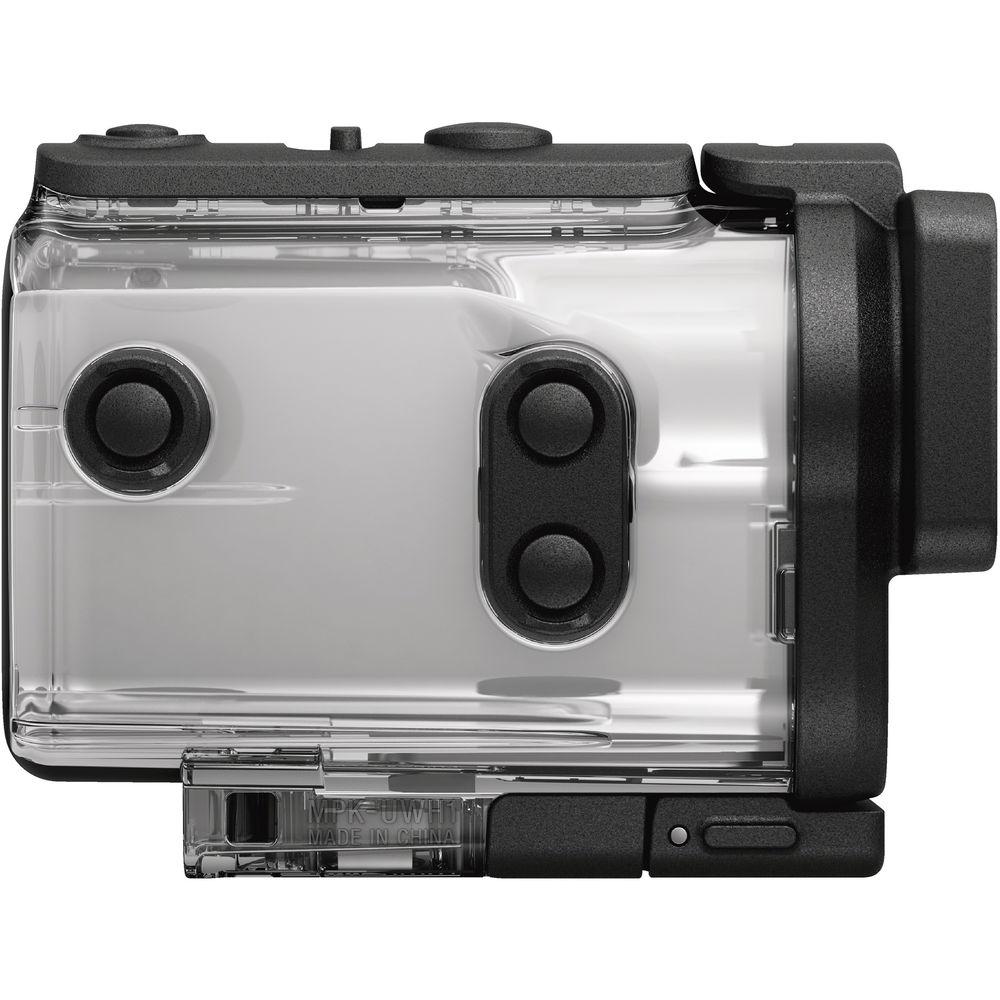

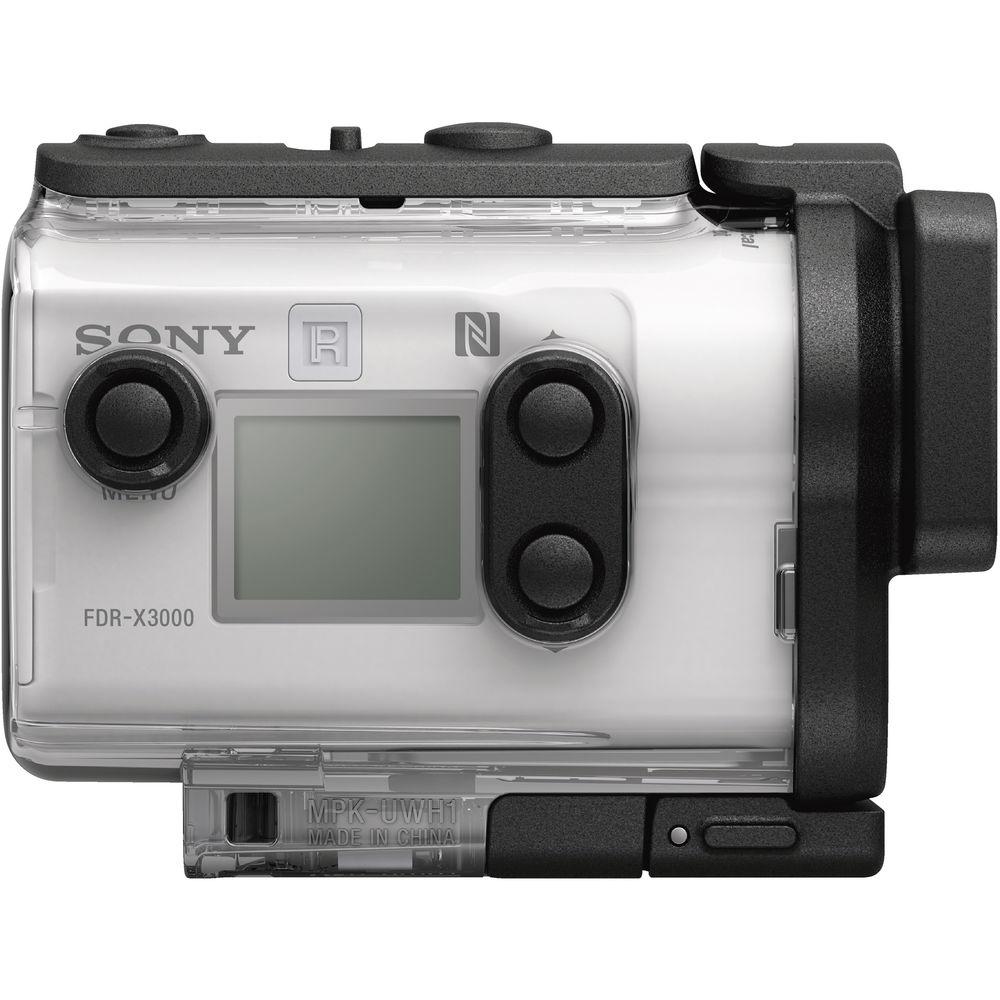

Product description Incorporating optical image stabilization and 4K recording, Sony's FDR-X3000 Action Camera produces sharp videos and still images with reduced motion artifacts from vibrations and other camera movement. The ultra-wide-angle lens opens up versatile framing options for recording your adventures, and the included underwater housing is watertight to 197', letting you plumb aquatic depths right out of the box. - 4K (3840 x 2160) Recording
- Using the XAVC S codec, the FDR-X3000 can record UltraHD resolution 4K (3840 x 2160) at 30p or 24p with bit-rates of 100 Mb/s or 60 Mb/s. Besides 4K, it can record Full HD 1080p at 50 Mb/s in XAVC S and up to 28 Mb/s in the higher-compressed MP4 mode
- High-Frame-Rate Recording
- Great for dramatic portrayal of action scenes, in 1080p and 720p resolutions, the FDR-X3000 is capable of recording high-frame-rate videos. Full HD 1080p video can be recorded up to 120fps, which offers a 1/4-speed playback at a smooth 30fps. Step down to 720p resolution for 240fps recordings for 1/4-speed playback at 60fps, or 1/8-speed playback at 30fps.
- Built-In Balanced Optical SteadyShot
- Originally formulated for Sony's HandyCam line, Balanced Optical SteadyShot (or B.O.S.S., for short) doesn't compromise on the camera's full recording capabilities. The lens itself moves to compensate for excess vibration in a shot, reducing motion artifacts and enabling smoother, sharper videos.
- Wi-Fi for Remote Monitoring and Operation
- With the PlayMemories Mobile (PMM) app, you can remotely control up to five Action Cams from a single mobile device. The app allows you to view a live feed from the camera, and the multi-view features means you can view up to five cameras at once, or just select one and view it in full screen. Controls available through the app include:
- Simultaneous shutter release
- Simultaneous recording start/stop
- Individual monitoring and setting
Individual shutter release - Individual recording start/stop
- Movie/still mode switching
- Changing exposure settings
- Start/stop time-lapse recording
- Play back and delete recorded clips
- Highlight Movie Maker
- So that you don't have to spend time editing, the Highlight Movie Maker automatically picks out what it deems to be the best moments, returning a self-contained MP4 movie for easy sharing and upload. The Highlight Movie Maker algorithm uses data from the gyro, scene color, smile detection, and other settings to identify the best moments in all of the footage you have amassed. You can even upload music from your computer to the Action Cam to add a custom sound track
- Stereo Microphone
- Unlike many action cameras, which have mono microphones, the FDR-X3000 features a built-in stereo mic to help make audio as immersive as the picture.
- Simple User Interface
- Selecting and changing features is a simple process with the simple and intuitive user interface. All menus are easily accessible on the integrated LCD screen. The camera can also be controlled as well as turned on or off via smartphone with the PlayMemories Mobile app.
UPC: 027242895775 In the Box Sony FDR-X3000 Action Camera Attachment Buckle NP-BX1/M8 Rechargeable Lithium-Ion Battery Pack (3.6V, 1240mAh) evwyyauquvszwzwvccbexv Micro USB Cable Underwater Housing for Select Action Cams Limited 1-Year Warranty User Manual PDF 1.1mb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony FDR-X3000 Action Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony FDR-X3000 Specs | | | Sensor | 1-Chip 1/2.5" CMOS | | Color Filter | RGB | | Sensor Resolution | 12 MP | | | | 35mm-Equivalent Focal Length | 17 Wide
23 Medium
32 Narrow | | Maximum Aperture | f/2.8 | | Minimum Focusing Distance | 20.0" / 50.0 cm | | | | System | NTSC | | Recording Media | x Memory Stick micro (Mark 2), microSD/HC/XC Memory Stick Micro must be Mark II; microSD card must be Class 4 or faster for MP4 recording and must be microSDXC Class 10 or faster for XAVC S recording | | Video Format | 1920 x 1080p at 100/120 fps (100 Mb/s XAVC S)
1920 x 1080p at 24 fps (60 Mb/s XAVC S)
1920 x 1080p at 50/60 fps (28 Mb/s MP4)
800 x 480p at 200/240 fps (28 Mb/s MP4)
1280 x 720p at 25/30 fps (6 Mb/s MP4)
1280 x 720p at 200/240 fps (100 Mb/s XAVC S)
3840 x 2160 at 24/25/30 fps (100 Mb/s XAVC S)
1280 x 720p at 100/120 fps (28 Mb/s MP4)
1920 x 1080p at 24/25/30/50/60 fps (50 Mb/s XAVC S)
1920 x 1080p at 25/30 fps (16 Mb/s MP4) | | Aspect Ratio | 16:9 | | Still Image Resolution | JPEG: 12 Megapixel, 4624 x 2600 (16:9)
JPEG: 6.1 Megapixel, 3280 x 1848 (16:9)
JPEG: 3 Megapixel, 2304 x 1296 (16:9) | | Channels | 2.0-Channel Stereo | | Audio Format | AAC
LPCM | | | | Shutter Speed | 1/30 - 1/10000 Second (Video) For 30 fps | | Exposure Modes | Modes: Auto
Compensation: -2 EV to +2 EV | | Interval Recording | 5 Second
10 Second
30 Second
60 Second | | Burst Photo | 10 Photos / 1 Second | | | | Image Stabilization | Optical & Digital | | White Balance Modes | Auto
Onepush
Preset Manual | | Built-In Mic | Yes | | Built-In Speaker | Yes | | Wi-Fi | Yes, Wi-Fi 4 (802.11n) | | Tripod Mount | 1/4" - 20 | | | | Outputs | 1 x Micro-HDMI (Type D)
1 x Composite Video Requires VMC-15MR2 cable, available separately
1 x USB Micro-B | | Microphone Input | Yes | | | | Battery | Rechargeable Lithium-Ion Battery Pack, 3.6 VDC, 1240 mAh | | Charging Method | AC Adapter
USB 1.5 A or higher USB source recommended | | Charging Time | 4 Hours | | Power Consumption | Operating: 2 W | | Dimensions (W x H x D) | 1.2 x 1.9 x 3.3" / 29.4 x 47.0 x 83.0 mm | | Weight | 3.14 oz / 89 g without battery
4.02 oz / 114 g with battery | | | | Package Weight | 0.88 lb | | Box Dimensions (LxWxH) | 5.3 x 5.05 x 4.45" |
