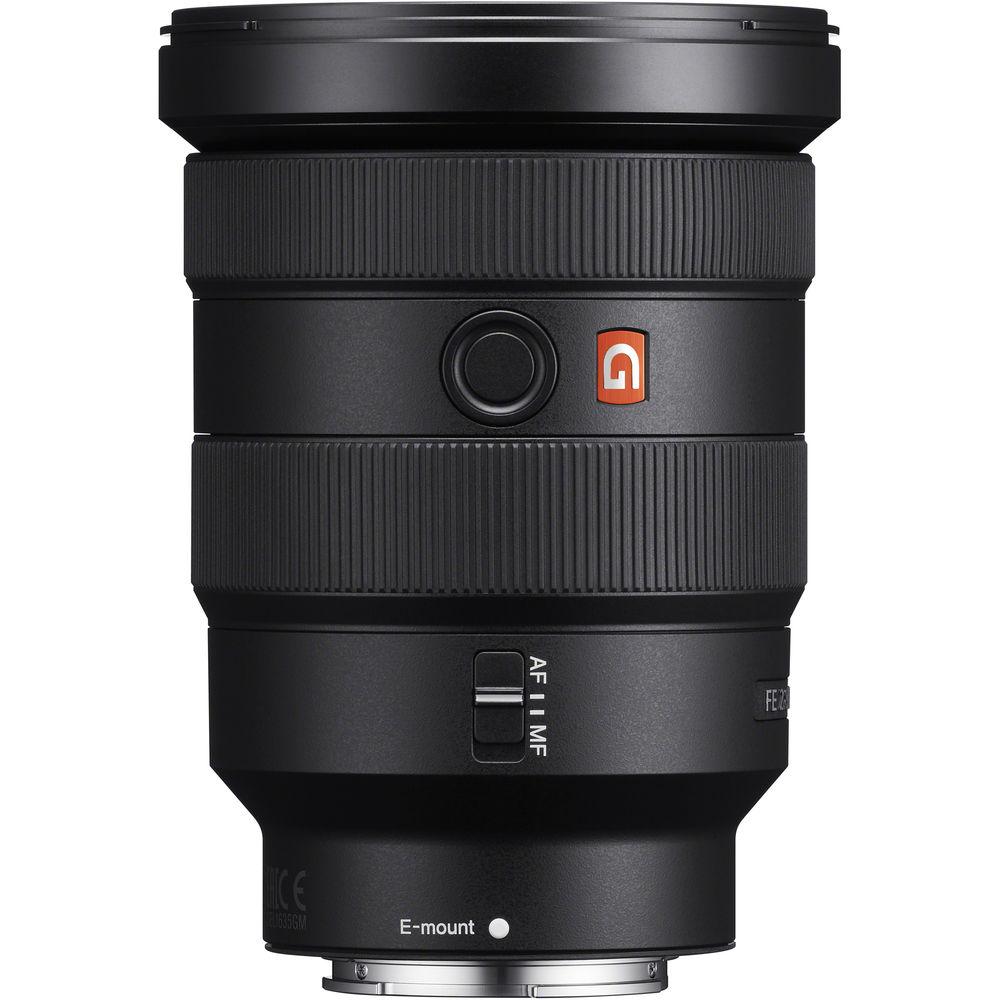

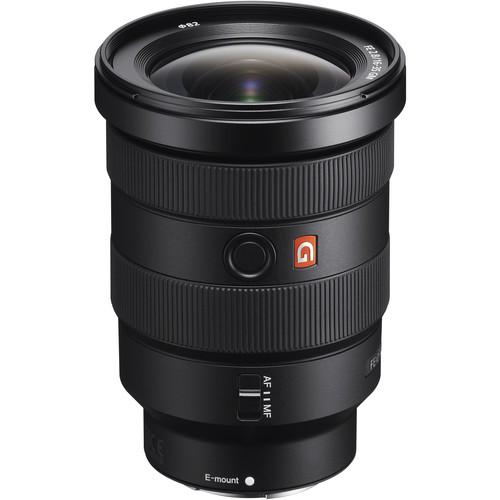

User Manual for Sony FE 16-35mm f 2.8 GM Lens Click to enlarge the picture
Contents of the user manual for the Sony FE 16-35mm f 2.8 GM
- Product category: Mirrorless System Lenses Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Mirrorless System Lenses
 |
User manual for the Sony FE 16-35mm f 2.8 GM contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description Best Sony Lenses of 2017 Read More zusycyvcxvfezxvtvbrtuddbyebrbv A fast and flexible wide-angle zoom, the FE 16-35mm f/2.8 GM Lens from Sony is a wide-angle zoom designed for full-frame E-mount mirrorless cameras. Distinguished by its constant f/2.8 maximum aperture, this lens offers consistent performance throughout the zoom range and benefits working in low-light conditions. The optical design incorporates two extra-low dispersion elements to reduce chromatic aberrations along with two XA elements and three aspherical elements, which significantly controls spherical aberrations for a high degree of image sharpness and clarity. Additionally, a Nano AR coating has been applied to limit ghosting and lens flare for increased contrast and color fidelity when working in strong lighting conditions.

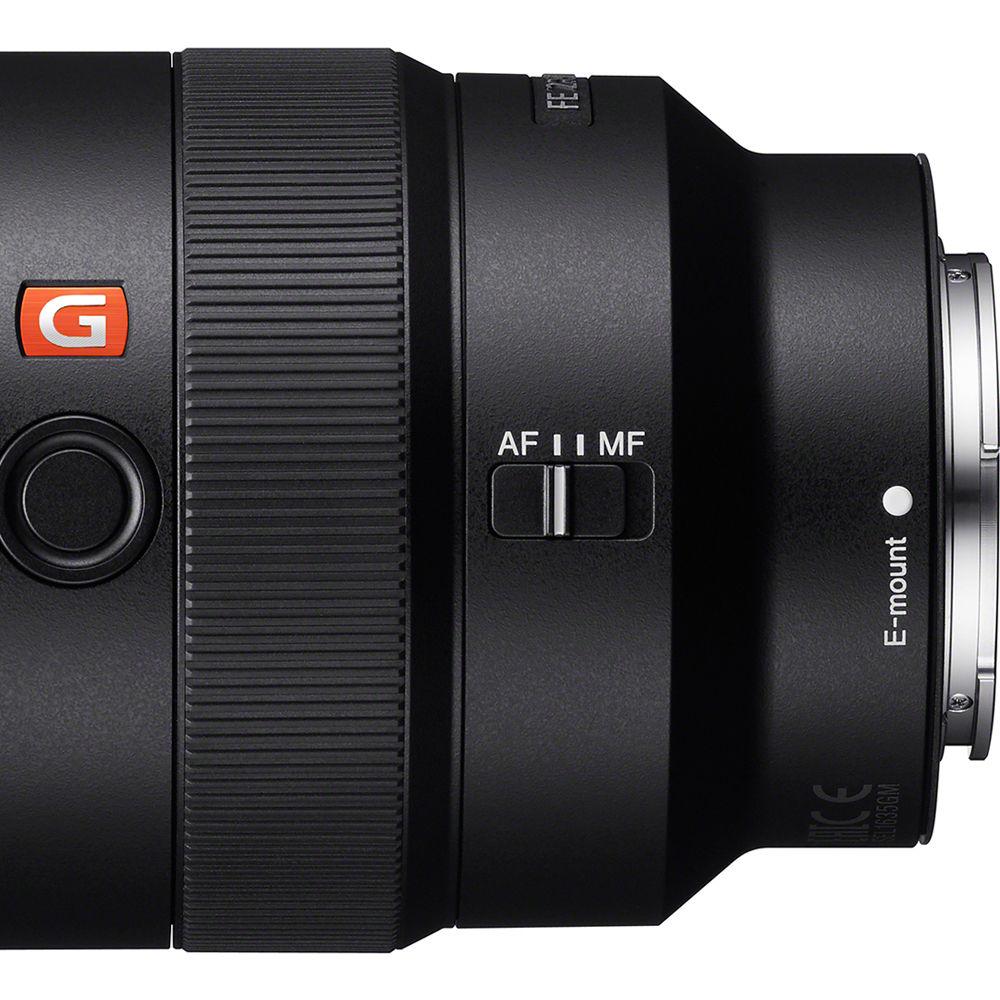

Complementing the optical assets, this lens is also notable for its inclusion of an 11-blade circular diaphragm to produce smooth, soft-edged bokeh with selective focus imagery. For controlling focus, two Direct Drive SSM AF groups are employed that are quick and quiet, and also lend more responsive control for manual focus operation. The lens also sports a dust- and moisture-sealed design to support shooting in inclement conditions and a dedicated focus hold button and AF/MF switch. - As part of Sony's esteemed G Master series, this lens is designed to achieve notably high resolution and sharpness through the correction of a wide variety of spherical and chromatic aberrations. Additionally, these lenses feature robust and intuitive-to-handle physical designs to benefit both photography and cine applications.

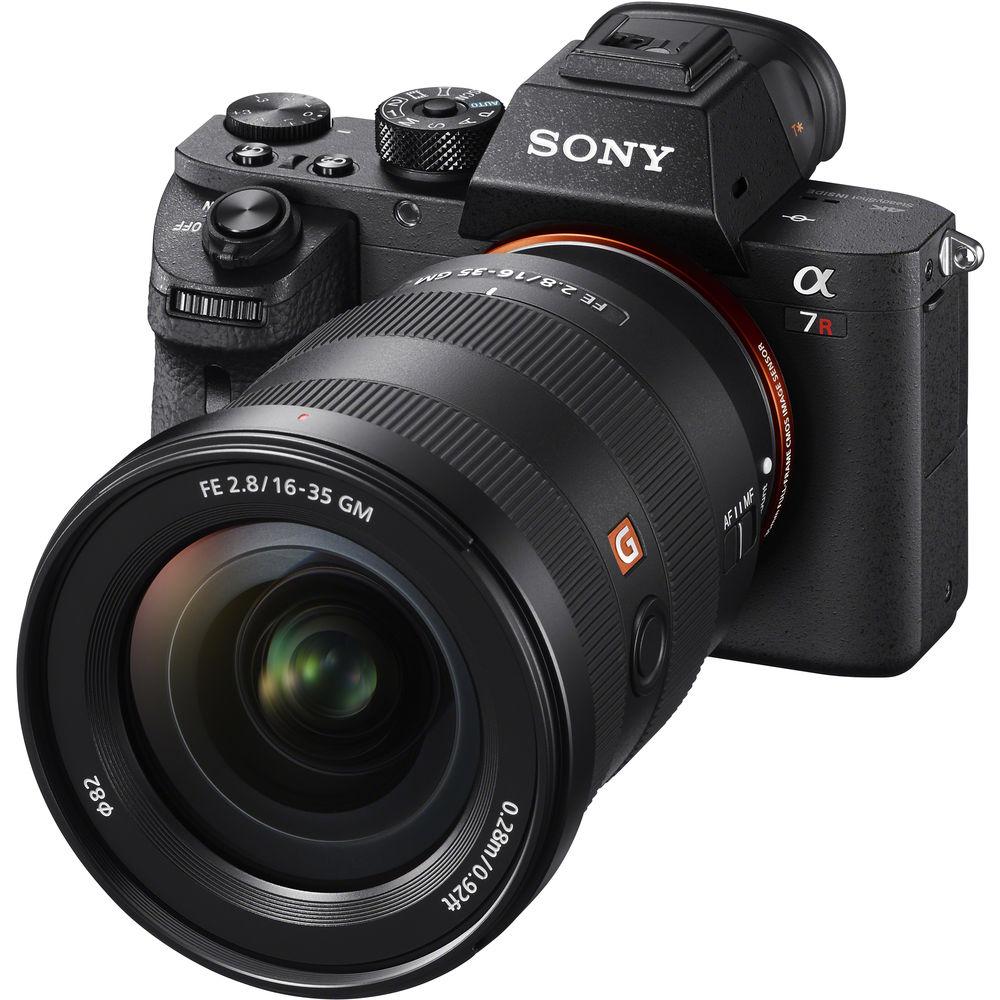

- Wide-angle zoom designed for full-frame E-mount mirrorless cameras, this lens is also compatible with APS-C models where it provides a 24-52.5mm equivalent focal length range.
- Constant f/2.8 maximum aperture offers consistent performance throughout the zoom range for working in difficult lighting conditions.

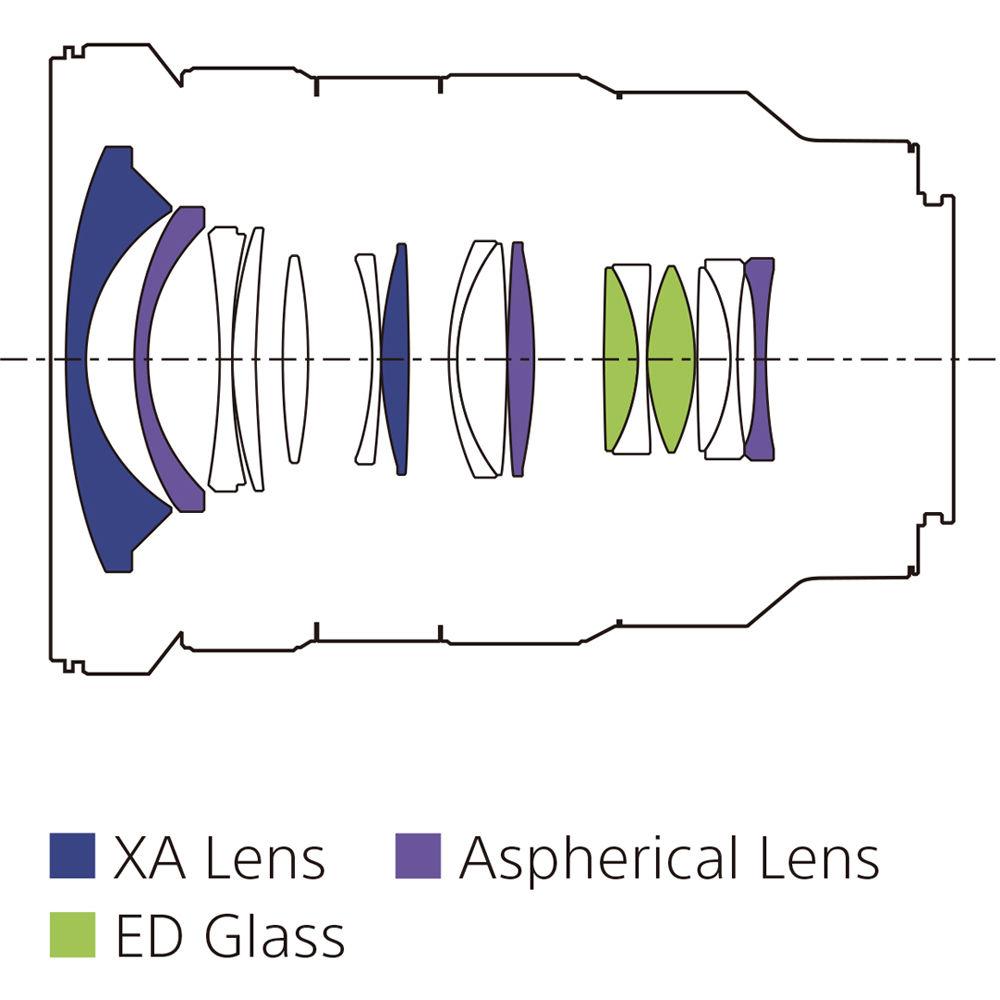

- Two XA (extreme aspherical) elements and three aspherical elements are incorporated into the optical design, which feature superior surface precision for effective control over astigmatism, field curvature, coma, and other spherical aberrations.
- Two extra-low dispersion elements are featured in the lens design and help to reduce chromatic aberrations and color fringing for improved clarity and color neutrality.

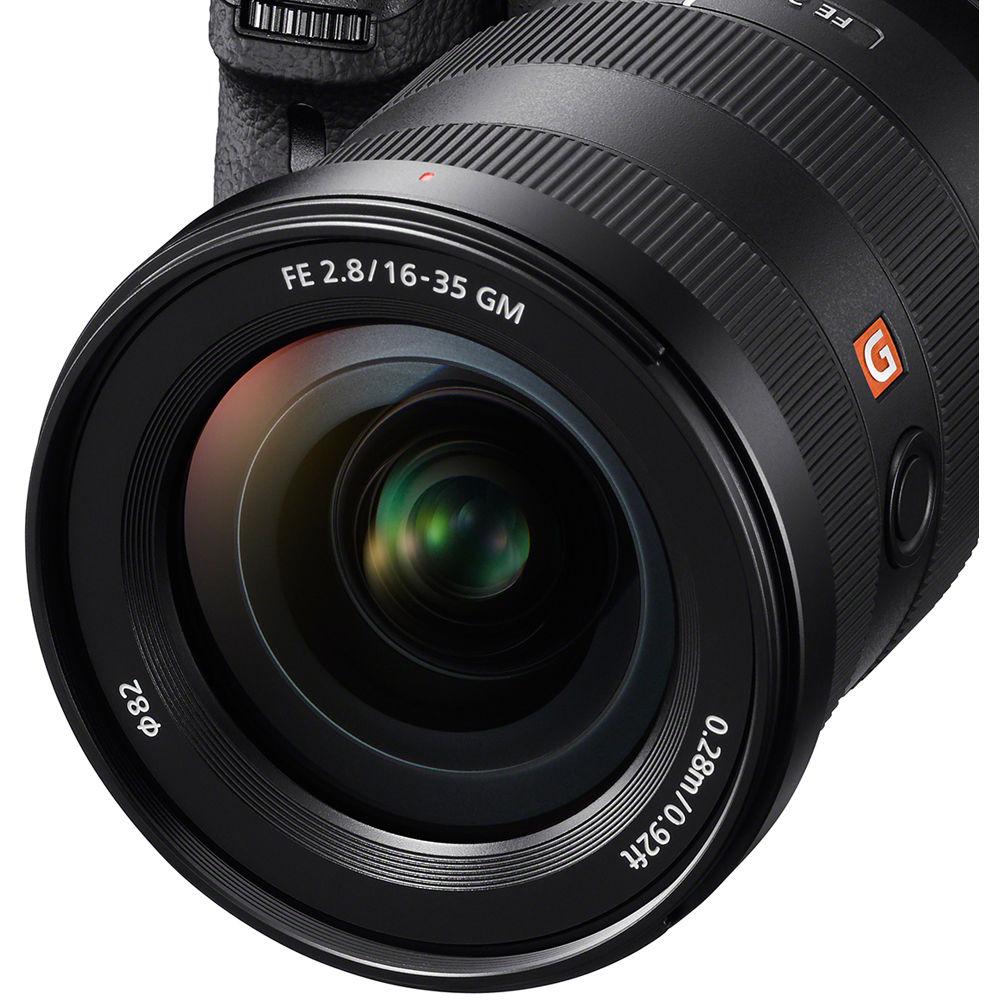

- A Nano AR Coating has been applied to reduce surface reflections, flare, and ghosting for increased contrast and color rendering in strong lighting conditions.

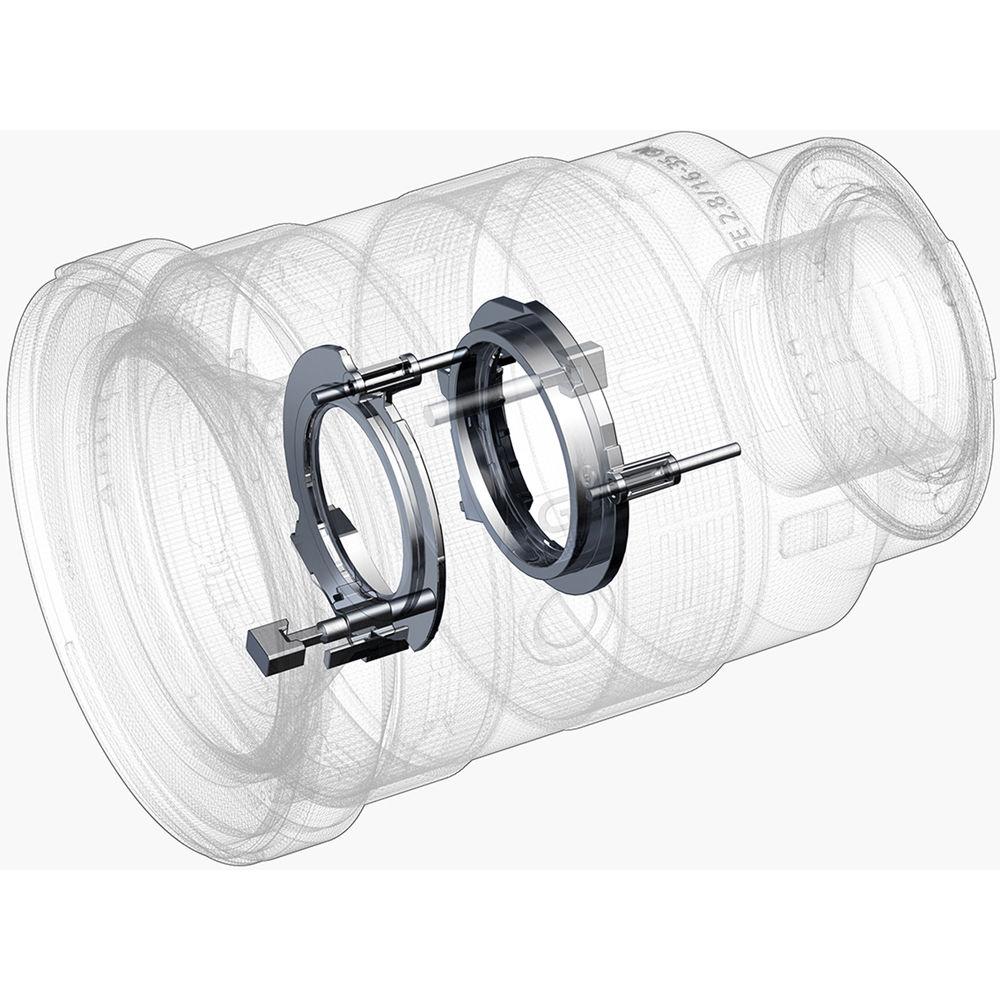

- Two Direct Drive SSM (DDSSM) autofocus groups offer quick, quiet, and precise focusing performance that is ideal for both stills and video applications.

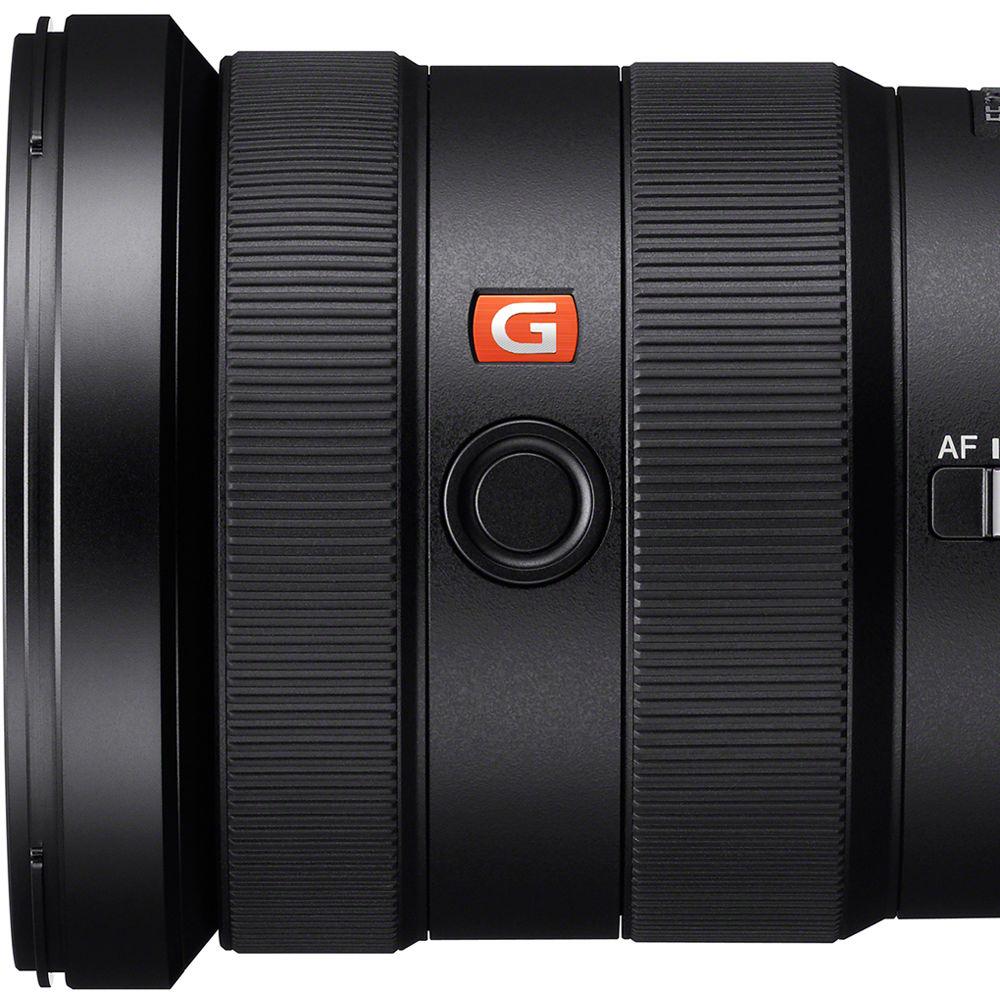

- Dust- and moisture-sealed design better permits working in inclement conditions and rubberized control rings benefit handling in colder temperatures. Additionally, the front element has a fluorine coating to guard against fingerprints and dust from adhering to it.
- Rounded 11-blade diaphragm contributes to a pleasing bokeh quality when employing selective focus techniques.
UPC: 027242899995 In the Box Sony FE 16-35mm f/2.8 GM Lens ALC-SH149 Lens Hood ALC-F82S 82mm Front Lens Cap ALC-R1EM Rear Lens Cap Lens Case Limited 1-Year Warranty In the Berry Fields with the Sony FE 16-35mm f/2.8 GM Lens Shawn C. Steiner 07/19/2017 Sony Goes Wide with FE 16-35mm f/2.8 and 12-24mm f/4 Lenses Shawn C. Steiner 05/17/2017 User Manual PDF 319.1kb More from Manufacturer zusycyvcxvfezxvtvbrtuddbyebrbv Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony FE 16-35mm f 2.8 GM Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony FE 16-35mm f/2.8 GM Specs | Focal Length | 16 to 35mm | | Maximum Aperture | f/2.8 | | Minimum Aperture | f/22 | | Lens Mount | Sony E | | Format Compatibility | Full-Frame | | Angle of View | 107
