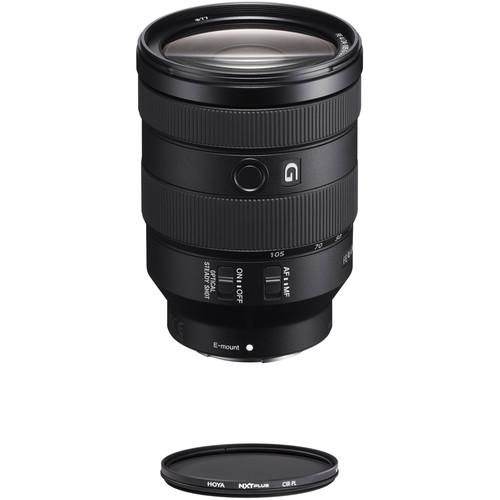

User Manual for Sony FE 24-105mm f 4 Lens with Circular Polarizer Filter Kit

• Product category: Mirrorless System Lenses Sony
• Brand: Sony
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Sony Mirrorless System Lenses

Product description

• Sony FE 24-105mm f/4 G OSS Lens
  • First Look | Sony Alpha A7R III and FE 24-105mm f/4 G OSS Lens
  Designed for versatility, the FE 24-105mm f/4 G OSS Lens from Sony is a wide-angle to short-telephoto zoom designed for E-mount mirrorless cameras. Complementing the useful range of focal lengths is a constant f/4 maximum aperture, which maintains consistent performance throughout the zoom range and also affords increased control over depth of field. Benefitting the reach is an advanced optical design, which employs aspherical and extra-low dispersion glass elements to control color fringing, distortion, and a variety of aberrations for greater sharpness and clarity. A Nano AR Coating has also been applied to suppress lens flare and ghosting for high contrast and color accuracy when working in harsh light.

  Further adding to the versatility, this 24-105mm f/4 also incorporates an Optical SteadyShot image stabilization system to minimize the appearance of camera shake for sharper handheld shooting, and this system can pair with select cameras' sensor-shift image stabilization for even more effective blur control. Suiting both stills and video shooting, a Direct Drive Super Sonic wave AF motor, along with an internal focusing design, provides quick and quiet focusing performance as well as natural manual focus control. Additionally, this also features a weather-resistant physical construction, along with a fluorine-coated front element, to enable its use in trying weather conditions.
  • Covering a versatile wide-angle to short-telephoto range, this 24-105mm lens is designed for full-frame E-mount mirrorless cameras, however can also be used with APS-C models where it provides a 36-157.5mm equivalent focal length range.
  • A constant f/4 maximum aperture offers consistent performance throughout the zoom range and also lends greater control over focus position for shallow depth of field techniques.
  • Four aspherical elements are featured in the optical design and two of which are designated as Advanced Aspherical elements to noticeably reduce spherical aberrations and distortion throughout the zoom range for improved sharpness and clarity.
  • Three extra-low dispersion elements are also used to minimize color fringing and chromatic aberrations for greater color accuracy.
  • A Nano AR Coating has been applied to reduce surface reflections, flare, and ghosting for increased contrast and color rendering in strong lighting conditions.
  • Optical SteadyShot image stabilization helps to minimize the appearance of camera shake for sharper imagery when shooting handheld with slower shutter speeds. This stabilization system can also be combined with select camera's sensor-shift type image stabilization for more effective control of camera blur.
  • A Direct Drive Super Sonic wave AF motor and internal focus mechanism provide quick, quiet, and precise autofocus performance and also contribute to more natural, intuitive manual focus control.
  • A focus hold button and AF/MF switch are present on the lens barrel for intuitive tactile control and rapid access to select settings.
  • A dust- and moisture-sealed design better permits working in inclement conditions and rubberized control rings benefit handling in colder temperatures.
  • The front lens element features a fluorine coating to protect against smudges and dust from adhering to the glass surface.
  • Rounded nine-blade diaphragm contributes to a pleasing bokeh quality when employing selective focus techniques.
  UPC: 027242909601
• Hoya 77mm NXT Plus Circular Polarizer Filter
  • First Look | Sony Alpha A7R III and FE 24-105mm f/4 G OSS Lens
  The 77mm NXT Plus Circular Polarizer Filter helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface. The light from the sun naturally becomes partially polarized due to reflecting off electrons in air molecules, causing the light to scatter into what appears as haze. A polarizing filter arranges and filters this directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of this light. This results in a noticeable reduction of glare and reflections from non-metallic surfaces and an increase in the saturation of skies and foliage.

  A circular polarizer only differs from a linear polarizer in that it contains a quarter wave plane in addition to the linear polarizing filter. The addition of this quarter wave plane is to circularly polarize the linearly polarized light for the use of auto focus and exposure functions. Due to how the light is broken down and filtered with a linear polarizer, auto focus and exposure accuracy become skewed during use. When the light becomes circularly polarized, it permits the use of these functions.

  This filter is constructed from optical glass for clarity as well as color fidelity and features an aluminum-alloy filter ring that can be rotated in order to adjust the intensity of the polarization effect. To prevent internal ghosting and reflections, each glass surface includes five layers of anti-reflection coating. An additional hydrophobic coating results in an improved beading effect when in contact with water for greater cleaning efficiency.
  • Helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface.
  • Polarizing filters arrange, and filter, directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of the light.
  • Clears up haze in distant landscapes and provides more saturated, vivid colors.
  • Strongest effect when used at a 90° angle from the sun.
  • Circular polarizers are ideal for use with digital cameras and autofocus lenses where a linear polarizer will often disrupt auto exposure and focus features.
  • 1.7x filter factor reduces exposure by 0.8 stop.
  • Multicoated to prevent internal ghosting and reflections while providing an improved beading effect with water for more efficient cleaning.
  • Aluminum-alloy filter ring for durability while remaining lightweight.
  • Filter ring can be rotated to adjust the intensity of the polarization effect.
  • 77mm front filter threads allow for use with other filters.
  • Top knurling to provide a more textured grip when mounting or removing it from a lens.
  • Constructed from optical glass for clarity and color fidelity.
  • Plastic filter case for storage and transport.
  UPC: 024066068132

• FE 24-105mm f/4 G OSS Lens cqaytfduvrfrd
• ALC-F77S 77mm Front Lens Cap
• ALC-R1EM Rear Lens Cap
• Lens Case
• ALC-SH152 Lens Hood
• Limited 1-Year Warranty

• Hoya - 77mm NXT Plus Circular Polarizer Filter

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Sony FE 24-105mm f/4 G OSS Lens

  Focal Length	24 to 105mm
  Maximum Aperture	f/4
  Minimum Aperture	f/22
  Lens Mount	Sony E
  Format Compatibility	Full-Frame
  Angle of View	84 Rating 92% users recommend this product to others. And what about you? This product has already been rated by 91 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
