User Manual for Sony FE 24-70mm f 2.8 GM Lens Click to enlarge the picture
Contents of the user manual for the Sony FE 24-70mm f 2.8 GM
- Product category: Uncategorized Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Uncategorized
 |
User manual for the Sony FE 24-70mm f 2.8 GM contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|

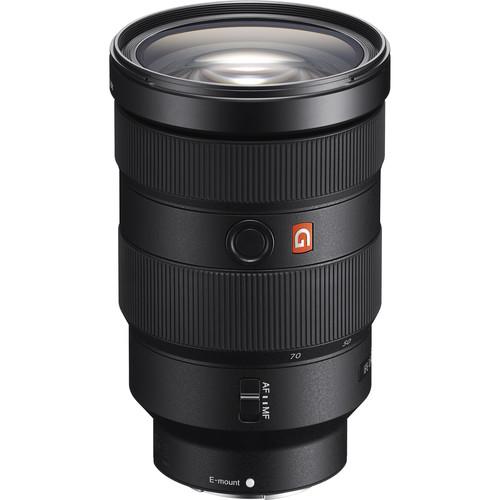

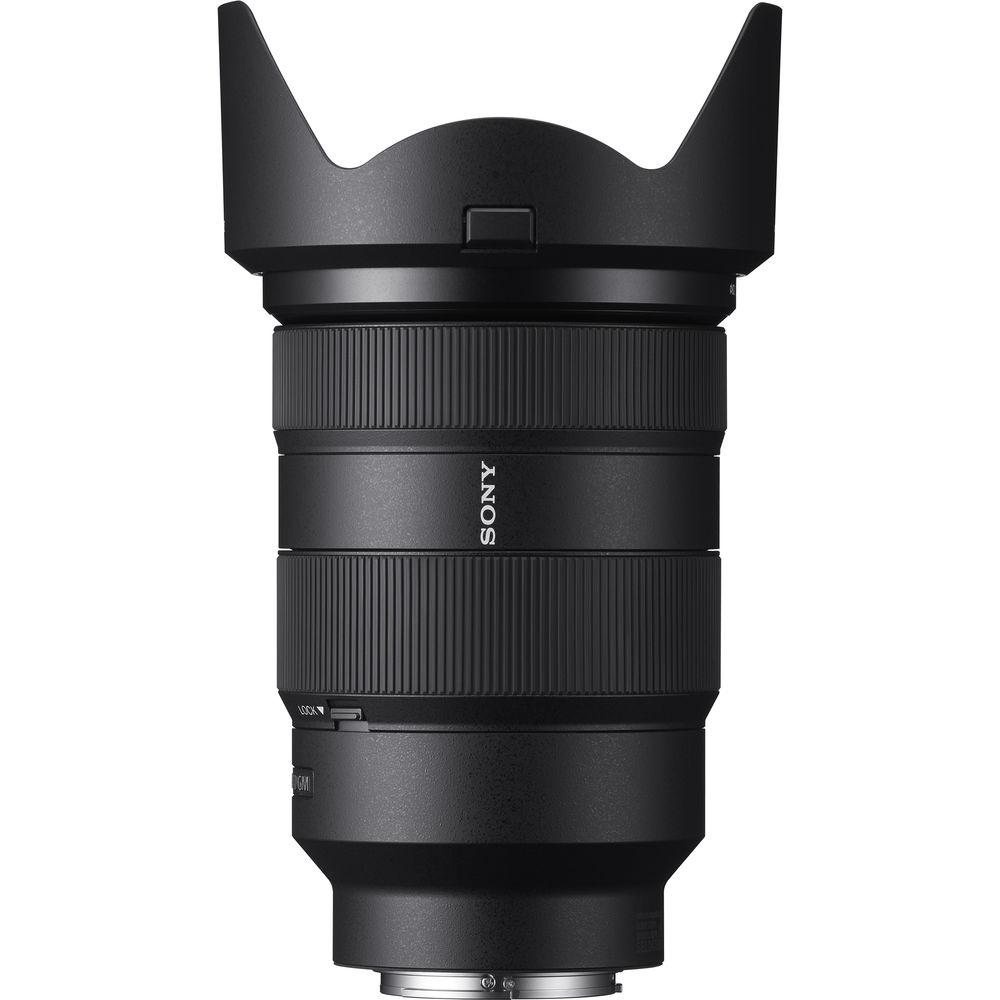

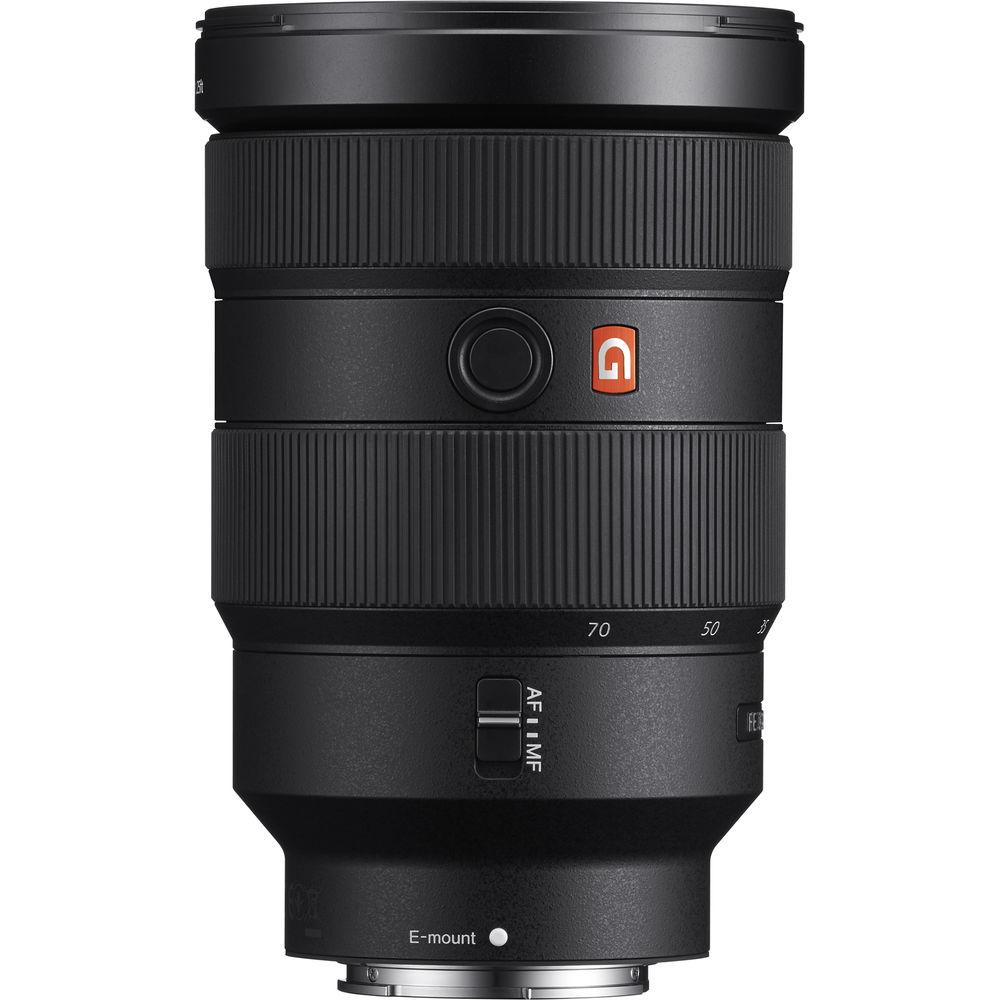

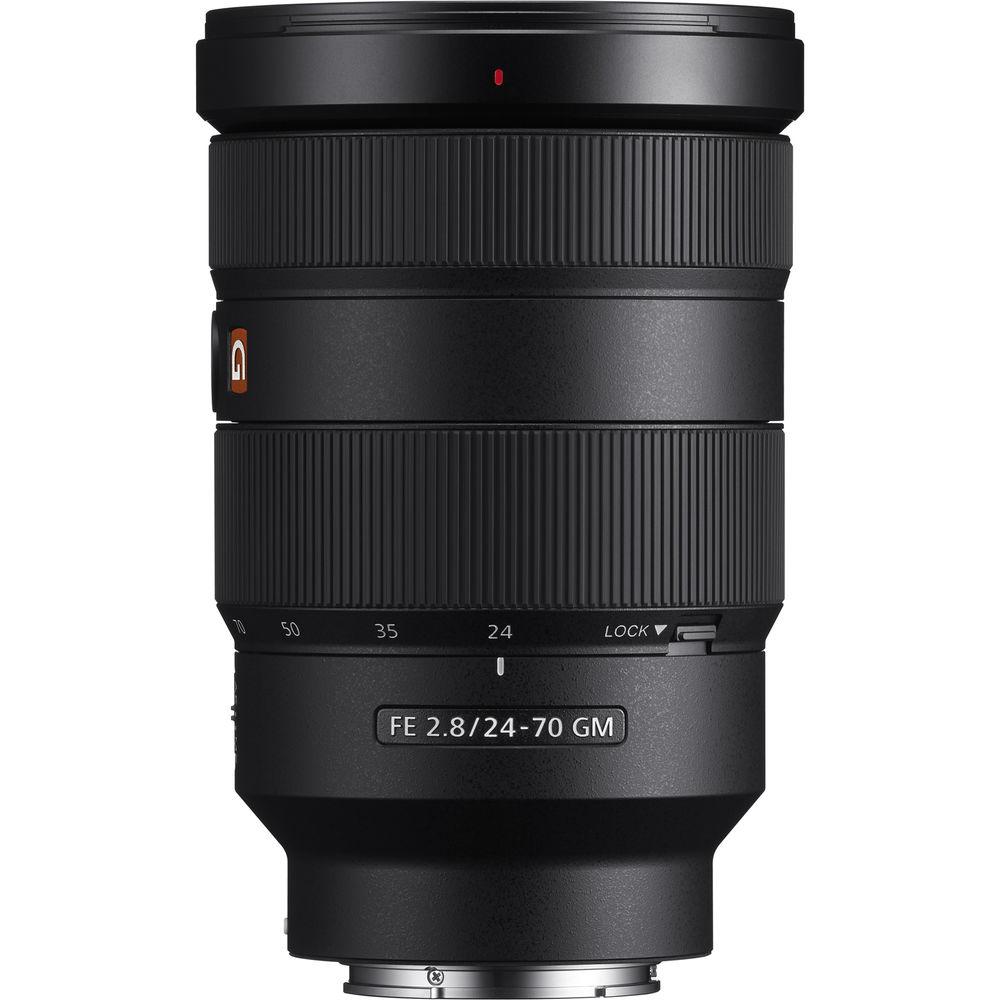

Product description A fast, standard zoom favored for its versatility, the Sony FE 24-70mm f/2.8 GM is a wide-angle to short telephoto lens designed for E-mount mirrorless cameras. Featuring a constant f/2.8 maximum aperture, this lens maintains consistent performance throughout the zoom range and benefits working in low-light conditions and with selective focus techniques. Complementing the apt light-gathering capabilities is an equally impressive optical design, which incorporates three aspherical elements and two extra-low dispersion elements. One of the aspherical elements features an XA (extreme aspherical) designation, ensuring its refined surface precision and notable ability to minimize spherical aberrations throughout the zoom range. Additionally, a Nano AR Coating has been applied to individual elements to significantly minimize lens flare and ghosting for increased contrast and color neutrality. Pairing a sophisticated optical design and versatile speed, this standard zoom is well-suited for use in a wide array of environments and lighting conditions.
Beyond the attributes of the lens system itself, this 24-70mm is also characterized by a Direct Drive SSM (Super Sonic wave Motor) system that provides fast, quiet AF performance as well as responsive manual focus handling. The lens is also dust- and moisture-sealed, to permit working in inclement weather conditions, and nuanced details, such as a focus hold button and rubberized control dials, further the intuitiveness in handling. - As part of Sony's esteemed G Master series, this lens is designed to achieve notably high resolution and sharpness through the correction of a wide variety of spherical and chromatic aberrations. Additionally, these lenses feature robust and intuitive-to-handle physical designs to benefit both photography and cine applications.
- Covering wide-angle to portrait-length perspectives, this standard 24-70mm zoom is designed for full-frame E-mount mirrorless cameras and is also compatible with APS-C models, where it will provide a 36-105mm equivalent focal length range.
- Constant f/2.8 maximum aperture maintains consistent performance from wide-angle to telephoto focal length positions and also contributes to greater selective focus control.
- Of the three aspherical elements incorporated in the lens design, one is an XA element with superior surface precision to effectively reduce astigmatism, field curvature, coma, and other monochromatic aberrations from imagery.
- One extra-low dispersion element and one Super ED element are featured in the lens design and help to control chromatic aberrations and reduce color fringing for increased clarity and color fidelity.
- A Nano AR Coating has been applied to reduce surface reflections, flare, and ghosting for increased contrast and color rendering in strong lighting conditions.
- A Direct Drive Super Sonic wave AF motor and internal focus mechanism provide quick, quiet, and precise autofocus performance and also contribute to more natural, intuitive manual focus control.
- A focus hold button and AF/MF switch are present on the lens barrel for intuitive tactile control and rapid access to select settings.
- A dust- and moisture-sealed design better permits working in inclement conditions and rubberized control rings benefit handling in colder temperatures.
- Rounded nine-blade diaphragm contributes to a pleasing bokeh quality when employing selective focus techniques.
In the Box Sony FE 24-70mm f/2.8 GM Lens ALC-SH141 Lens Hood ALC-F82S 82mm Front Lens Cap ALC-R1EM Rear Lens Cap Lens Case Shoulder Strap Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony FE 24-70mm f 2.8 GM Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters | Focal Length | 24 to 70mm | | Maximum Aperture | f/2.8 | | Minimum Aperture | f/22 | | Lens Mount | Sony E | | Format Compatibility | Full-Frame | | Angle of View | 84
