User manual
Sony FE 50mm f 2.8 Macro

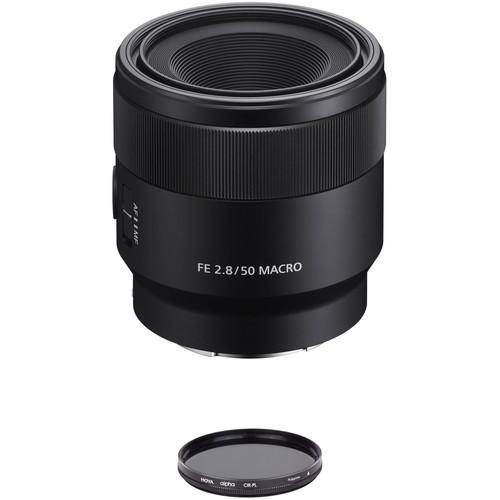

User Manual for Sony FE 50mm f 2.8 Macro Lens with Circular Polarizer Filter Kit

• Product category: Mirrorless System Lenses Sony
• Brand: Sony
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Sony Mirrorless System Lenses

Product description

• Sony FE 50mm f/2.8 Macro Lens A normal-length prime with close-focusing capabilities, the FE 50mm f/2.8 Macro Lens from Sony offers an impressive 1:1 maximum magnification, along with a 6.3" minimum focusing distance, for making life-size imagery of close-up subjects. Useful controls, such as a top-printed distance and magnification scale, focus range limiter, and focus hold button, all benefit more precise focusing adjustments for refined results. Complementing the handling capabilities, the optical design also incorporates both an aspherical and an extra-low dispersion element, which work to suppress chromatic and spherical aberrations for increased clarity throughout the focus range. Additionally, the lens sports a dust- and moisture-resistant design to benefit working in inclement weather conditions.
  • Standard prime macro lens is designed for full-frame Sony E-mount mirrorless cameras, and can also be used on APS-C models where it provides a 75mm equivalent focal length.
  • True macro design affords a life-size, 1:1 magnification ratio along with a 6.3" minimum focusing distance for working with close-up subjects. A focusing distance and magnification scale is also printed on the top of the lens to aid in more technical applications.
  • One extra-low dispersion element is featured in the lens design and helps to reduce chromatic aberrations and color fringing for improved clarity and color neutrality.
  • One aspherical element is incorporated in the lens design to reduce astigmatism, field curvature, coma, and other monochromatic aberrations.
  • A focus range limiter switch allows you constrain the usable focus range between 6.3-11.8", 11.8"-infinity, or full, and a focus hold button is also featured to manually stop the autofocus at a specified point.
  • Dust- and moisture-sealed design better permits working in inclement conditions and rubberized control rings benefit handling in colder temperatures.
  • Rounded seven-blade diaphragm contributes to a pleasing bokeh quality when employing selective focus techniques.
  UPC: 027242902558
• Hoya 55mm alpha Circular Polarizer Filter The Hoya 55mm alpha Circular Polarizer Filter helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface. The light from the sun naturally becomes partially polarized due to reflecting off electrons in air molecules, causing the light to scatter into what appears as haze. A polarizing filter arranges, and filters, this directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of this light. This results in a noticeable reduction of glare and reflections from non-metallic surfaces and an increase in the saturation of skies and foliage.

  A circular polarizer only differs from a linear polarizer in that it contains a quarter wave plane in addition to the linear polarizing filter. The addition of this quarter wave plane is to circularly polarize the linearly polarized light for the use of auto focus and exposure functions. Due to how the light is broken down and filtered with a linear polarizer, auto focus and exposure accuracy become skewed during use. When the light becomes circularly polarized, it permits the use of these functions.

  This filter is non-coated and has approximately 96% average light transmission. It is constructed from optical glass and precision milled aluminum frames.
  • Helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface.
  • Polarizing filters arrange, and filter, directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of the light.
  • Clears up haze in distant landscapes and provides more saturated, vivid colors.
  • Strongest effect when used at a 90° angle from the sun.
  • Circular polarizers are ideal for use with digital cameras and autofocus lenses where a linear polarizer will often disrupt auto exposure and focus features.
  • Non-coated.
  • Approximately 96% average light transmission.
  • 3 to 4x filter factor reduces exposure by 1.6 to 2 stops.
  • Constructed from optical glass and precision milled aluminum frames.
  • Plastic filter case for storage and transport.
  UPC: 024066056160

• FE 50mm f/2.8 Macro Lens svfwqeacbddrvrfxyqvfsxbvdr
• ALC-F55S 55mm Front Lens Cap
• ALC-R1EM Rear Lens Cap
• Limited 1-Year Warranty

• Hoya - 55mm alpha Circular Polarizer Filter

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Sony FE 50mm f/2.8 Macro Lens

  Focal Length	50mm
  Maximum Aperture	f/2.8
  Minimum Aperture	f/16
  Lens Mount	Sony E
  Format Compatibility	Full-Frame
  Angle of View	47 Rating 70% users recommend this product to others. And what about you? This product has already been rated by 31 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
