Sony FE 70-200mm f 2.8 GM

User Manual for Sony FE 70-200mm f 2.8 GM OSS Lens

• Product category: Mirrorless System Lenses Sony
• Brand: Sony
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Sony Mirrorless System Lenses

Product description

• Sony Alpha a6300: First Look
• Gmaster Technology video E XAVC S 50Mbps

• As part of Sony's esteemed G Master series, this lens is designed to achieve notably high resolution and sharpness through the correction of a wide variety of spherical and chromatic aberrations. Additionally, these lenses feature robust and intuitive-to-handle physical designs to benefit both photography and cine applications.

• A popular telephoto zoom designed for full-frame E-mount mirrorless cameras, this 70-200mm lens is also compatible with APS-C models where it provides a 105-300mm equivalent focal length range.

• A constant f/2.8 maximum aperture offers consistent performance throughout the zoom range and also lends greater control over focus position for shallow depth of field techniques.

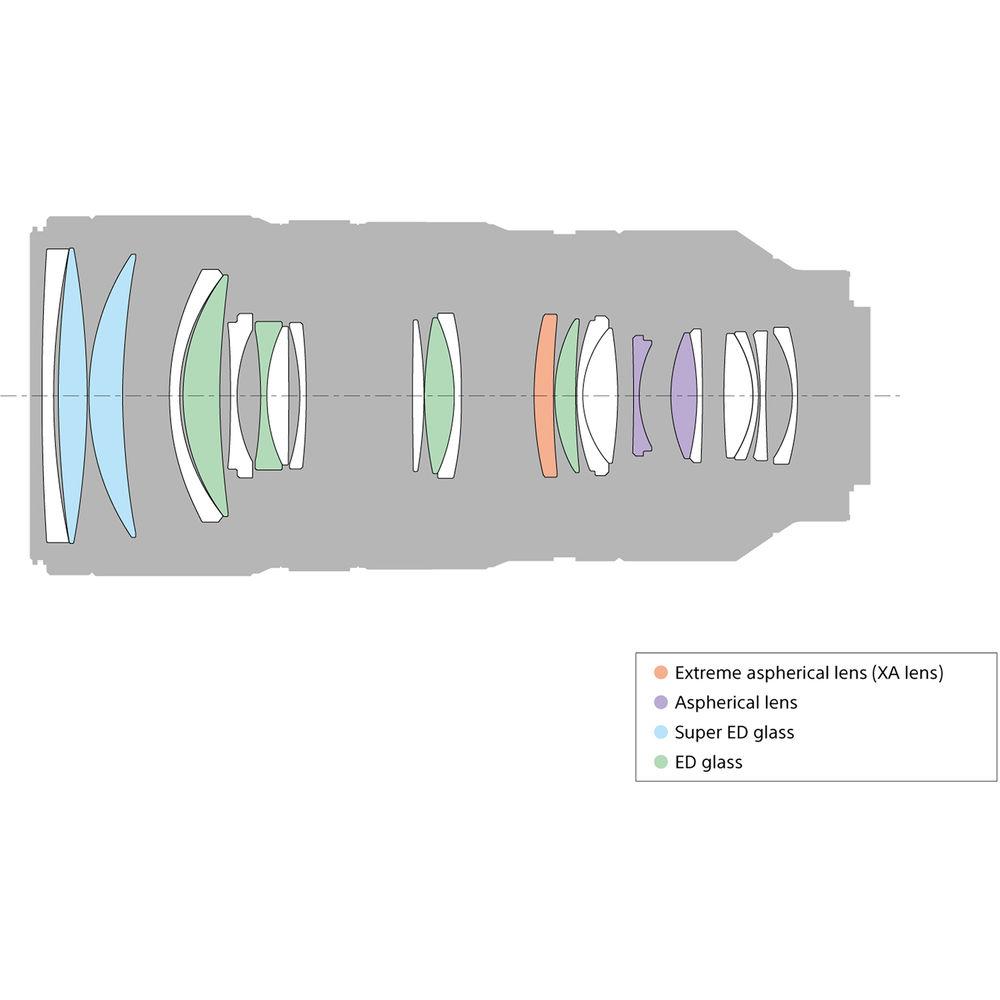

• Of the three aspherical elements incorporated in the lens design, one is an XA element with superior surface precision to effectively reduce astigmatism, field curvature, coma, and other monochromatic aberrations from imagery.

• Four extra-low dispersion elements and two Super ED elements are featured in the lens design, too, and help to control chromatic aberrations and reduce color fringing for increased clarity and color fidelity.

• A Nano AR Coating has been applied to reduce surface reflections, flare, and ghosting for increased contrast and color rendering in strong lighting conditions.

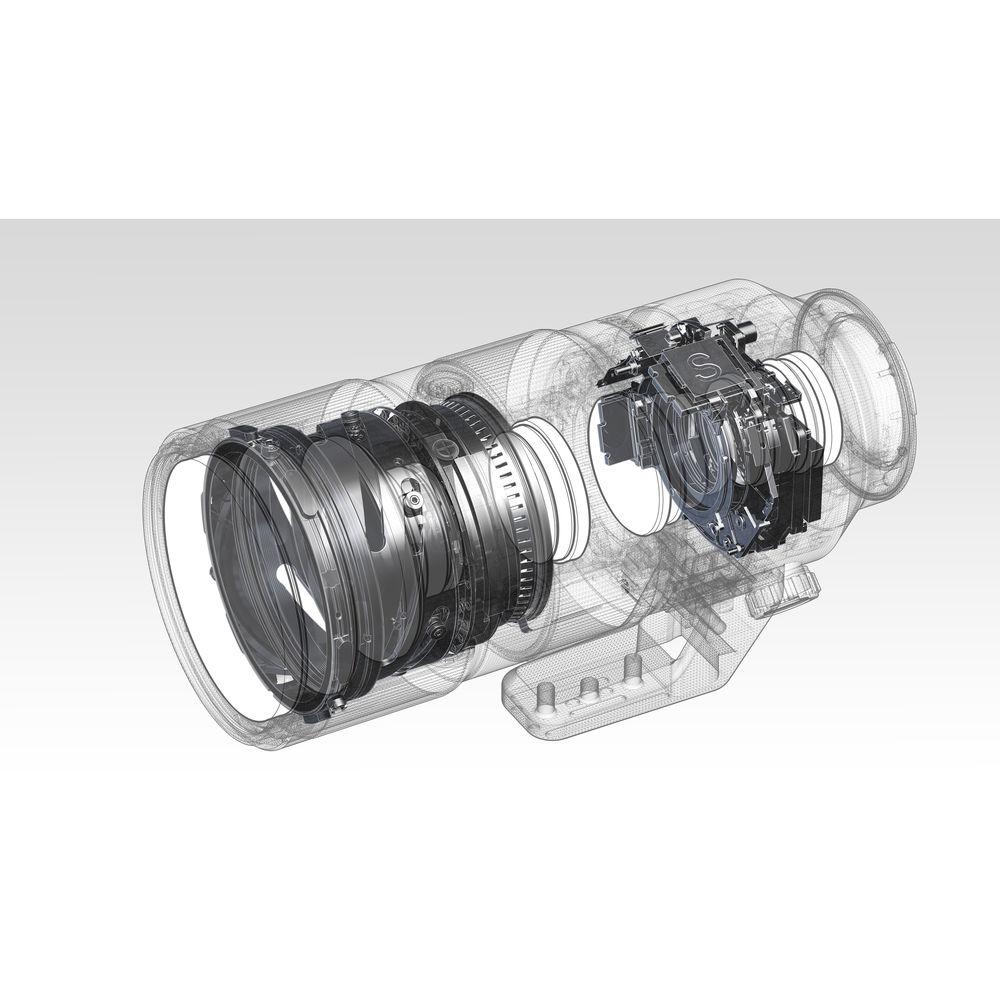

• An advanced double-linear and ring Super Sonic wave Motor system ensure fast, precise and accurate autofocus in both stills and video.

• Optical SteadyShot image stabilization helps to minimize the appearance of camera shake for sharper imagery when shooting handheld with slower shutter speeds. This stabilization system can also be combined with select camera's sensor-shift type image stabilization for more effective control of camera blur. An OSS Mode switch lets you choose Mode 1 for general image stabilization that is suited to most types of shooting as well as a Mode 2 setting that is specifically intended to be used with panning movements.

• A floating elements system benefits image quality when working at the 3.15' minimum focusing distance with 0.25x magnification.

• The lens barrel is equipped with three focus hold buttons and a focus range limiter switch to permit fast, intuitive operation of the lens while shooting.

• The front lens element features a fluorine coating to protect against smudges and dust from adhering to the glass surface.

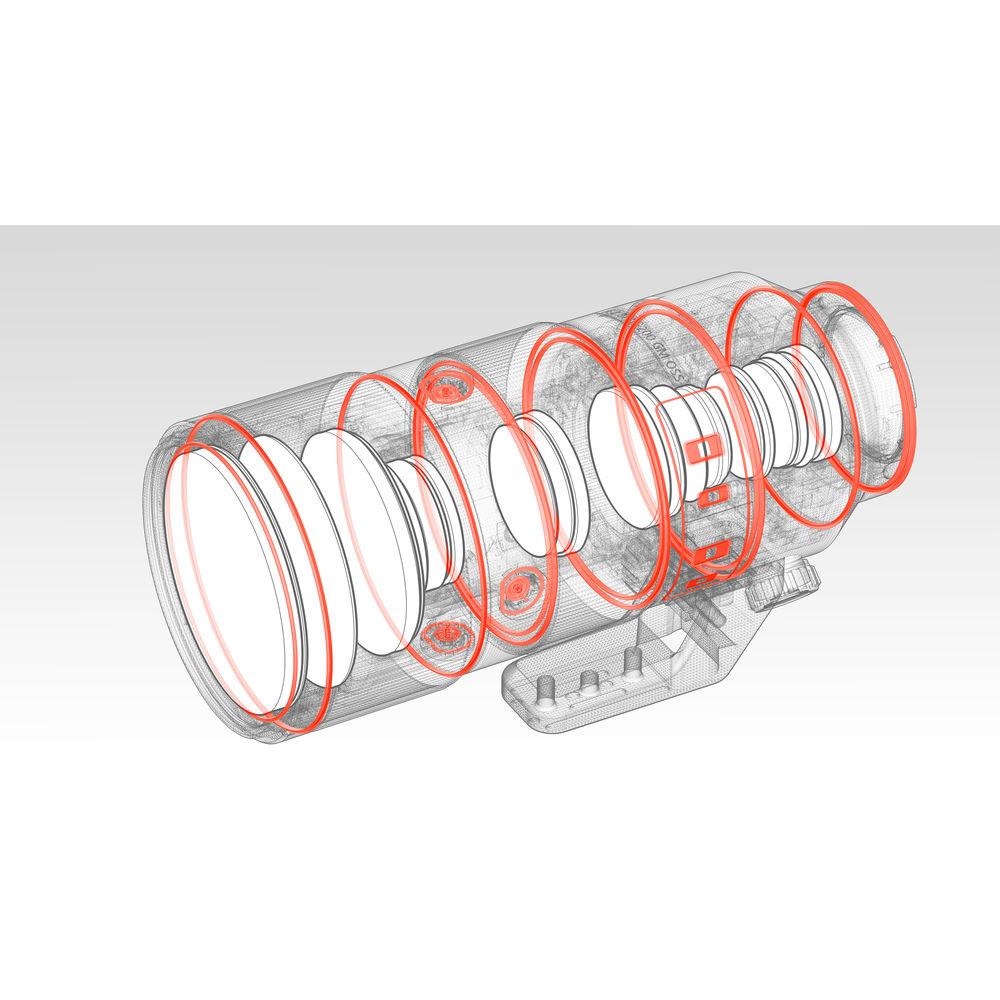

• Dust- and moisture-sealed design better permits working in inclement conditions.

• A rounded 11-blade diaphragm contributes to a pleasing bokeh quality when employing selective focus techniques.

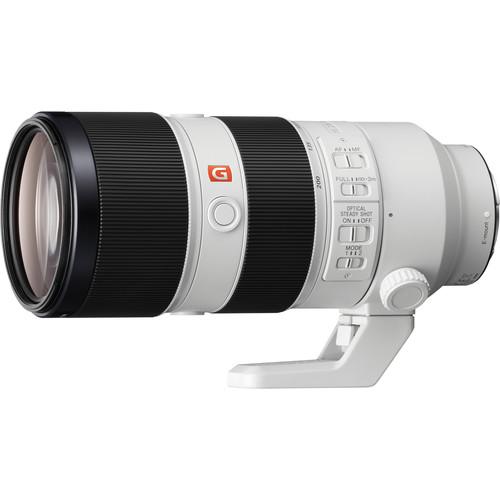

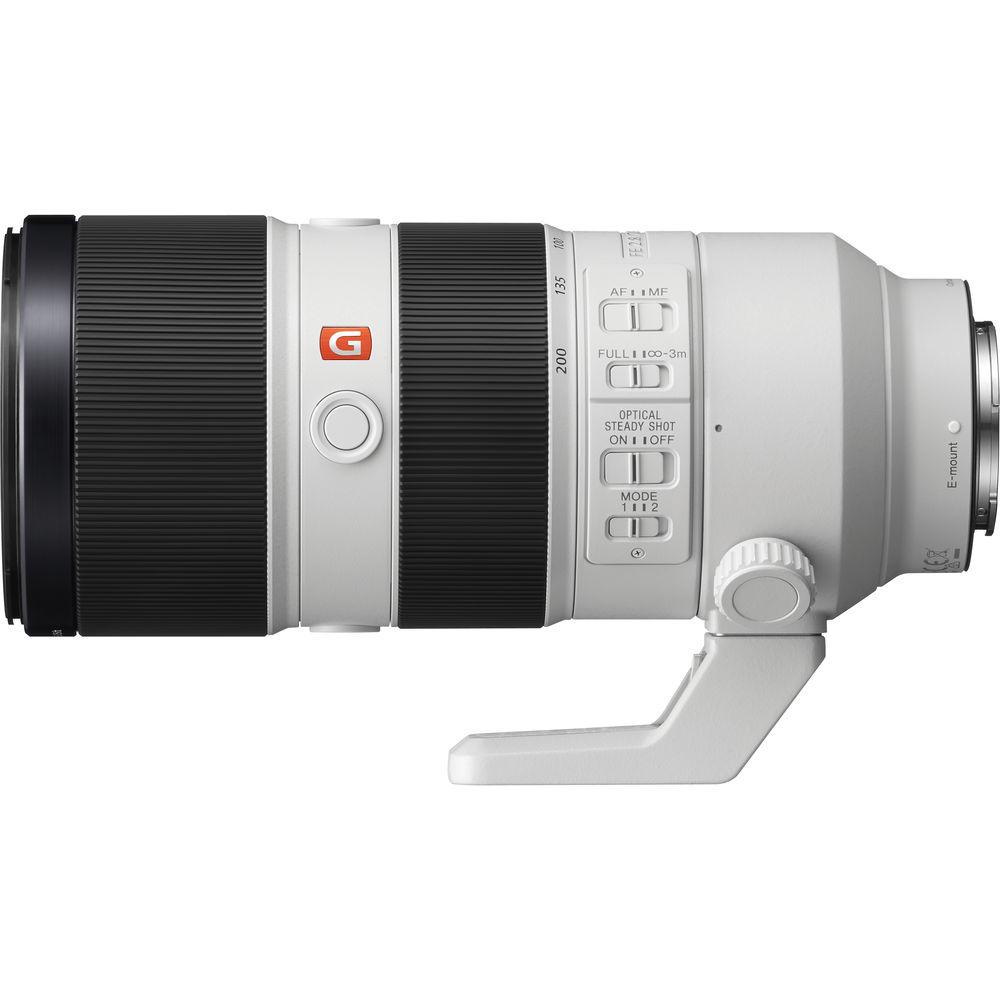

• A removable, rotating tripod mount permits quick switching from horizontal to vertical shooting orientations.

• The included petal-shaped lens hood helps prevent flaring and has a filter access window for making adjustments to rotating filters such as polarizers and variable NDs.

• Compatible with Sony's optional 1.4x and 2x teleconverters, this lens can be easily transformed into a 98-280mm or 140-400mm optic, respectively.

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

Sony FE 70-200mm f/2.8 GM OSS Specs

Focal Length	70 to 200mm
Maximum Aperture	f/2.8
Minimum Aperture	f/22
Lens Mount	Sony E
Format Compatibility	Full-Frame
Angle of View	34 Rating 94% users recommend this product to others. And what about you? This product has already been rated by 30 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
