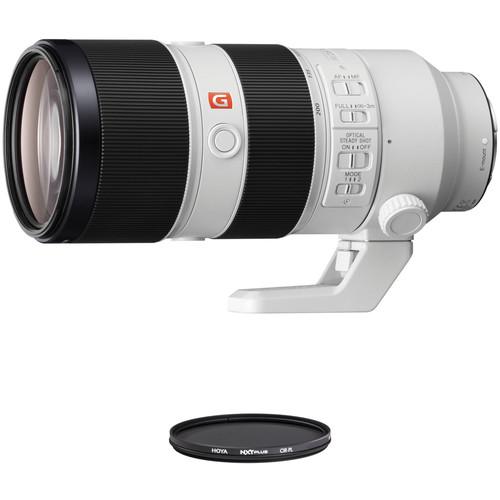

User Manual for Sony FE 70-200mm f 2.8 GM OSS Lens with Circular Polarizer Filter Kit

• Product category: Mirrorless System Lenses Sony
• Brand: Sony
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Sony Mirrorless System Lenses

Product description

• Sony FE 70-200mm f/2.8 GM OSS Lens
  • Sony Alpha a6300: First Look
  • Gmaster Technology video E XAVC S 50Mbps
  Boasting exceptional optics, a complete feature set, and outstanding speed in all aspects, the Sony FE 70-200mm f/2.8 GM OSS Lens easily takes its place as the de facto telephoto zoom for professionals. A member of the G Master series, this 70-200mm delivers high sharpness alongside smooth, clean bokeh and with an absolute minimum of aberrations. This is guaranteed through the use of an XA element, two aspherical elements, four extra-low dispersion elements, and two Super ED elements in the optical design. Furthermore, the lens has a Nano AR Coating that reduces reflections, flare, and ghosting for improved contrast and color.

  Optimized for speed, this lens is equipped with a fast and constant f/2.8 aperture that will be an asset in low-light conditions as well as for creating images with shallow depth of field. Bokeh is made even better by the implementation of an eleven-blade circular diaphragm for smooth out-of-focus areas. Also, there is a double-linear and ring Super Sonic wave Motor system that provides fast, responsive autofocus in both stills and video.

  As a top end telephoto zoom, this lens is equipped with a variety of other technologies to assist shooters, including Optical SteadyShot image stabilization for combating camera shake, especially at longer focal lengths. Users will enjoy faster and more intuitive operation with a plethora of physical controls on the lens barrel, including three focus hold buttons, a focus range limiter switch, and both AF/MF and OSS switches. For durability and working in tough conditions, the lens is dust and moisture resistant, and it has a fluorine coating on the front element to resist water and oil.
  • As part of Sony's esteemed G Master series, this lens is designed to achieve notably high resolution and sharpness through the correction of a wide variety of spherical and chromatic aberrations. Additionally, these lenses feature robust and intuitive-to-handle physical designs to benefit both photography and cine applications.
  • A popular telephoto zoom designed for full-frame E-mount mirrorless cameras, this 70-200mm lens is also compatible with APS-C models where it provides a 105-300mm equivalent focal length range.
  • A constant f/2.8 maximum aperture offers consistent performance throughout the zoom range and also lends greater control over focus position for shallow depth of field techniques.
  • Of the three aspherical elements incorporated in the lens design, one is an XA element with superior surface precision to effectively reduce astigmatism, field curvature, coma, and other monochromatic aberrations from imagery.
  • Four extra-low dispersion elements and two Super ED elements are featured in the lens design, too, and help to control chromatic aberrations and reduce color fringing for increased clarity and color fidelity.
  • A Nano AR Coating has been applied to reduce surface reflections, flare, and ghosting for increased contrast and color rendering in strong lighting conditions.
  • An advanced double-linear and ring Super Sonic wave Motor system ensure fast, precise and accurate autofocus in both stills and video.
  • Optical SteadyShot image stabilization helps to minimize the appearance of camera shake for sharper imagery when shooting handheld with slower shutter speeds. This stabilization system can also be combined with select camera's sensor-shift type image stabilization for more effective control of camera blur. An OSS Mode switch lets you choose Mode 1 for general image stabilization that is suited to most types of shooting as well as a Mode 2 setting that is specifically intended to be used with panning movements.
  • A floating elements system benefits image quality when working at the 3.15' minimum focusing distance with 0.25x magnification.
  • The lens barrel is equipped with three focus hold buttons and a focus range limiter switch to permit fast, intuitive operation of the lens while shooting.
  • The front lens element features a fluorine coating to protect against smudges and dust from adhering to the glass surface.
  • Dust- and moisture-sealed design better permits working in inclement conditions.
  • A rounded 11-blade diaphragm contributes to a pleasing bokeh quality when employing selective focus techniques.
  • A removable, rotating tripod mount permits quick switching from horizontal to vertical shooting orientations.
  • The included petal-shaped lens hood helps prevent flaring and has a filter access window for making adjustments to rotating filters such as polarizers and variable NDs.
  • Compatible with Sony's optional 1.4x and 2x teleconverters, this lens can be easily transformed into a 98-280mm or 140-400mm optic, respectively.
  UPC: 027242899988
• Hoya 77mm NXT Plus Circular Polarizer Filter
  • Sony Alpha a6300: First Look
  • Gmaster Technology video E XAVC S 50Mbps
  The 77mm NXT Plus Circular Polarizer Filter helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface. The light from the sun naturally becomes partially polarized due to reflecting off electrons in air molecules, causing the light to scatter into what appears as haze. A polarizing filter arranges and filters this directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of this light. This results in a noticeable reduction of glare and reflections from non-metallic surfaces and an increase in the saturation of skies and foliage.

  A circular polarizer only differs from a linear polarizer in that it contains a quarter wave plane in addition to the linear polarizing filter. The addition of this quarter wave plane is to circularly polarize the linearly polarized light for the use of auto focus and exposure functions. Due to how the light is broken down and filtered with a linear polarizer, auto focus and exposure accuracy become skewed during use. When the light becomes circularly polarized, it permits the use of these functions.

  This filter is constructed from optical glass for clarity as well as color fidelity and features an aluminum-alloy filter ring that can be rotated in order to adjust the intensity of the polarization effect. To prevent internal ghosting and reflections, each glass surface includes five layers of anti-reflection coating. An additional hydrophobic coating results in an improved beading effect when in contact with water for greater cleaning efficiency.
  • Helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface.
  • Polarizing filters arrange, and filter, directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of the light.
  • Clears up haze in distant landscapes and provides more saturated, vivid colors.
  • Strongest effect when used at a 90° angle from the sun.
  • Circular polarizers are ideal for use with digital cameras and autofocus lenses where a linear polarizer will often disrupt auto exposure and focus features.
  • 1.7x filter factor reduces exposure by 0.8 stop.
  • Multicoated to prevent internal ghosting and reflections while providing an improved beading effect with water for more efficient cleaning.
  • Aluminum-alloy filter ring for durability while remaining lightweight.
  • Filter ring can be rotated to adjust the intensity of the polarization effect.
  • 77mm front filter threads allow for use with other filters.
  • Top knurling to provide a more textured grip when mounting or removing it from a lens.
  • Constructed from optical glass for clarity and color fidelity.
  • Plastic filter case for storage and transport.
  UPC: 024066068132

• FE 70-200mm f/2.8 GM OSS Lens
• ALC-SH145 Lens Hood
• ALC-F77S 77mm Front Lens Cap
• ALC-R1EM Rear Lens Cap
• Tripod Mount
• Lens Case
• Limited 1-Year Warranty

• Hoya - 77mm NXT Plus Circular Polarizer Filter

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Sony FE 70-200mm f/2.8 GM OSS Lens

  Focal Length	70 to 200mm
  Maximum Aperture	f/2.8
  Minimum Aperture	f/22
  Lens Mount	Sony E
  Format Compatibility	Full-Frame
  Angle of View	34 Rating 94% users recommend this product to others. And what about you? This product has already been rated by 33 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
