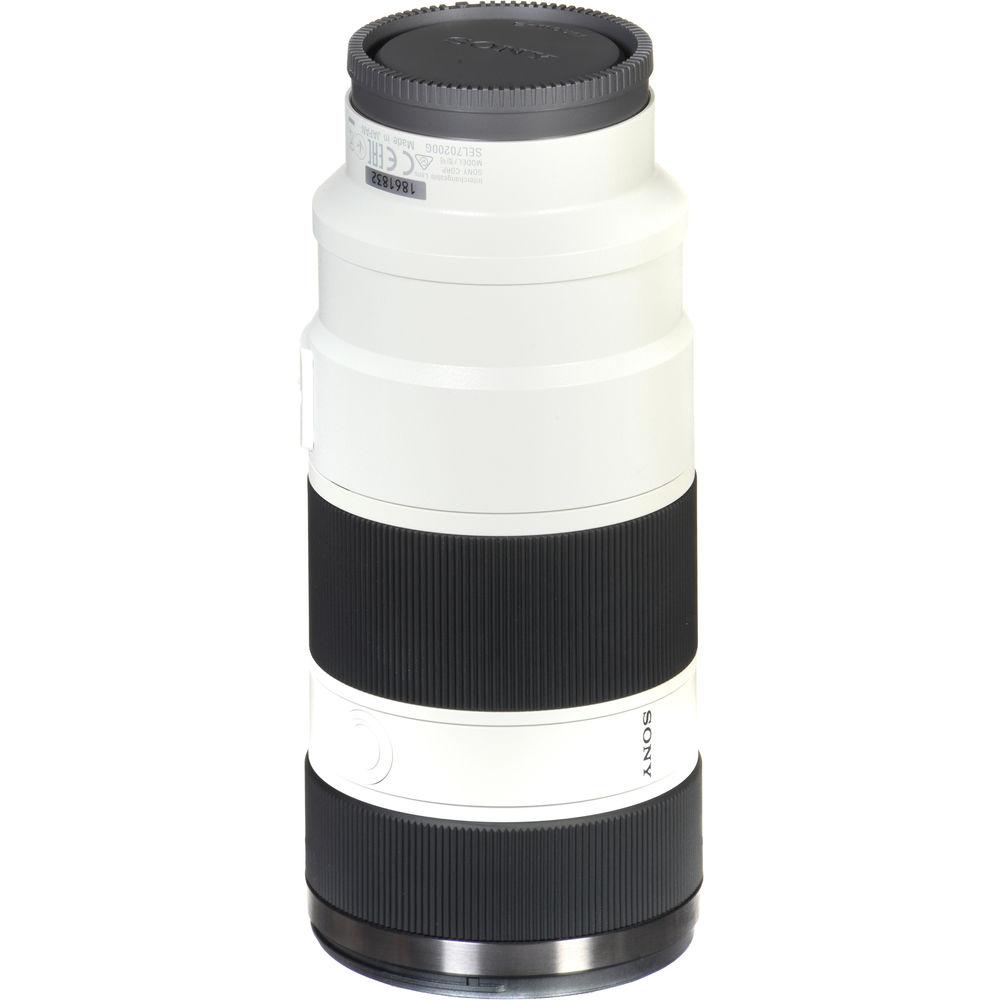

User Manual for Sony FE 70-200mm f 4 G OSS Lens Click to enlarge the picture
Contents of the user manual for the Sony FE 70-200mm f 4 G
- Product category: Mirrorless System Lenses Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Mirrorless System Lenses
 |
User manual for the Sony FE 70-200mm f 4 G contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|

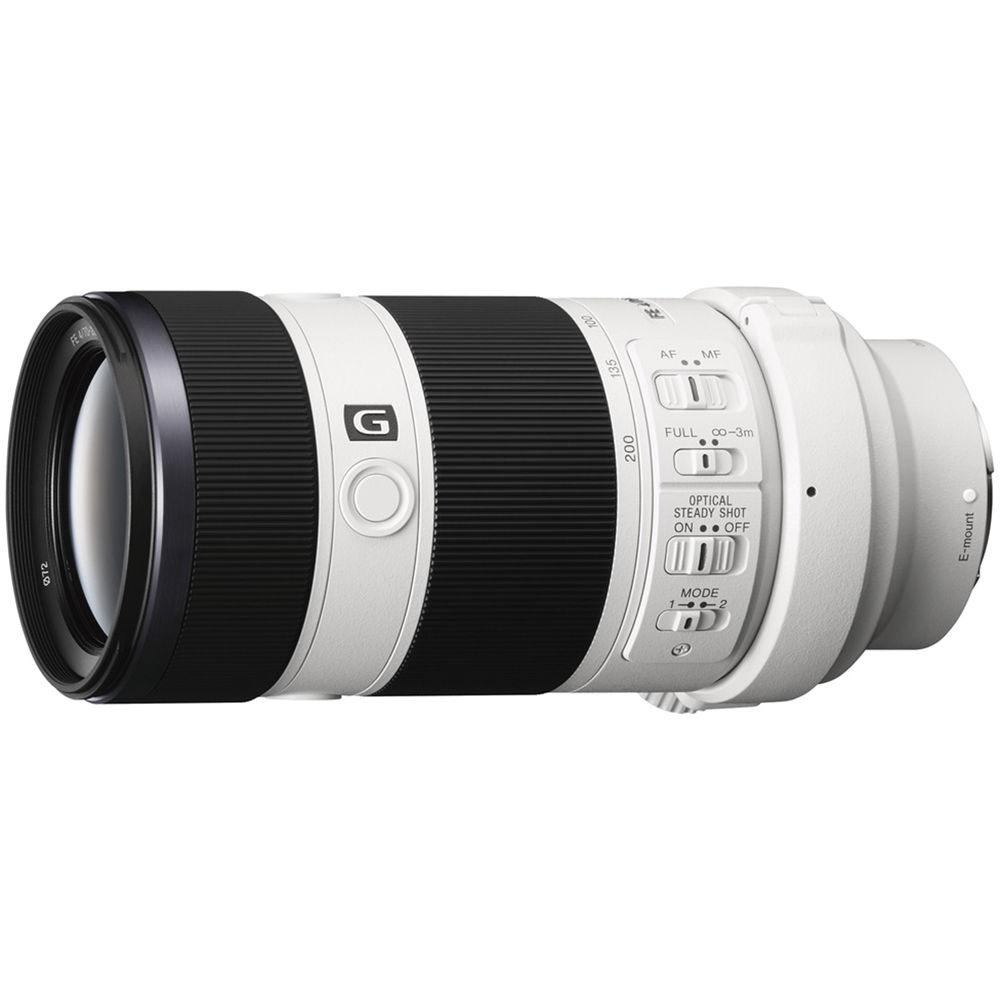

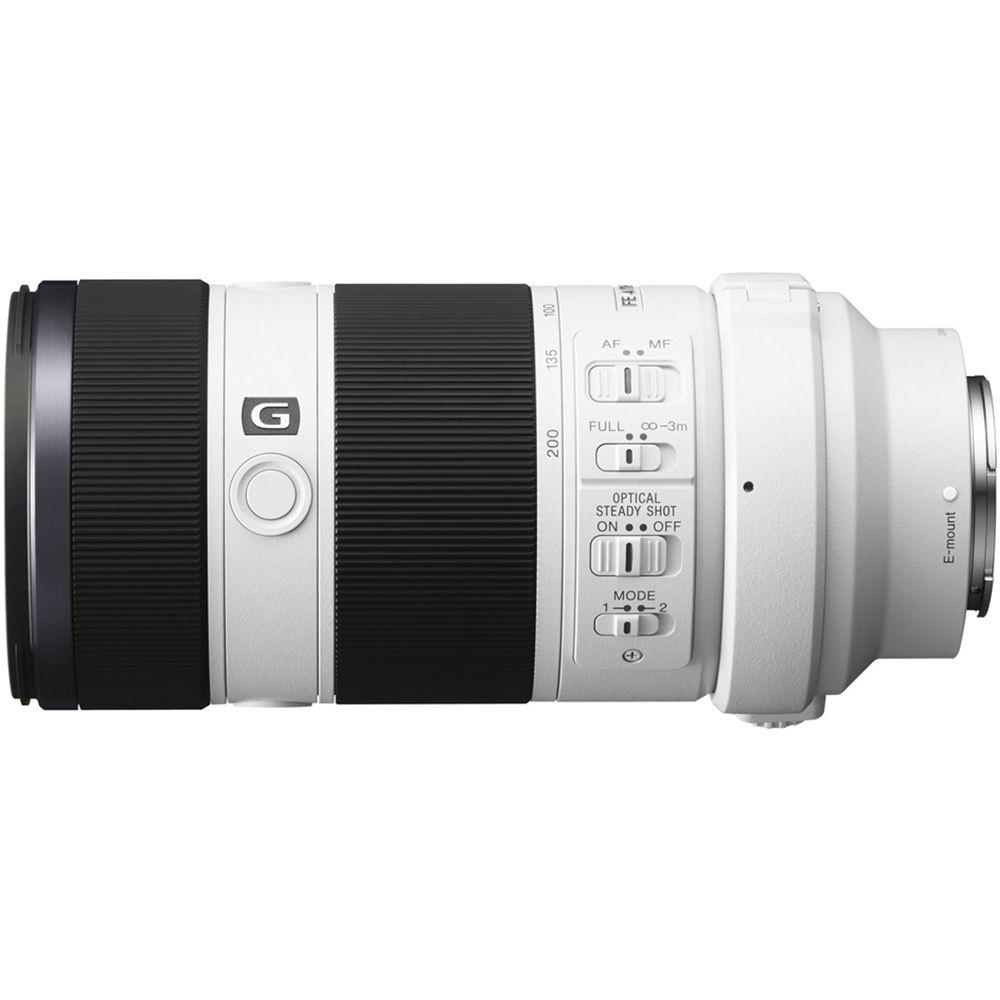

Product description Capture more distant subjects while keeping your kit lightweight with the FE 70-200mm f/4 G OSS Lens from Sony. This full-frame lens is designed for use with mirrorless E-mount cameras where it delivers an excellent telephoto zoom range. It also uses a maximum aperture of f/4 to keep size and weight down. Incorporated into the optical design are a series of specialized elements to ensure aberrations are suppressed, this includes two extra-low dispersion elements, one super extra-low dispersion element, two advanced aspherical elements, and one aspherical element. Along with these capabilities, a Nano AR coating will help minimize the appearance of flare and ghosting.
In order to capture fast-moving subjects, the 70-200mm lens uses a dual linear motor system and internal focus mechanism to autofocus. This fast and accurate setup delivers sharp imagery, especially when combined with the built-in Optical SteadyShot image stabilization. For improved handling, the lens features multiple physical controls, including three focus hold buttons and a focus range limiter. Additionally, the lens has a dust- and moisture-resistant design and comes with a removable, rotating tripod collar for added stability when mounted to a tripod or monopod. - Designed for full-frame E-mount cameras, this 70-200mm zoom covers a versatile telephoto zoom range that is ideal for portraits, action, sports, and more. Also, it can be used on APS-C format cameras where it will provide a 105-300mm equivalent zoom range.
- A constant f/4 maximum aperture offers consistent performance throughout the zoom range and also lends greater control over focus position for shallow depth of field techniques.

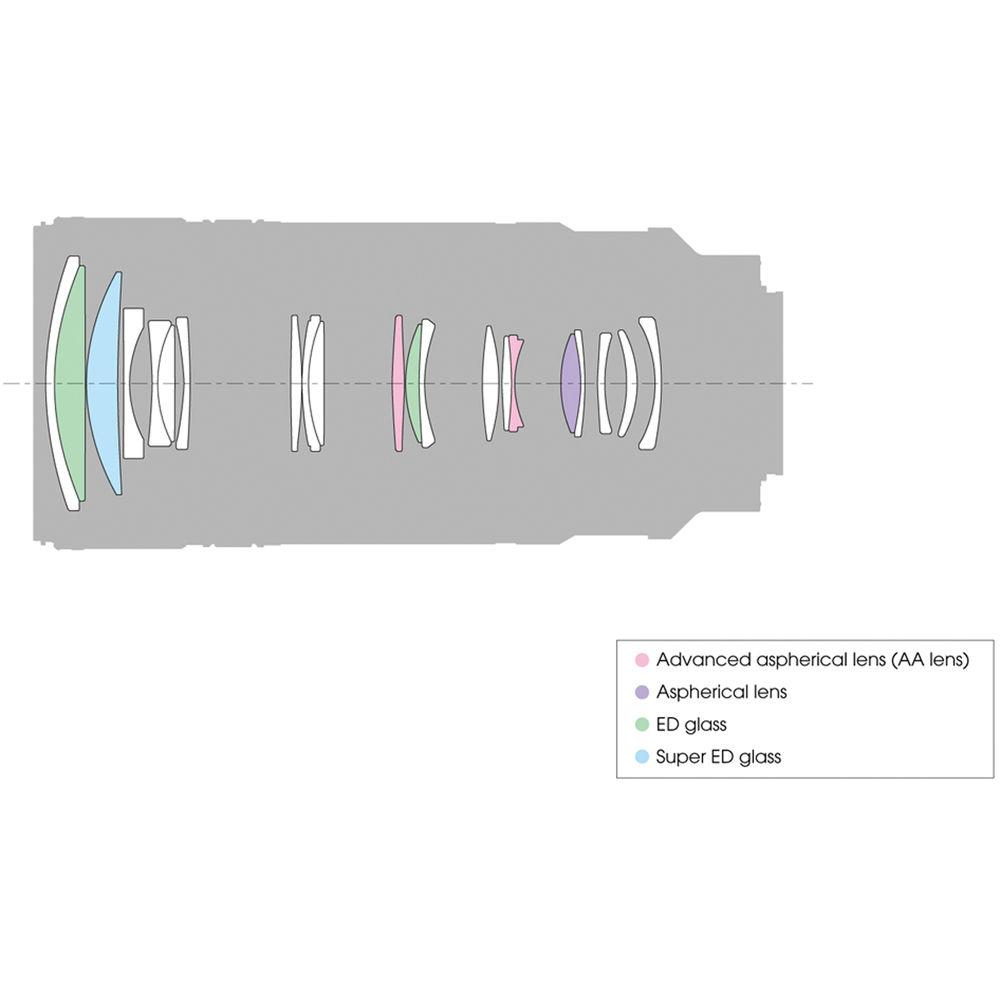

- Two extra-low dispersion glass elements and one Super ED element are featured in the lens design to help reduce chromatic aberrations and color fringing for improved clarity and color neutrality.
- One aspherical element and two Advanced Aspherical (AA) elements are incorporated in the lens design to reduce astigmatism, field curvature, coma, and other monochromatic aberrations.
- A Nano AR coating has been applied to reduce surface reflections, flare, and ghosting for increased contrast and color rendering in strong lighting conditions.
- Dual linear motors and an internal focus mechanism enable fast, responsive autofocus and object tracking. The lens can also focus as close as 3.3' for close up imaging.
- Optical SteadyShot image stabilization helps to minimize the appearance of camera shake for sharper imagery when shooting handheld with slower shutter speeds. This stabilization system can also be combined with select camera's sensor-shift type image stabilization for more effective control of camera blur.
- An electronic focus range limiter switch allows you constrain the usable focus range between a set limited range or full for improving focus speed, and three focus hold buttons are also featured to manually stop the autofocus at a specified point.
- Dust and weather-sealed construction benefits using the lens in inclement shooting conditions.
- Rounded nine-blade diaphragm contributes to a pleasing bokeh quality when employing selective focus techniques.

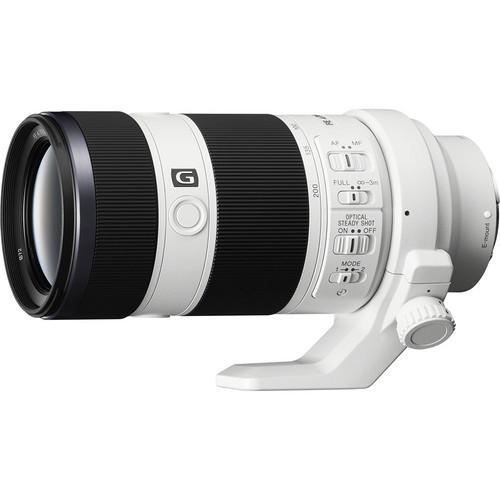

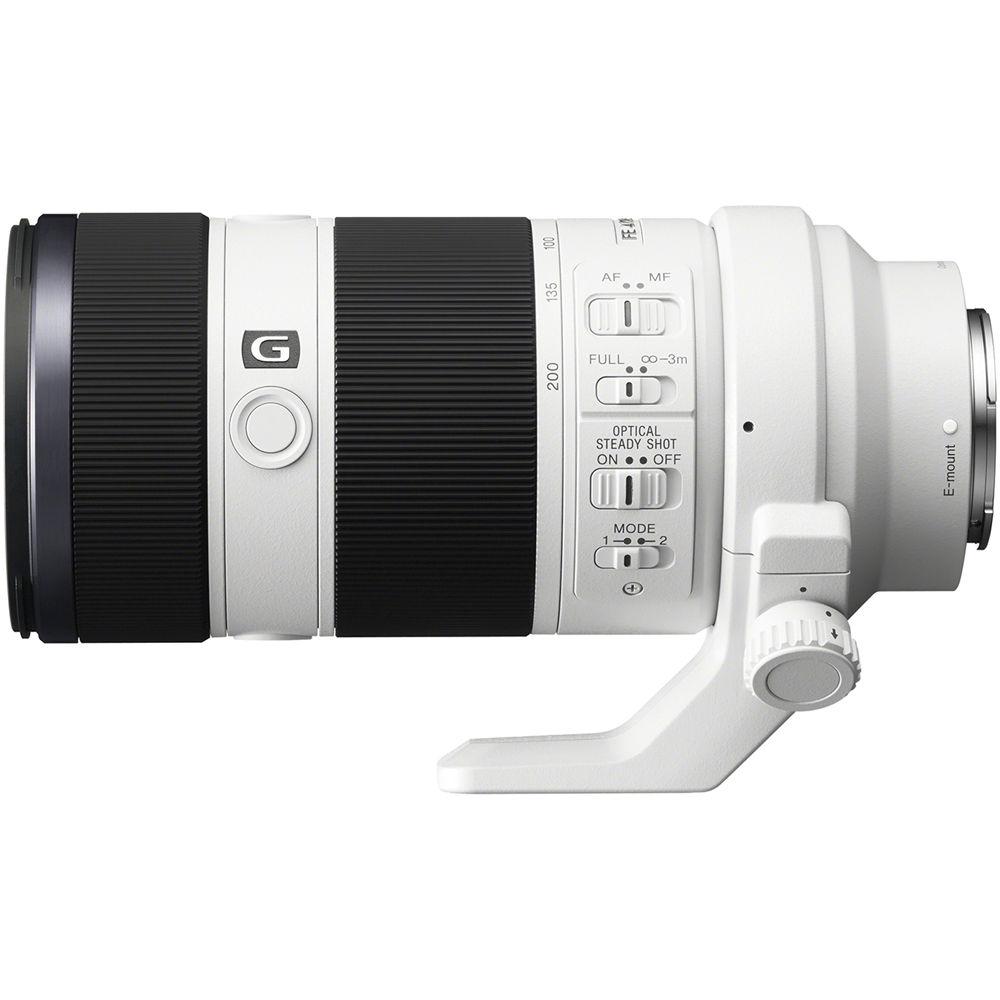

- The lens is equipped with a removable and rotating tripod collar for added stability and reducing strain on the camera's lens mount.
UPC: 002724287200 In the Box Sony FE 70-200mm f/4 G OSS Lens SOALCSH133 ALC-F72S 72mm Front Lens Cap awysvrv ALC-R1EM Rear Lens Cap Lens Pouch Limited 1-Year Warranty User Manual PDF 712.3kb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony FE 70-200mm f 4 G OSS Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony FE 70-200mm f/4 G OSS Specs | Focal Length | 70 to 200mm | | Maximum Aperture | f/4 | | Minimum Aperture | f/22 | | Lens Mount | Sony E | | Format Compatibility | Full-Frame | | Angle of View | 34
Rating94% users recommend this product to others. And what about you?
This product has already been rated by 35 owners. Add your rating and experience with the product.
