User manual
Sony FE 90mm f 2.8 Macro

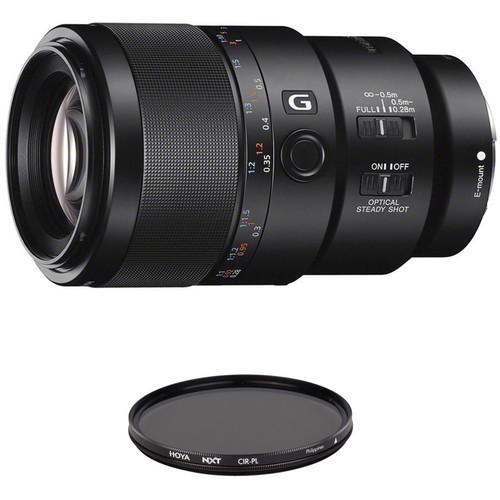

User Manual for Sony FE 90mm f 2.8 Macro G OSS Lens with Circular Polarizer Filter Kit

• Product category: Mirrorless System Lenses Sony
• Brand: Sony
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Sony Mirrorless System Lenses

Product description

• Sony FE 90mm f/2.8 Macro G OSS Lens Get up close and personal with the 1:1 magnification ratio of the full-frame compatible FE 90mm f/2.8 Macro G OSS Lens for Sony's E-mount cameras. As a G series lens, it perfectly balances sharpness and bokeh through the use of various specialized elements, this ensures highly detailed images, with smooth out-of-focus areas, and an absolute minimum of aberrations. The lens also boasts a fast f/2.8 aperture for controlling depth of field and working in less-than-ideal light as well as a Nano AR coating that help eliminate ghosting and flare.

  Critical to macro is accurate focusing, which is assisted by the speedy Direct Drive Super Sonic wave Motor present in the 90mm lens. Users also have direct access to a focus hold button and focus range limiter for further optimizing the lens' performance in certain situations. On top of this, the focusing ring slides for immediate switching between manual and auto focusing. And, the lens has built-in Optical SteadyShot image stabilization for compensating for camera shake at all focusing distances.
  • Designed for full-frame E-mount cameras, this telephoto macro can also be used on APS-C systems where it provides a 135mm equivalent focal length.
  • True macro design affords a life-size, 1:1 magnification ratio along with an 11" minimum focusing distance for working with close-up subjects. A focusing distance and magnification scale is also printed on the top of the lens to aid in more technical applications.
  • Two extra-low dispersion elements, including one Super ED element, are featured in the lens design and helps to reduce chromatic aberrations and color fringing for improved clarity and color neutrality.
  • One aspherical element is incorporated in the lens design to reduce astigmatism, field curvature, coma, and other monochromatic aberrations.
  • A Nano AR Coating has been applied to reduce surface reflections, flare, and ghosting for increased contrast and color rendering in strong lighting conditions.
  • A Direct Drive SSM system and internal focus mechanism provides quick, quiet, and precise autofocus performance and also contributes to more natural, intuitive manual focus control. An internal focus design further enhances usability by improving AF speed and ensuring that the overall length of the lens does not change during use.
  • Optical SteadyShot image stabilization helps to minimize the appearance of camera shake for sharper imagery when shooting handheld with slower shutter speeds. This stabilization system can also be combined with select camera's sensor-shift type image stabilization for more effective control of camera blur.
  • A focus range limiter switch allows you constrain the usable focus range between 11-19.7", 19.7"-infinity, or full, and a focus hold button is also featured to manually stop the autofocus at a specified point.
  • This lens' focusing ring can be slid forwards and backwards to quickly shift from manual to autofocus modes, and vice versa.
  • Rounded nine-blade diaphragm contributes to a pleasing bokeh quality when employing selective focus techniques.
  UPC: 027242889521
• Hoya 62mm NXT Circular Polarizer Filter The Hoya 62mm NXT Circular Polarizer Filter helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface. The light from the sun naturally becomes partially polarized due to reflecting off electrons in air molecules, causing the light to scatter into what appears as haze. A polarizing filter arranges, and filters, this directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of this light. This results in a noticeable reduction of glare and reflections from non-metallic surfaces and an increase in the saturation of skies and foliage.

  A circular polarizer only differs from a linear polarizer in that it contains a quarter wave plane in addition to the linear polarizing filter. The addition of this quarter wave plane is to circularly polarize the linearly polarized light for the use of auto focus and exposure functions. Due to how the light is broken down and filtered with a linear polarizer, auto focus and exposure accuracy become skewed during use. When the light becomes circularly polarized, it permits the use of these functions.

  This filter is non-coated. Hoya NXT filters have over 97% average light transmission, and are constructed from heat-resistant, high-transparency optical glass.
  • Helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface.
  • Polarizing filters arrange, and filter, directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of the light.
  • Clears up haze in distant landscapes and provides more saturated, vivid colors.
  • Non-coated.
  • Strongest effect when used at a 90° angle from the sun.
  • Circular polarizers are ideal for use with digital cameras and autofocus lenses where a linear polarizer will often disrupt auto exposure and focus features.
  • Over 97% average light transmission.
  • Constructed from heat-resistant, high-transparency optical glass.
  UPC: 024066055675

• FE 90mm f/2.8 Macro G OSS Lens duvdvaydbzuwsxrtwczweeacswefyvscvdse
• ALC-SH138 Lens Hood
• ALC-F62S 62mm Front Lens Cap
• ALC-R1EM Rear Lens Cap
• Lens Pouch
• Limited 1-Year Warranty

• Hoya - 62mm NXT Circular Polarizer Filter

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Sony FE 90mm f/2.8 Macro G OSS Lens

  Focal Length	90mm
  Maximum Aperture	f/2.8
  Minimum Aperture	f/22
  Lens Mount	Sony E
  Format Compatibility	Full-Frame
  Angle of View	27 Rating 96% users recommend this product to others. And what about you? This product has already been rated by 22 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
