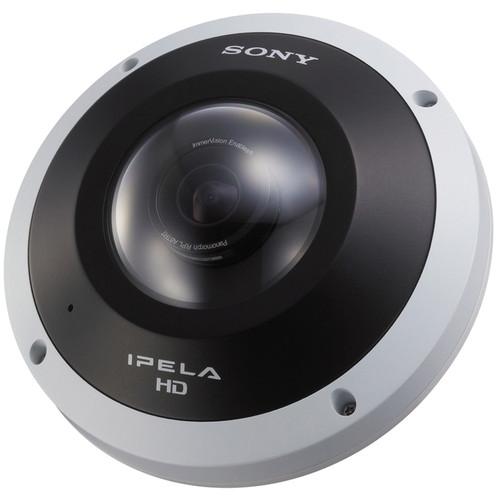

User Manual for Sony H Series SNC-HM662 5MP 360 Hemispheric-View Network Mini Dome Camera with Panomorph Lens Click to enlarge the picture
Contents of the user manual for the Sony H Series SNC-HM662 5MP 360
- Product category: Wired IP Cameras Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Wired IP Cameras
|
User manual for the Sony H Series SNC-HM662 5MP 360 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description The H Series SNC-HM662 5MP 360° Hemispheric-View Network Mini Dome Camera with Panomorph Lens from Sony, with Hemispheric imaging technology, captures 360° of real-time video with image resolution up to 2560 x 1920. The advanced dewarping technology corrects the distortion of a hemispheric image and displays rectangular images with the video management software (VMS). In addition, it maintains the video quality without incurring image degradation caused by camera-processing limitations during the dewarping process. It features selectable VBR or CBR compression modes to correspond with various network conditions and G711/AAC audio codecs for high-quality recording.The camera features digital PTZ capabilities that allow you to easily navigate the hemispheric image for rapid-response manipulation. A variety of multiple view modes capable of 360° immersive navigation, including the camera’s original 360° hemispheric view, a 180° panoramic view, and multiple simultaneous views all produced from the same hemispheric image. The camera also features Day/Night function to switch to the day or night mode depending on the light level. It is capable of capturing color images in illumination levels as low as 0.7 lux beyond which it captures B&W images up to 0.3 lux. - Maximum resolution of 2560 x 1920 pixels with a 5MP CMOS sensor
- 360° hemispheric imaging technology with a panomorph lens from ImmerVision
- Advanced de-warping technology for immersive monitoring with VMS platforms and other solutions that are certified ImmerVision Enables
- Solid PTZ for easy and rapid-response camera manipulation in every hemispheric image
- A variety of view modes including 360° hemispheric view, 180° panoramic view, and multiple screen views
- Edge storage for onboard recording with microSD/SDHC cards 1
Please Note: Memory card not included close - IK10-rated, vandal-resistant housing
- IP66-rated, water-resistant and dust-tight feature for outdoor surveillance and indoor locations where water ingress may pose an issue
- Day/Night function to switch to day or night mode depending on the light level
- VBR (variable bitrate) or CBR (constant bitrate) compression mode selectable to correspond with various network conditions and G711/AAC (64 to 128 kHz) audio codecs for high-quality recording
- ONVIF (Open Network Video Interface Forum) Profile S conformance firmware ensures greater interoperability and more flexibility in building multiple-vendor systems
- Easy initial network settings by supplied SNC Easy IP setup guide application
UPC: 027242875104 In the Box Sony H Series SNC-HM662 5MP 360 Hemispheric-View Network Mini Dome Camera with Panomorph Lens Mounting Plate I/O Cable Alignment Sticker for Camera Base Alignment Sticker for Mounting Plate Screwdriver Desiccant Bag Double-Sided Tape Rubber Seal Plug Rubber Washer Screw (for Mounting Plate) CD-ROM (Supplied Program) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony H Series SNC-HM662 5MP 360 Hemispheric-View Network Mini Dome Camera with Panomorph Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony SNC-HM662 Specs | | | Image Sensor | 1/2.5-type progressive scan CMOS sensor | | Total Pixels | Approximately 5 MP | | Minimum Illumination | 50 IRE - Color: 0.7 lux (F2.0, AGC ON, 1/30 sec, 10 fps), B/W: 0.3 lux (F2.0, AGC ON, 1/30 sec, 10 fps)
30 IRE - Color: 0.4 lux (F2.0, AGC ON, 1/30 sec, 10 fps), B/W: 0.1 lux (F2.0, AGC ON, 1/30 sec, 10 fps) | | Dynamic Range | More than 60 dB | | Gain | Auto | | Shutter Speed | 1/5 to 1/32,000 sec | | Exposure Control | Exposure compensation, AGC, Shutter speed | | White Balance | ATW, Manual | | Lens | Fixed panomorph lens | | Zoom Ratio | Digital: 12x | | Horizontal Viewing Angle | 182° | | Vertical Viewing Angle | 182° | | Focal Length | f = 0.98 to 1.12 mm | | F-Number (f) | F2.0 | | Minimum Object Distance | 19.6" (50.0 cm) | | Number of Preset Positions | 20 | | Tours | Number of Tour Programs: 20 | | | | View Mode | 360˚ Hemispheric / 180˚ Panoramic
Number of View Modes: 11
Auto-rotation Mode
e-Flip
Wide-D
Tone Correction | | Privacy Masking | Number: 5
Shape: Quadrangle formed by any four corner points
Color/Effect: Black | | Vandal Resistant | IK10 | | Ingress Protection Rating | IP66 | | Menu Languages | English, Japanese, Chinese (simplified), Chinese (traditional), French, Spanish, German, Italian, Korean, Portuguese, Russian, Arabic, Hindi, Vietnamese, Thai | | | | Resolution | 2560 x 1920, 2048 x 1536, 1600 x 1200, 800 x 600, 640 x 480 (Hemispheric mode: H.264, JPEG)
1920 x 1080, 1600 x 904, 1360 x 768, 1280 x 720, 640 x 360 (1080p mode: H.264, JPEG) | | Compression Format | H.264 (High/Main/Baseline Profile), JPEG | | Maximum Frame Rate | H.264: 10 fps (2560 x 1920)
JPEG: 13 fps (2560 x 1920) | | Control | Bitrate Compression Mode: CBR/VBR (selectable)
Range of Bitrate Setting: 20 kb/s to 16 Mb/s | | Cropping | 1920 x 1080 | | Streaming | Triple streaming | | Number of Clients | 10 | | Intelligent Video Analytics | Intelligent Motion Detection, Tamper Alarm | | | | Compression Format | G.711/AAC (64 kHz to 128 kHz) | | | | Operating System | Windows XP (32 bit) Professional Edition, Vista (32 bit) Ultimate, Business Edition, 7 (32/64 bit) Ultimate, Professional Edition, 8 Pro (32/64 bit) | | Processor | Intel Corei7 2.8 GHz or higher | | Memory | 2 GB or more | | Web Browser | Microsoft Internet Explorer Ver. 8.0, 9.0, 10.0 (32 bit) | | | | Protocols | IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, DNS, NTP, RTP/RTCP, RTSP over TCP, RTSP over HTTP, SMTP, IPv6, HTTPS, SNMP (v1, v2c, v3), SSL | | QoS | DSCP | | ONVIF Conformance | Profile S | | Authentication | IEEE 802.1X | | | | Microphone | Built-in Microphone/External MIC-IN | | Network Access | 10BASE-T/100BASE-TX (RJ-45) | | Card Slots | microSD | | Memory Card Support | microSDHC (no support for microSDXC) | | Additional | Line Output, Alarm Input (Sensor Input), Alarm Output | | | | Power Requirements | IEEE 802.3af compliant (PoE system) | | Power Consumption | 6 W maximum | | Operating Temperature | -22 to 122°F (-30 to 50°C) (tentative) | | Cold Start | -4 to 122°F (-20 to 50°C) | | Storage Temperature | -13 to 140°F (-25 to 60°C) | | Operating Humidity | 20 to 90% | | Storage Humidity | 20 to 95% | | Material of Construction | Aluminium and polycarbonate | | Fire Protection | UL94HB | | Safety Regulations | UL2044, IEC60950-1, IEC60950-22, FCC Class B, IC Class B, EN 55022 Class B, EN55024 Class B, EN50130-4, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, EN61000-4-11, Clause 7 of EN50130-4, AS/NZS EN55022 Class B, VCCI ClassB, Korea EMC (K00022 + K00024), Russia EAC, EN50155, EN50121-3-2, IEC61373 | | Dimensions (Ø x H) | 5.7 x 2.2" (14.5 x 5.4 cm) without a mounting plate | | Weight | 1.41 lb (0.64 kg) without a mounting plate | | | | Package Weight | 3.45 lb | | Box Dimensions (LxWxH) | 10.8 x 8.3 x 6.9" |
