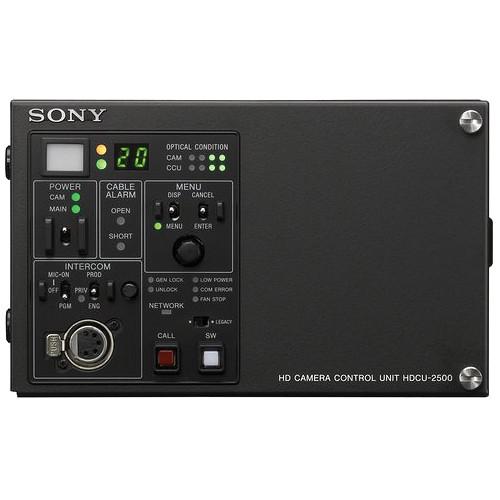

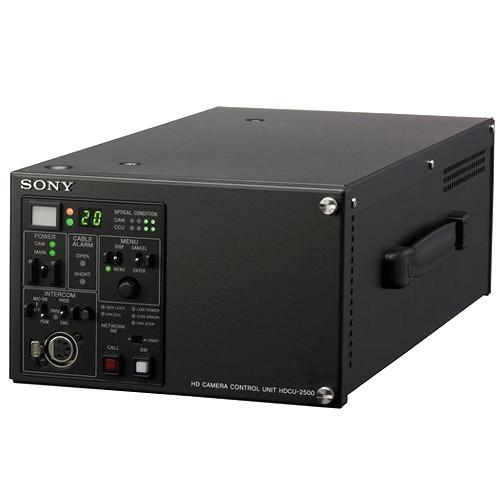

User Manual for Sony Half-Rack-Size Camera Control Unit for HDC2000 Series Cameras Click to enlarge the picture
Contents of the user manual for the Sony Half-Rack-Size Camera Control Unit for
- Product category: CCUs & Base Stations Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony CCUs & Base Stations
 |
User manual for the Sony Half-Rack-Size Camera Control Unit for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description The HDCU-2500L Half-Rack-Size Camera Control Unit from Sony is a 19"-rack-size camera control base station for the Sony HDC-2000 and HDC-1500 Series cameras. The unit is equipped with a range of built-in interfaces such as 3G-SDI/HD-SDI/SD-SDI outputs, as well as 3G-SDI/HD-SDI/SD-SDI/analog composite return inputs, and a down-converted analogue composite monitor output. Additionally, a variety of output interfaces are offered via optional boards with can be installed in the free slot located on the HDCU-2500 unit. The built-in LAN interface allows the camera to be controlled over a network and the menu buttons and indicators on the front panel are designed for intuitive operability. The optical fiber transmission system featured on the unit maintains the camera's picture quality across cable runs of up to 6562' (2000 m). - The HDCU-2500 is equipped with a range of built-in interfaces of 3G-SDI/HD-SDI/SD-SDI outputs, 3G-SDI/HD-SDI/SD-SDI/analog composite return inputs, and a down-converted analog composite monitor output. The system has seven SDI outputs, including three 3G-SDI outputs, as standard. It also has three 3G-SDI/HD-SDI/SD-SDI, or analogue composite return video inputs.
- The built-in LAN interface (10BASE-T/100BASE-TX) allows the camera to be controlled over a network.
- A one-channel teleprompter input and two-channel microphone outputs (two XLR connectors) allow for connecting additional equipment.
- The unit has multi-format support for 1080/100i, 1080/119.88i, 1080/50P, 1080/59.94P, 1080/50i, 1080/59.94i, 1080/23.98PsF, 1080/24PsF, 1080/25PsF, 1080/29.97PsF, 720/50P, 720/59.94P and 1080-4:4:4-RGB (@50i, 59.94i, 23.98PsF, 24PsF, 25PsF, 29.97PsF).
- RGB 12-bit output is offered for creative shootings, as well as 3D transmission on one cable, plus double speed acquisition.
- The 2-channel trunk line (RS-422A and RS-232C) is designed to facilitate easy data transmission.
In the Box Sony Half-Rack-Size Camera Control Unit for HDC2000 Series Cameras Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony Half-Rack-Size Camera Control Unit for HDC2000 Series Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

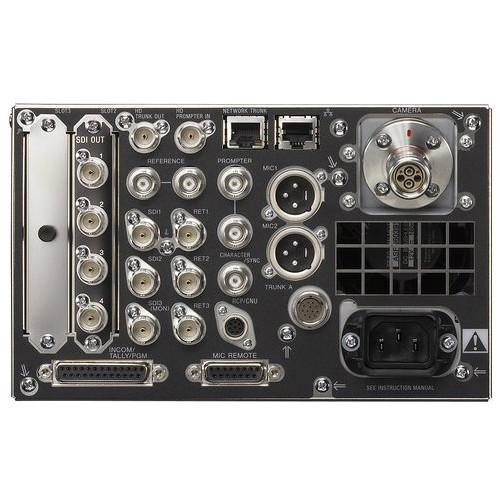

Technical parametersSony HDCU-2500L Specs | Camera | Optical / electrical multi-connector (180 VDC power supply) | | Compatibility | Sony HDC2400/2500 cameras | | Input/Output Connections | Intercom/Tally/PGM: 1 x D-sub 25-pin (female)
RCP/CNU: 1 x 8-pin
TRUNK A: 1 x 12-pin
Network TRUNK: 1 x RJ-45 8-pin
LAN (RCP/MSU): 1 x RJ-45 8-pin
SDI/VBS Return Input: 3 x BNC (3G/HD/SD/VBS)
Prompter Input: 2 x BNC loop-through output, VBS, 1 VP-p, 75 ohms
Reference Input: 2 x BNC loop-through output
Mic Remote: 1 x D-sub 15-pin
Sync and Character Output: 1 x BNC
3G/HD-SDI Output: 4 x BNC
HD TRUNK Output: 1 x BNC
HD Prompter Input: 1 x BNC | | Audio Output | 2 x XLR 3-pin (male), 0 dBu / -20 dBu / 4 dBu | | Power Supply | 100 VAC to 240 VAC, 50/60 Hz | | Operating Temperature | 14 to 104°F / -10 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Dimensions (WxHxD) | 8.0 x 5.0 x 16.3" / 20.3 x 12.7 x 41.3 cm | | Weight | 14.8 lb / 6.7 kg |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 24 owners. Add your rating and experience with the product.
