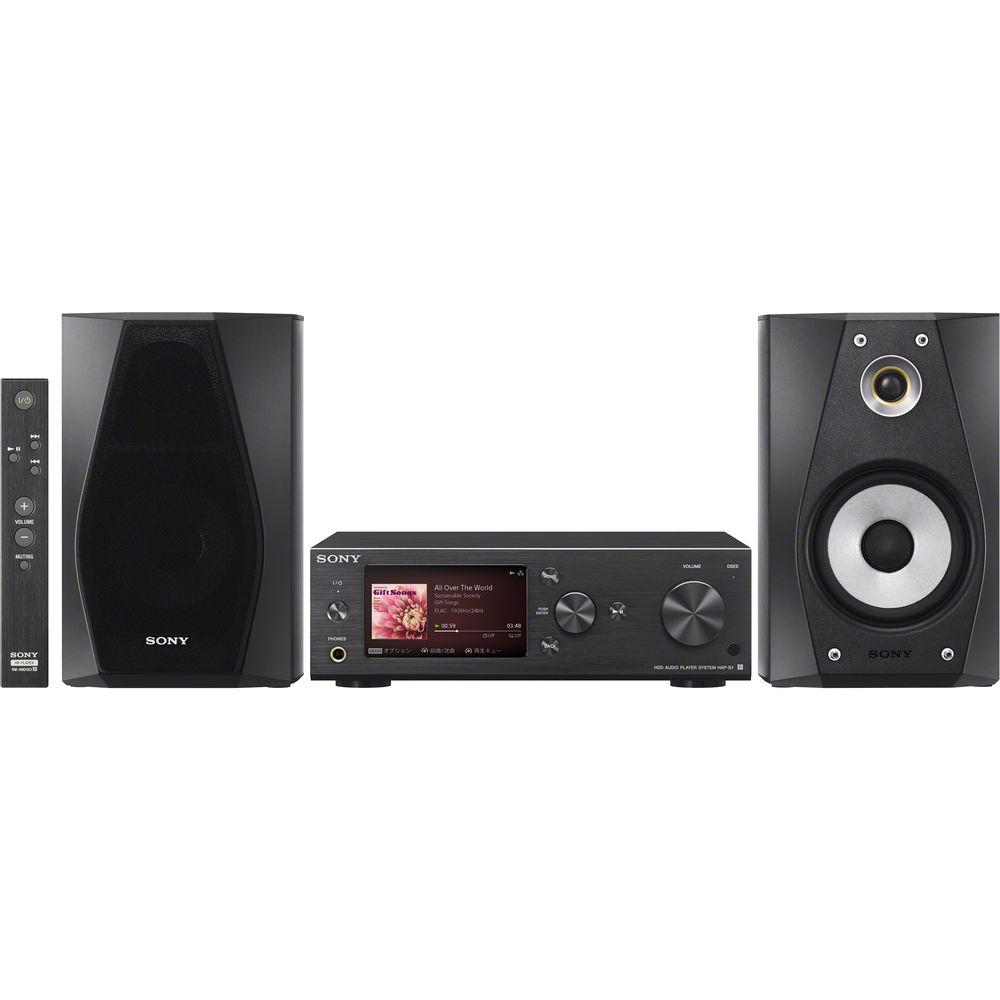

User Manual for Sony HAP-S1 B - High Resolution Music Player System Click to enlarge the picture
Contents of the user manual for the Sony HAP-S1 B - High Resolution
- Product category: Digital Music Players Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Digital Music Players
|
User manual for the Sony HAP-S1 B - High Resolution contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|

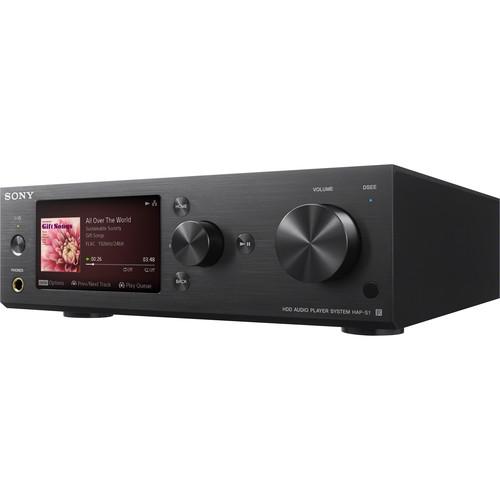

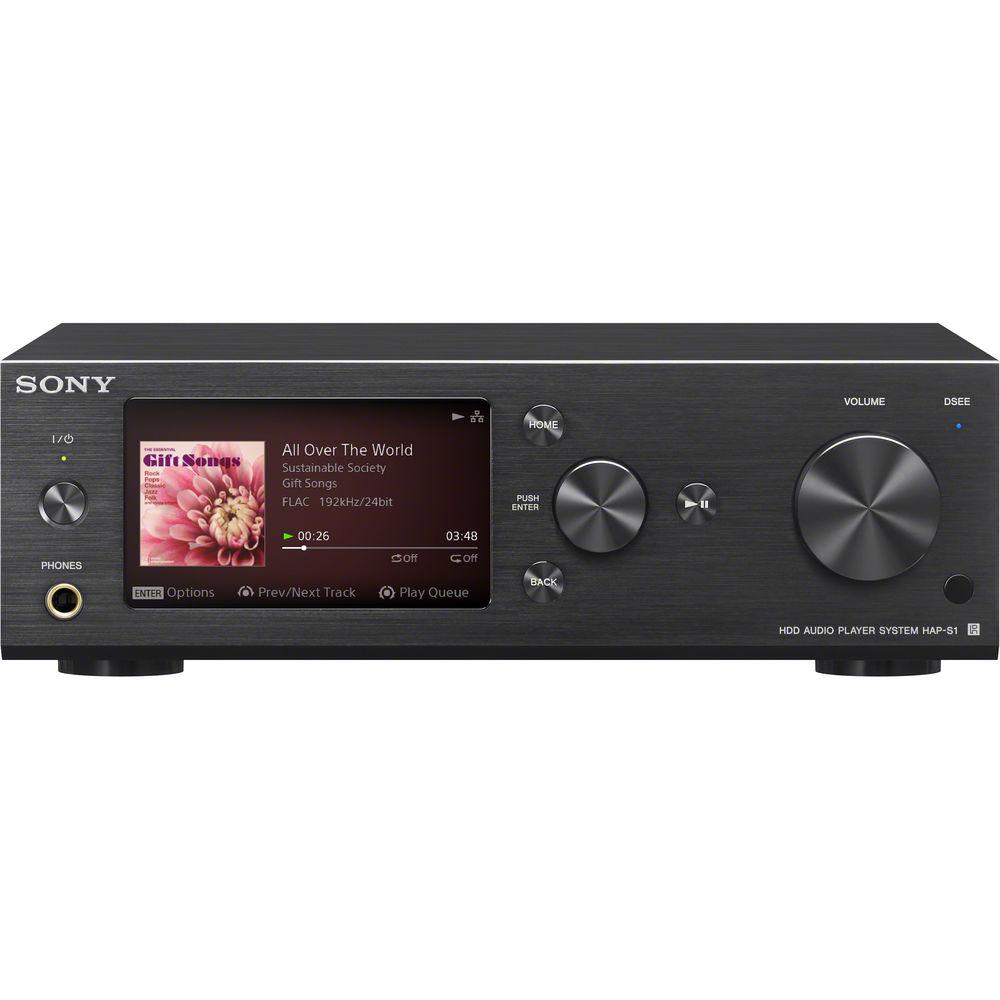

Product description The black HAP-S1/B from Sony is a high resolution music player system designed for home audio and featuring an integrated amplifier, 500GB of storage, and a high performance DAC. The high resolution audio player offers playback of a wide range of formats including, DSD, WAV, AIFF, FLAC, ALAC, MP3, AAC, WMA, and ATRAC. The built-in Wi-Fi allows you to transfer music files wirelessly and enables the use of a free iOS or Android remote control app. The built-in 500 GB hard drive stores all your music files and the system is expandable via a USB port for connecting an additional hard drive. The 4.3" LCD display offers an onscreen guide and includes Gracenote compatibility complete with artist, album, song information and album artwork.

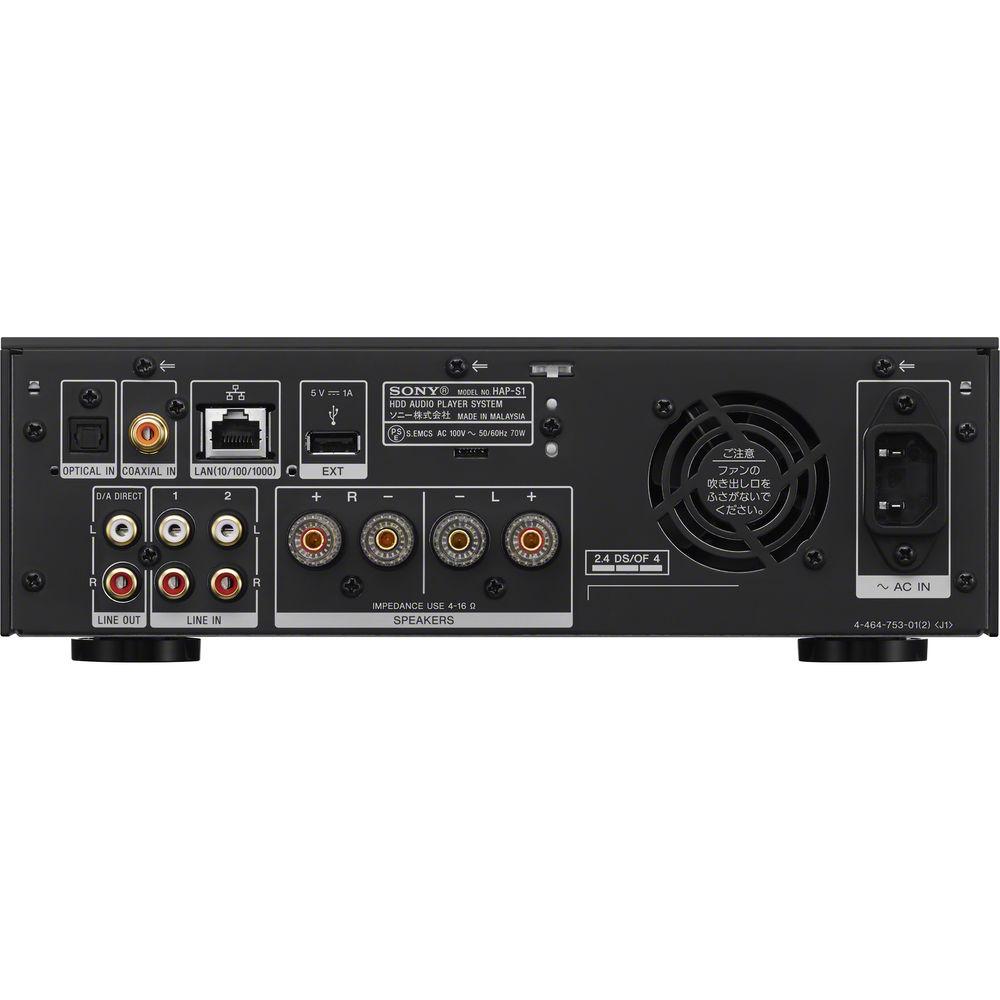

The HAP-S1/B can function as a DAC with digital input connections for optical and coaxial, while analog inputs are available via two stereo pairs of RCA inputs. Additionally, the unit offers an analog output via stereo RCA for connecting to other home audio component systems. The Class A/B amplifier features up to 40W per channel into 2 ohms with a frequency range of 20 Hz to 20 kHz. The HAP-S1/B ships with a power cord, remote control, two AAA batteries, and an Ethernet cable. - Hi-Res Music Playback
- The HAP-S1/B can playback and decode the following file formats:
- DSD (DSF, DSDIFF)
- PCM (44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz, 16-/24-/32-bit)
- DSD (2.8/5.6 MHz)
- WAV
- AIFF
- FLAC
- ALAC
- ATRAC Advanced Lossless
- ATRAC
- MP3
- AAC
- WMA
- 500GB Hard Drive
- Store music of all Hi-Res formats for local music playback on the 500GB hard drive. Storage space is expandable via USB external hard drives
- Analog FIR Filters
- This digital-to-analog converter effectively reduces high-frequency noise in DSD signals. It features independent right and left channels, with four analog FIR (Finite Impulse Response) filters per channel producing a combined one-clock delay. FIR filters are ideal for D/A conversion of DSD signals
- Digital Sound Enhancement Engine
- Offers natural sound with a spacious feel by restoring high frequency sound and the tail shape of the waveform likely to be removed through the audio compression process
- Wi-Fi Built-in
- Newly designed built-in Wi-Fi increasing whole-house coverage and signal strength. HAP-S1/B is rigorously tested to ensure its Wi-Fi signal strength will work under the most extreme conditions.
- HDD Audio Remote App for iOS and Android Phones and Tablets
- A dedicated app to control your listening experience with the HAP-S1/B. Create playlists, search stored music and full track control
- Expandable Storage via USB
- Connect external hard drives to expand the players storage capabilities
- Music Transfer Software
- Compatible with both Windows and Mac computers, this simple music transfer software allows you to select your music folder and sync it with the HAP-S1/B
- Large Power Source Block Capacitor
- This acoustically tuned, custom block capacitor features not only improved electrolytic solution and electrode foil magnification, but also superior case form, sleeve material and length. This component is optimally tuned with chemical capacitor length and sleeve cut
- Left-Right Separated, Large Bandwidth Power Amp
- This Class-AB analog amp utilizes an EBT (emitter balance transistor) with a cutoff frequency of over 300 MHz for the final transistor. The amp device features minimal phase variation up to the high range and excellent transient response. Its twin mono format with separate left and right channels eliminates left-right sound interference and ensures clear, high-quality sound reproduction. The resilient high range reproduces sound with rich musicality and a high degree of faithfulness
- High-Rigidity Chassis Structure
- Its all-in-one compact size and sturdy 3mm-thick solid aluminum design extends from front panel to top panel
- One-Point Ground Structure
- Concentrating audio signal control points into a single point eliminates fluctuation of left- and right-channel, and contributes to dynamic sound
- Power Source Transformer
- A low iron-loss type EI core transformer curbs leakage flux, utilizing core material, varnish, and vacuum impregnation for superior sound quality. As a result, excellent spatial representation and rich resonant timbre is produced. The core size (45 x 66) is large for this class, and thick winding wire helps achieve rich, resonant timbre
UPC: 027242871656 In the Box Sony HAP-S1/B - High Resolution Music Player System (Black) AC Power Cord Remote Control 2 x AAA Batteries Ethernet Cable Limited 1-Year Warranty More from Manufacturer arutrycszqcbatbqyx Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony HAP-S1 B - High Resolution Music Player System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony HAPS1 Specs | Power Output | 40 W + 40 W (4 ohms, 1 kHz, THD 10%) | Speaker Impedance | 4 to 16 ohms | S/N Ratio | 100 dB (20 kHz LPF, A Network) | Frequency Response | 10 Hz to 100 kHz (+0 dB, -3 dB) (4 ohms, line in) | | Wired LAN | 1000BASE-T/100BASE-TX/10BASE-T | Wireless LAN | Compatible Standards: IEEE 802.11 b/g/n Frequency Band: 2.4 GHz Channels: 1 to 11 | | Capacity | 500 GB | Supported Playback Format | DSD (DSF, DSDIFF), LPCM (WAV, AIFF), FLAC, ALAC, ATRAC Advanced Lossless, ATRAC, MP3, AAC, WMA (2 channels) | | Inputs | Coaxial In: Input impedance: 75 ohms Supported Playback Format: LPCM 2ch
Optical In Supported playback format: LPCM 2ch
Line In (1/2): 2 x Stereo RCA Input Sensitivity: 500 mV Input Impedance: 100 kOhms | Outputs | Line Out: 1x Stereo RCA Output impedance: 2.2 kOhms Frequency Range: 2 Hz to 80 kHz (-3 dB)
Headphones: Stereo 1/4" / 6.35 mm Impedance: 8 ohms or higher
EXT Port: Type A USB, Hi-Speed USB, for connecting an external hard disk drive | | Display | 4.3" LCD | Computer Compatibility | Mac: OSX 10.6 or higher PC: Windows XP (SP3), Vista, 7, 8 | Power Requirements | AC 120 V 60 Hz | Power Consumption | On: 80 W Standby Mode (when [Network Standby] is set to [Off]): 0.3 W Standby Mode (when [Network Standby] is set to [On] and a wired LAN is used): 2.6 W Standby Mode (when [Network Standby] is set to [On] and a wireless LAN is used): 2.8 W | Dimensions (W x H x D) | 10.4 x 3.5 x 12.0" / 26.5 x 8.8 x 30.4 cm | Weight | 12.8 lb / 5.8 kg | | Package Weight | 16.1 lb | Box Dimensions (LxWxH) | 14.7 x 13.0 x 8.1" |
