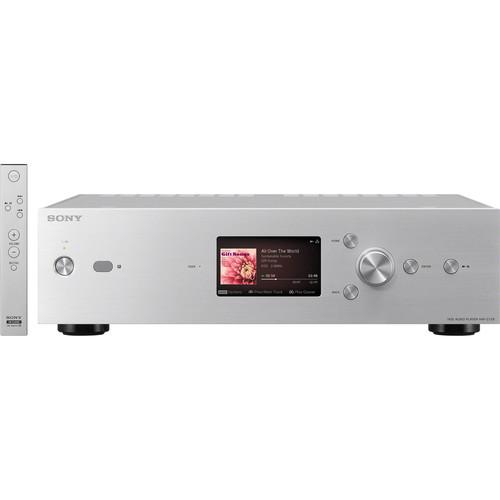

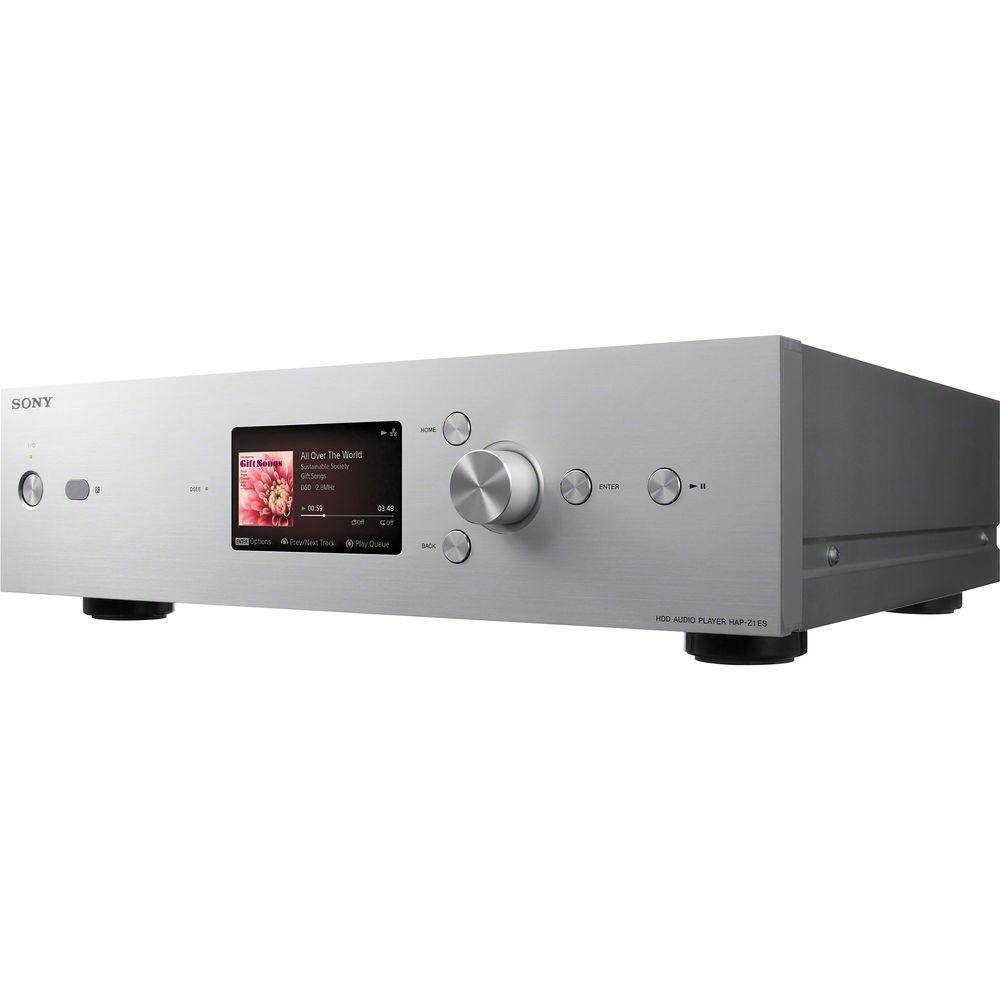

Product description The Sony HAP-Z1ES Hi-Res Audio Player delivers an immersive audio output from DSD (DSF, DSDIFF), PCM (44.1/48/88.2/96/176.4/192 kHz at 16-/24-/32-bit), WAV, AIFF, FLAC, ALAC, ATRAC Advanced Lossless, ATRAC, MP3, AAC, and WMA music files. It comes with a built-in 1TB HDD to store all your favorite tracks. The player is composed of an FBB chassis with a heavy frame, beam, and base. The player has built-in Wi-Fi for easy music transfer from your PC, and a 4" display for easy operation. The Digital Sound Enhancement Engine (DSEE) technology enhances compressed file sound quality by revitalizing the high-frequency signals that are normally truncated during the compression process. Subsequently, it revitalizes your favorite compressed and uncompressed music files by retrieving the waveform tail. - Hi-Resolution Audio Player with room for all your music
- The player offers immersive sound output and features a 1TB hard drive, supports DSD and the full range of Hi-Res file formats. It has built-in Wi-Fi for easy music transfer from your PC, and a 4" display for easy operation
- Sound Detail
- The player is composed of an FBB chassis with a heavy frame, beam, and base. Consisting of two plates of differing thickness for firm support, it offers high-precision parts placement and high rigidity achieving audiophile sound.
- Powerful, Flexible Playback
- The HAP-Z1ES player can playback and decode the following file formats: DSD (DSF, DSDIFF), PCM (44.1k/48k/88.2k/96k/176.4k/192kHz at 16-/24-/32-bit), WAV, AIFF, FLAC, ALAC, ATRAC Advanced Lossless, ATRAC, MP3, AAC, WMA music files.
- DSD Re-Mastering Engine
- This D/A conversion system leverages a high-performance DSP with a field-programmable gate array to convert all signals to 128 Fs DSD (double-rate DSD) signals.
- Single Place for Storage
- The player features plenty of storage capacity for all of your favorite tracks (smooth operation guaranteed up to 20,000 tracks) with 1TB of internal storage. If you need additional capacity, you may expand externally using external storage (sold separately) and the USB input.
- Frequency Response Restored with DSEE
- Digital Sound Enhancement Engine (DSEE) technology works in two ways to deliver natural sound with a spacious feel. The first enhances compressed file sound quality by revitalizing the high-frequency signals that are normally truncated during the compression process. The end-result is an accurate and spacious audio experience. Second, it revitalizes your favorite compressed and uncompressed music files by retrieving the waveform tail. In doing so, audio response remains more coherent and full-bodied, with a smooth finish.
- Connections

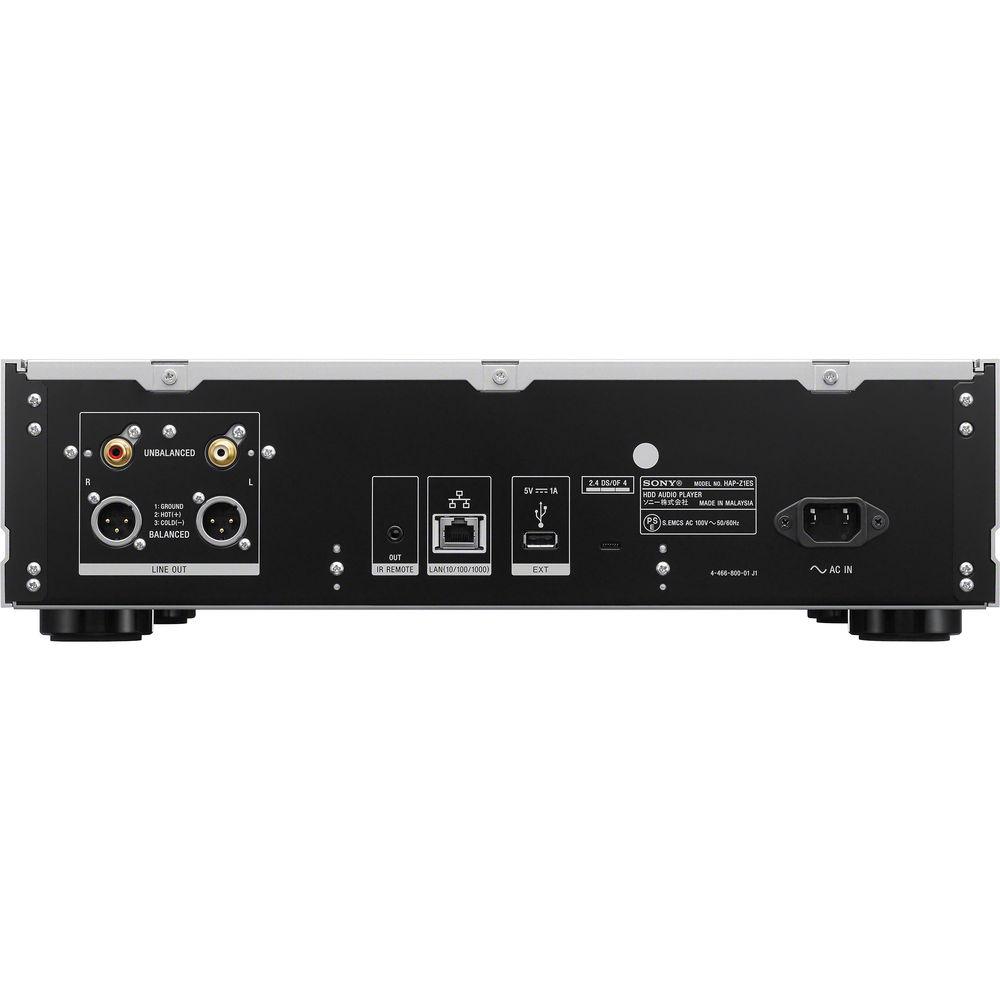

- Connect the HAP-Z1ES to an amplifier via noise-free via the balanced L/R XLR inputs or the unbalanced L/R phono jacks, or go. An infrared output allows for connecting an IR blaster. The LAN port provides for a hard-wire connection to your PC for uploading files, and USB allows for expanding storage capacity via an external drive.
- Wired or Wireless File Transfer
- Install the HAP Music Transfer software on your PC (Compatible with both Windows and Mac computers) and transfer audio files to the HAP-Z1ES player via your network and either wired Ethernet or wireless (IEEE 802.11 b/g/n) connection.
- Dedicated Software Control
- Download the dedicated HDD Audio Remote App to control your listening experience. Create playlists, search stored music and enjoy full track control. Compatible with both Android and iOS smartphones and tablets, you can easily select and play your music.
- Two Large-Capacity Separate Twin Transformers
- For analog and digital circuits, powerful transformers are used individually. The transformers are treated with impregnation in a vacuum. In a power block, analog circuit and digital circuit are separated strictly. It can remove some adverse effect from digital noise.
- ES Frame and Beam Chassis
- The FB chassis, composed of a frame and beams offers both high-precision mounting of parts and high rigidity, achieving a high-fidelity sound field carrying large amounts of information. Notably, the base is composed of two plates of differing thickness that provide sturdy support for the chassis. There are two additional base plates beneath the transformers as well, offering robust reinforcement that anchors the transformers firmly in place.
UPC: 027242868458 In the Box Sony HAP-Z1ES Hi-Resolution Audio Player with 1TB HDD AC Power Cord Remote Control 2 x R03 AAA Battery LAN Cable Monaural Mini-Plug Cable Audio Cord IR Blaster Limited 5-Year Warranty on Parts and Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony HAP-Z1ES Hi-Resolution Audio Player with 1TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony HAPZ1ES Specs | | | Frequency Response | 2 Hz to 80 kHz (-3 dB) | | Dynamic Range | 105 dB or higher | | THD | 0.0015% or less | | | | Wired LAN | 1000BASE-T/100BASE-TX/10BASE-T | | Wireless LAN | Compatible standards IEEE 802.11 b/g/n | | Frequency Band | 2.4 GHz band: channels 1 to 11 | | | | Capacity | 1 TB Some portions of the capacity are used for data management. Therefore, the actual capacity for use is less than 1 TB. | | Supported Playback Format | DSD (DSF, DSDIFF), LPCM (WAV, AIFF), FLAC, ALAC, ATRAC Advanced Lossless, ATRAC, MP3, AAC, WMA (2 channels) | | | | Audio Output Jacks | Line Out Unbalanced
Output level: 2.0 VRMS (50 kΩ), Impedance: 10 kΩ or higher
Line Out Balanced
Output level: 2.0 VRMS (50 kΩ), Impedance: 600 Ω or higher | | External Ports | Type A USB, Hi-Speed USB, for connecting an external hard disk drive | | IR Remote | For connecting the monaural mini-plug cable (supplied) or IR blaster (supplied) | | | | Power Requirements | 120 VAC, 60 Hz | | Power Consumption | On: 35 W
During standby mode (Network Standby set to Off): 0.3 W
During standby mode (Network Standby set to On and a wired LAN is used): 2.6 W
During standby mode (Network Standby set to On and a wireless LAN is used): 2.8 W | | Dimensions (W x H x D) | Approximately 16.9 x 5.1 x 15.3" (430 × 130 × 390 mm) including projecting parts and controls | | Weight | Approximately 32 lb (14.5 kg) | | | | Package Weight | 38.8 lb | | Box Dimensions (LxWxH) | 21.8 x 19.6 x 8.6" |
