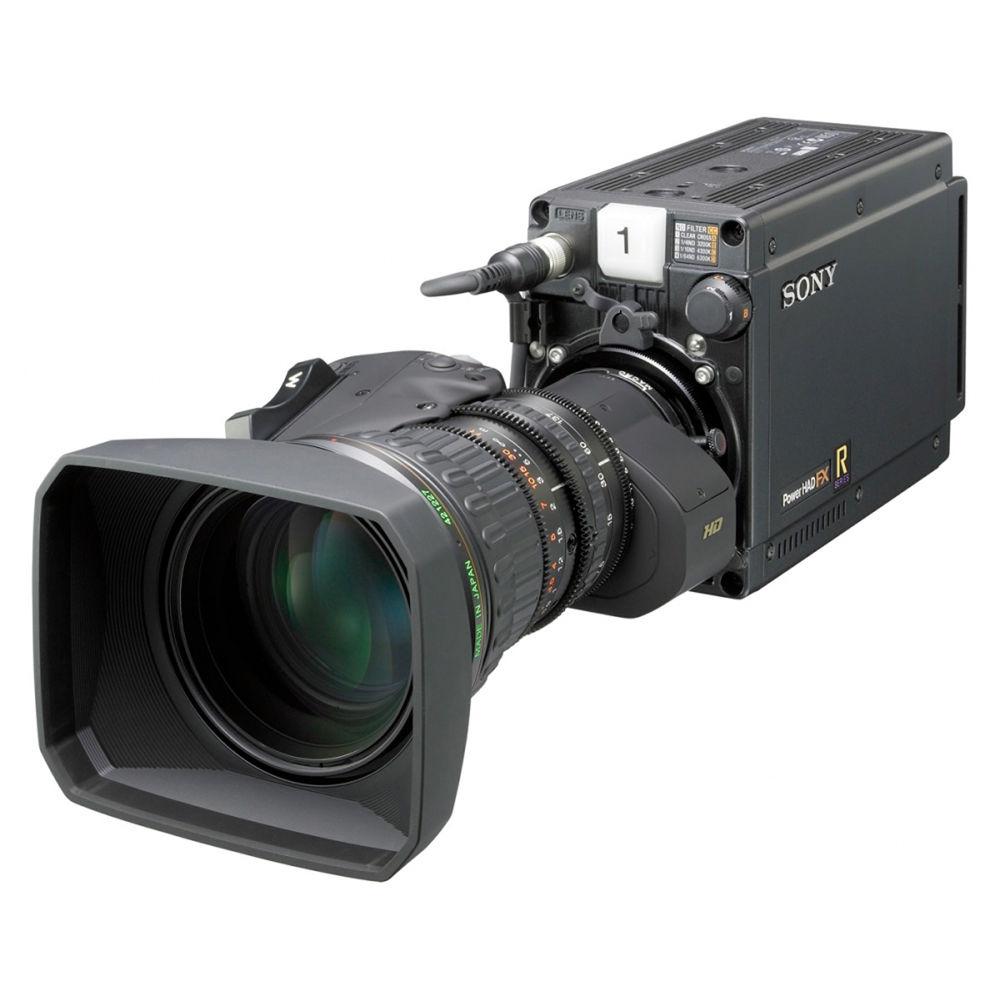

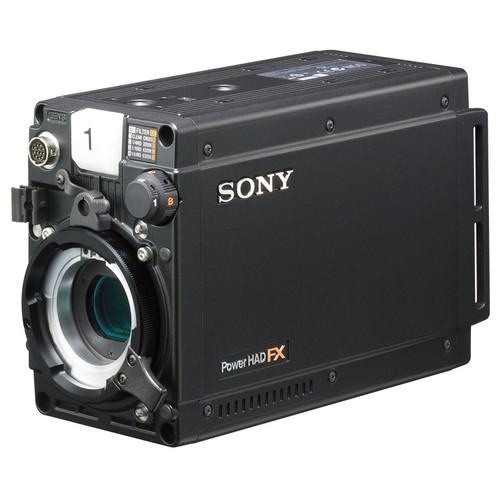

Product description Retaining the operational feel of Sony's HDC-1000 series cameras, the HDC-P1 HD Multi-Purpose Camera is a compact, POV-style HD camera with a rich feature set based around three 2/3" CCD sensors. Capable of high-quality 1920 x 1080 images, the HDC-P1 can capture in 1080i, 1080p, or 720p, at either 50 or 59.94p (with a software option for 23.98PsF and other frame rates). This model was built specifically as a compact HD studio camera that can shoot in tight and awkward spaces as well as capture images from hard-to-reach angles. Combined with its ability to seamlessly integrate content from full-size cameras, the HDC-P1 is ideal for such applications as multi-format sports, stereoscopic 3D, and HD robotics. - Sony's first 2/3" (16.9mm) 2.2-megapixel full-HD CCD "box"-type (POV-style) camera with the equivalent picture performance of HDC-1000 Series studio cameras
- Compact body--just 3.5" (86mm) in width
- Supports a wide range of capturing formats: 1080/59.94i, 1080/50i, 720/59.94p, and 720/50p (add 4:2:2 1080/23.98PsF, 24PsF, 25PsF, and 29.97PsF capturing formats with optional HZC-PSFP1 software)

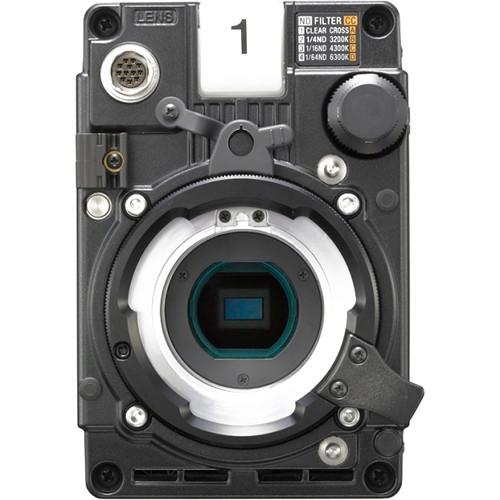

- Motorized filter servo system (two disks: ND and CC)
- Same control system as HDC Series studio cameras
- Fully compatible with Sony's current master set-up units (MSU) and remote control panels (RCP), making it easy to integrate with everything from extensive multi-camera systems to simple point-to-point systems
- Supplied tally unit can be easily detached from the camera body, minimizing the camera size for fitting in, for example, a pan/tilt head or an underwater housing
In the Box Sony HDC-P1 HD Multi-Purpose Camera Tally Number Plate Operation Manual 1 Year Parts & Labor Warranty (2 Years for CCD Prism Block) Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony HDC-P1 HD Multi-Purpose Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony HDC-P1 Specs | Signal System | 1080/50i, 1080/59.94i, 720/50p, 720/59.94p
Option: 1080/23.98p, 1080/24p, 1080/25p, 1080/29.97p | | Image Device | 2/3" 3CCD | | Effective Pixels | 1920 x 1080 | | Lens Mount | Sony 2/3-type Bayonet | | Horizontal Resolution | 1000 TV Lines (at center) | | Signal-to-Noise Ratio | Typical 55dB (HD)
Typical 63-65dB (SD) | | Sensitivity | @2000 lux, 3200K, 89.9% reflectance:
F10 (1080/59.94i, 720/59.94p)), F11 (1080/50i, 720/50p) | | Minimum Illumination | Not specified by manufacturer | | Vertical Smear | Not specified by manufacturer | | Built-in Filters | CC: A: CROSS, B:3200K, C: 4300K, D: 6300K
ND: 1: CLEAR, 2: 1/4, 3: 1/16, 4: 1/64 | | Shutter Speed | 1080/59.94i: 1/100, 1/125, 1/250, 1/500, 1/1000, 1/2000
1080/50i: 1/60, 1/125, 1/250, 1/500, 1/1000, 1/2000 | | LCD Monitor | None | | Viewfinder | N/A | | Input and Output Connectors | HD/SD-SDI: BNC (x2 Output)
Genlock: BNC (x1 Input)
VBS: BNC (x1 Output)
Interface: 15-pin D-Sub (x1 Input/Output)
LAN: RJ-45, 10BASE-T/100BASE-TX (x1)
Remote: 8-pin (x1)
Lens Connector: 12-pin (x1) | | Power Requirements | 10.5-17VDC | | Power Consumption | 24W | | Operating Temperature | -4° to 113°F (-20° to 45°C) | | Dimensions (WxHxD) | 3.4 x 5.1 x 8.3" (8.6 x 13 x 21.2 cm) | | Weight | 3.75 lbs (1.7kg) | | | | Package Weight | 6.35 lb | | Box Dimensions (LxWxH) | 12.7 x 10.5 x 9.5" |
