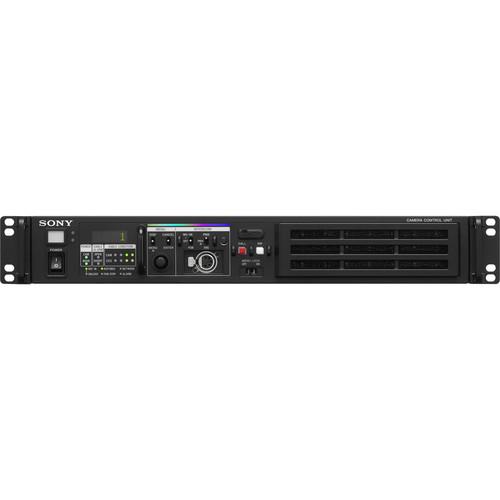

Product description The HDCU-3100 IP-Enabled Camera Control Unit from Sony adds IP capabilities to the broadcast and studio system cameras. Connecting to compatible cameras via optical fiber cable, the compact HDCU-3100 supplies power to the camera, performs signal processing, and provides an interface with external equipment. The compact 1.5 RU unit is ideal for space-limited production areas. It is equipped with eight built-in SDI outputs, including four 3G-SDI outputs. - IP Functionality for Live Production
- The optional HKCU-SFP30 interface kit adds essential functionality required for IP live production such as Tally, Intercom, and Return.
- 4K Output Option
- By installing an optional 4K/HDR Processor Board HKCU-UHD30, the HDCU-3100 can output 4K signals when connected to an HDC-series system camera. In addition, the HDCU-3100 with an optional 12G-SDI interface kit HKCU-SDI30 can transfer 4K signals through a single BNC cable.
- High-Quality, Long-Distance Signal Transmission
- The optical fiber transmission system maintains high picture quality across cable runs of up to 1.2 miles. Combined with the HKCU-SM30 interface kit, the compact HDCU-3100 can be directly connected on Single Mode Fiber (SMF) for long-distance transmission up to 6.2 miles, making it ideal for space-limited operations like OB trucks.
In the Box Sony HDCU-3100 IP-Enabled Camera Control Unit Number Plates Set Limited 1-Year Warranty on Parts Limited 90-Day Warranty on Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony HDCU-3100 IP-Enabled Camera Control Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony HDCU-3100 Specs | Connectors | 1 x Optical camera fiber
1 x 50-pin sub-D intercom/tally
1 x 8-pin RCP/CNU
1 x 12-pin trunk
1 x 8-pin LAN-com
1 x 8-pin network trunk
4 x BNC 3G/HD/SD SDI input
4 x BNC 3G/HD/SD SDI output
2 x BNC loop-thru reference output
4 x BNC 3G/HD/SD SDI Return
2 x BNC loop-thru Prompter output
1 x BNC AES/EBU
2 x 3-pin XLR audio output
1 x AC input | | Power Requirements | 100 to 240 VAC, 50/60 Hz | | Current Consumption | 4.5 A | | Operating Temperature | 41 to 104°F / 5 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Dimensions | 19.0 x 3.0 x 15.6" / 48.2 x 6.6 x 39.5 cm | | Weight | 16.1 lb / 7.3 kg |
