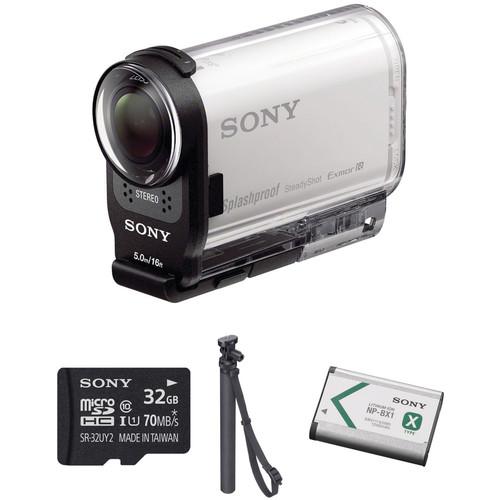

User Manual for Sony HDR-AS200V HD Action Cam Beginners Kit

• Product category: Sports & Action Cameras Sony
• Brand: Sony
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Sony Sports & Action Cameras

Product description

• Sony HDR-AS200V Full HD Action Cam The versatile Sony HDR-AS200V Full HD Action Cam is designed to go wherever you do - whether on a mountain expedition or just for a walk in the park. Featuring Wi-Fi with NFC support, the camera can be operated remotely using a mobile device or with the separately available RM-LVR2 Live-View Remote. It features a water-resistant design and simple one-button operation. Video is recorded to a separately available microSD card, with the option for MP4 and professional XAVC S compression.

  Apart from being splash proof, the camera includes a 16.4'-rated underwater housing, an adhesive mount, one battery, and a tripod adapter to get you started. Further extending its potential, there is a plethora of separately available mounts and accessories, enabling you to wear the camera or helmet mount it for POV action shots, attach it to a bike or vehicle, secure it in a static location, adhere it to a board or boat, or even see the world from the perspective of your pet.
  Professional XAVC S Codec
  • The higher bitrate compression of XAVC S means in this setting the camera records 50 Mb/s; whereas the MP4 modes record a maximum of 28 Mb/s (at 60p and slow motion). A higher bitrate means less quality loss due to compression and more information to work with in post when color correcting or manipulating the image. Additionally, XAVC S supports professional timecode and UB (user bit). Timecode settings can be accessed through the mobile app or the separately available RM-LVR2 remote
  Improved Steady Shot Image Stabilization
  • The HDR-AS200V features further refinements to the image stabilization compared to previous Action Cam models - in particular, anti-vibration optimization for use on remote control aircraft
  170° FOV Ultra-Wide Lens
  • An ultra-wide lens helps add an immersive POV feel to your movies while incorporating as much into the frame as possible
  Slow Motion Capability
  • With the ability to record 120 fps in 720p, the HDR-AS200V allows you to slow down fast action so you can perceive detail otherwise inscrutable to the human eye. For extreme slow-downs, there is also a 240 fps mode shooting at 480p resolution
  Loop Recording
  • Loop recording records video continuously, preserving the last 5, 20, 60, or 120 minutes of footage - depending on setting. As soon as something important happens, you can commit the duration of the loop permanently to memory and continue recording seamlessly. In addition to the user selectable 5, 20, 60, and 120 minute duration, there is an "Unlimited" mode that will fill up the remaining free space on the card. During loop recording, any previously recorded material never be overwritten
  Wi-Fi for Remote Monitoring and Operation
  • With the PlayMemories Mobile (PMM) app, you can remotely control up to five Action Cams from a single mobile device. The app allows you to view a live feed from the camera, and the multi-view features means you can view up to five cameras at once, or just select one and view it in full screen. Controls available through the app include:
    • Simultaneous shutter release
    • Simultaneous recording start/stop
    • Individual monitoring and setting
    • Individual shutter release
    • Individual recording start/stop
    • Movie/still mode switching
    • Changing exposure settings
    • Start/stop time-lapse recording
    • Play back and delete recorded clips

    Note: Multi-cam control requires PMM version 5.2 or later
  RM-LVR2 Live-View Remote Compatibility
  • In addition to app-based control, Wi-Fi means you can use the watch-style RM-LVR2 Live-View Remote (available separately) to remotely control the camera and monitor an image. The remote is water resistant so that you can take it places - like surfing - you wouldn't want to take a smartphone
  Highlight Movie Maker
  • So that you don't have to spend time editing, the Highlight Movie Maker automatically picks out what it deems to be the best moments, returning a self-contained MP4 movie for easy sharing and upload. The Highlight Movie Maker algorithm uses data from the gyro, scene color, smile detection, and other settings to identify the best moments in all of the footage you have amassed. You can even upload music from your computer to the Action Cam to add a custom sound track
  Exmor R Sensor and Bionz X Image Processing
  • Proven Sony sensor and processor technologies give the HDR-AS200V the framework it needs to capture Full HD action footage, even at high frame rates
  Stereo Microphone
  • Unlike many action cameras, which have mono microphones, the HDR-AS200V features a built-in stereo mic to help make audio as immersive as the picture. In addition, the HDR-AS200V introduces wind noise reduction - key for high-speed activities
  Manual Settings
  • Manual settings give the user greater control and make it easier to match other cameras in a multi-camera production environment. Manual settings on the HDR-AS200V include:
    • Auto Exposure Control: ±2.0, 1.7, 1.3, 1.0, 0.7, 0.3, 0.0
    • White Balance: Auto, Color-Temp (2500 to 9900K selectable), One Push
      Live Streaming to USTREAM
      • Where an Internet connection is available, you can stream a live, web-quality stream directly to USTREAM for people all over to world to enjoy
      Burst Shooting
      • Take a sequence of stills in rapid succession to ensure you capture fast-action motion at just the right instant. You can choose to shoot 10 fps for 1 second, 5 fps for 2 seconds, or 2 fps for 5 seconds
      Motion Shot LE
      • Capture traces of a moving subject in a single photo. As with burst shooting, you can choose to shoot 10 fps for 1 second, 5 fps for 2 seconds, or 2 fps for 5 seconds
      GPS Overlay
      • Geotag images so that you can view location data as an onscreen overlay during in-camera playback
      Action Cam Movie Creator
      • Edit your movies in-camera, with the ability to rotate shots, merge clips, and fast- and slow-motion effects

      Other Features

      • Time/Date Stamp
      UPC: 027242886193
    • Sony 32GB UHS-I microSDHC Memory Card (Class 10) This 32GB UHS-I microSDHC Memory Card from Sony comes with a data transfer rate of up to 70 MB/s allowing you to transfer your files quickly. Simply insert this card into your smartphone, tablet, or camera to begin storing various files including applications, games, photos, music, and much more.

      With the downloadable File Rescue software you benefit from added peace of mind as it helps to recover accidentally deleted or damaged photos and videos.
      Fast File Transfer
      • With a data transfer speed of up to 70 MB/s you can move files quickly and efficiently.
      Downloadable File Rescue Software
      • Recover photos and videos that have been accidentally damaged or deleted. This recovery software even supports 3D and HD files.
      Expand Your Storage
      • Expand the storage of your smartphone, tablet, camera, PC, or POV camera.
      Supplied Adapter
      • Use the supplied adapter for your digital camera or transfer files to your computer.
      UPC: 027242890794
    • Sony Aluminum Monopod for Action Cameras This Aluminum Monopod for Action Cameras from Sony is a four-section camera support that extends from 11.9" to 35.9", and can be locked at any length in between. It has a tilting head, weighs just 7 oz, is water resistant, and has a wrist strap for added security. UPC: 027242875395
    • Sony NP-BX1/M8 Rechargeable Lithium-Ion Battery Pack (3.6V, 1240mAh) The NP-BX1/M8 Rechargeable Lithium-Ion Battery Pack from Sony is designed to replace the original NP-BX1 battery. It is rated at 3.6V and features a capacity of 1240mAh.
      Camera Compatibility
      • Cyber-shot:
        DSC-RX100
        DSC-RX100 II
        DSC-RX100 III
        DSC-RX100 IV
        DSC-RX1
        DSC-RX1R
        DSC-HX300
        DSC-HX50V
        DSC-WX300
        DSC-HX400V

        Action Cam:
        FDR-X1000V
        HDR-AS200V
        HDR-AS100
        HDR-AS30V
        HDR-AS20
        HDR-AS10
        HDR-AS15
      UPC: 027242862692
    In the Box
    • HDR-AS200V Full HD Action Cam eusxqbatduwycfuwcc
    • NP-BX1 Rechargeable Lithium-Ion Battery Pack (3.6V, 1240mAh)
    • SPK-AS2 Waterproof Case for Action Cam
    • Micro USB Cable
    • VCT-AM1 Adhesive Mount
    • Tripod Adapter
    • Limited 1-Year Parts / 90-Days Labor Warranty
    • 32GB UHS-I microSDHC Memory Card (Class 10)
    • Aluminum Monopod for Action Cameras
    • NP-BX1/M8 Rechargeable Lithium-Ion Battery Pack (3.6V, 1240mAh)
    More from Manufacturer Table of Contents

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Sony HDR-AS200V Full HD Action Cam

  Sensor	1-Chip 1/2.3" CMOS
  Color Filter	RGB
  Sensor Resolution	8.8 MP

  35mm-Equivalent Focal Length	17.1 170° setting (SteadyShot OFF) 21.8 120° setting (SteadyShot ON)
  Maximum Aperture	f/2.8
  Minimum Focusing Distance	1.2" / 3.0 cm
  Angle of View	170° (Movie, Photo (SteadyShot OFF)) 120° (Movie, Photo, Interval Photo (SteadyShot ON))

  System	NTSC
  Recording Media	x microSD/HC/XC x Memory Stick Micro Memory Stick Micro must be Mark II; microSD card must be Class 4 or faster for MP4 recording and must be microSDXC Class 10 or faster for XAVC S recording
  Video Format	1920 x 1080p at 24/25/30/50/60 fps (50 Mb/s XAVC S) 1920 x 1080p at 50/60 fps (28 Mb/s MP4) 1920 x 1080p at 25/30 fps (16 Mb/s MP4) 1280 x 720p at 100/120 fps (28 Mb/s MP4) 1280 x 720p at 25/30 fps (6 Mb/s MP4) 720 x 480p at 200/240 fps (28 Mb/s MP4)
  Aspect Ratio	16:9
  Still Image Resolution	JPEG: 8.8 Megapixel, 3952 x 2224 (16:9) JPEG: 2.1 Megapixel, 1920 x 1080 (16:9) JPEG: 2.2 Megapixel, 1984 x 1120 (16:9) 2.1 MP setting for Interval Photo Recording Mode; 2.2 MP setting for Motion Shot LE Photo Recording Mode
  Channels	2.0-Channel Stereo
  Audio Format	AAC LPCM

  Status Display	Yes

  Shutter Speed	1/30 - 1/10000 Second (Video) For 30 fps
  Exposure Modes	Modes: Auto Compensation: -2 EV to +2 EV
  Interval Recording	5 Second 10 Second 30 Second 60 Second
  Burst Photo	10 Photos / 1 Second

  Image Stabilization	Digital
  White Balance Modes	Auto Onepush Preset Manual
  Built-In Mic	Yes
  Built-In Speaker	Yes
  Wi-Fi	Yes, Wi-Fi 4 (802.11n)
  Tripod Mount	1/4" - 20

  Outputs	1 x Micro-HDMI (Type D) 1 x Composite Video Requires VMC-15MR2 cable, available separately 1 x USB Micro-B
  Microphone Input	Yes
  Headphone Jack	Yes

  Battery	Rechargeable Lithium-Ion Battery Pack, 3.6 VDC, 1240 mAh
  Charging Method	AC Adapter USB 1.5 A or higher USB source recommended
  Charging Time	4.5 Hours
  Power Consumption	Operating: 2 W
  Dimensions (W x H x D)	0.9 x 1.9 x 3.1" / 22.9 x 48.3 x 78.7 mm
  Weight	2.40 oz / 68 g without battery 3.28 oz / 93 g with battery

  Box Dimensions (LxWxH)	6.3 x 5.0 x 3.2"

• Sony 32GB UHS-I microSDHC Memory Card (Class 10)

  Card Type	microSDHC
  Storage Capacity	32 GB
  Speed Class	10
  UHS Speed Class	U1
  Bus Interface Speed	UHS Class I
  Data Transfer	Read Speed: 70 MB/s Maximum (Burst) Write Speed: 10 MB/s Minimum
  Operating Temperature	-13 to 185°F/ -25 to 85°C

  Box Dimensions (LxWxH)	5.8 x 3.4 x 0.02"

• Sony Aluminum Monopod for Action Cameras

  Camera Mount Type	1/4"-20 Thread
  Pole Sections	4

  Pole Length	11.9 to 35.9" / 30.2 to 91.3 cm
  Weight	7.0 oz / 200.0 g

  Box Dimensions (LxWxH)	13.0 x 2.0 x 1.0"

• Sony NP-BX1/M8 Rechargeable Lithium-Ion Battery Pack (3.6V, 1240mAh)

  Amp-Hours	1240 mAh
  Chemistry	Lithium-Ion
  Output Voltage	3.6 VDC
  Dimensions (W x H x D)	1.2 x 0.4 x 1.7" / 2.9 x 0.9 x 4.2 cm
  Weight	0.9 oz / 25 g

  Box Dimensions (LxWxH)	5.6 x 3.3 x 1.0"
