User Manual for Sony HDR-AS300 Action Camera with Live-View Remote Click to enlarge the picture
Contents of the user manual for the Sony HDR-AS300 Action Camera with Live-View
- Product category: Sports & Action Cameras Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Sports & Action Cameras
 |
User manual for the Sony HDR-AS300 Action Camera with Live-View contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|

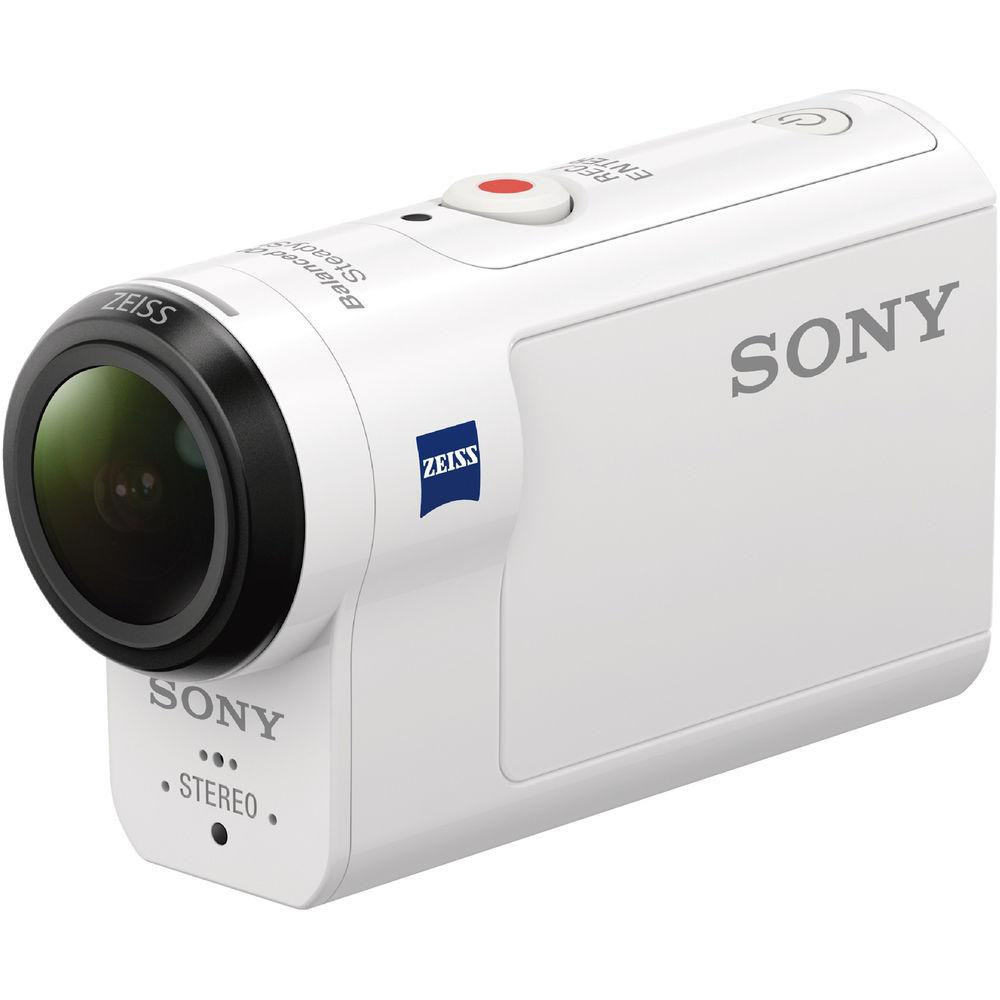

Product description The HDR-AS300 Action Camera with Live-View Remote from Sony uses optical (rather than digital) stabilization to capture smooth, full HD, live streamable video. The included RM-LVR3 Live-View remote control provides wireless Bluetooth camera control in a flexibly-mountable form. Wear the control on the included wrist strap or use it with optional accessory mounts (not included). This NTSC/PAL–switchable camera features up to 1080p60/50 capture in both XAVC S and MPEG4-AVC formats. High-speed recording for slow-motion playback is available in 120 fps and 240 fps (100/200 in PAL). The MPK-UWH1 housing is waterproof to a depth of 197' and protects against dust and dirt out of water. The HDR-AS300 HD Action Cam can also record 12MP still photos, 4K time-lapse images, single-frame composite images, video loop-recording, and photo bursts of up to 10 frames. Other features that maximize your adventure-capturing include a built-in microphone, GPS tagging, select smartphone remote-control, an underwater scene mode, multiple-camera control, and a dual memory-stick/microSD card slot. The HDR-AS300 can record audio using its internal microphone or via the stereo mini-jack mic input. The RM-LVR3 Live-View remote control offers full control of the camera's settings and can power the camera on and off. For ease of use, the remote displays the same interface design as the camera. The optional Sony PlayMemories Mobile app offers Wi-Fi remote camera control, and JPEG/MP4 image transfers for select smartphones (functions differ according to smartphone model). Multi-camera control is available using the RM-LVR3 or the PlayMemories Mobile app remote control. - Remote Control

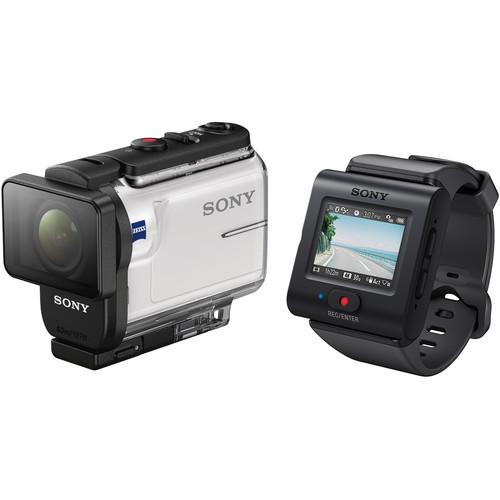

- The included RM-LVR3 Live-View remote controller functions both as a viewfinder and a remote camera controller, sharing the same interface design as the camera body. Remote control of the camera is also available through select smartphones using the optional Sony PlayMemories Mobile app.
- Optical Image Stabilization
- The camera's SteadyShot function - available for both video and still capture, is an optical-stabilization system, improving upon prior models' digital image stabilization.

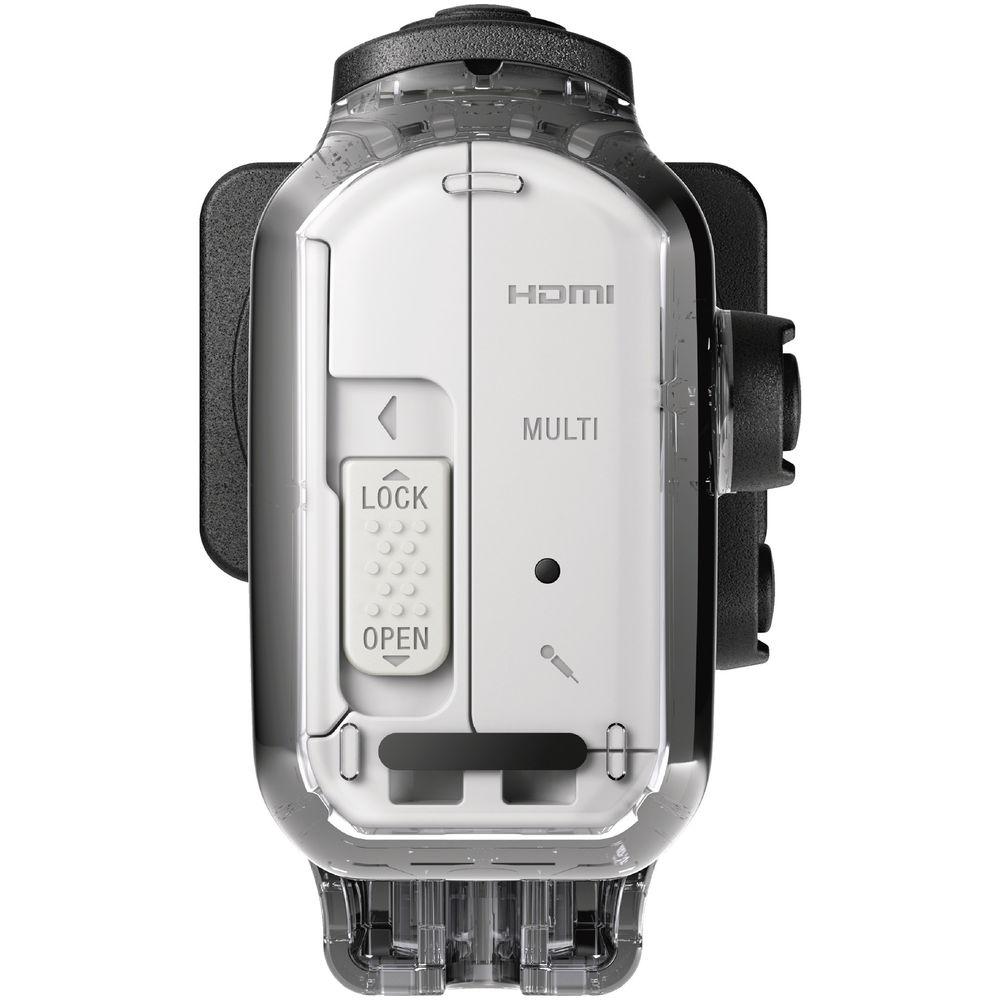

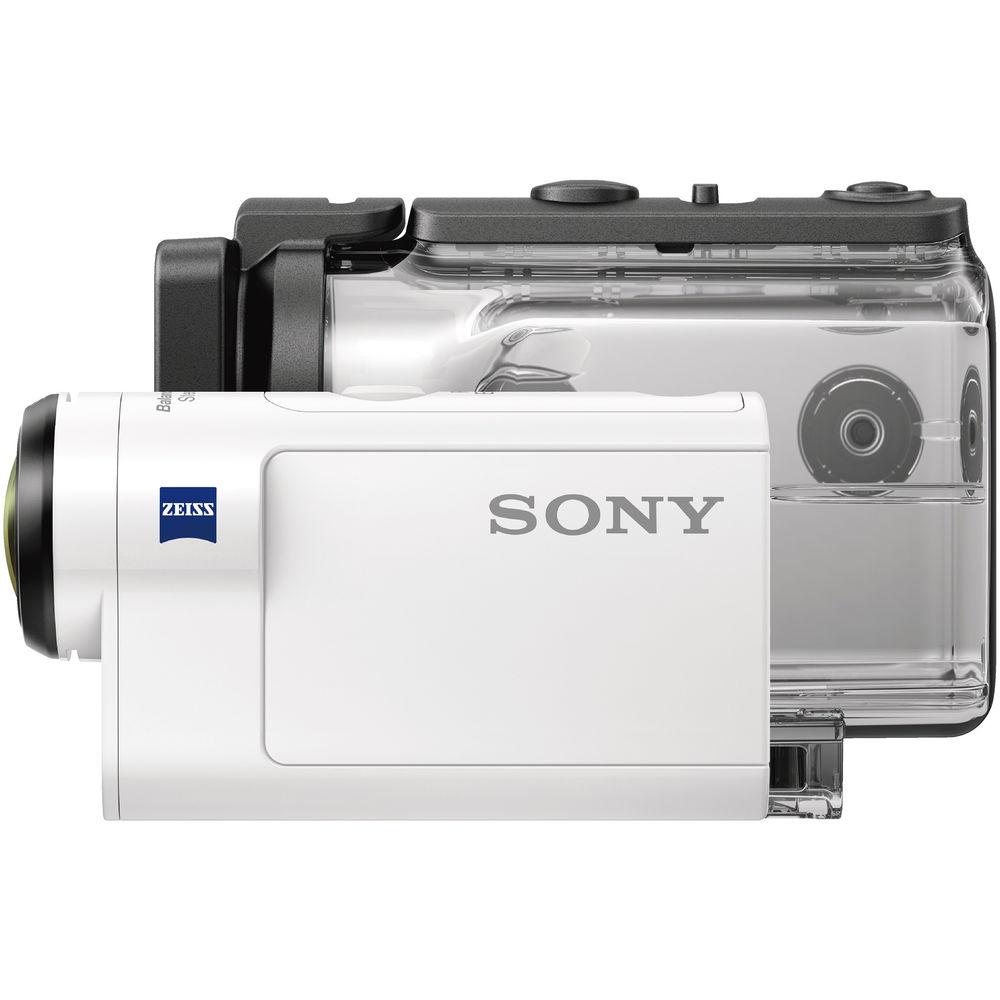

- Camera Housing

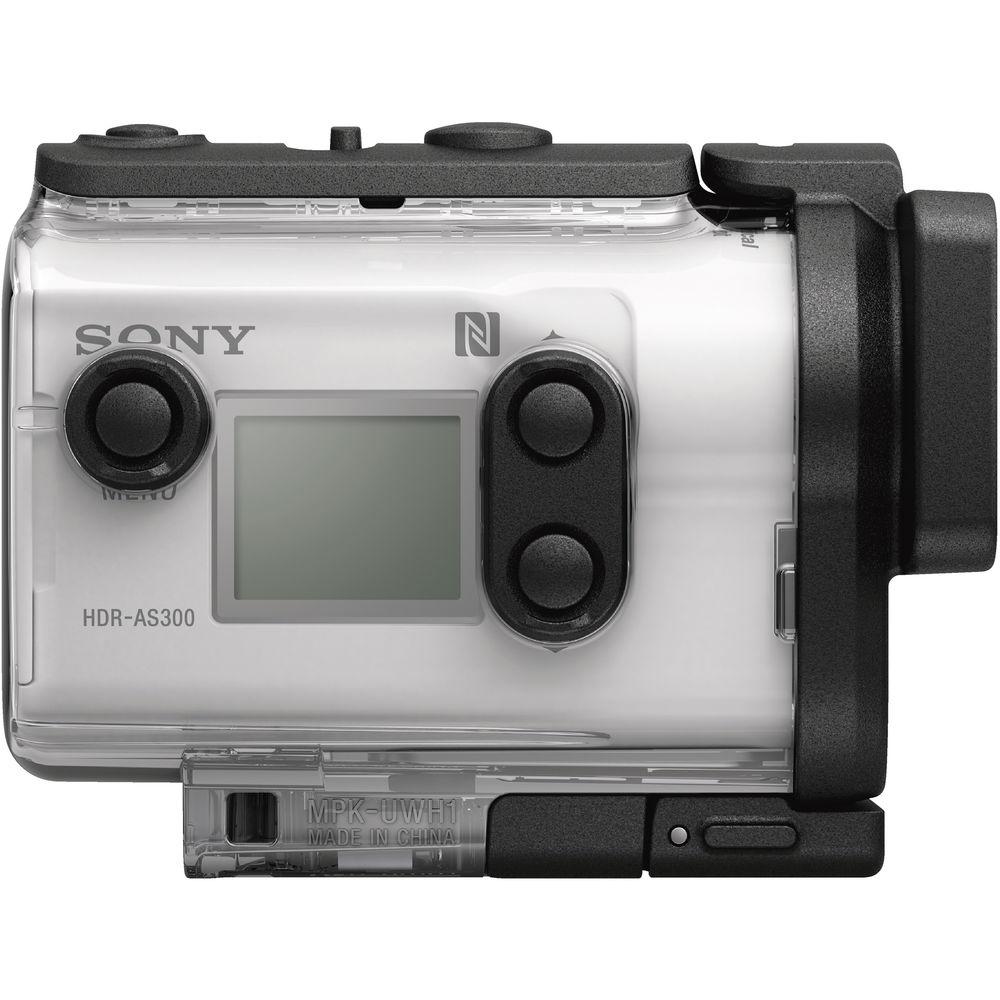

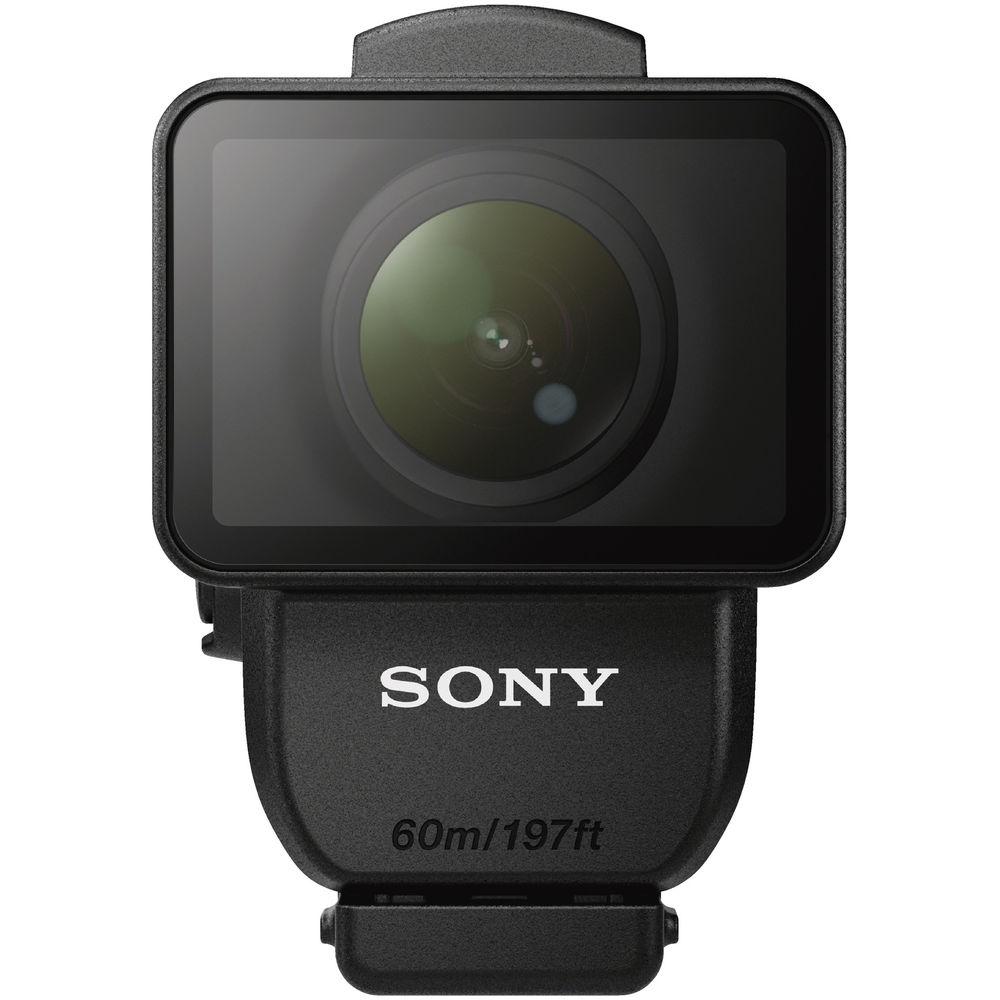

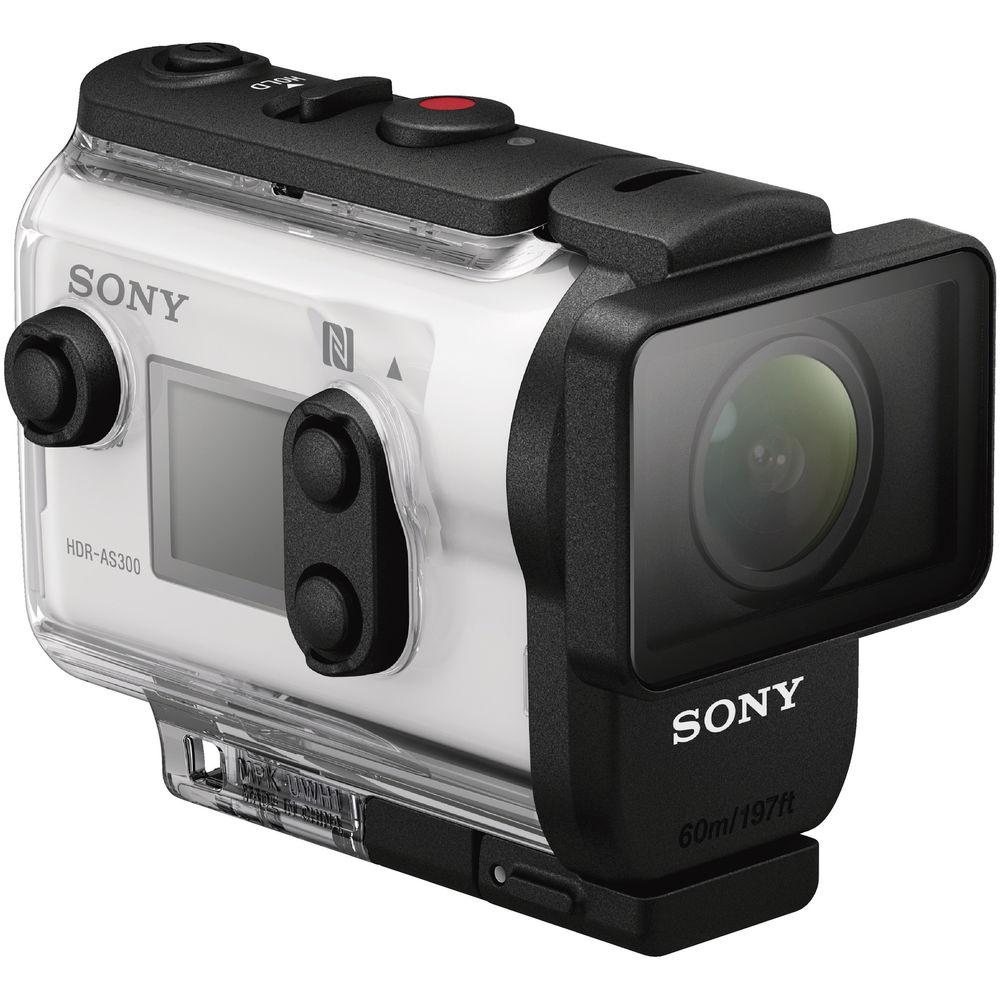

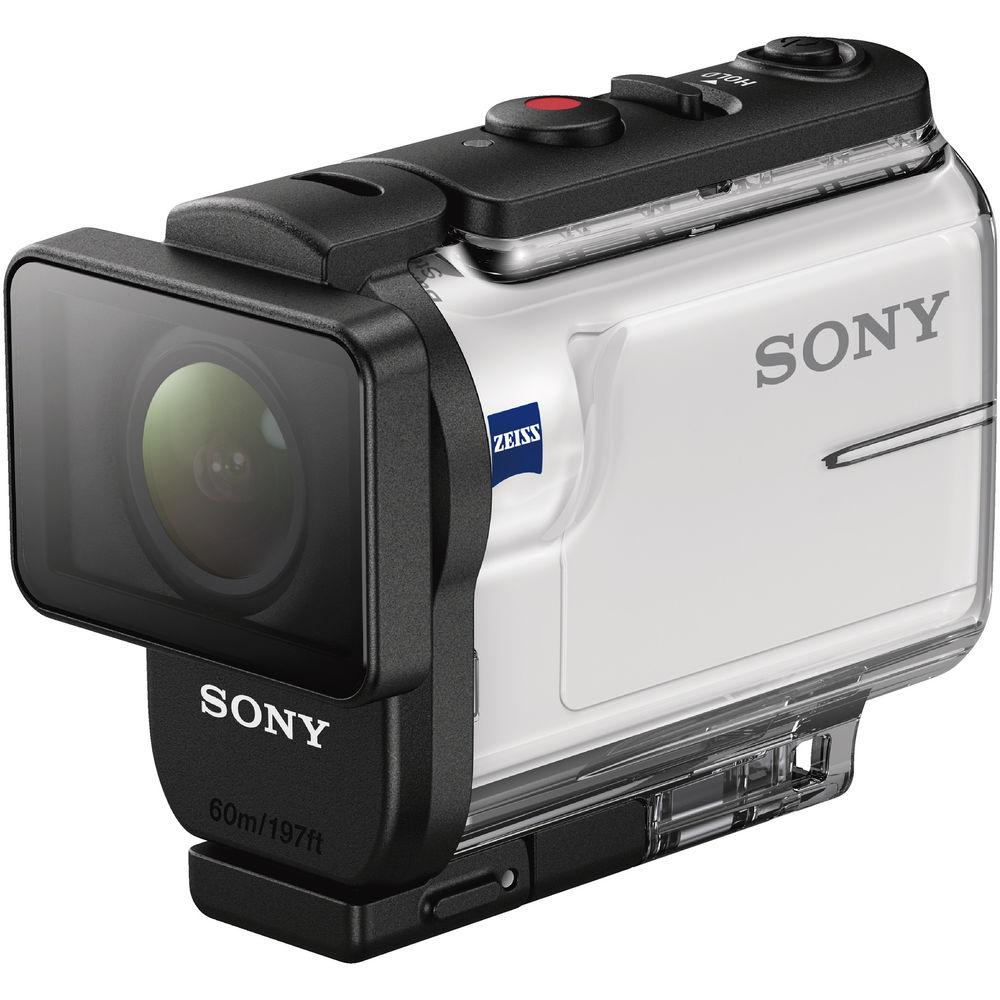

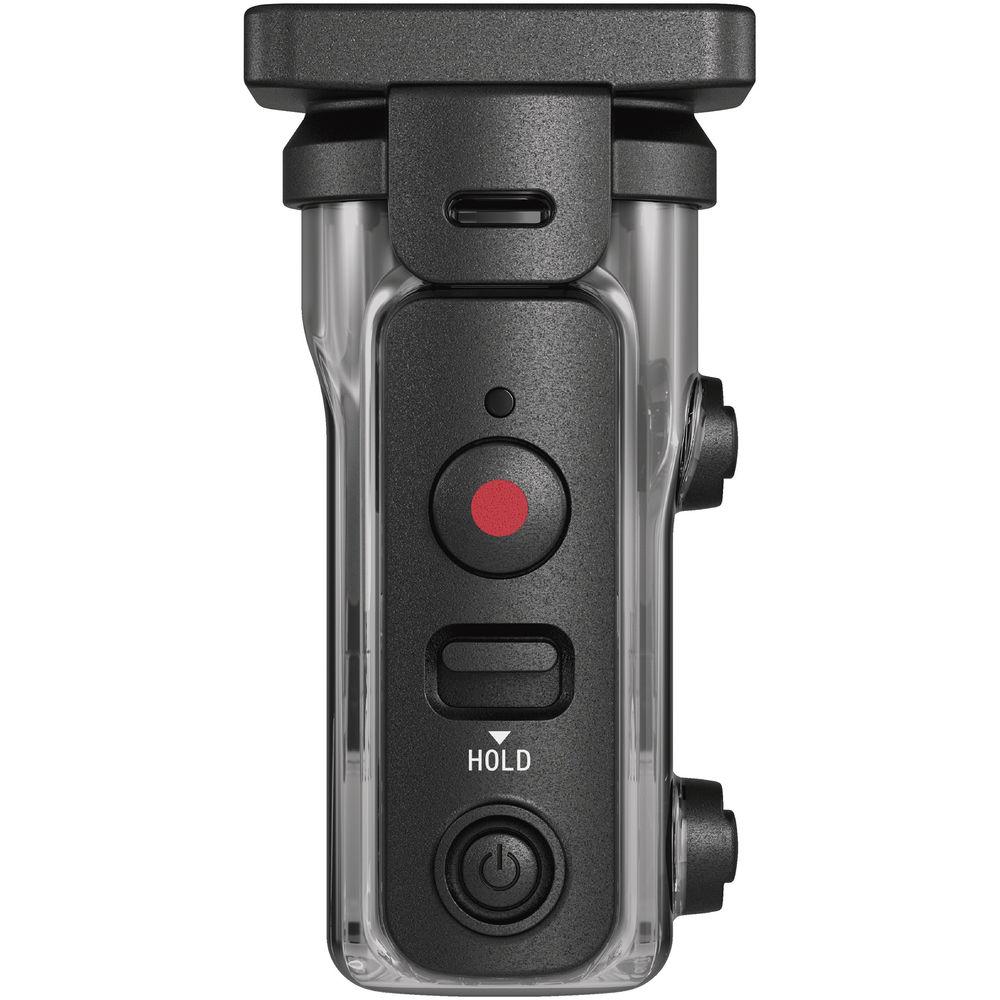

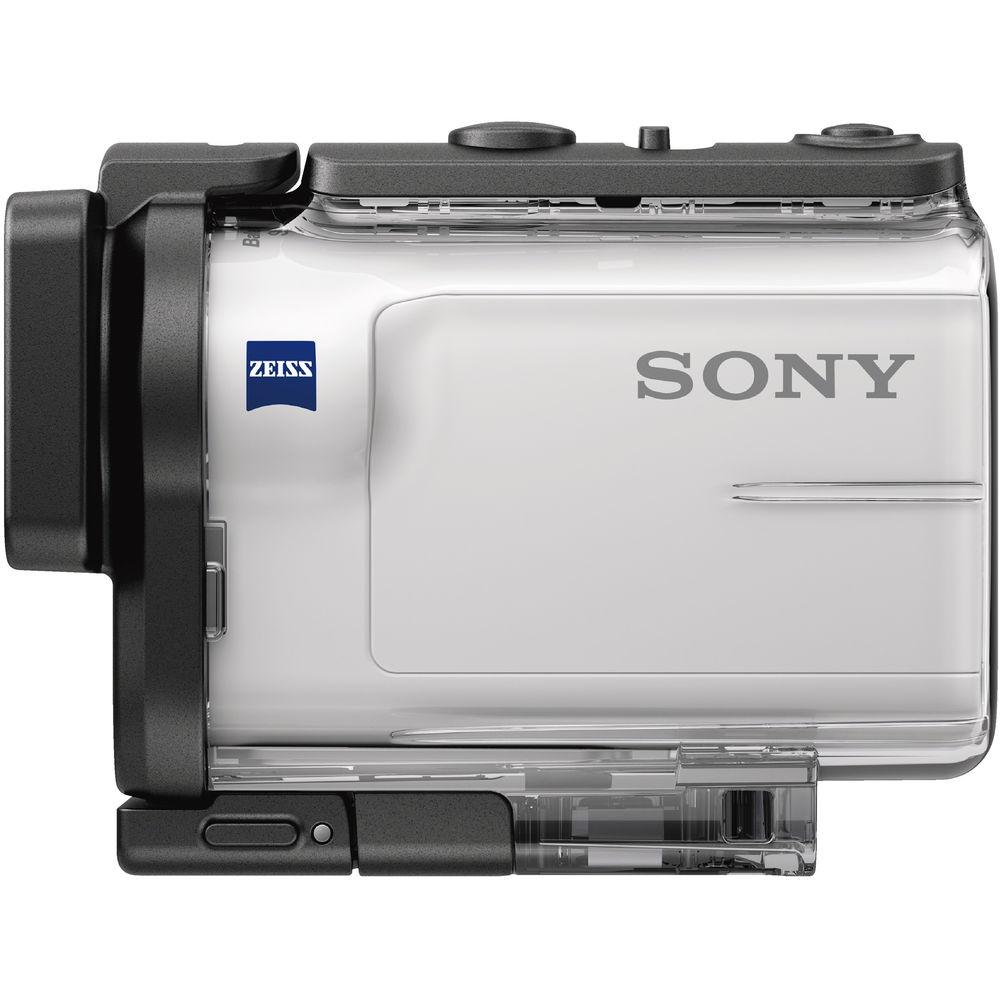

- The included camera housing is waterproof to a depth of 197' and enables you to maintain control of all the camera settings.
- Video Formats/Resolutions
- Video can be recorded in both XAVC S and MPEG4-AVC/H.264 formats with high, standard, and lower–resolution options. Resolutions range from a high of 1080p60 down to 720p30 (useful when extended recording times are a priority).
- Slow Motion Video
- Capture action details in slow motion video at 120 fps in 720p or 240 fps in 480p.
- Lens Features
- The HDR-AS300 features an ultra-wide 2.6mm f/2.8 lens with a 35mm-equivalent focal length of 17mm. The camera also has different video modes that allow for an adjustable field-of-view with wide, medium, and narrow settings. The lens' 20" minimum focus distance lets you get close up to your subjects.
- Live Streaming
- Share your adventures via live streaming using the Ustream platform (not included).
- Still Photos / Composite Images
- Capture 12MP 16:9 format photos, shoot bursts of 2, 5, or 10 fps, or highlight an action sequence in a single composite frame created from a still burst.
- 4K Time-Lapse Recording
- The time-lapse mode captures 4K still images from which you can create time-lapse movies using Action Cam Movie Creator or Action Cam App v.2.0 (optional applications).
- Video Loop Recording
- Loop recording (overwriting) enables you to record continuously, or in 5, 20, 60, or 120–minute lengths. This option is designed to capture the "big moment" without wasting large amounts of recording memory.
- Additional Features
- Automatic and manual white-balance and color options, AE (auto-exposure)-shifting, a built-in mic and speaker, self-timer, and GPS-logging are some of the additional camera features designed for optimal image capturing.
UPC: 027242895768 In the Box Sony HDR-AS300 Action Camera with Live-View Remote Live-View Remote Controller (RM-LVR3) Wristband, Mount Adapter, & Cradle Underwater Housing for Select Action Cams yzsqqqvwedxvxaztzzufyfwvcdzfbreseedv Mounting Plate Micro-USB Cable NP-BX1/M8 Rechargeable Lithium-Ion Battery Pack (3.6V, 1240mAh) yzsqqqvwedxvxaztzzufyfwvcdzfbreseedv Limited 1-Year Warranty Quick start Guide PDF 4.4mb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony HDR-AS300 Action Camera with Live-View Remote in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony HDR-AS300 Specs | | | Sensor | 1-Chip 1/2.5" CMOS | | Color Filter | Bayer | | Sensor Resolution | 8.57 MP | | Effective Pixels | 8.2 MP (Video / Image Stabilizer Off, Wide Mode)
8.2 MP (Photo / Image Stabilizer Off, Wide Mode) | | | | Focal Length | 2.6mm | | 35mm-Equivalent Focal Length | 17 | | Maximum Aperture | f/2.8 | | Minimum Focusing Distance | 20.0" / 50.0 cm | | | | System | NTSC/PAL | | Recording Media | x Memory Stick Micro, microSD/HC/XC | | Recording Time | microSD/SDHC 16 GB
1920 x 1080 120 Minutes In MP4 HQ: 30P mode | | Video Format | 1920 x 1080p at 25/30/50/60 fps (H.264)
1280 x 720p at 25/30/100/120 fps (H.264)
800 x 480p at 200/240 fps (H.264)
1920 x 1080p at 24/25/30/50/60 fps (XAVC S) | | Aspect Ratio | 16:9 | | Slow Motion Mode | 120 fps Recorded at 1280 x 720p
240 fps Recorded at 800 x 480p 100/200 fps in PAL | | Still Image Resolution | DCF: 12 Megapixel, 16 x 9 (4608:2592) | | Channels | 2.0-Channel Stereo | | Audio Format | AAC-LC
LPCM | | | | Shutter Speed | 1/30 - 1/10000 Second (Video) At 30 fps | | Exposure Modes | Modes: Auto | | Shooting Modes | Burst Shooting
Continuous Shot
Movie
Sports
Super Slow Motion Movie
Time-Lapse Movie
Underwater | | Self-Timer | 2, 10 Sec | | Remote Control | RM-LVR3 (Included) | | | | Image Stabilization | Optical | | Scene Modes | Preset: Yes | | Shockproof Rating | 197.0' / 60.0 m | | Waterproof Depth Rating | 197.0' / 60.0 m (Waterproof Housing) | | Lux | 6 (lux) | | White Balance Modes | Auto
Manual | | Built-In Mic | Yes | | Built-In Speaker | Yes | | Wi-Fi | Yes, Wi-Fi 4 (802.11n) | | Tripod Mount | 1/4" - 20 The length of the tripod screw should be less than 7/32" (5.5 mm ). | | | | Outputs | 1 x Micro-HDMI (Type D)
1 x Multi-Terminal Micro USB-B | | Microphone Input | Yes Stereo mini-jack | | | | Charging Method | USB | | Power Consumption | Recording: 2.0 W In MP4 HQ 1920 × 1080 30p mode | | Operating Temperature | 14 to 104°F / -10 to 40°C | | Dimensions (W x H x D) | 1.0 x 1.9 x 3.3" / 24.9 x 47.0 x 83.0 mm | | Weight | 3.85 oz / 109 g | | | | Package Weight | 1.38 lb | | Box Dimensions (LxWxH) | 8.1 x 5.2 x 4.4" |
