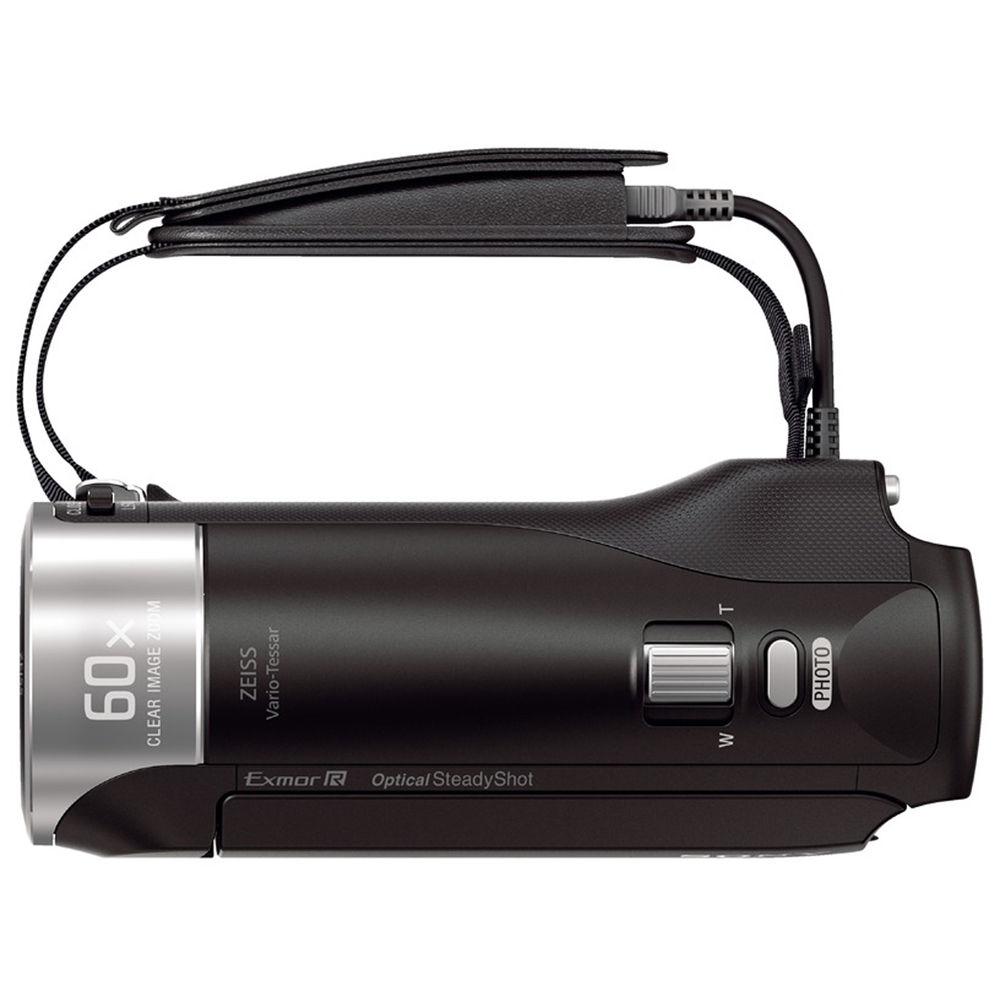

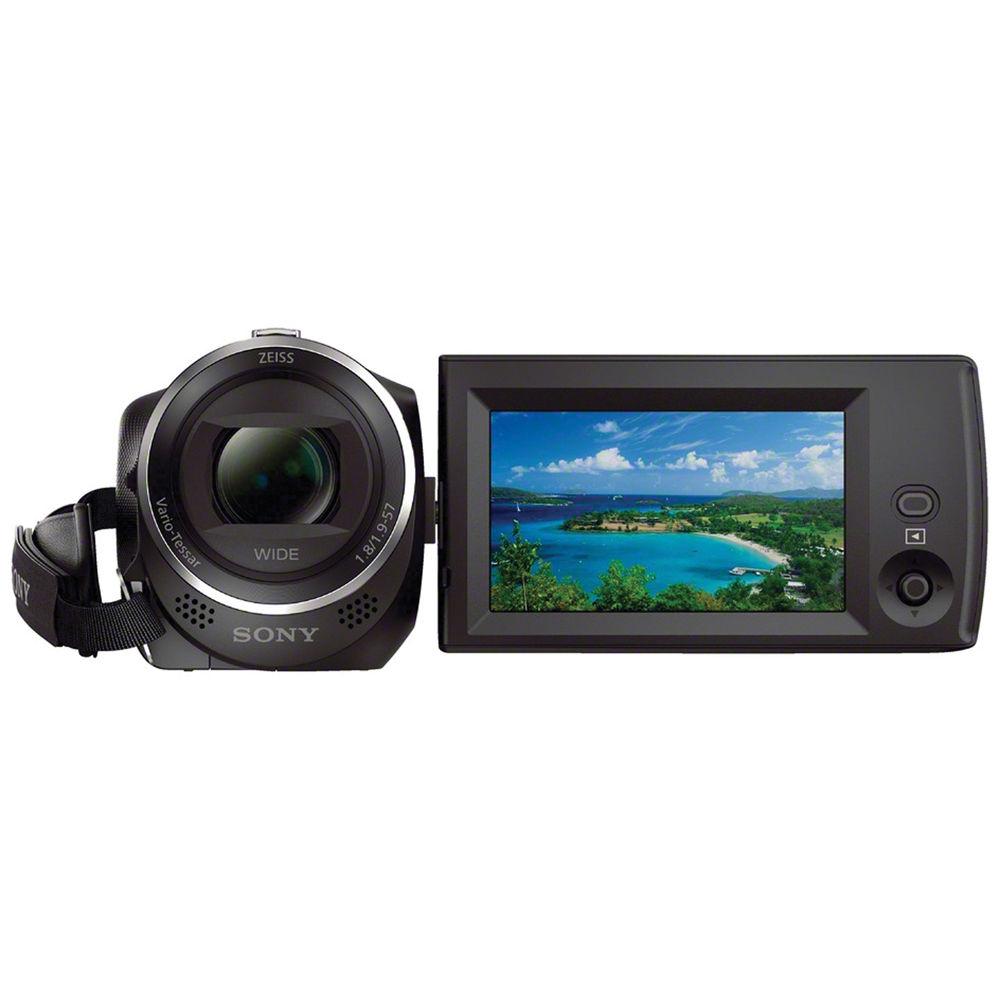

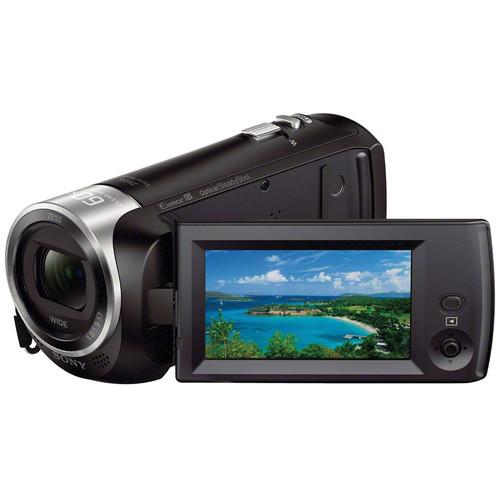

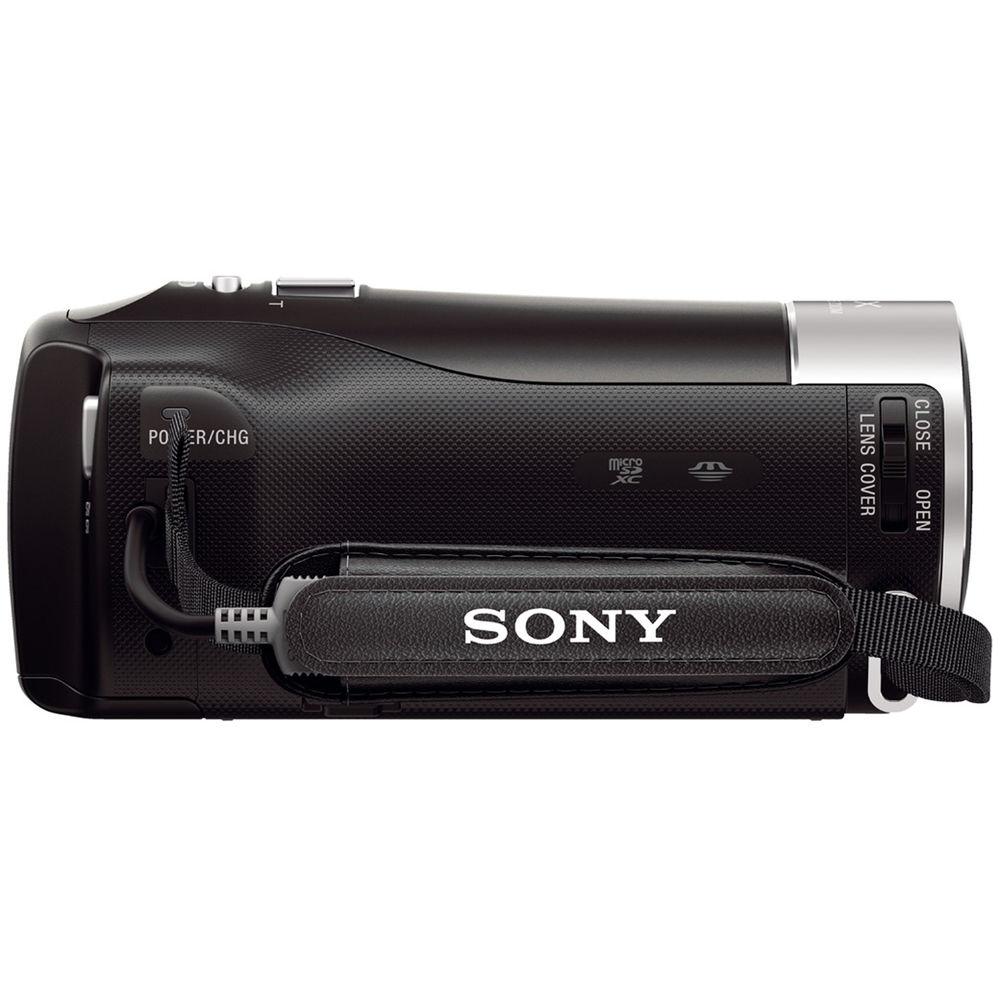

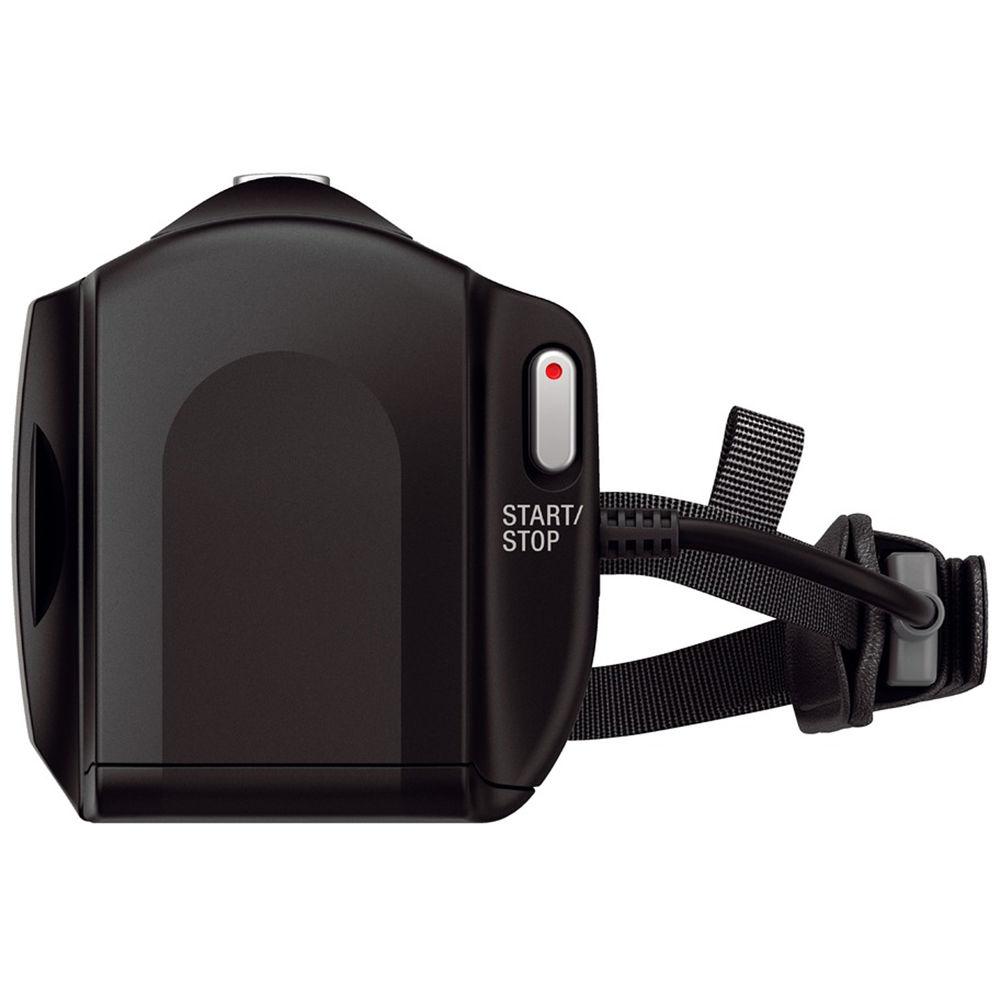

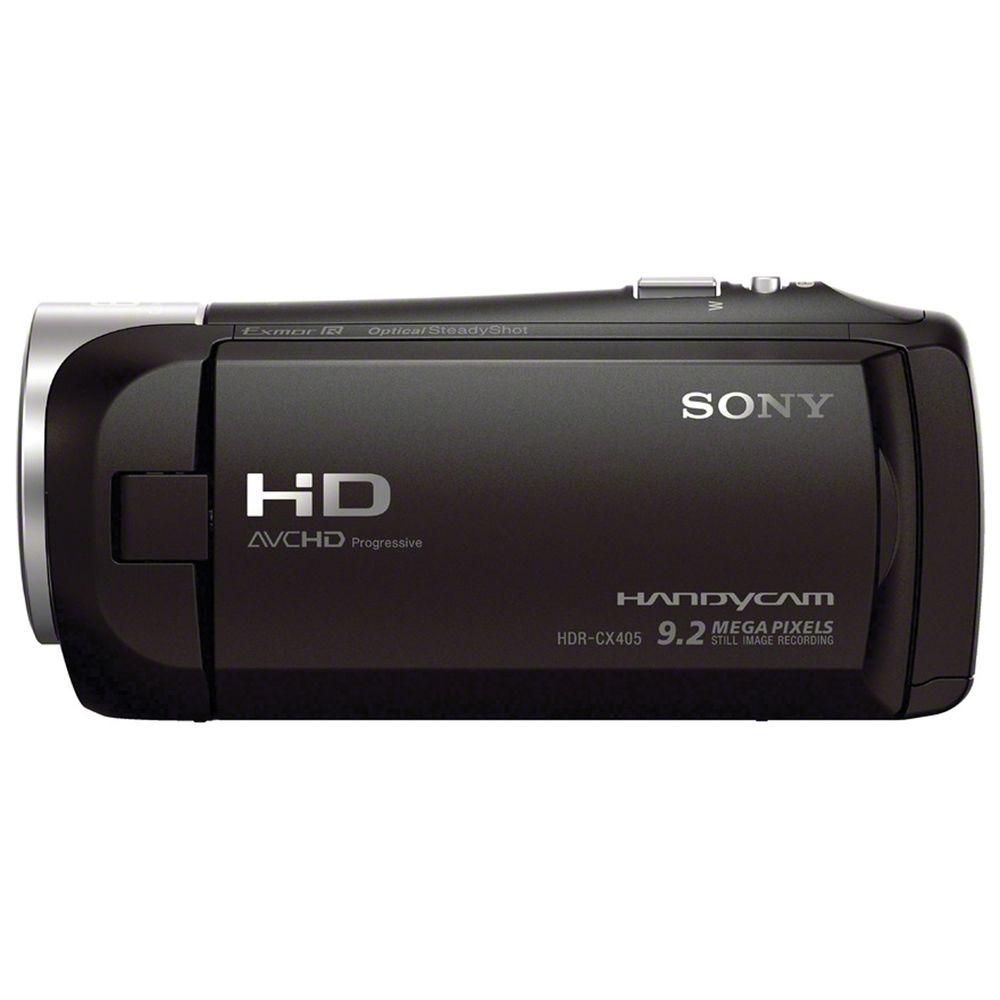

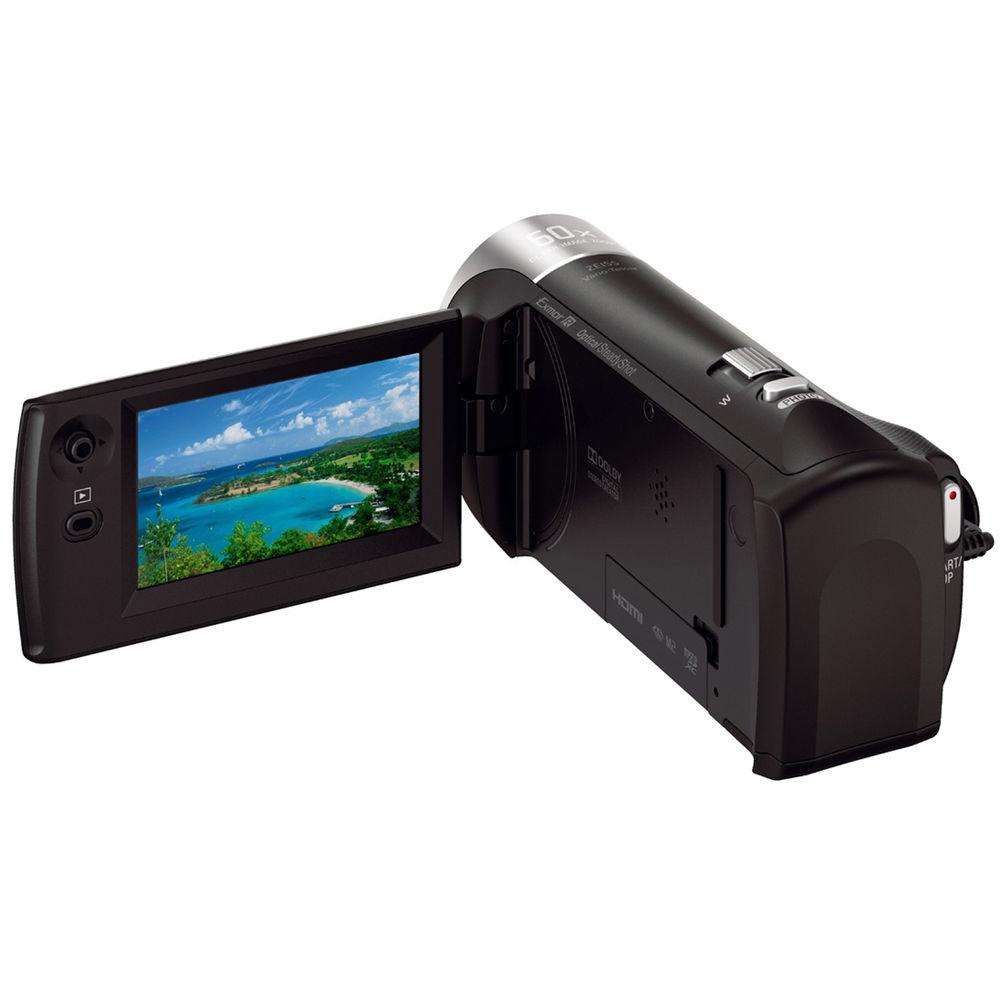

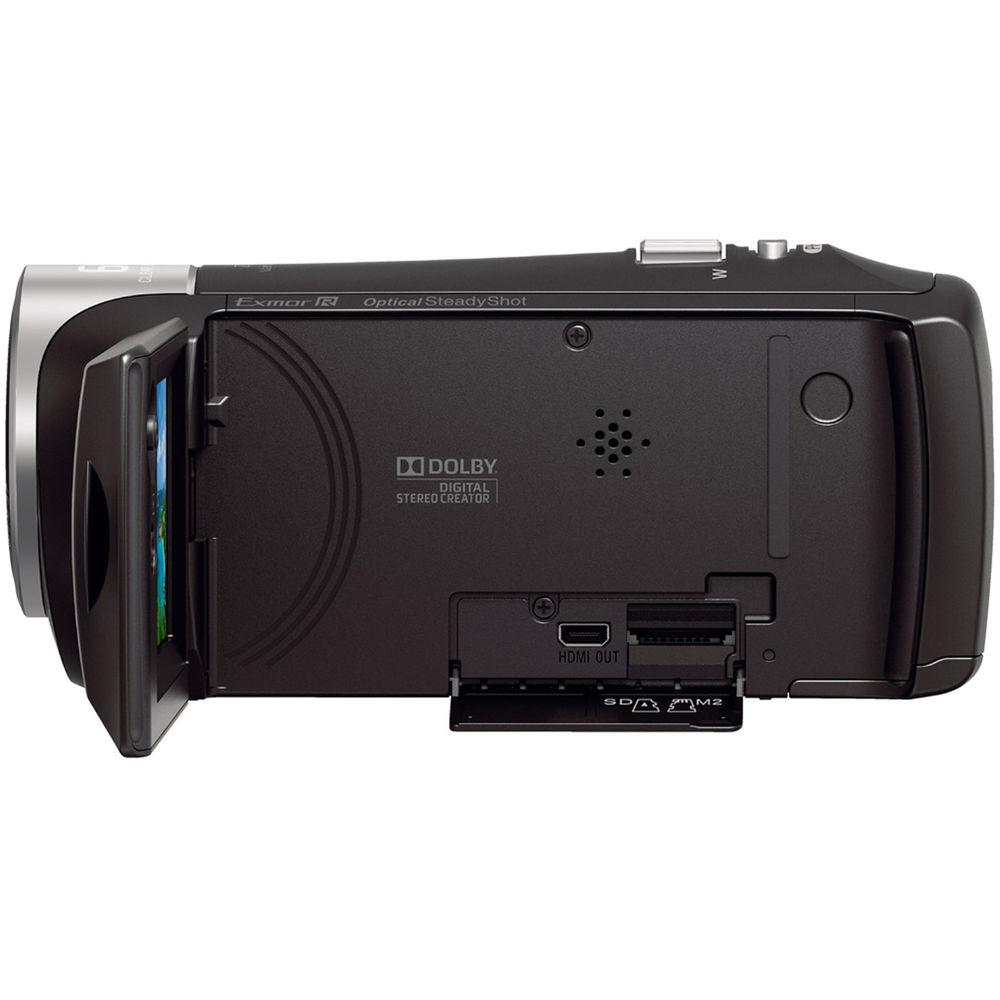

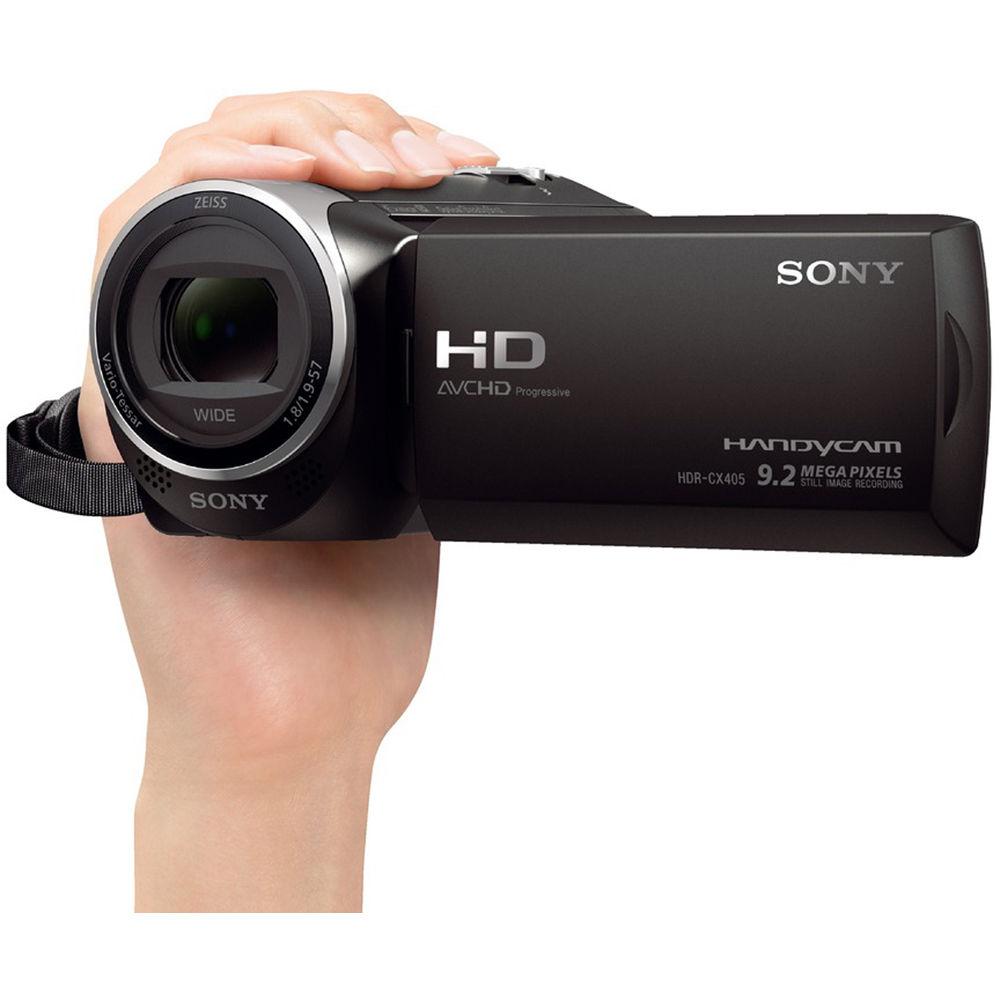

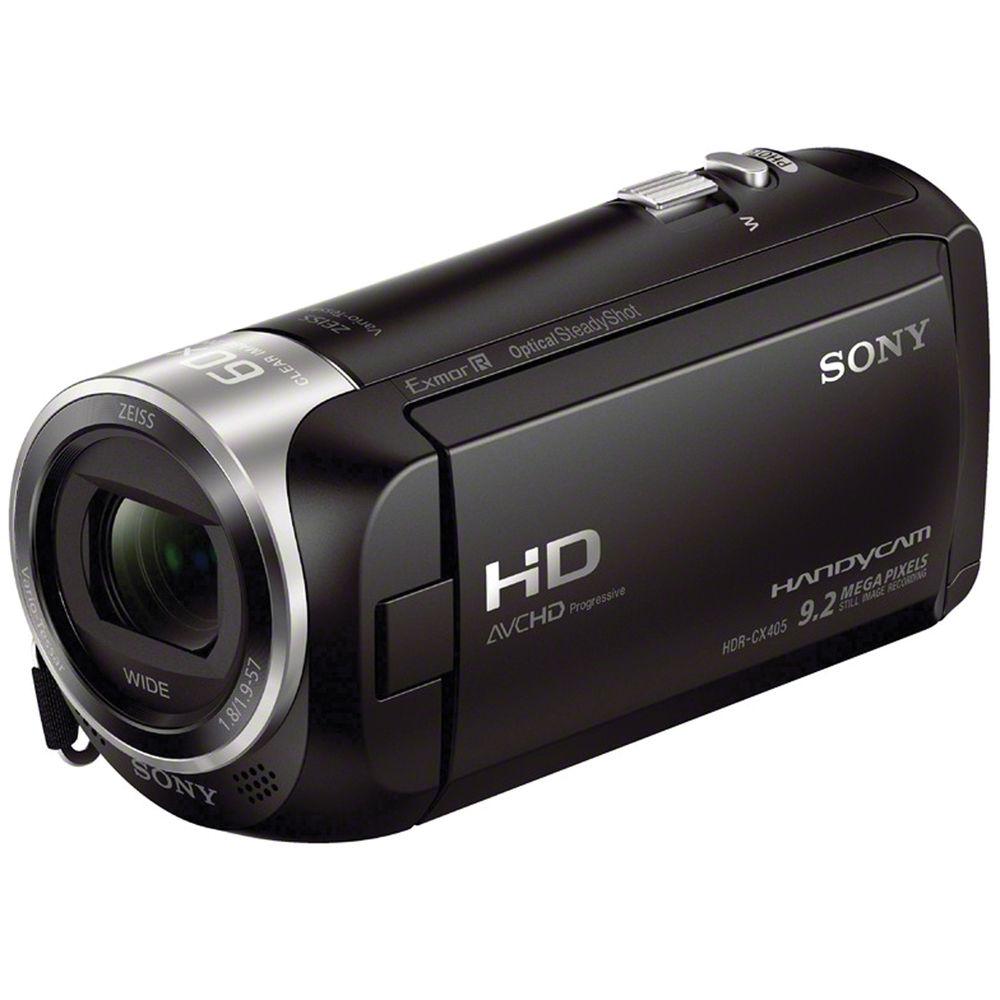

User Manual for Sony HDR-CX405 HD Handycam Click to enlarge the picture
Contents of the user manual for the Sony HDR-CX405 HD Handycam
- Product category: Consumer Camcorders Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Consumer Camcorders
 |
User manual for the Sony HDR-CX405 HD Handycam contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description The Sony HDR-CX405 HD Handycam features an Exmor R CMOS sensor and a wide-angle Carl Zeiss zoom lens with 30x optical zoom. The CX-405 captures Full HD 1920 x 1080 video at 60p and 9.2MP still images to optional Memory Stick Micro and microSD/SDHC/SDXC media cards. The Exmor R CMOS sensor is designed for increased sensitivity in low light situations and the Optical SteadyShot image stabilization with Intelligent Active Mode delivers smooth video. Users can monitor and playback footage via the 2.7" LCD display with 230K dot resolution.
The camera records using XAVC S codec at up to 50 Mb/s and features dual recording, which lets you simultaneously capture both high-quality AVCHD and web-optimized MP4 files. The Intelligent Auto mode analyzes your shot and automatically selects the appropriate settings from ten distinct scene modes, with 60 different possible combinations. A built-in USB 2.0 cable provides a connection to your computer for charging or file transfer and fits conveniently into the hand strap, so it's out of the way until you need it. The camera accepts a rechargeable X type battery pack for power. - 1080/60p and 9.2MP Still Images
- Create high definition 1920 x 1080 60p videos and take high quality 9.2MP still images. Sony's back-illuminated Exmor R CMOS sensor is designed for compact cameras and camcorders. The sensor relocates the photo diodes above the support circuitry, which maximizes the light gathering area per pixel and achieves better results in low light conditions.
- Wide Angle Carl Zeiss Lens
- The lens has a 35mm equivalent of 26.8mm at the wide end of the focal range. Shoot distant subjects with a 30x optical zoom.
- 2.7" LCD Display
- The 2.7" (16:9) LCD features 230K dot resolution for sharp, bright, vivid images, enabling you to change settings to best represent the scene.
- Optical SteadyShot Image Stabilization with Intelligent Active Mode
- Compensates for greater degrees of camera shake to deliver smooth video from wide angle to full telephoto shooting.
- Minimum Illumination
-
- Standard: 6 lux (1/30 shutter speed)
- Low Lux: 3 lux (1/30 shutter speed)
- Intelligent Auto
- Selects from ten different settings including Portrait, Baby, Walk, Tripod, Backlight, Landscape, Spotlight, Twilight, Macro, and Low Light to choose the best settings for your shot.
- Scene Modes
- Available scene modes include auto, night, sunrise/sunset, fireworks, landscape, portrait, spotlight, beach, and snow.
- AVCHD and MP4 Dual Recording
- Record video in the AVCHD and MP4 formats for high-quality or easy transfer and sharing. For the greatest flexibility, you can even record AVCHD and MP4 formats simultaneously. AVCHD provides premium video that can be enjoyed on large screen HDTVs and is ideal for capturing precious memories at special occasions, family vacations and other moments you want to treasure for a lifetime. MP4 is great for those moments that you want to quickly share on your social networks or store on the cloud.
- Supported Media Cards
- Memory Stick Micro
microSD/SDHC/SDXC - Built-In USB 2.0 Cable
- The built-in, high-speed, USB 2.0 cable provides an easy connection to your computer for charging or file transfer without the need for a separate cable. It also fits conveniently into the hand strap, so it's out of the way until you need it. Charging your camcorder is faster now through the USB; for every two minutes of charge time, you get one minute of recording time.
UPC: 027242886148 In the Box Sony HDR-CX405 HD Handycam - NP-BX1/M8 Rechargeable Lithium-Ion Battery Pack (3.6V, 1240mAh)
- AC Adapter
- Micro-HDMI Cable
- USB Connection Support Cable
- Limited 1-Year Warranty
User Manual PDF 2.9mb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony HDR-CX405 HD Handycam in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony HDR-CX405 Specs | | | Sensor | 1-Chip 1/5.8" CMOS | | Backside Illumination | Yes | | Color Filter | RGB | | Sensor Resolution | 2.51 MP | | Effective Pixels | 2.29 MP (16:9 Video / Image Stabilizer Off)
2.29 MP (16:9 Photo)
1.71 MP (4:3 Photo) | | | | Focal Length | 1.9 to 57mm | | 35mm-Equivalent Focal Length | 26.8 to 804 at 16:9
32.8 to 984 at 4:3 Photo | | Maximum Aperture | f/1.8 - f/4 | | Zoom | Optical: 30x
Digital: 350x | | | | System | NTSC | | Video Format | 1920 x 1080p at 30/60 fps (50 Mb/s XAVC S)
1920 x 1080p at 60 fps (28 Mb/s AVCHD)
1920 x 1080i at 60 fps (17 Mb/s AVCHD)
1440 x 1080i at 60 fps (9 Mb/s AVCHD)
1440 x 1080i at 60 fps (5 Mb/s AVCHD)
1280 x 720p at 30 fps (AVCHD) | | Aspect Ratio | 16:9
4:3 | | Still Image Resolution | JPEG: 9.2 Megapixel, 4032 x 2272 (16:9)
JPEG: 6.9 Megapixel, 3024 x 2272 (4:3)
JPEG: 2.1 Megapixel, 1920 x 1080 (16:9)
JPEG: .3 Megapixel, 640 x 480 (4:3) | | Audio Format | AAC-LC
Dolby Digital 2ch
LPCM | | Sampling Frequency | LPCM: 48.0 kHz | | Bit Rate | LPCM: 16.0-Bit | | | | Display Type | LCD | | Screen Size | 2.7" | | Screen Resolution | 230,000 Dots | | Aspect Ratio | 16:9 | | Rotation | Opening Angle: 90°
Turning Angle: 270° | | | | Shutter Speed | 1/8 - 1/10000 Second (Video) | | Exposure Modes | Modes: Auto, Manual | | Shooting Modes | Auto
Beach
Fireworks
Landscape
Night
Portrait
Snow
Spotlight
Sunset | | | | Image Stabilization | Optical | | Scene Modes | Preset: Yes | | White Balance Modes | Auto
Indoor 1
Onepush
Outdoors | | Creative Effects | Yes | | Built-In Mic | Yes | | Built-In Speaker | Yes | | | | Outputs | 1 x Composite Video Requires A/V cable not included
1 x Micro-HDMI (Type D)
1 x USB 2.0 Built-in type A
1 x Bravia Sync | | | | Supported Languages | Brazilian Portuguese
English
French | | Battery | Rechargeable Battery Pack, 3.6 VDC | | Charging Method | AC Adapter
USB | | Power Adapter | 5 VDC | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Dimensions (W x H x D) | 2.1 x 2.3 x 5.0" / 54.0 x 59.5 x 128.0 mm | | Weight | 6.70 oz / 190 g Main unit only
7.58 oz / 215 g With NP-BX1 | | | | Package Weight | 1.04 lb | | Box Dimensions (LxWxH) | 6.3 x 4.75 x 3.45" |
