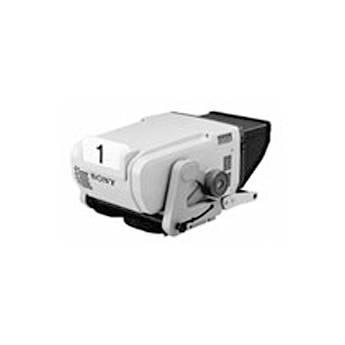

User Manual for Sony HDVF-700A 7" HD Electronic B W CRT Viewfinder Click to enlarge the picture
Contents of the user manual for the Sony HDVF-700A 7" HD Electronic B
- Product category: Viewfinders Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Viewfinders
|
User manual for the Sony HDVF-700A 7" HD Electronic B contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description The Sony HDVF-700A 7" HD Electronic B/W CRT Viewfinder (Black) is a multiformat, high-resolution viewfinder that can display 1080i and 1080p formats in either a 16:9 or 4:3 aspect ratio. Among its numerous professional features are tally lamps, continuously variable peaking (for improved sharpness and focusing), underscan, picture-in-picture, and up to 1000 lines of resolution on a bright, 800 x 600 screen. Both compact and energy efficient, the HDVF-700A is also user-friendly, with an adjustable height and the ability to tilt 50° forward or 60° back.
Compatible with HDC-900/910/1500R/1550R and HDC-3300R cameras, this viewfinder is ideal for studio camera operators who prefer monochrome displays for focusing and exposure adjustments, especially in low light. - Compact size with a reduced height, light weight, and energy-saving design
- Extremely high center resolution of 1000 TV lines and wide peaking range--for very crisp image and accurate focusing
- Accommodates multiple frame rates
- Large, very easy to see tally lamps
- Picture in picture--allows return video monitoring and HD return video signal to be displayed
- Continuously variable peaking circuit--provides a sharp image and easy focusing
- Drip-proof design--withstands light rain, is well-suited to outdoor use
In the Box Sony HDVF-700A 7" HD Electronic B/W CRT Viewfinder (Black) Studio Monitor Hood Number Plate Fuse Operation Manual 1 Year Parts/90-Day Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony HDVF-700A 7" HD Electronic B W CRT Viewfinder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony HDVF-700A Specs | Applications | Studio, OB | | LCD | 7"-type Monochrome CRT | | Resolution | 800 x 600 | | Brightness | 500cd/m² | | Connectors | Camera: 25-pin D-Sub | | Operating Temperature | 32° to 104°F (0° to 40°C) | | Power Supply | 10.5-17VDC (supplied by camera) | | Power Consumption | 33W | | Dimensions | 10.5 x 7.13 x 14.4" (26.5 x 17.8 x 36.2 cm) - with hood | | Weight | 11 lbs (5kg) |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 10 owners. Add your rating and experience with the product.
