User Manual for Sony HDVF-EL30 0.7" FHD OLED Viewfinder with 3.5" Display for Sony 4K HD Cameras Click to enlarge the picture
Contents of the user manual for the Sony HDVF-EL30 0.7" FHD OLED Viewfinder
- Product category: Viewfinders Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Viewfinders
|
User manual for the Sony HDVF-EL30 0.7" FHD OLED Viewfinder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description The Sony HDVF-EL30 0.7" Full HD Color OLED Viewfinder with 3.5" Display is used with a wide range of Sony cameras that feature the 20-pin round HDVF viewfinder interface. It features quick pixel response for tracking and focusing on moving objects. The use of OLED (Organic Light Emitting Diode) display technology helps deliver excellent contrast and a wide dynamic range.The viewfinder's specially developed optical loupe provides a high eye-point, which allows operators to see a wider area of the picture if they stand back from the eyepiece. The image displayed on the viewfinder can be downscaled via the menu or assignable button to avoid vignetting.The HDVF-EL30 is equipped with an additional 3.5" qHD (960 x 540) sub-LCD display for direct monitoring over a longer distance. Using both sub-LCD panel and OLED display offers full operational flexibility, enabling a camera assistant to monitor the sub-LCD display while the camera operator uses the OLED display. A tally indicator and the camera number can be displayed on the sub-LCD panel. The included flexible foldable hood for the sub-LCD reduces reflections caused by bright sunlight. - Compatibility
-
- HD Color Camera: HDC-4300, HDC-2500 series, HSC-300R/100R series
- Disc Camcorder: PDW-680/700/750/850/F800
- Solid State Memory Camcorder: PMW-500, PXW-X400/X500
- Digital Motion Picture Camera: F65
- OLED Display Technology
-
- Quick motion picture response and production of images with minimal blurring and ghosting
- Performance for shooting on location is not influenced by changes in environmental temperature
- OLED panel allows a pure black screen to be displayed
- Thanks to high-peak brightness, the panel is capable of displaying brilliance of sparkling objects such as twinkling of stars or glittering glass
- Self-luminescent OLED panel allows for excellent color reproduction across the entire spectrum in virtually any shade or brightness
- 3.5" qHD (960 x 540) Sub-LCD Panel
-
- Helpful for direct monitoring over a longer distance
- Using both sub-LCD panel and OLED display offers full operational flexibility, enabling a camera assistant to monitor the sub-LCD
display while the camera operator uses the OLED display - The included flexible foldable hood for the sub-LCD facilitates outside shooting in direct sunlight and reduces reflections
- Focus Assist Function
-
- Peaking Function: Edge enhancement can be performed in the horizontal/vertical direction on the entire screen; coloring the edge enhancement part can improve visibility
- Peaking Plus Function: Edge enhancement can be performed on the object that is specified using a color, an area selected, or both
- Image Magnification (Focus Mag) Function: Displays a part of the image expanded to twice the size, allowing you to focus with ease
- Assignable Switch and Presets
-
- Brightness and contrast can be pre-set for selection through an assignable switch or a menu operation
- Two assignable switches are provided for the storage of frequently used functions
- Tally Lamps
-
- The viewfinder has three tally lamps (red, green, and yellow), which light up in response to tally signals
1 Please Note: Check the connected camera to identify whether the use of the yellow tally lamp is supported close - High-Performance Loupe
-
- The four-group seven-element lens (including aspheric lens) delivers pictures with low distortion and allows adjustment over a wide range of visibility
- The separately available close-up lens (Ø37) enables shifting the visibility ratio to the far-sighted side

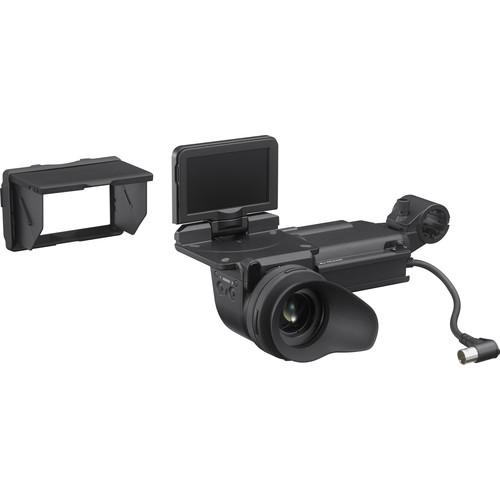

In the Box Sony HDVF-EL30 0.7" FHD OLED Viewfinder with 3.5" Display for Sony 4K/HD Cameras Hood Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony HDVF-EL30 0.7" FHD OLED Viewfinder with 3.5" Display for Sony 4K HD Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony HDVF-EL30 Specs | | | Display Size | 0.7" (1.8 cm) | | Display Area (HxV) | 0.6 x 0.4" (1.5 x 1.0 cm)
16:9 Aspect ratio | | Diopter Range | For Loupe: -4.0 to +2.0 m-1 | | Brightness | 200 cd/m2 (Typical) | | Effective Pixels | 1920 (H) x 1080 (V) x 3 (RGB) | | Color Temperature | D65 | | | | Display Size & Type | 3.5" (8.9 cm) TFT transmissive LCD panel | | Display Area (H × V) | 3.1 x 1.5" (7.7 x 4.3 cm)
16:9 Aspect ratio | | Brightness | 300 cd/m2 (Typical) | | Effective Pixels | 960 (H) × 540 (V) x 3 (RGB) | | Color Temperature | D65 | | | | Digital Scanning Frequency (H / V) | 1080 Scanning Lines:
23.98PsF: 26.97 kHz / 47.95 Hz
24PsF: 27.00 kHz / 48 Hz
25PsF: 28.13 kHz / 50 Hz
29.97PsF: 33.72 kHz / 59.94 Hz
50i: 28.13 kHz / 50 Hz
59.94i: 33.72 kHz / 59.94 Hz
720 Scanning Lines:
50P: 36.00 kHz / 50 Hz
59.94P: 44.96 kHz / 59.94 Hz | | Input Signals | Y: 1.0 Vpp, Synchronous, 75 Ohm terminated
Pb, Pr: 0.7 Vpp, Asynchronous, 75 Ohm terminated | | | | Camera Connector | Round type 20-pin | | Power Supply | 10.5 to 17.0 VDC (Supplied by the camera) | | Power Consumption | 7.3 W | | Temperature | Storage: -4 to 140°F (-20 to 60°C)
Operating: -4 to 113°F (-20 to 45°C) | | Folded Dimensions | 8.8 x 8.4 x 6.3" (22.1 x 21.2 x 15.8 cm) | | Weight | 2 lb (0.9 kg) | | | | Package Weight | 3.5 lb | | Box Dimensions (LxWxH) | 12.7 x 10.6 x 6.3" |
