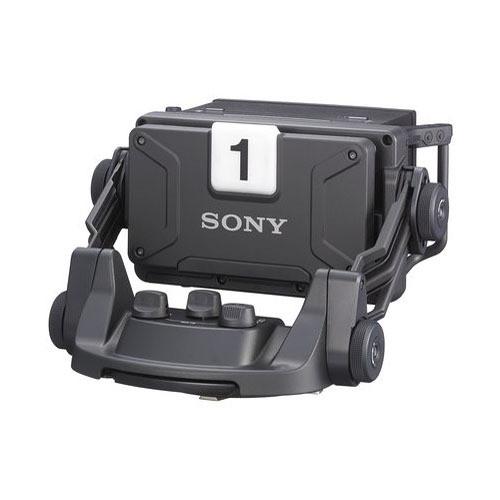

Product description The Sony HDVF-EL70 7.4" HD Electronic Viewfinder for Studio Cameras is a professional color OLED -- organic light emitting diode -- display for high-definition studio cameras. Thanks to OLED technology, the HDVF-EL70 is able to deliver striking contrast, with a wide dynamic range and extremely fine gradation from shadows to highlights. Also made possible by the screen's OLED technology is the viewfinder's fast response time, which enables the EL70 to excel at tracking fast-moving objects. Mounting to the rear of a studio camera in a wide variety of positions, the HDVF-EL70 includes the critical features you expect from a professional display: peaking, focus assist, image magnification, and a waveform monitor. - Advanced OLED Display Technology
-
- 7.4" quarter HD, 960 x 540 OLED panel for HDC studio cameras such as the HDC1000
- Quick response for tracking and focusing on moving objects
- High contrast and wide dynamic range, thanks to OLED panel characteristics like deep black color reproduction and high peak brightness
- Incorporating a 10-bit driver, the OLED panel creates extremely smooth gradation from dark to bright portions
- Stable and long-term color reproduction with Sony's unique feedback circuit
- Focus Assist function supports accurate focusing
- Image Magnification function magnifies just the portion of the image that is in the viewfinder display
- Peaking Plus function enhances the edge of an object by color, area selected, or both
- Waveform Monitor function
- Four assignable switches
- Adjustment mechanism for flexible positioning
In the Box Sony HDVF-EL70 7.4" HD Electronic Viewfinder for Studio Cameras Indoor Hood Number Plate Cleaning Cloth 1-Year Limited Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony HDVF-EL70 7.4" HD Electronic Viewfinder for Studio Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony HDVF-EL70 Specs | Display Type | Color OLED | | Diagonal Screen Size | 7.4" (18.8 cm) | | Effective Picture Size (H x V) | 6.5 x 3.6" (16.4 x 9.2 cm) | | Effective Pixels | 960 x 540 x 3 (RGB) | | Brightness | 350 cd/m2 | | TV Lines | 500 or more | | Color Temperature | Approx. 6500K daylight (D65) | | Camera Connector | D-sub 25-pin x1 | | Supported Formats | 1080-line: 23.98PsF, 24PsF, 25PsF, 29.97PsF, 30PsF, 50i, 59.94i, 60i
720-line: 50p, 59.74p, 60p | | Power Requirement | 10.5-17.0 V DC | | Power Consumption | 19.5 W | | Operating Temperature | -4 to +113°F (-20 to +45°C) | | Dimensions (WxHxD) | 12.1 x 8.8 x 11.4" (30.8 x 22.3 x 28.9 cm) | | Weight | 8.4 lbs (3.8 kg) |
