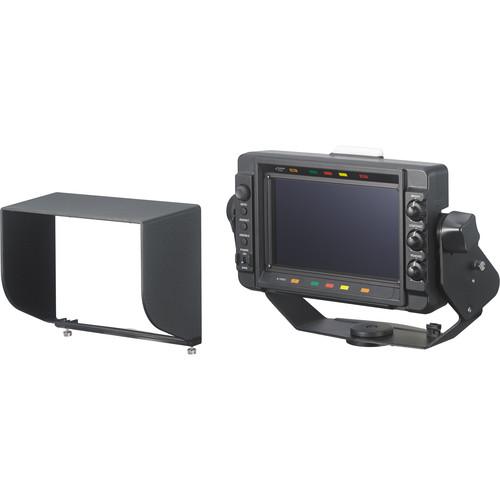

Product description The HDVF-L750 7" LCD HD Viewfinder from Sony is a 1920 x 1080 viewfinder. This unit uses simple type VF Pan/Tilt mechanism and can be mounted by selecting VF cable mounting bracket (V-shoe or included converter mounting plate) on the HDC/HSC series studio cameras, F55/CA4000, HXC-D70, PDW-850, and PMW-500, 400, 350, 320. The 3G-SDI input connector adds flexibility for viewing camera or external sources, while the 2 assignable switches on the handle allow for recall of your previous setups. The viewfinder comes with a Studio VF viewfinder hood with flip-up mechanism, a shoe conversion bracket, 2 connecting cables, a number plate, a V-wedge shoe attachment, attaching screws, a hexagonal wrench and screws, and a spiral tube. - Full HD 1920 x 1080 7" LCD viewfinder
- Pan/Tilt mechanism similar to HDVF-C550W
In the Box Sony HDVF-L750 7" LCD HD Viewfinder 20-Pin Connecting Cable 26-Pin Connecting Cable Shoe Conversion Bracket 4 x Attaching Screw Indoor Hood Number Plate V-Wedge Shoe Attachment Hexagonal Wrench 4 x Hexagonal Screw Spiral Tube Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony HDVF-L750 7" LCD HD Viewfinder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony HDVF-L750 Specs | Display Area (H x V) | 6.1 x 3.4" (15.6 x 8.8 cm) | | Aspect Ratio | 16:9 | | Brightness | 300 cd/m2 (typical) | | Resolution | 1920 x 1080 | | Color Temperature | D65 | | Video Formats | 1080/59.94p, 1080/50p, 1080/29.97p, 1080/25p, 1080/24p, 1080/23.98p, 1080/59.94i, 1080/50i, 1080/29.97PsF, 1080/25PsF, 1080/24PsF, 1080/23.98PsF, 720/59.94p, 720/50p | | Input Connectors | 1 x 20-pin round type, CAM
1 x 26-pin rectangular type, CAM
1 x BNC, SDI
1 x 4-pin, DC power | | Operating Temperature | 32 to 113°F (0 to 45°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Power Supply | 10.5 - 17.0 VDC | | Power Consumption | 13 W | | Dimensions | 11.6 x 8.3 x 5.8" (29.5 x 21.2 x 14.7 cm) | | Weight | 3.7 lb (1.7 kg) | | | | Package Weight | 6.5 lb | | Box Dimensions (LxWxH) | 14.5 x 12.0 x 11.0" |
