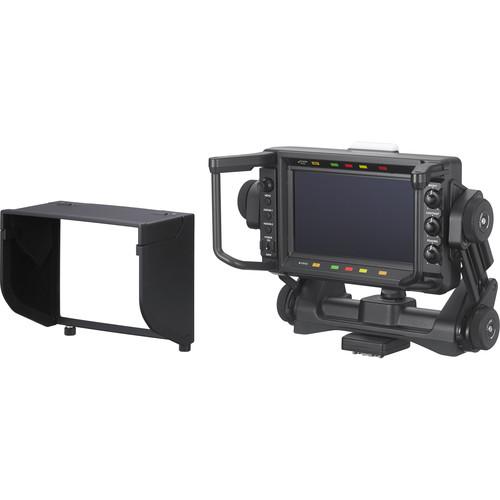

User Manual for Sony HDVF-L770 7" LCD HD Viewfinder Click to enlarge the picture
Contents of the user manual for the Sony HDVF-L770 7" LCD HD Viewfinder
- Product category: Viewfinders Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Viewfinders
|
User manual for the Sony HDVF-L770 7" LCD HD Viewfinder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description The HDVF-L770 7" LCD HD Viewfinder from Sony is a 1920 x 1080 color viewfinder designed for use in 4K live production. It is directly compatible with Sony HDC and HSC series cameras and also works with the PMW-F55 camera using the separately available CA-4000 adapter. The 1920 x 1080 LCD panel allows for more precise focusing, with a very high 1000:1 contrast ratio and a WFM (waveform monitor) function for precise exposure control. The viewfinder has a large handle, a lifter, and a bezel, as well as a lift/tilt lock lever for adjusting friction. A 3G-SDI input connector adds flexibility for viewing camera or external sources, while six assignable switches on the handle allow for bespoke setups. The viewfinder comes with an attachable hood with a flip-up mechanism. - Full HD 1920 x 1080 7" LCD panel suitable for 4K and HD live production
- 1000:1 high contrast ratio for enhanced visibility in outdoor live broadcast applications
- WFM (waveform monitor) function for precise exposure control
- External 3G-SDI input connector enables checking external video sources in the field, including third-party equipment
- Lifter, large handle, and bezel with lock lever for adjusting friction
- Hood with flip-up mechanism and HDVF cable included
In the Box Sony HDVF-L770 7" LCD HD Viewfinder 20-Pin Connecting Cable Indoor Hood Number Plate V-Wedge Shoe Attachment Hexagonal Wrench 4 x Socket Head Cap Screw Spiral Tube Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony HDVF-L770 7" LCD HD Viewfinder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony HDVF-L770 Specs | Display Area | 6.13 x 3.5" / 155.5
