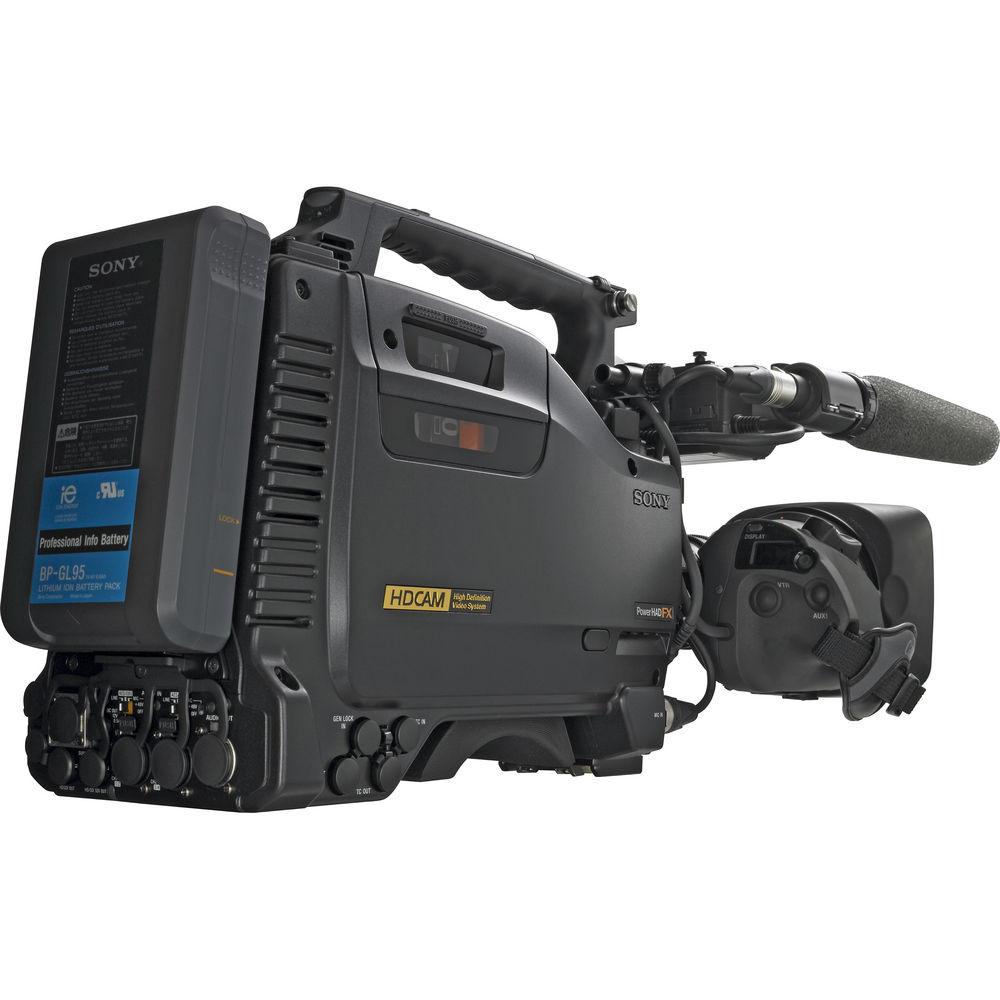

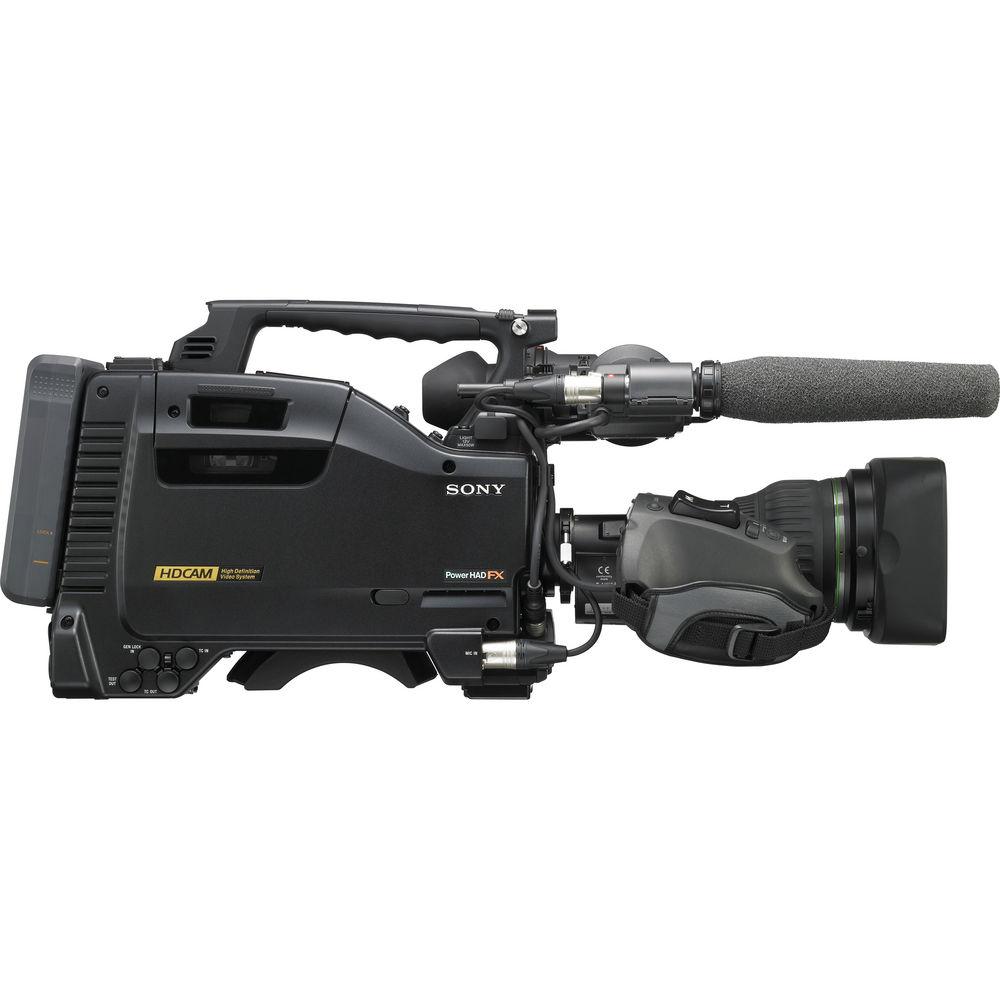

User Manual for Sony HDW650F HDCAM Camcorder Click to enlarge the picture
Contents of the user manual for the Sony HDW650F HDCAM Camcorder
- Product category: Camcorders Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Camcorders
 |
User manual for the Sony HDW650F HDCAM Camcorder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description The Sony HDW650F is a 2/3" ENG camcorder that shoots Sony's industry-standard HDCAM format. The camera comes equipped with a stunning feature-set that allows for extensive image manipulation, including color balance, highlight control and adjustable gamma curves. With its newly developed 14-bit DSP, the HDW650F produces incredible signal-to-noise ratio, providing the cleanest images possible. - HDCAM Inside
- The HDW650F records to Sony's flagship HDCAM broadcast format. Known as the gold-standard for high definition acquisition, the camera boasts the highest quality image available on any HDCAM rig and can be used in a wide variety of shooting situations.
- Infinitely Adjustable
- The HDW650F has a wide array of adjustable image controls that translate into stunningly accurate images. The Auto-Tracing White Balance is useful in situations where one must quickly move between indoor and outdoor (natural and unnatural) lighting situations. Color temperature control can be used to choose between images that appear cooler with more bluish tones, or warmer with more reddish ones. Lastly, gamma curve adjustment can be performed in camera and will provide a wide range of tonal choices across the entire image.
- Great in Low Light
- The camera features a Power HAD sensor that has amazing ability to shoot in low light conditions. Images will appear crisp with shadows and highlights that accurately represent the actual environment with a very low amount of noise.
- Digital Wireless Microphone Receiver
- The camera can accommodate a wide range of wireless audio receivers, providing 2-channel audio with highly stable transmissions.
- Super Low Signal-to-noise Ratio
- With a signal-to-noise ratio of 59dB while using noise-suppression, the HDW650F produces some of the cleanest images in the industry. Whether interior light or bright sun, the camera will perform like a champ.
- Lightweight and Comfortable
- The camera's weight and distribution make holding the rig for long periods of time comfortable and easy.
- Picture Cache Recording
- The Picture Cache Recording built-in to the camera helps prevent operators from missing the action. Since tape takes a moment to spin up, the camera will buffer 8 seconds of recorded footage, ensuring that the operator won't miss a critical moment.
In the Box Sony HDW650F HDCAM Camcorder Shoulder Strap Operation Manual CD-ROM Manual 2 Year CCD Prism Block Warranty
1 Year Complete Drum Replacement User Manual PDF 4.1mbevfdeqawwq Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony HDW650F HDCAM Camcorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony HDW-650F Specs | Image Device | 3-Chip 2/3" Type IT CCD | | Signal-to-Noise Ratio | 59dB | | Horizontal Resolution | 1000 TV Lines | | Sensitivity | 2000 lux, 89.9% Reflectance
60i: F11
50i: F12 | | Minimum Illumination | 0.26 lux (F1.4, +48 dB Gain) | | Vertical Smear | -135 dB | | Signal System | HDCAM | | Built-in Filters | ND
1: Clear
2: 1/8
3: 1/16
4: 1/64
CC
A: Cross Filter
B: 3200K
C: 4300K
D: 6300K | | LCD Monitor | 3.5" | | Speaker | No | | Viewfinder | Not Included | | Microphone | Detachable Ultra-Directional Monoaural Microphone | | Scan Matching | Not Specified By Manufacturer | | Memory Card Slot | Yes, Memory Stick | | Shutter Speed | 59.94i: 1/100, 1/125, 1/250, 1/500, 1/1000, 1/2000
50i: 1/60, 1/125, 1/250, 1/500, 1/1000, 1/2000 | | Gain Selection | -6, -3, 0, 3, 6, 9, 12, 18, 24, 30, 36, 42dB | | | | Tape Format | HDCAM at 59.94i, 50i, 23.98i | | Tape Speed | 59.94i: 96.7 mm/s
50i: 80.6 mm/s
23.98: 77.4 mm/s | | Maximum Recording Time | 59.94i: 40 min
50i: 48 min
23.98: 50 min | | | | Audio Dynamic Range | >85 dB | | Audio Signal Format | HDCAM | | Audio Frequency Response | 20 Hz to 20 kHz, +0.5 dB/-1.0 dB | | Signal to Noise Ratio | Not Specified By Manufacturer | | | | Input and Output Connectors | Genlock Video: BNC (x1 Input)
Timecode: BNC (x1 Input, Output)
Audio CH1/CH2: XLR 3-pin (x2 Input, Female)
Microphone (Stereo): XLR 5-pin (x1 Input, Female)
Test: BNC (x1 Output)
VBS/SDI: BNC (x1 Output)
HD-SDI: BNC (x1 Output)
Audio Output: XLR 5-pin (Male)
Earphone: Mini Jack
Lens: 12-pin
Remote: 8-pin
Light: 2-pin
DC input: XLR 4-pin (Male)
DC output: 4-pin (for wireless microphone receiver) | | Power Requirements | 12VDC, +5V/-1V | | Power Consumption | 35W | | Operating Temperature | 32-104°F (0-40°C) | | Dimensions (WxHxD) | Not Specified By Manufacturer | | Weight | 9.3 lbs (4.2kg) | | | | Package Weight | 14.45 lb | | Box Dimensions (LxWxH) | 22.0 x 17.0 x 14.45" |
