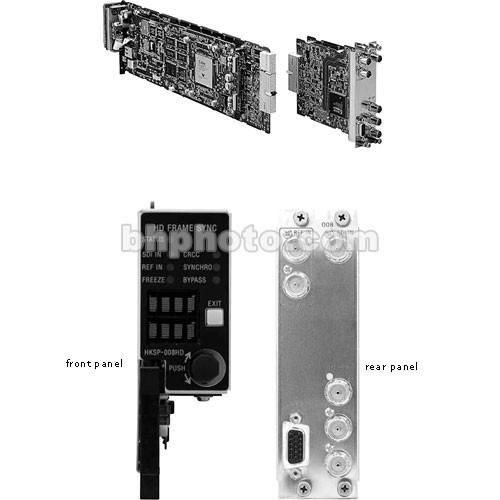

Product description The HKSP-008HD HD Frame/Line Synchronizer from Sony is a board that synchronizes an input HDTV video signal to an external reference. It is designed for use in PFV-SP Series Signal Processing Units in any combination with other HKPF-SP/HKSP function boards.
It features (1) equalized input, (3) distribution outputs, and (1) black burst or tri-level sync reference input with passive loop-through output. It also features (8) channels of audio. Three types of operation modes can be selected (Frame Synchronization mode, Line Synchronization mode, and Delay Line mode). A built-in test generator comes standard with this unit. A variety of freeze functions can also be selected to work with detection of errors in the input signal.
This board is remotely controllable from an optional HKDV-503/900 Digital Video Controller via a RS-422 (GPI also provided). It can also be controlled via the UCP-8060 Universal Control Panel (Ethernet 100BASE-TX). All controls are managed through the PFV-SP Series Signal Processing Unit. - HDTV Input Synchronization in PFV-SP Series Signal Processing Units
- This board synchronizes the input HDTV video signal to an external reference in PFV-SP Series Signal Processing Units in any combination with other HKPF-SP/HKSP function boards.
- Selectable Mode Operation
- Three types of operation modes can be selected (Frame Synchronization mode, Line Synchronization mode, and Delay Line mode).
- Freeze Function
- A variety of freeze functions can be selected to work with detection of errors in the input signal.
- Controls
- This board is remotely controllable from an optional HKDV-503/900 Digital Video Controller via a RS-422 (GPI also provided). It can also be controlled via the UCP-8060 Universal Control Panel (Ethernet 100BASE-TX).
In the Box Sony HKSP-008HD HD Frame/Line Synchronizer Frame/Line Synchronizer 1 Year Parts, 90 Days Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony HKSP-008HD HD Frame Line Synchronizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony HKSP-008HD Specs | Inputs | x1 Video input SDI IN connector (BNC type)
x1 Reference input REF IN connector (BNC type) | | Outputs | x3 Black Burst or Tri-level sync signal Video output SDI OUT connector (BNC type)
x1 Reference output Passive loop-through output connector (BNC type) | | Video Standard | 1035/60, 59.94i
1080/60, 59.94i, 50i
1080/30P, 29.97P, 25P, 24P, 23.976P | | Bandwidth | HD component serial digital signal (HD SDI) conforming to SMPTE-292M, 1.485/1001, 1.485 Gb/s | | Impedance | 75Ω, unbalanced | | Return Loss | 15 dB or less (at 742.5 MHz) | | Power | +12 V DC: 1.7 A (supplied from PFV-SP3300 Signal Processing Unit) | | Dimensions | Board: 4-1/2 x 19/32 x 1-3/8" (112.2 x 37 x 388.3mm) Connector Panel 5-1/8 x 6 1/8 x 3/4" (130 x 152.5 x 38 mm) | | Weight | Board: 1 lb 8 oz (680g)
Connector Panel: 11 oz (300g) |
