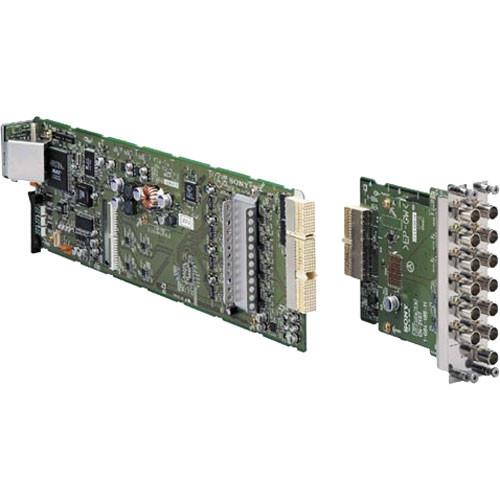

User Manual for Sony HKSP-061M 8x4 Digital Video Selector Click to enlarge the picture
Contents of the user manual for the Sony HKSP-061M 8x4 Digital Video Selector
- Product category: Distribution Amplifiers (DA's) Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Distribution Amplifiers (DA's)
|
User manual for the Sony HKSP-061M 8x4 Digital Video Selector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description The HKSP-061M 8x4 Digital Video Selector from Sony is a digital video selector board that allows multiple signals to be routed on command. It features (8) inputs and (4) outputs.
This board has a high-bandwidth capacity of up to 1.5Gb/s without any setting changes. It also features multi bit-rate transmission, an auto reclocking function, and auto cable equalization with coaxial cable lengths up to 328 ft (100m) in length.
Synchronized switching with an external reference feature is available and the unit retains crosspoint data to restore settings after it is powered down. Remote status monitoring is possible via the S-BUS remote interface. The board can also be controlled through the front LED panel of the unit in which it is installed. - Digital Video Selection
- This board is a digital video selector that allows multiple signals to be routed on command via (8) inputs and (4) outputs.
- High-Bandwidth Capacity
- This board has a high-bandwidth capacity of up to 1.5Gb/s without any setting changes.
- Controls
- Remote status monitoring is possible via the S-BUS remote interface. The board can also be controlled through the front LED panel of the unit in which it is installed.
In the Box Sony HKSP-061M 8x4 Digital Video Selector Digital Video Selector 1 Year Parts, 90 Days Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony HKSP-061M 8x4 Digital Video Selector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony HKSP-061M Specs | Inputs | x8 Serial digital video input: SDI connectors (BNC type)
x2 Reference inputs: REF IN connectors (BNC type), Black Burst or Tri-level sync signal | | Outputs | x4 Serial digital video output: SDI out connectors (BNC type) | | Bandwidth | 143 Mb/s to 1.485 Gb/s | | Power | +12 V DC: 2.0 A | | Dimensions | Board (HxW): 4-1/2 x 15-3/8" (112.2 x 388.3mm)
Connector Panel (WxHxD): 5-1/8 x 6-1/8 x 1-1/2" (130 x 152.5 x 38mm) | | Weight | Board: Approx. 16 oz (450g)
Connector Panel: 11 oz (300g) |
