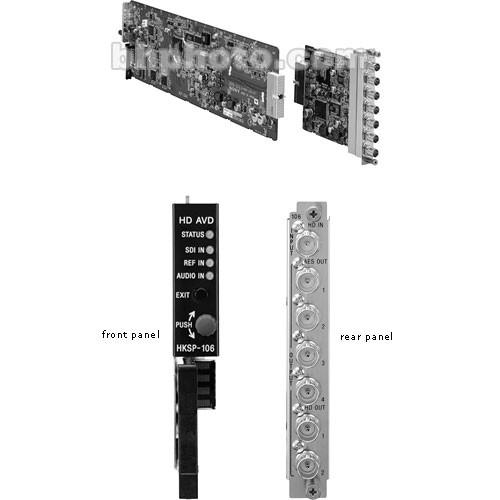

Product description The HKSP-106 Audio-Video Demultiplexer Board from Sony is designed to demultiplex (4) AES/EBU digital audio signals (8 channels) with an HD SDI video signal. The unit provides (2) outputs of the demultiplexed signal. An additional (4) signals and a total of (16) channels can be achieved by cascading (2) HKSP-106 boards.
The audio delay of this unit is adjustable up to a maximum of (2) video frames. This unit also masks and retains HANC area and embedded audio data, transfers UMID and VITC data, and provides a simple signal generator. External reference input is provided as PFV-SP Series Signal Processing Unit. The board may be controlled through your system or remotely through an optional UCP-8060 Universal Control Panel (Ethernet 100BASE-TX). - AES/EBU Demultiplexed with HD SDI Signal
- This board is designed to demultiplex (4) AES/EBU digital audio signals (8 channels) with an HD SDI video signal.
- (2) Outputs
- The unit provides (2) outputs of the demultiplexed signal.
- Expansion
- An additional (4) signals and a total of (16) channels can be achieved by cascading (2) HKSP-105 boards.
- Adjustable Audio Delay
- The audio delay of this unit is adjustable up to a maximum of (2) video frames.
- Control
- The board may be controlled through your system or remotely through an optional UCP-8060 Universal Control Panel (Ethernet 100BASE-TX).
In the Box Sony HKSP-106 Audio-Video Demultiplexer Board Demultiplexer Board 1 Year Parts, 90 Days Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony HKSP-106 Audio-Video Demultiplexer Board in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony HKSP-106 Specs | Inputs | x1 HD SDI, BNC | | Outputs | x2 HD SDI, BNC | | Bandwidth | HD serial digital signal conforming to SMPTE291M/292M/299M, 1.4835 or 1.485 Gbs | | Impedance | 75Ω, unbalanced | | Return Loss | 15 dB or less (at 742.5 MHz) | | Power | Power Requirements: +12 VDC: less than 1.0A
Power Consumption: Approx. 12W | | Dimensions | Board (HxW): 4-1/2 x 15-3/8" (112.2 x 388.3mm)
Connector Panel (HxDxW): 5-1/8 x 6-1/8 x 7/8" (130 x 152.5 x 19mm) |
