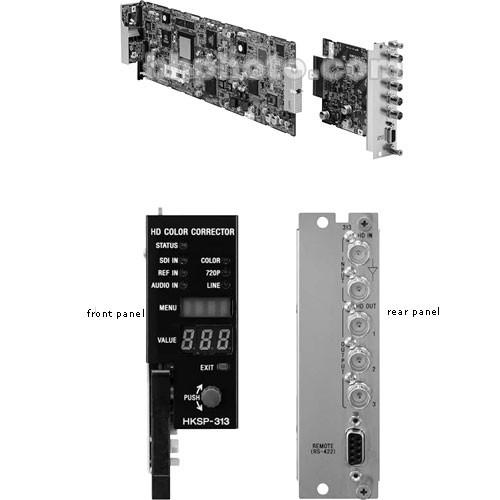

Product description The HKSP-313 Color-Correcting Board for PFV-SP3300 from Sony is a module that provides control of various color parameters for different types of signals when using a PFV-SP3300 Signal-Processing Unit. The unit works with multiple HD formats and also offers line conversion between 1035 and 1080 and format conversion between 1080 and 720p. Up to (8) of these boards can be installed in (1) PFV-SP3300 unit.
Other key features include system and audio delay, HD SDI active loop-through output, a built-in signal generator, and the ability to transfer UMID and VITC data. This board can be controlled remotely through an optional HKDV-503/900 digital video controller via RS-422 (GPI also provided) or UCP-8060 universal control panel (Ethernet 100BASE-TX). - Color Correction for PFV-SP3300 Signal-Processing Unit
- This board is a module that provides control of various color parameters for different types of signals with the PFV-SP3300 Signal-Processing Unit.
- HD Format Support & Conversion
- The unit works with multiple HD formats and also offers line conversion between 1035 and 1080 and format conversion between 1080 and 720p.
- Expansion
- Up to (8) of these boards can be installed in (1) PFV-SP3300 Signal-Processing Unit.
- Key Features
- This board features system and audio delay, HD SDI active loop-through output, a built-in signal generator, and the ability to transfer UMID and VITC data.
- Control
- This board can be controlled remotely through an optional HKDV-503/900 digital video controller via RS-422 or UCP-8060 universal control panel.
In the Box Sony HKSP-313 Color-Correcting Board for PFV-SP3300 Board 1 Year Parts, 90 Days Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony HKSP-313 Color-Correcting Board for PFV-SP3300 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony HKSP313 Specs | Inputs | x1 HD SDI, BNC | | Outputs | x3 HD SDI, BNC | | Bandwidth | HD serial digital signal conforming to SMPTE291M/292M/299M, 1.4835 or 1.485 Gbs | | Impedance | 75Ω, unbalanced | | Return Loss | 15 dB or less (at 742.5 MHz) | | Power | Power Requirements: +12 VDC: less than 1.5A
Power Consumption: Approx. 18W | | Dimensions | Board (HxW): 4-1/2 x 15-3/8" (112.2 x 388.3mm)
Connector Panel (HxDxW): 5-1/8 x 6-1/8 x 7/8" (130 x 152.5 x 19mm) |
