User Manual for Sony HT-X9000F 300W 2.1-Channel Soundbar System Click to enlarge the picture
Contents of the user manual for the Sony HT-X9000F 300W 2.1-Channel Soundbar System
- Product category: Soundbar Speakers Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Soundbar Speakers
 |
User manual for the Sony HT-X9000F 300W 2.1-Channel Soundbar System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|

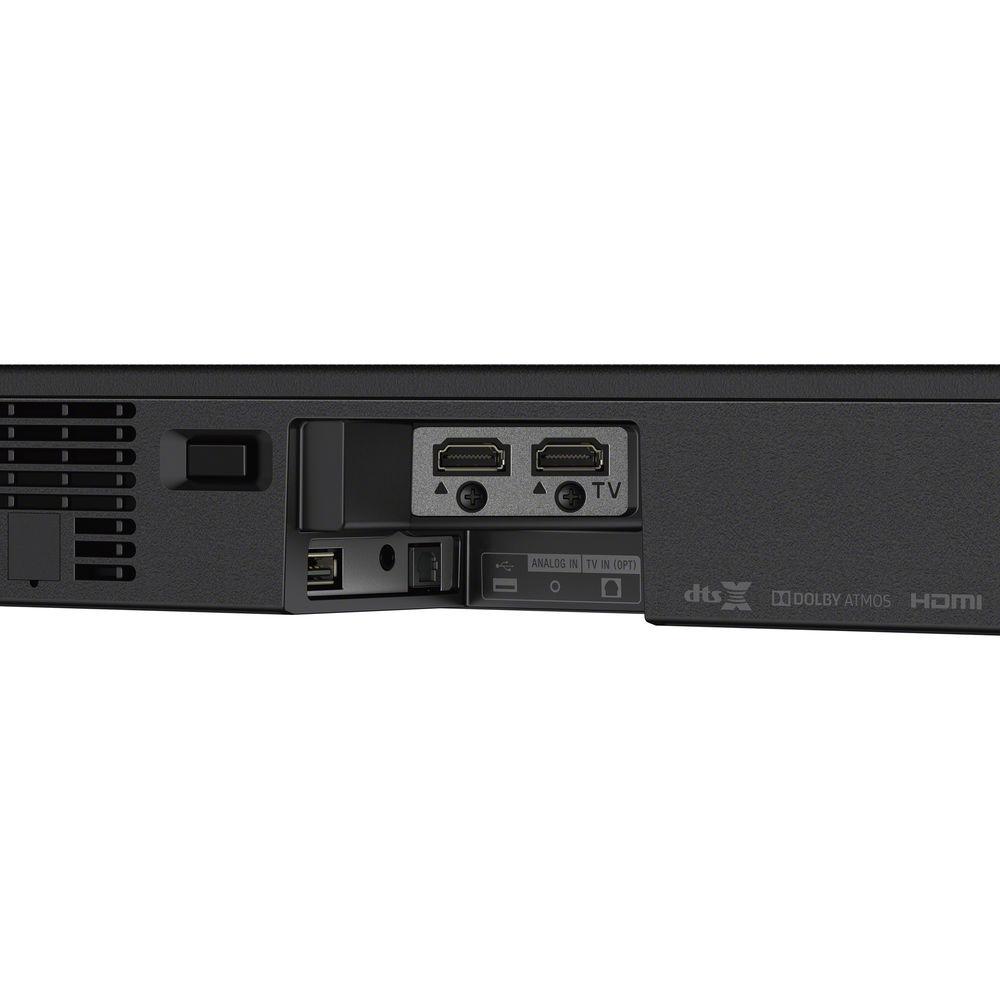

Product description How to Choose a Soundbar System Read More ayefdbqqtd Get enhanced audio quality for your favorite TV shows and movies with the Sony HT-X9000F 300W 2.1-Channel Soundbar System. It outputs up to 300W to deliver more powerful audio than can be found in typical flat-panel display speakers. The soundbar features an 1/8" analog, HDMI, optical audio input, and a USB port to connect compatible drives. Its HDMI output is ARC-compatible to bring display-based sound, such as that from built-in apps like Netflix or YouTube, directly into the soundbar. The HT-X9000F also features Bluetooth for pairing with your compatible smart device or display and wirelessly streaming your audio content. It includes an HDMI cable for instant connectivity and a wall mount template to help you mount the soundbar. - Vertical Surround Engine
- Vertical Surround Engine technology is designed to simulate 7.1.2-channel surround sound from Dolby Atmos and DTS:X content over HDMI, to make the sound seem like it's coming from all around you.
- Virtual 7.1.2-Channel Upscaling
- Sony's digital signal processing can convert nearly all your audio into immersive surround sound with the push of a button on the remote.
- Sound Modes to Match Your Entertainment
- Five different sound modes help enhance your entertainment experience. Cinema mode helps provide a more immersive movie experience, while Game mode helps enhance the action in your gameplay. Sport mode helps to fine-tune ambient crowd noise so you can feel field-level action, while Music mode lets you hear the detail in your songs. News mode is designed to provide clear dialogue.
- 4K HDR Pass-Through
- Retain image quality from all your HDMI sources with 4K HDR pass-through at up to 18 Gbps with HDCP 2.2 compatibility. HDR10, Dolby Vision, HLG, and 3D pass-through are supported.
- One-Cable Connectivity with HDMI ARC and CEC
- Send audio and control information from your ARC- and CEC-compatible display to the soundbar over just one HDMI cable.
- Connect and Stream with Bluetooth
- Connect and stream music from your compatible device, including your display, with Bluetooth.
- Music Playback via USB
- Connect a compatible USB device to the USB port to enjoy audio playback.
- Additional Features
-
- S-Master Amplifier
- S-Force PRO Front Surround
- Night Mode
- WMA tags
- BRAVIA SYNC HDMI CEC
- Scene Select Sync
- A/V Sync (0 to 300 ms)
- Auto Power Off
- Easy Setup
- Firmware updates via USB
- NUX GUI for USB browsing
- DEMO mode
- Fixed metal punching grilles
- Repeat all, repeat folder, repeat track, stop resume, and shuffle USB playback options
UPC: 027242908178 In the Box Sony HT-X9000F 300W 2.1-Channel Soundbar System Remote Control with Batteries HDMI Cable Wall Mount Template Limited 1-Year Warranty Bose: The New Lineup of Home Speaker Systems Richard L. Stevens 10/11/2014 More from Manufacturer ayefdbqqtd Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony HT-X9000F 300W 2.1-Channel Soundbar System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony HTX9000F Specs | | | Speaker Configuration | 2.1-Channel | | Enclosure Type | Sealed | | Full-Range Drivers | 2 x 1.6 x 3.9" / 40 x 100 mm Oval Cone | | Amplifier Output | 200 W | | | | Enclosure Type | Ported | | Drivers | 1 x 6.3" / 160 mm | | Amplifier Output | 100 W | | | | Inputs | 1 x HDMI
1 x Optical TOSLINK
1 x 1/8" (3.5 mm) - Audio | | Outputs | 1 x HDMI | | USB Ports | 1 x USB (Version Unspecified) | | Bluetooth Version | 4.2 | | Bluetooth Profiles | A2DP
AVRCP | | Bluetooth Codec Support | AAC
LDAC
SBC | | | | Audio Decoding | DTS Digital Surround, Dolby Atmos, Dolby Digital, Dolby Digital Plus, Dolby Dual Mono, LPCM | | HDMI Compliance | ARC | | Supported File Formats | AIFF, ALAC, DSD, FLAC, MP3, Monkey's Audio, Vorbis, WAV, WMA | | Supported File Systems | FAT16, FAT32, exFAT, vFAT | | Supported Languages | Canadian French
English
French
German
Japanese
Latin American Spanish
Simplified Chinese
Spanish
Traditional Chinese | | | | Power Consumption | 20 W (Subwoofer)
38 W (Soundbar)
0.5 W (Soundbar, Standby)
0.5 W (Subwoofer, Standby) | | AC Input Power | 120 VAC, 60 Hz | | | | Wall Mountable | Yes | | Dimensions | 36.6 x 2.3 x 3.4" / 93.0 x 5.8 x 8.5 cm (Soundbar)
7.5 x 15.0 x 15.2" / 19.0 x 38.2 x 38.7 cm (Subwoofer) | | Weight | 5.5 lb / 2.5 kg (Soundbar)
17.2 lb / 7.8 kg (Subwoofer) | | | | Package Weight | 28.25 lb | | Box Dimensions (LxWxH) | 39.1 x 20.5 x 9.6" |
