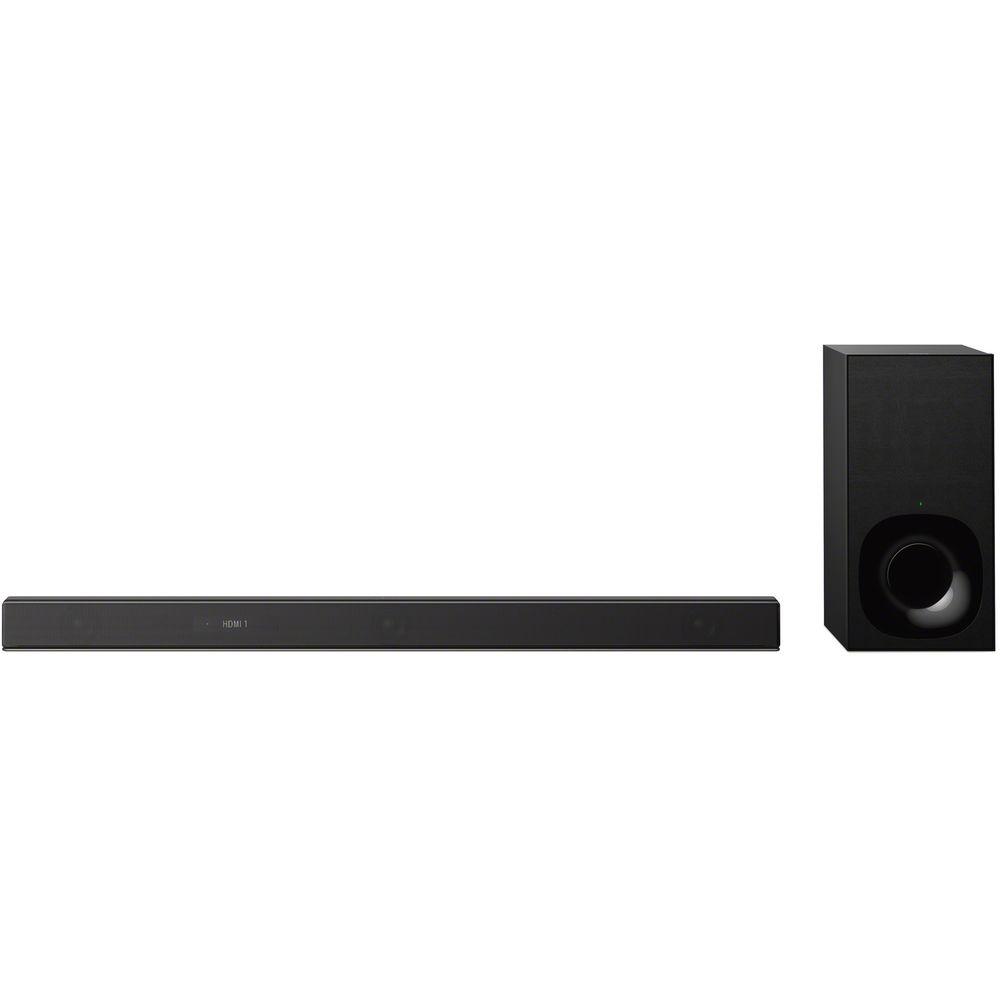

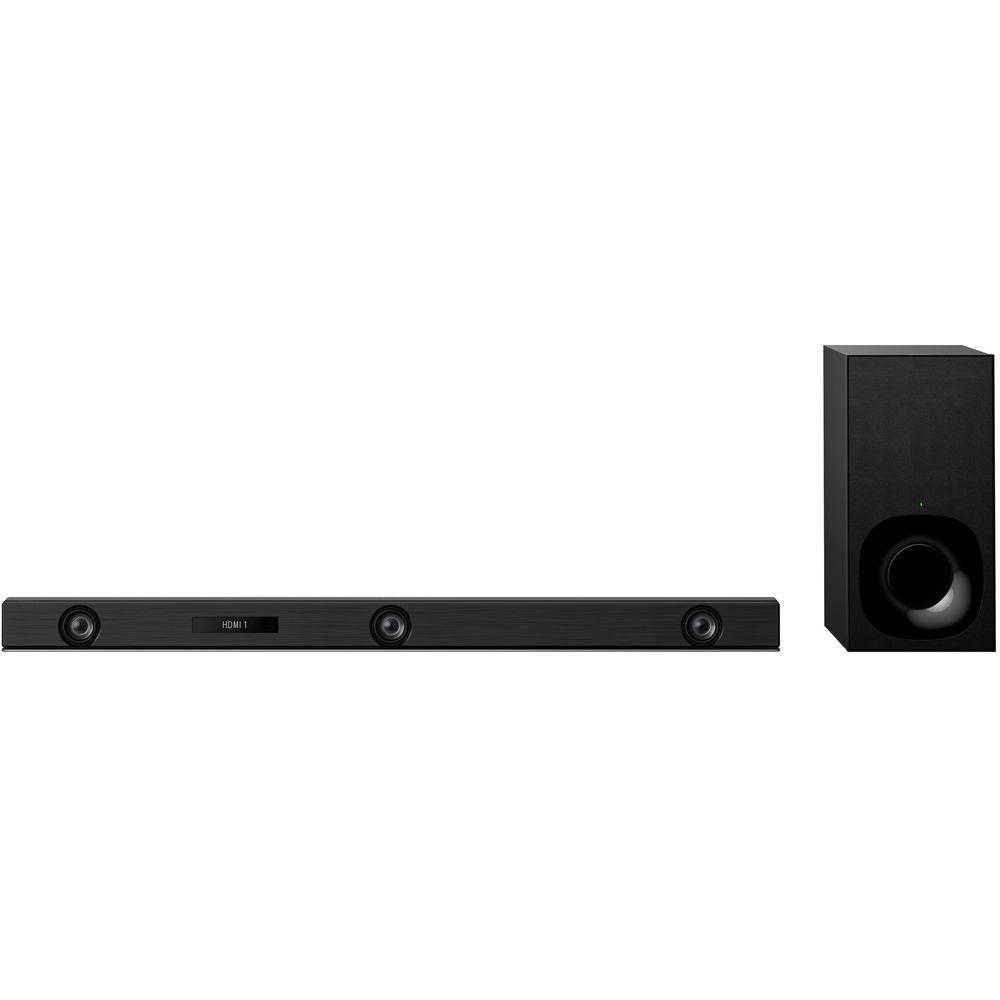

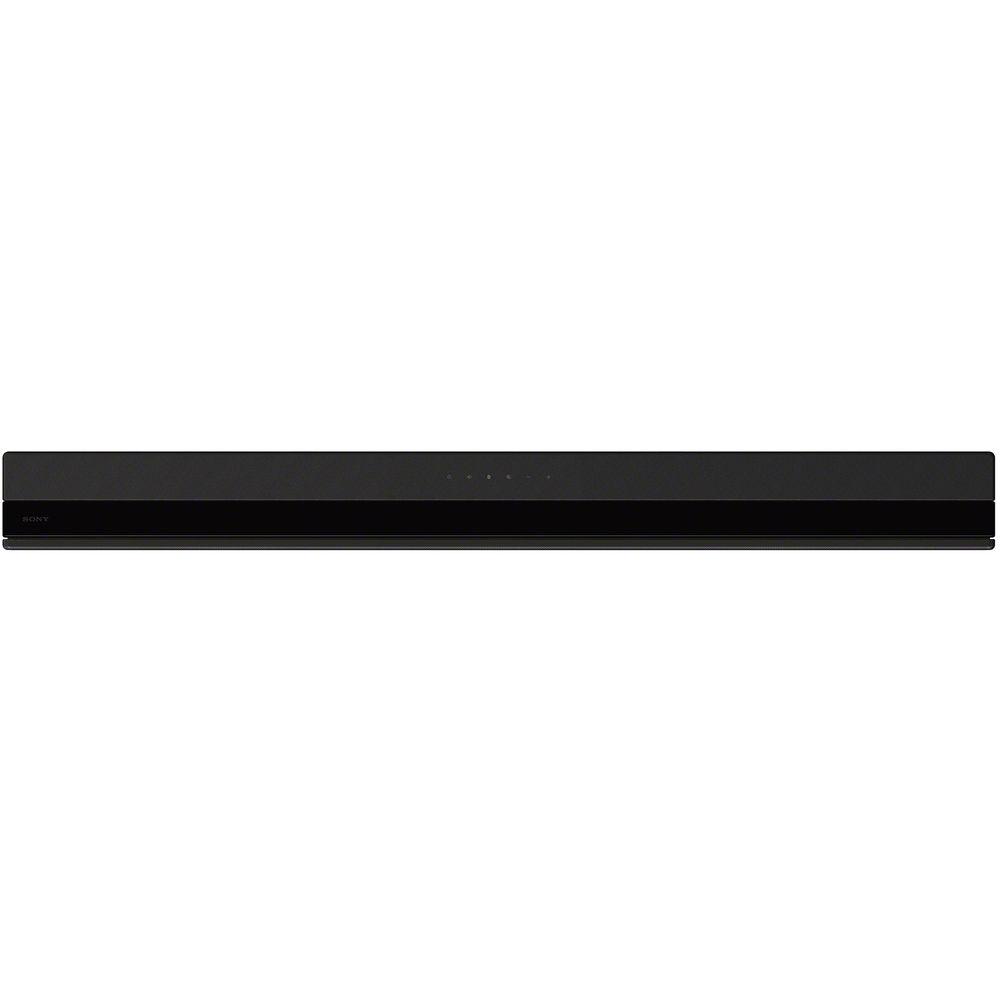

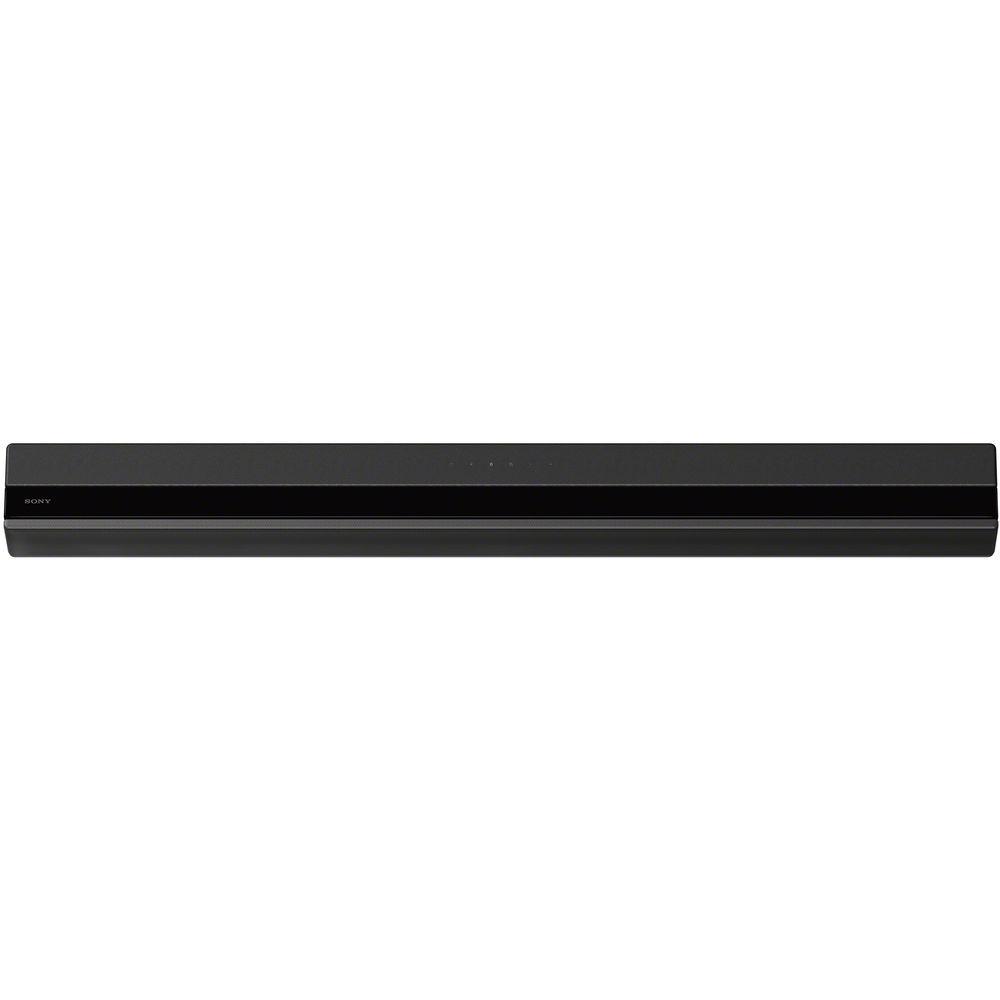

User Manual for Sony HT-Z9F 400W 3.1-Channel Network Soundbar System Click to enlarge the picture
Contents of the user manual for the Sony HT-Z9F 400W 3.1-Channel Network Soundbar
- Product category: Soundbar Speakers Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Soundbar Speakers
 |
User manual for the Sony HT-Z9F 400W 3.1-Channel Network Soundbar contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|

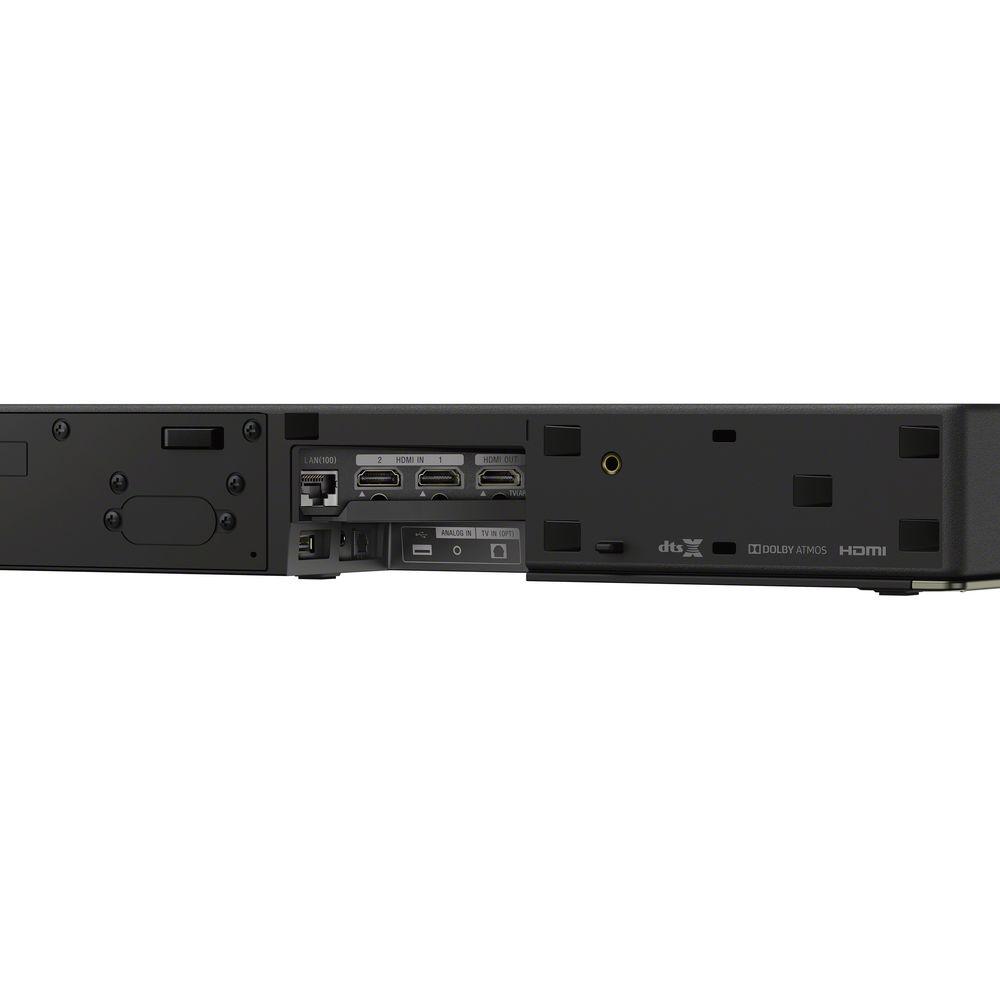

Product description How to Choose a Soundbar System Read More Get enhanced audio quality for your favorite TV shows and movies with the Sony HT-Z9F 400W 3.1-Channel Network Soundbar System. It outputs up to 400W to deliver more powerful audio than can be found in typical flat-panel display speakers. The soundbar features an 1/8" analog, optical audio, two HDMI inputs, and a USB port to connect compatible drives. Its HDMI output is ARC-compatible to bring display-based sound, such as that from built-in apps like Netflix or YouTube, directly into the soundbar. The HT-Z9F also features Bluetooth for pairing with your compatible smart device or display and Chromecast built-in for wireless streaming of your audio content. It includes an HDMI cable for instant connectivity and wall mounting hardware. - Vertical Surround Engine
- Vertical Surround Engine technology is designed to simulate 7.1.2-channel surround sound from Dolby Atmos and DTS:X content over HDMI, to make the sound seem like it's coming from all around you.
- Virtual 7.1.2-Channel Upscaling
- Sony's digital signal processing can convert nearly all your audio into immersive surround sound with the push of a button on the remote.
- Sound Modes to Match Your Entertainment
- Five different sound modes help enhance your entertainment experience. Cinema mode helps provide a more immersive movie experience, while Game mode helps enhance the action in your gameplay. Sport mode helps to fine-tune ambient crowd noise so you can feel field-level action, while Music mode lets you hear the detail in your songs. News/Voice mode is designed to provide clear dialogue.
- Bring Your Equipment Together
- Connect via HDMI, LAN, USB, and more to enjoy music and movies from different sources.
- 4K HDR Pass-Through
- Retain image quality from all your HDMI sources with 4K HDR pass-through at up to 18 Gbps with HDCP 2.2 compatibility. HDR10, Dolby Vision, HLG, and 3D pass-through are supported.
- High-Resolution Audio Playback
- Enjoy the subtle nuances of studio-quality sound with High-Resolution Audio.
- Integrated Wi-Fi
- Wirelessly connect to online music streaming with built-in Wi-Fi.
- Enhance Detail with DSEE HX
- DSEE HX upscales your existing music to near-High-Resolution Audio sound quality.
- Chromecast built-in for Smartphone Streaming, Via Future Firmware Update
- Stream music, online radio, and podcasts from your smartphone, tablet, or laptop to the soundbar with a tap of the Cast button. This feature is scheduled to be made available via a future firmware update.
- Stream Music Throughout the House, Via Future Firmware Update
- Use the Sony | Music Center app (previously called SongPal) to group selected Sony soundbars and speakers together to stream music in multiple rooms. This feature is scheduled to be made available via a future firmware update.
- Connect to Rear Speakers, Via Future Firmware Update
- Extend your surround sound setup with optional compatible wireless rear speakers. This feature is scheduled to be made available via a future firmware update.
- Additional Features
-
- S-Master HX Digital Amplifier
- DSEE HX upscaling from 44.1/48 kHz, 16/24-bit to 88.2/96 kHz, 24-bit
- S-Force PRO Front Surround
- BRAVIA SYNC HDMI CEC
- Scene Select Sync
- A/V Sync (0 to 300 ms)
- Auto Power Off
- Easy Setup
- Firmware updates via USB or network
- NUX GUI for USB browsing
- DEMO mode
- Repeat all, repeat folder, repeat track, stop resume, and shuffle USB playback options

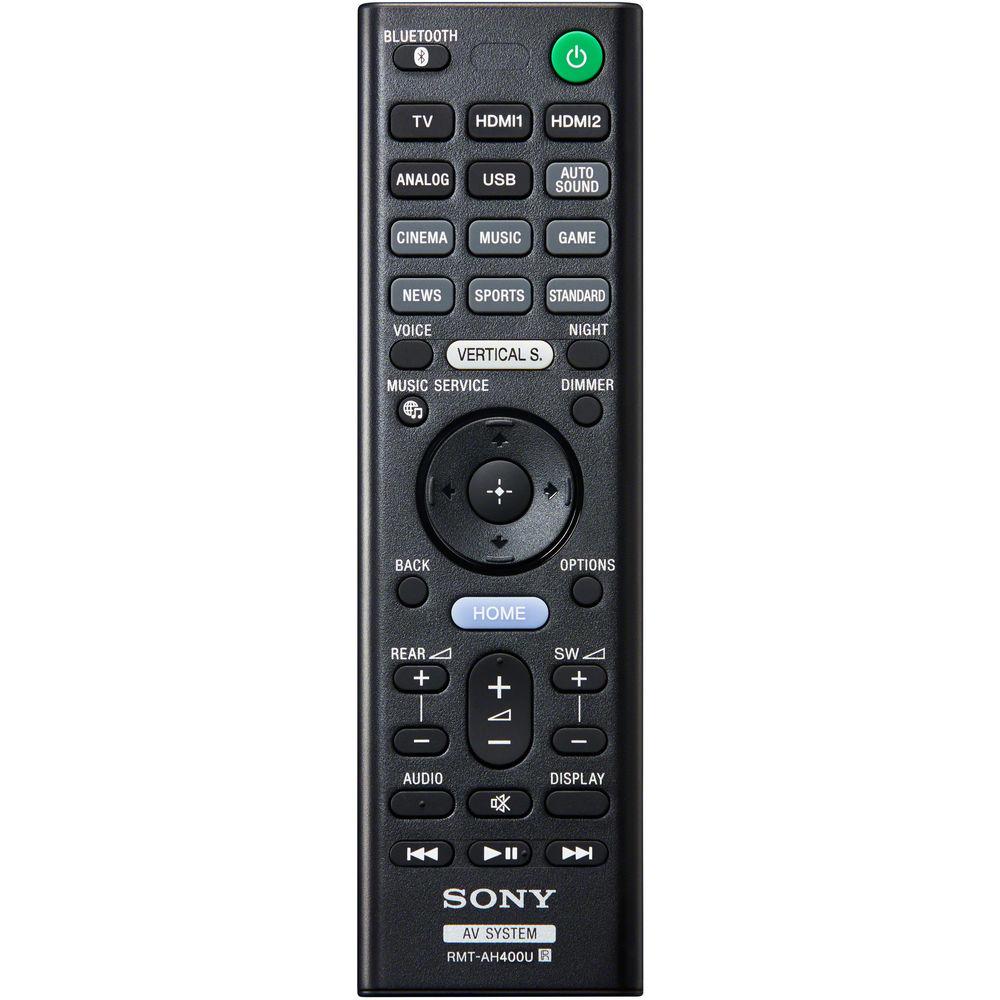

UPC: 027242908161 In the Box Sony HT-Z9F 400W 3.1-Channel Network Soundbar System Remote Control with Batteries HDMI Cable Wall Mounting Hardware Wall Mount Template Limited 1-Year Warranty Bose: The New Lineup of Home Speaker Systems Richard L. Stevens 10/11/2014 More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony HT-Z9F 400W 3.1-Channel Network Soundbar System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

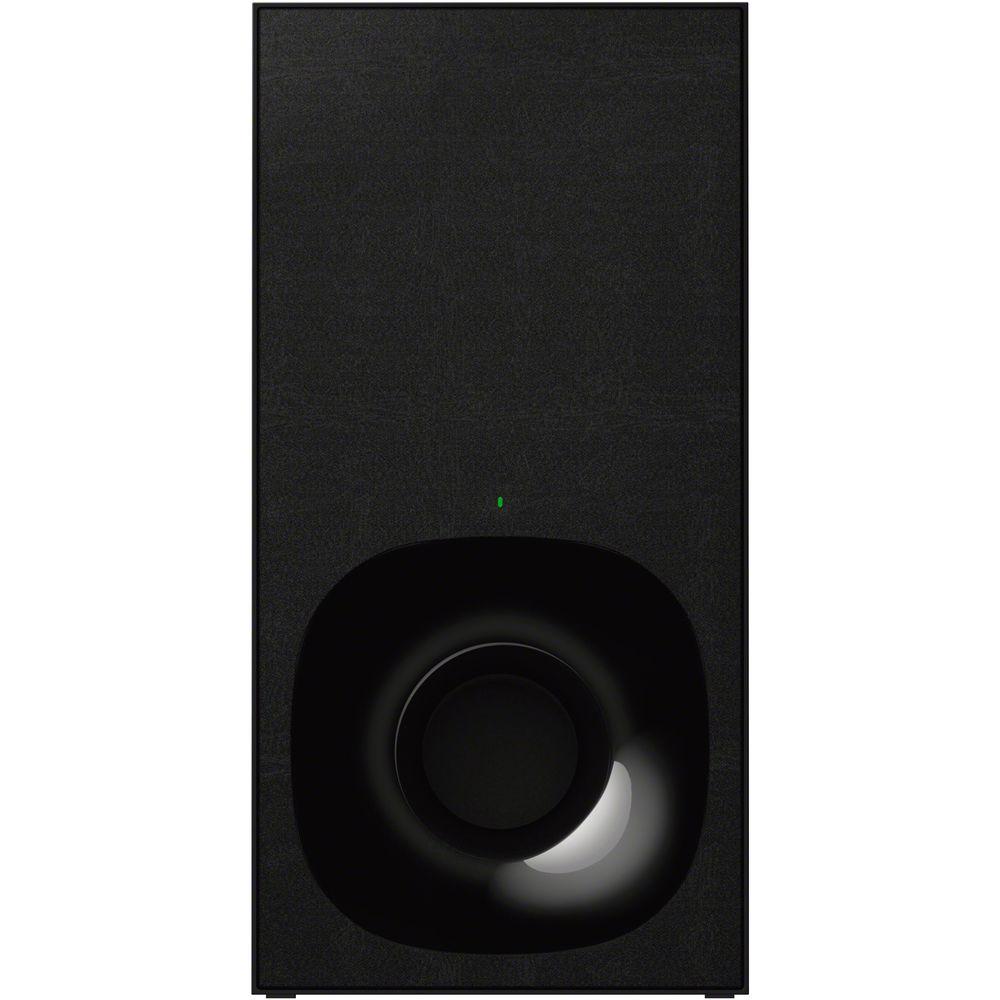

Technical parametersSony HTZ9F Specs | | | Speaker Configuration | 3.1-Channel | | Enclosure Type | Sealed | | Full-Range Drivers | 3 x 1.8" / 46 mm Cone | | Amplifier Output | 300 W | | | | Enclosure Type | Ported | | Drivers | 1 x 6.3" / 160 mm | | Amplifier Output | 100 W | | | | Inputs | 2 x HDMI
1 x Optical TOSLINK
1 x 1/8" (3.5 mm) - Audio | | Outputs | 1 x HDMI | | USB Ports | 1 x USB (Version Unspecified) | | Ethernet | LAN | | Bluetooth Version | 4.2 | | Bluetooth Profiles | A2DP
AVRCP | | Bluetooth Codec Support | AAC
LDAC
SBC | | Wi-Fi | Wi-Fi 4 (802.11n) | | | | Audio Decoding | DSD, DTS Digital Surround, Dolby Atmos, Dolby Digital, Dolby Digital Plus, Dolby Dual Mono, LPCM | | HDMI Compliance | ARC | | Supported File Formats | AIFF, ALAC, DSD, FLAC, MP3, Monkey's Audio, Vorbis, WAV, WMA | | Supported File Systems | FAT16, FAT32, exFAT, vFAT | | Supported Languages | Canadian French
English
French
German
Japanese
Latin American Spanish
Simplified Chinese
Spanish
Traditional Chinese | | | | Power Consumption | 20 W (Subwoofer)
52 W (Soundbar)
1 W (Subwoofer, Standby)
2.4 W (Soundbar, Standby) | | AC Input Power | 120 VAC, 60 Hz | | | | Wall Mountable | Yes | | Dimensions | 39.4 x 2.5 x 3.9" / 100.0 x 6.4 x 9.9 cm (Soundbar)
7.5 x 15.0 x 15.2" / 19.0 x 38.2 x 38.6 cm (Subwoofer) | | Weight | 6.8 lb / 3.1 kg (Soundbar)
17.9 lb / 8.1 kg (Subwoofer) | | | | Package Weight | 32.25 lb | | Box Dimensions (LxWxH) | 42.0 x 21.0 x 10.0" |
