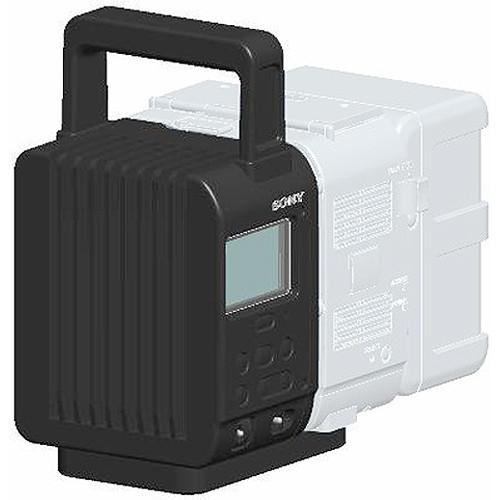

User Manual for Sony HXR-IFR5 Interface Unit for FS700 Click to enlarge the picture
Contents of the user manual for the Sony HXR-IFR5 Interface Unit for FS700
- Product category: Camcorder Accessories Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Camcorder Accessories
|
User manual for the Sony HXR-IFR5 Interface Unit for FS700 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description The Sony HXR-IFR5 Interface Unit interconnects the Sony FS700 camera to the AXS-R5 RAW recorder. It enables the camera's 2K and 4K RAW files to take advantage of the RAW workflow of Sony PMW-F55 and F5 CineAlta cameras. The RAW files created by the FS700 (FS700RAW files) are sent to the HXR-IFR5 interface unit which docks to the AXS-R5 RAW recorder. After recording, the FS700RAW files can be screened and converted using the free RAW viewer software from Sony. - Docks to the AXS-R5 Access Memory System recorder
- Receives the uncompressed bitstream carrying RAW sensor data, metadata, timecode, and start stop commands from the NEX-FS700U/K Camera via 3G-SDI
- Controls 4K/2K RAW recording and playback
- Coordinates simultaneous recording for seamless on-line/off-line capture; you can simultaneously record 4K on the AXS-R5 while recording HD on the FS700 camera, both with identical; start frame, stop frame, and time code
- Built-in LCD panel displays status indication including record mode, frame rate, timecode, and battery & media remaining time
- Large, tactile control buttons for basic operation, menu, and media management provide a simple user interface for configuring and controlling the AXS-R5 recorder
- When attached to the HXR-IFR5 interface unit, the AXS-R5 RAW recorder can act as a stand-alone playback unit for confidence monitoring and review through the on-board HD SDI 422 output. This system supports recordings made by the FS700 camera and the PMW-F5/55 digital cameras
- Automatically salvages card data in case of abrupt power interruption
- Uses a comprehensive file naming convention including cameras ID, reel number, shot number, date, and a two-character, user-generated ID
UPC: 027242870932 In the Box Sony HXR-IFR5 Interface Unit for FS700 Limited 1-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony HXR-IFR5 Interface Unit for FS700 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony HXR-IFR5 Specs | | | Package Weight | 3.05 lb | | Box Dimensions (LxWxH) | 10.0 x 7.0 x 6.8" |
