User Manual for Sony HXR-NX80 4K NXCAM with HDR & Fast Hybrid AF Click to enlarge the picture
Contents of the user manual for the Sony HXR-NX80 4K NXCAM with HDR
- Product category: Camcorders Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Camcorders
 |
User manual for the Sony HXR-NX80 4K NXCAM with HDR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description Sony Unveils New 4K 1" Sensor Camcorders with Phase Detection AF Read More - Are Camcorders Down for the Count?
- Sony Z90 NX80 SampleFootage 1 Main HLG
- Sony Z90 NX80 SampleFootage 2 HQ HLG
- Sony Z90 NX80 SampleFootage 3 HLG HLG
- Sony Z90 NX80 SampleFootage 5 TAF HLG

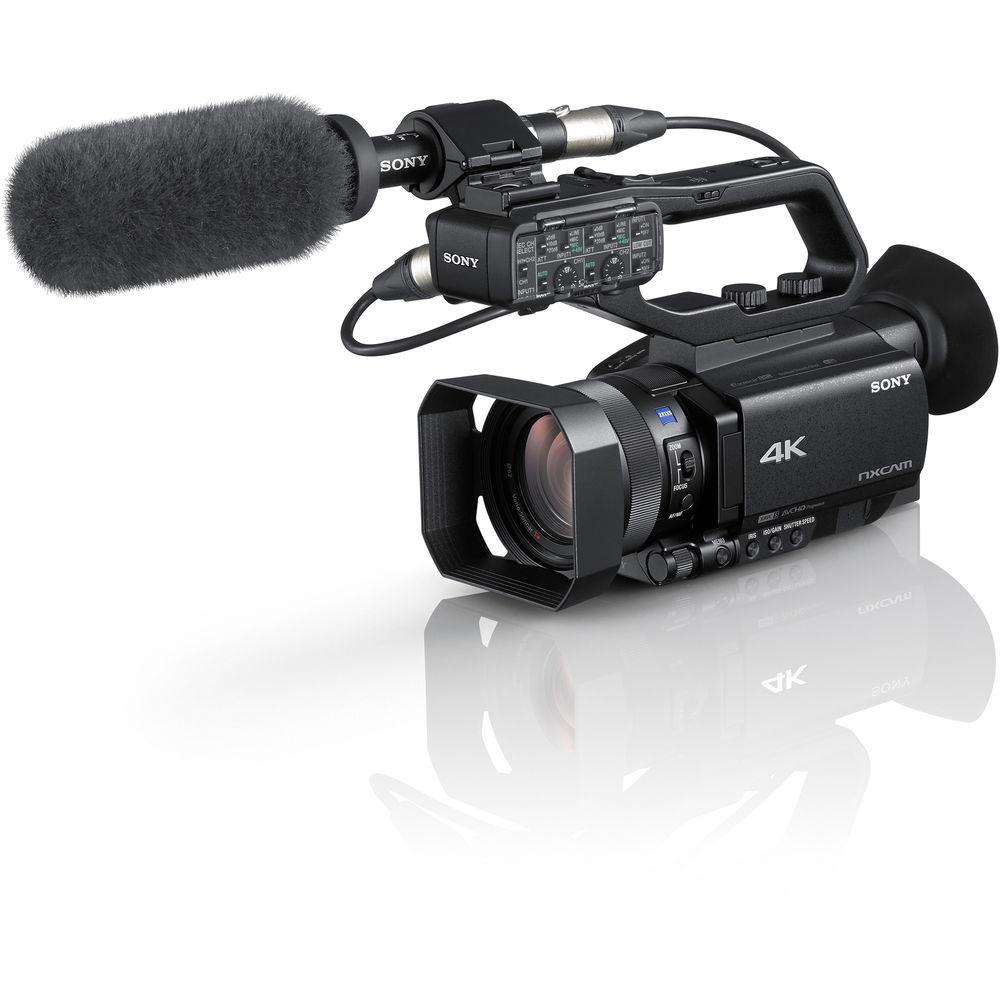

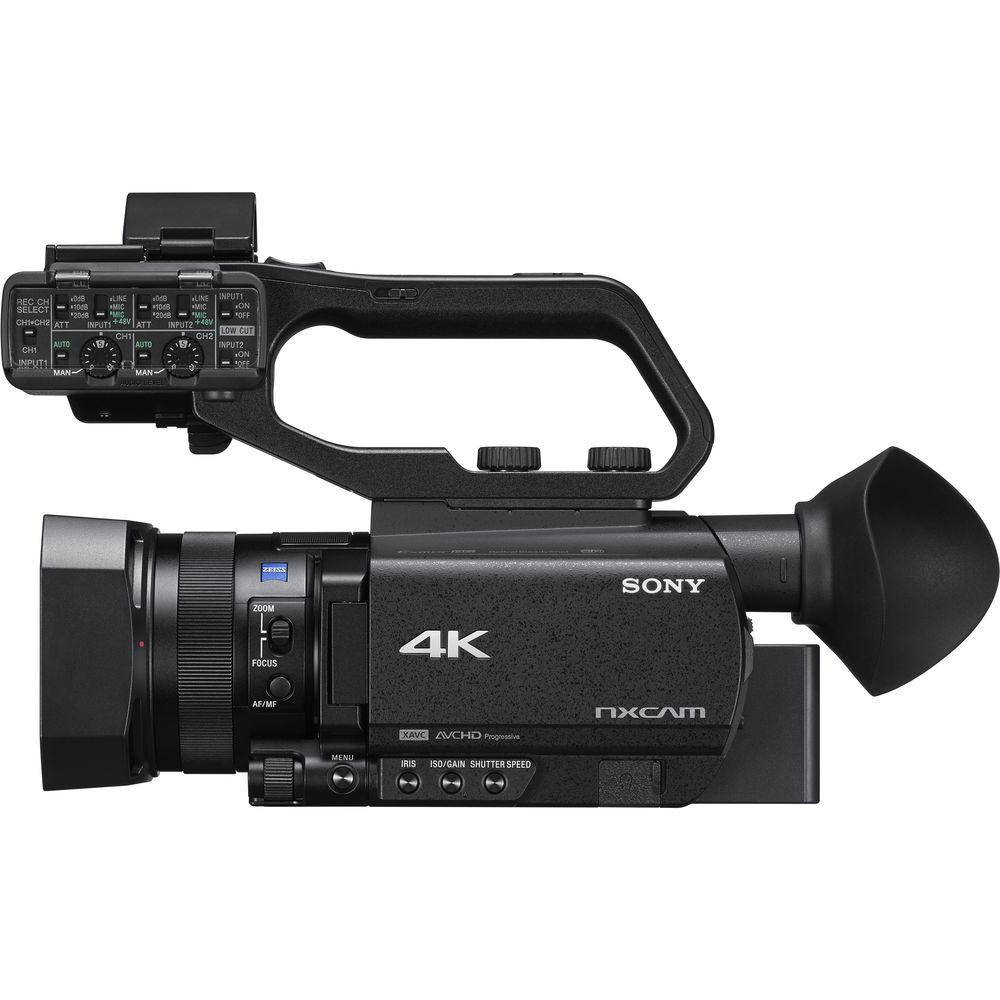

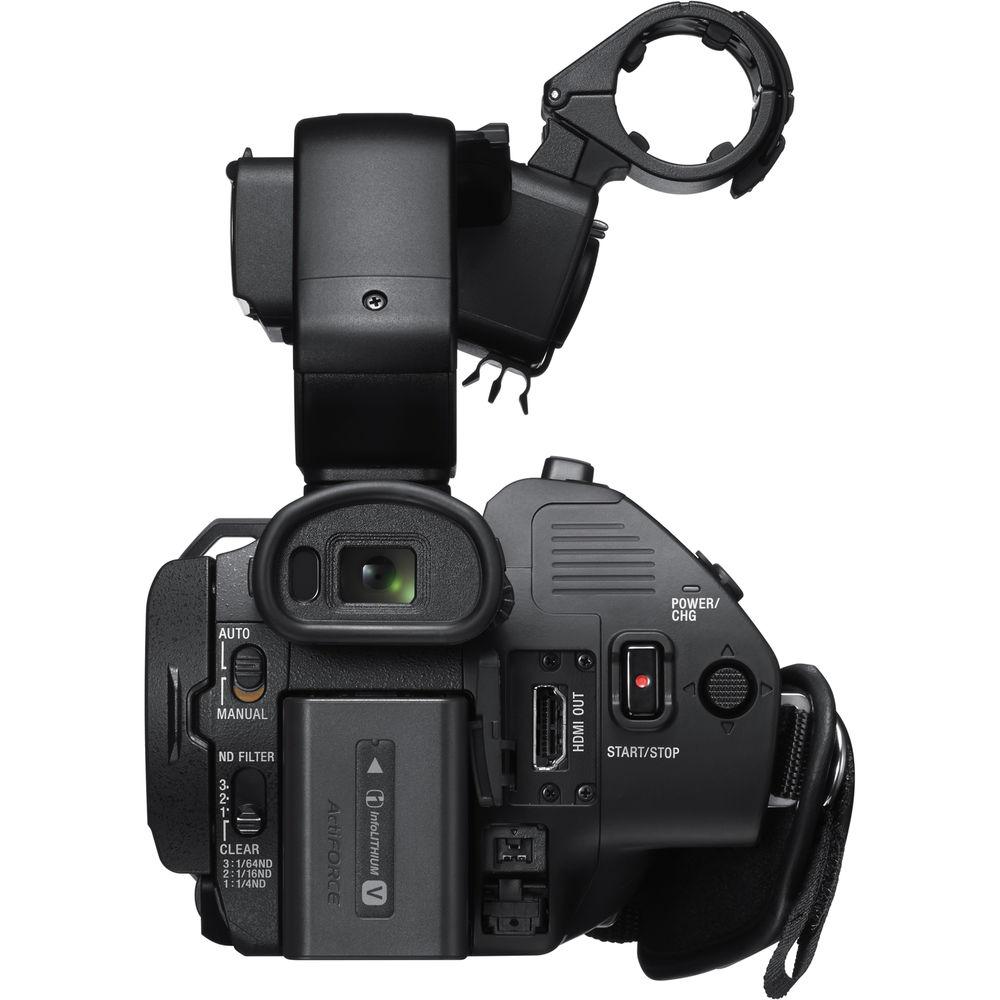

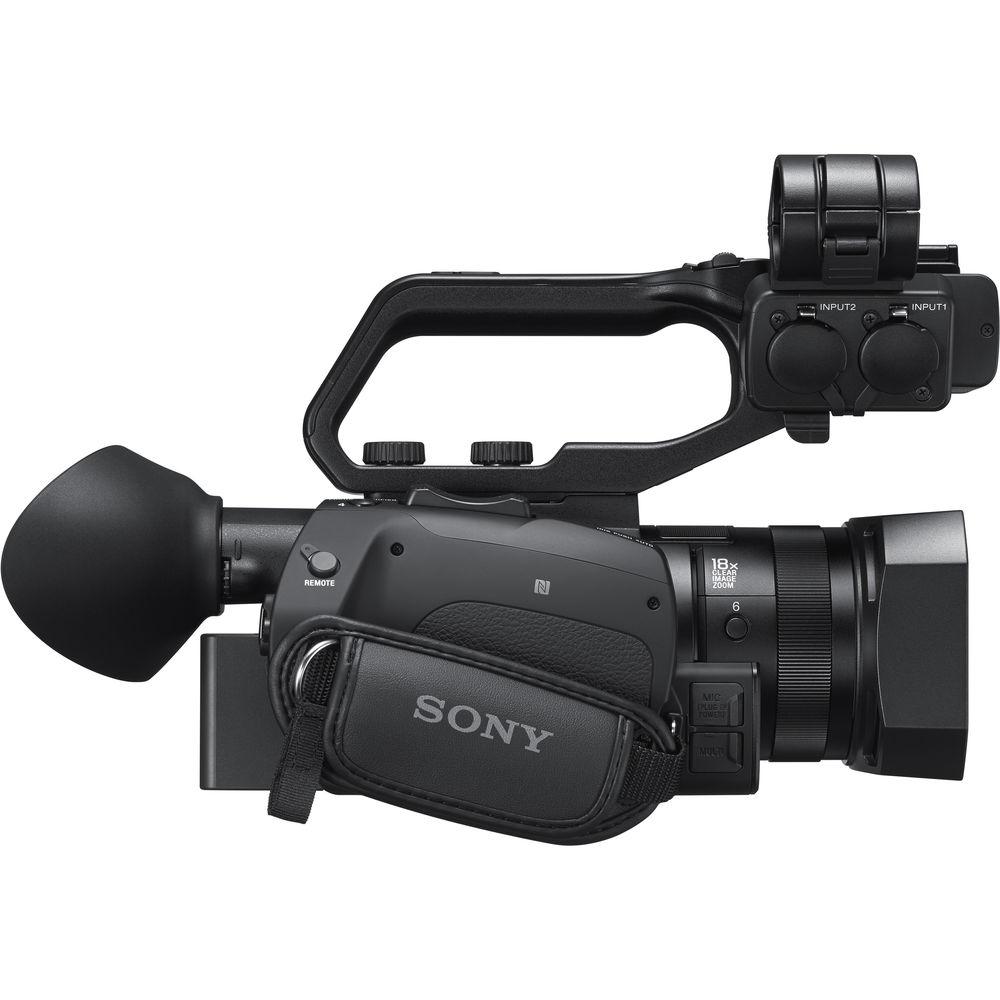

Take the HXR-NX80 4K NXCAM camcorder from Sony with you wherever you go to capture rich 4K HDR video. This compact, palm-style camera offers phase-detection Autofocus (AF) and HDR capabilities in a compact, palm-style body. Suitable for corporate events, broadcast news, and television production, the HXR-NX80 camcorder features a stacked 1" Exmor RS CMOS sensor with 14.2MP, a 12x Zeiss optical zoom, an OLED viewfinder, and 3.5" touchscreen LCD monitor. This camcorder records 4K in XAVC S 4K, streams via 2.4/5 GHz frequency bands, and includes S-Log3/S-Gamut3 functions for additional image control.The HXR-NX80's Fast Hybrid AF uses high-density placement of autofocus points and a newly developed AF algorithm to offer highly accurate focusing and tracking, especially useful for individual operators. In movie recording mode, use the appearance of phase-detection AF frames to monitor your subject's focus. The HXR-NX80's 3.5" touchscreen is used to quickly switch focus among subjects. AF Drive Speed, Tracking Depth Range, and Subject Switching Sensitivity can each be configured to suit different subjects and content styles.Hybrid Log-Gamma (HLG) enables you to future-proof your output by smoothly integrating your recordings into an HDR workflow without the need for color grading during post-production. Capture images with high-quality contrast and resolution using the HXR-NX80's 12x optical Zeiss zoom, and 18x 4K digital zoom (24x in HD). An integrated ND filter function enables greater exposure and depth-of-field control.The HXR-NX80 camera supports Sony's Slow & Quick Motion for shooting HD video at variable frame rates, including 120 fps. Footage is recorded to via two SD memory card slots, either simultaneously to both cards, or in relay mode to create a backup.Additional features include built-in 2.4 GHz for multiple streaming and FTP options. The HXR-NX80's audio features include two 3-pin XLR audio inputs that support line, mic, and mic + 48V (phantom power) for using external microphones; you can also use the HXR-NX80's built-in microphone to record audio when shooting. For multicamera productions, the HXR-NX80 integrates seamlessly with Sony's MCX-500 live switcher (available separately). - 1" Exmor RS CMOS Sensor
- 1.0"-type Exmor RS CMOS sensor with approximately 14.2 million effective pixels provides optimal image quality
- Fast Hybrid Autofocus
- Offers highly accurate focusing and tracking, especially useful when shooting sharp UHD 4K footage
- Zeiss T* Lens with 12x Optical Zoom
- Fixed 12x optical wide-angle zoom with 18x Clear Image Zoom technology in UHD 4K (24x in HD)
- Frame Rate Flexibility
- Record up to XAVC S 4K video
- Super Slow Motion
- Offers slow-motion recording up to 960 fps
- Slow & Quick Recording
- Uses Sony's Slow & Quick Motion for recording 1080pi60 HD video at 1, 2, 4, 8, 15, 30, 60, and 120 fps
- Multiple Codec Choice
- XAVC S recording up to 100 Mb/s in 4K mode, and Full HD recording
- Image Control Options
- S-Gamut3/S-Log3 recording captures wide range of colors, highlights, and shadows
- Built-In ND Filters
- Incorporated ND filter function with Clear, 1/4, 1/16, and 1/64 ND for optimal exposure and depth-of-field control
- Dual Media Slots
- Dual memory card slots, one for SDHC/SDXC cards only, and one compatible with SDHC/SDXC and Memory Stick PRO Duo (Mark 2) / Memory Stick PRO-HG Duo cards
- Wi-Fi/NFC
- Built-in capability to send FTP files directly from the camcorder or live stream via the Ustream platform over 2.4 GHz Wi-Fi
- Multi-Interface (MI) Shoe
- The multi-interface shoe enables you to connect power, signal, and on/off functions for select Sony accessories
Please note: The XLR adapter handle must be removed to use the MI shoe UPC: 027242908444 In the Box Sony HXR-NX80 4K NXCAM with HDR & Fast Hybrid AF XLR Handle Lens Hood Lens Cap Large Eyecup Accessory Shoe Kit USB Cable NP-FV70A V-Series Battery Pack for Handycam Camcorders (1900mAh) AC-L200 AC Adapter for Handycam Using A/P/F-Series InfoLITHIUM Batteries Power Cord RMT-845 Wireless Remote CR2025 Lithium Battery (for Remote) Limited 1-Year Warranty User Manual PDF 9mbdqybvszs Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony HXR-NX80 4K NXCAM with HDR & Fast Hybrid AF in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony HXR-NX80 Specs | | | Image Sensor | 1-Chip 1" CMOS Sensor | | Sensor Resolution | 21.00 MP | | Effective Sensor Resolution | 14.2 MP | | Gain | -3 to 33 dB | | Minimum Illumination | 3 lux at 1/50 Shutter Speed | | White Balance Range | 2300 to 15,000K | | | | Focal Length | 9.3 to 111.6mm | | 35mm Equivalent Focal Length | 29 to 348mm 16:9 | | Optical Zoom Ratio | 12x | | Max Digital Zoom | 18x ( in UHD 4K)
24x ( in 1080p) | | Maximum Aperture | f/2.8 to 4.5 | | Minimum Focusing Distance | Wide: 0.4" / 1.0 cm
Telephoto: 39.4" / 100.0 cm | | Filter Size | 62 mm | | Control Rings | Focus
Zoom 1 x Selectable Ring | | Image Stabilization | Optical | | Focus Control | Autofocus
Manual Focus | | | | Shutter Speed | 1/6 to 1/10,000 sec | | Built-In ND Filter | Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters | | Built-In Microphone Type | Stereo | | Recording Media | 1 x SDXC/Memory Stick PRO Duo Hybrid Card Slot
1 x SDXC/SDHC Card Slot | | | | Broadcast System Compatibility | NTSC, PAL | | Recording Modes | XAVC S 4:2:0:
3840 x 2160p at 23.98/25/29.97 fps (60 to 100 Mb/s)
1920 x 1080p at 100/120 fps (60 to 100 Mb/s)
1920 x 1080p at 50/59.94 fps (25 to 50 Mb/s)
1920 x 1080p at 29.97 fps (16 to 50 Mb/s)
1920 x 1080p at 23.98 fps (50 Mb/s)
XAVC S:
1280 x 720p at 23.98/25/29.97/50/59.94 fps (9 Mb/s)
1280 x 720p at 23.98/25/29.97/50/59.94 fps (3 Mb/s)
AVCHD:
1920 x 1080PsF at 50/59.94 fps (28 Mb/s)
1920 x 1080i at 50/59.94 fps (17 to 24 Mb/s)
1920 x 1080p at 23.98/25/29.97 fps (24 Mb/s)
1440 x 1080i at 50/59.94 fps (5 Mb/s)
1280 x 720p at 50/59.94 fps (9 Mb/s) | | Variable Frame Rates | UHD: 1 to 30 fps
1080p: 1 to 120 fps
1080p: 240 to 960 fps
1080p: 250 to 1000 fps | | Audio Recording | XAVC: 2-Channel 16-Bit 48 kHz LPCM Audio
Proxy: 2-Channel 16-Bit 48 kHz AAC Audio
AVCHD: 2-Channel 16-Bit 48 kHz LPCM Audio
2-Channel 16-Bit 48 kHz AC-3 Audio | | IP Streaming | MPEG2, UDP: 1280 x 720 at 24p, 30p (3.0 Mb/s)
MPEG2, UDP: 640 x 360 at 24p (1.0 Mb/s) Via Ustream Platform. | | | | Video Connectors | 1 x HDMI Output
1 x Multi/Micro-USB A/V (Composite) Output | | Audio Connectors | 2 x 3-Pin XLR Mic/Line Level (+48 V Phantom Power) Input
1 x 1/8" / 3.5 mm TRRS Headphone/Microphone Headphone Output | | Other I/O | 1 x 2.5 mm LANC Control | | Wireless Interfaces | 2.4 GHz Wi-Fi Video Output, Audio Output, Control | | | | Display Type | LCD | | Screen Size | 3.5" | | Touchscreen | No | | Screen Resolution | 1,560,000 Dots | | | | EVF Display Type | OLED | | Screen Size | .39" | | EVF Resolution | 2,360,000 Dots | | | | Battery Type | Sony L-Series | | Power Connectors | 1 x Barrel Input | | Power Consumption | 6.1 W | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | | | Accessory Mount | 1 x Multi-Interface Shoe | | Tripod Mount | 1/4"-20 Female | | Built-In Light | Yes (Infrared) | | Dimensions | 5.1 x 7.1 x 11.3" / 130 x 181.5 x 287 mm | | Weight | 2.2 lb / 1 kg | | | | Package Weight | 5.0 lb | | Box Dimensions (LxWxH) | 10.3 x 9.6 x 6.0" |
Rating82% users recommend this product to others. And what about you?
This product has already been rated by 90 owners. Add your rating and experience with the product.
