User Manual for Sony ICD-PX470 Digital Voice Recorder with USB Click to enlarge the picture
Contents of the user manual for the Sony ICD-PX470 Digital Voice Recorder with
- Product category: Handheld Voice Recorders Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Handheld Voice Recorders
|
User manual for the Sony ICD-PX470 Digital Voice Recorder with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description The ICD-PX470 from Sony is a digital voice recorder with a built-in USB connection. It records in both linear PCM and MP3 formats and is suitable for capturing lectures, meetings, notes, and even live music. It requires no cable to communicate with your computer; simply plug the unit into an available USB port on your computer to move files back and forth.The unit provides 4GB of built-in memory, but this is expandable via the microSD card slot. A calendar-search function renders finding your files a straightforward task. The audio quality of recording is served by a low-cut filter for eliminating extraneous noise and rumble, as well as Auto Voice Recording mode, an S-microphone system, and adjustable options for capturing stereo or mono sources at close range and at a distance. The included AAA battery enables the unit to last for up to 55 continuous hours. Sound Organizer software for Windows is also included. - USB-Direct Connection for Quick File Transfer

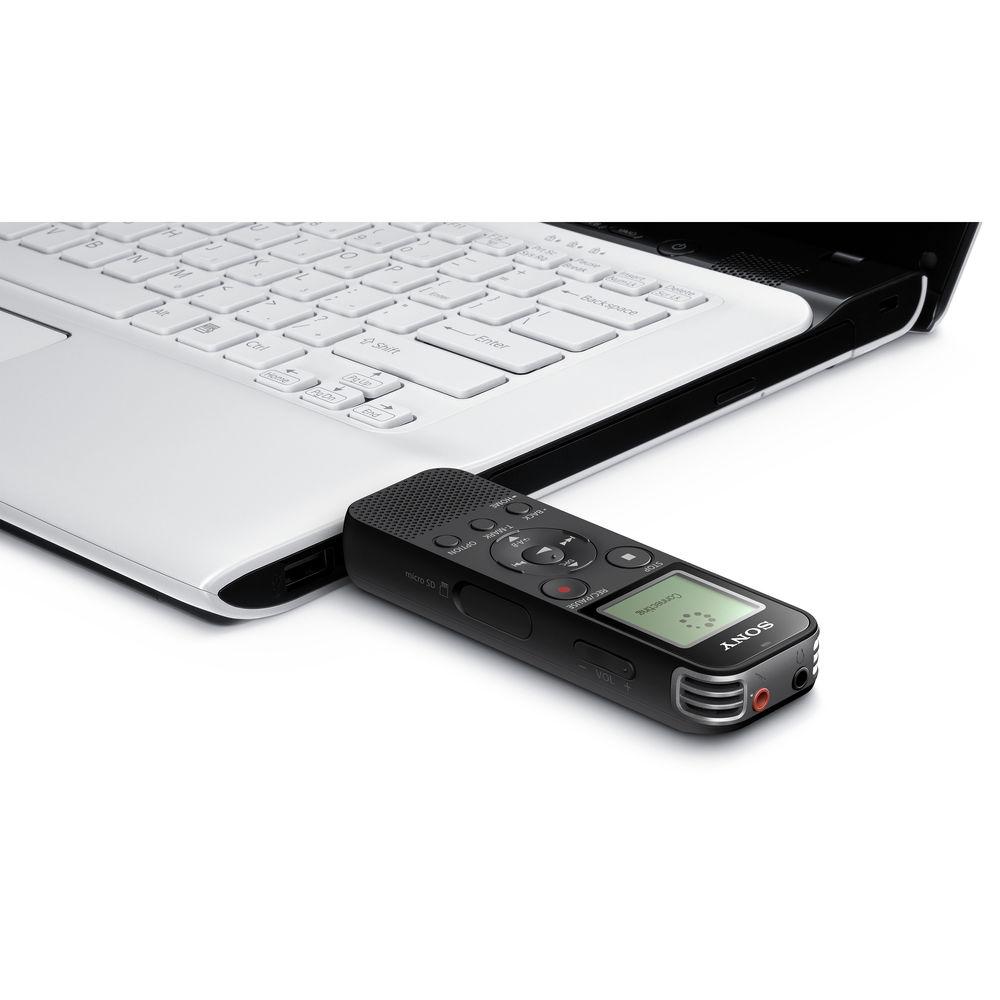

- Transferring files to or from your computer is made conveniently possible with a USB-direct connection. Just plug the ICD-PX470 straight into a free USB port—no USB cable needed.

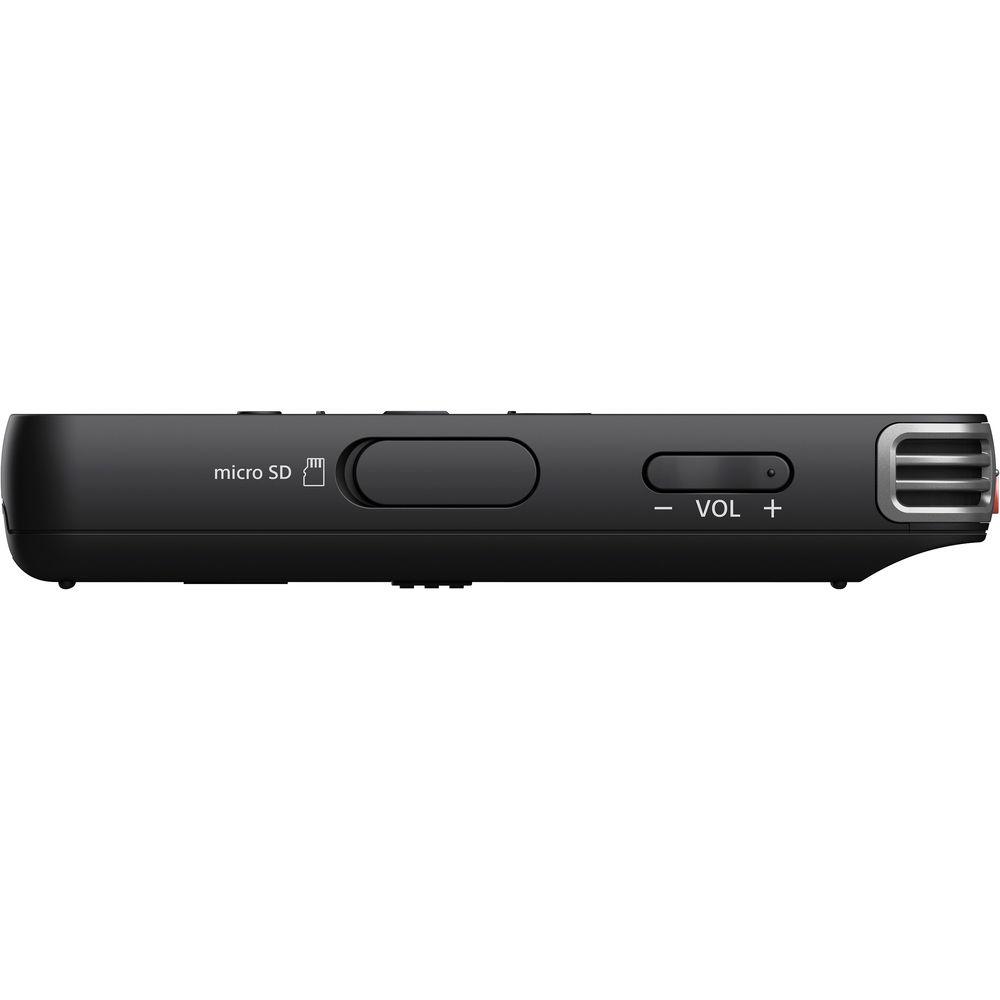

- Expand Your Memory with the microSD Card Slot
- The ICD-PX470 comes with 4GB of built-in memory, which gives you a max recording time of 59 hours and 35 minutes when recording stereo MP3s at 128 kbps. However, you can expand memory capacity with a microSD card for up to 32GB of additional memory, equivalent to over 536 hours of recording time (MP3 at 128 kbps).
- Calendar Search Finds the Right File Quickly
- Recordings are marked by date, so you can find which ones were made on a specific day. Bring up the calendar to browse through days and find the recording you're looking for.
- Low-Cut Filter Eliminates Unwanted Noise
- Filter out low-frequency background noises by engaging the low-cut filter. Sources of unwanted noise such as projectors, traffic, or wind can be filtered out of your recording, making voices clearer in the process.
- Transcription Playback Helps You Review Recordings
- Getting conversations down on paper is facilitated with the unit's transcription playback mode. Fast-forward and rewind through the track, or create cue points that help you find your place quickly. Digital Pitch Control even lets you slow down the playback speed so you can listen more closely to what's being said.
- S-Microphone System Captures Distant or Quiet Sounds
- You can record faint audio sources without capturing excessive background noise, thanks to the high-sensitivity, low-noise S-microphone.
- Record and Listen in Linear PCM or MP3 Formats
- Choose from two popular file formats when you record. Linear PCM files are larger but capture more detail, and thus, are suitable for recording music. MP3 files require less memory, making them more appropriate for recording long lectures or meetings. The ICD-PX470 will also play back MP3 and PCM files, so you can listen to your favorite songs in music-player mode.
- Auto Voice Recording Reduces Background Noise
- Want to record someone talking? Turn on Auto Voice Recording and the ICD-PX470 will tune its audio-capture settings for vocal frequencies. The result is a clearer recording with reduced background noise. When you listen back to the recording, on-board Clear Voice technology cleans up the signal for further clarity.
- Adjustable Microphone Range for Clearer Voices
- Adjustable microphone settings hone in on the sound you want to capture. When you're recording a single voice, Focus mode captures a narrow field of sound from one direction. When you're in meetings, the Wide-Stereo mode allows you to capture everyone in the room. Choose from four "scene" presets (music, meeting, interview, dictation) to further optimize the audio settings.
- Long Battery Life for Extended Recording
- When recording with the built-in mic at MP3 192 kbps, the supplied AAA battery will last for up to 55 hours.
UPC: 027242898820 In the Box Sony ICD-PX470 Digital Voice Recorder with USB AAA Battery Sound Organizer Software for Windows Limited 1-Year Warranty for Parts, 90 Days for Labor More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony ICD-PX470 Digital Voice Recorder with USB in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony ICD-PX470 Specs | Type | Digital | Mode | Stereo | Recording Format | LPCM, MP3 | Bit-Depth | 16 | Bit-Rate | 48 kbps - 192 kbps | Sample Rate | 44.1 kHz | Recording Time | LP Mono: 159 Hours Recording in MP3 Format MP3 Stereo: 59.5 Hours Recording in MP3 Format MP3 Stereo: 39.45 Hours Recording in MP3 Format PCM Stereo: 5.3 Hours Recording in LPCM Format | One-Click Recording | Yes | Voice Activated Recording | Yes | Microphone Type | Internal Stereo - 1 Elements | Frequency Response | 50 Hz - 16 kHz @ 44.1 kHz Sample Rate / 128 kbps MP3 50 Hz - 20 kHz @ 44.1 kHz Sample Rate / 192 kbps MP3 50 Hz - 20 kHz @ 44.1 kHz Sample Rate / 16 Bit LPCM | | Playback Formats | AAC MP3 WMA PCM (WAV) | Bit-Rate | MP3: 48 - 192 Kbps | Speaker | Yes | | Indicators | Power, Low Battery, Recording, Voice Volume | Erase Protect | Yes | Message Folder | 199 (Maximum) | Voice E-Mail Function | No | On Screen Clock | Yes | Search | Calendar Search | | Battery Type | 1 x AAA | Battery Life (approx.) | Recording: 62 Hours @ 44.1 kHz 48 Kbps MP3 Recording: 57 Hours @ 44.1 kHz 128 Kbps MP3 Recording: 55 Hours @ 44.1 kHz 192 Kbps MP3 Recording: 40 Hours @ 44.1 kHz 16 Bit PCM (WAV) | | Internal Memory | Installed: Flash Memory - 4 GB | Compatible Memory Cards | microSD | USB | USB 2.0 (A) | Dimensions (WxHxD) | 1.51 x 4.50 x .76" / 38.35 x 114.30 x 19.30 mm | Weight | 2.7 oz / 77 g | | Package Weight | 0.35 lb | Box Dimensions (LxWxH) | 6.1 x 4.3 x 1.5" |
