User Manual for Sony ICD-TX800 Digital Voice Recorder and Remote Click to enlarge the picture
Contents of the user manual for the Sony ICD-TX800 Digital Voice Recorder and
- Product category: Handheld Voice Recorders Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Handheld Voice Recorders
 |
User manual for the Sony ICD-TX800 Digital Voice Recorder and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|

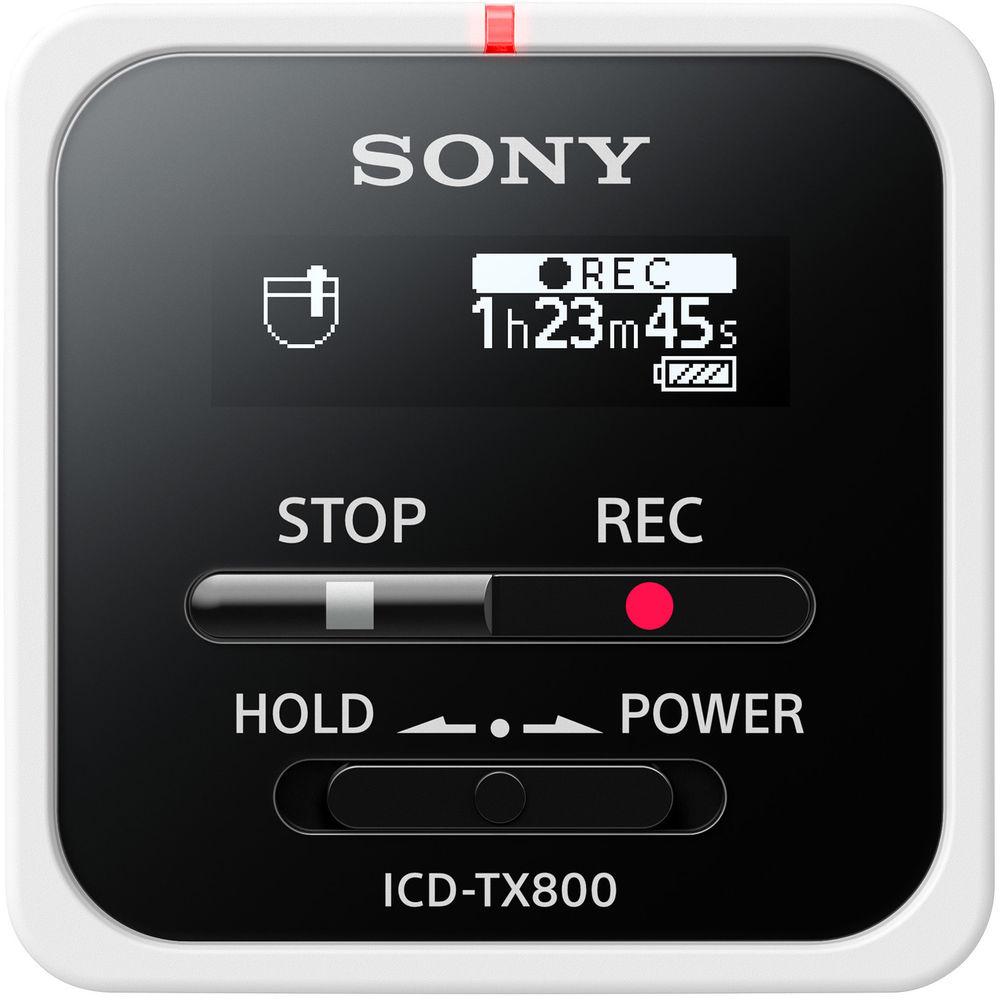

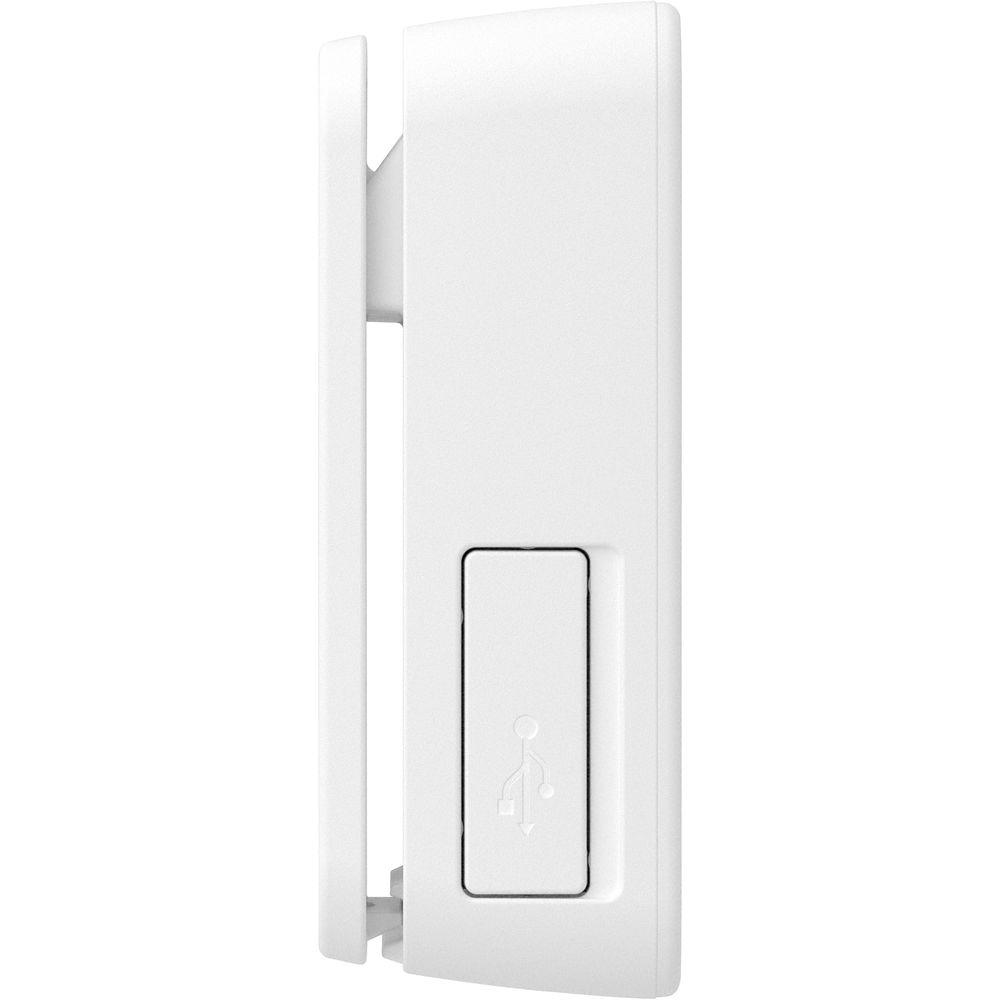

Product description The Sony ICD-TX800 is a digital voice recorder with a built-in USB connection a built-in stereo microphone. It records in both linear PCM and MP3 formats and is suitable for capturing lectures, meetings, notes, and even live music. It comes with a supplied remote control, so you can place it anywhere in the room and have full control from a distance. The recorder can also be controlled with an Android app over Bluetooth straight from your smartphone or tablet. You can also clip it to various surfaces with the included clip, and plug it into computers over USB. A micro-USB port is on hand.

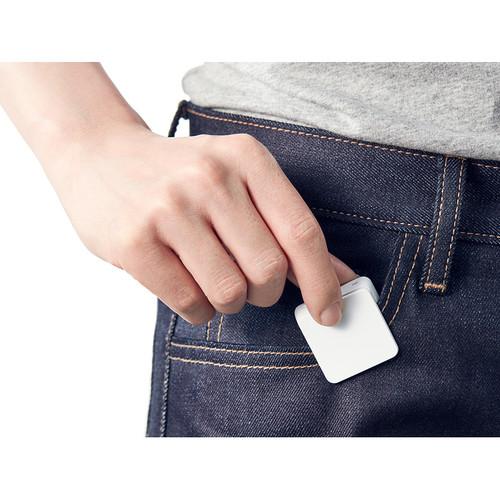

The unit provides 16GB of built-in memory. Measuring 1.5 x 1.5 x 0.8" and weighing only 0.8 oz, the unit is quite portable and compact. The recorder runs off a rechargeable lithium-ion battery, while a button-style replaceable lithium-ion battery is included with the remote. Headphones and a dedicated headphone cable are also included. - Measuring 1.5 x 1.5 x 0.54" and weighing only 0.8 lb, the ICD-TX800 is small enough to take anywhere. Use the clip to attach your device to bags or pockets for quick access.

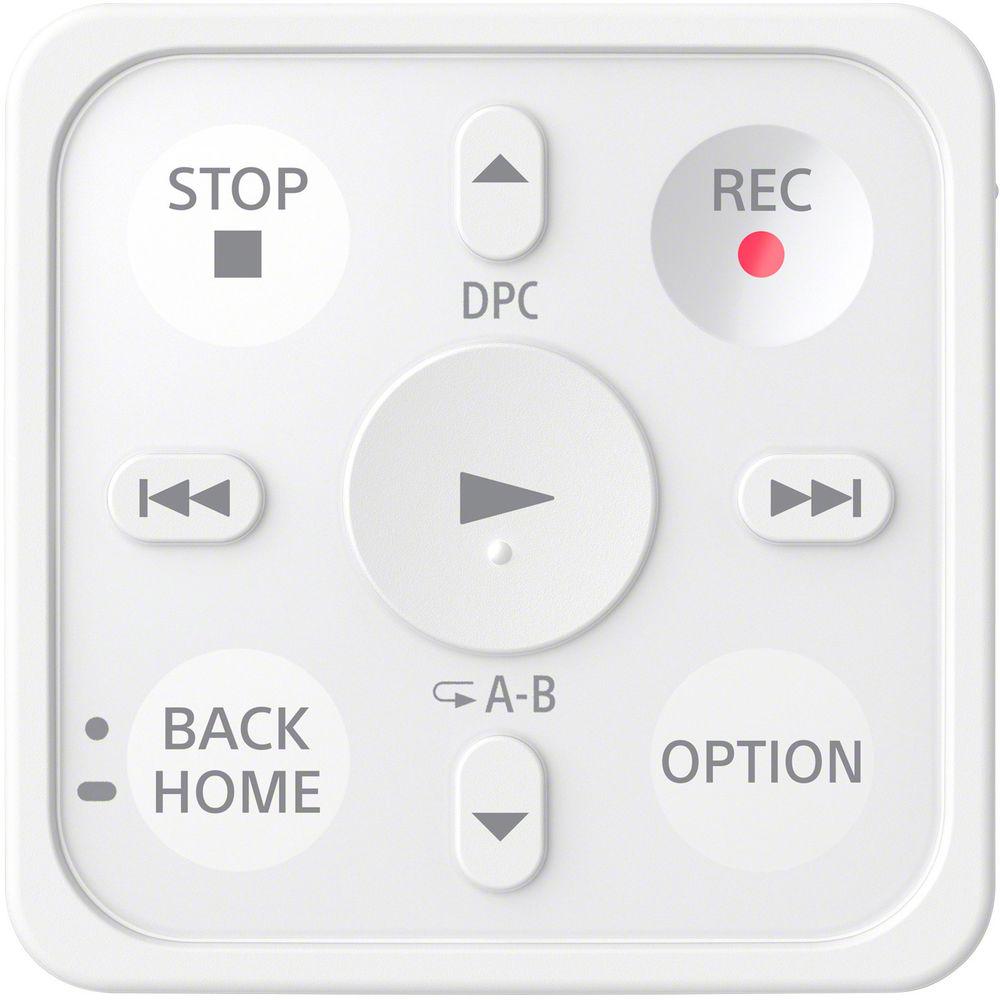

- With a supplied remote, you can record from anywhere in the room, confident that you've already positioned the ICD-TX800 for the best possible sound recording.
- Available on Google Play for Android, the REC Remote app lets you control your recorder from a distance over Bluetooth. Start and stop recording, adjust recording levels and settings, and even add track markers so you can find content easily and quickly. A simple interface helps you control, monitor, and organize recordings from up to 30' away using your smartphone.
- The ICD-TX800 has 16 GB of built-in memory, so you have plenty of storage space for your audio. Record for a maximum of 238 hours in one go, or store up to 4000 separate files.
- Hit the REC button for instant recording—even when the device is off—so you can capture sound in the moment.
- Choose from two popular file formats when you record. Linear PCM files are larger but capture more detail. They are ideal for recording music. MP3 files are compressed but require less memory, making them better for recording long lectures or meetings.
- Use the included USB cable for easy playback of your recordings or to transfer files.
UPC: 027242907843 In the Box Sony ICD-TX800 Digital Voice Recorder and Remote (White) Remote Control Stereo Headphones Headphone Cable USB cable Carrying Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony ICD-TX800 Digital Voice Recorder and Remote in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony ICD-TX800 Specs | | | Type | Digital | | Mode | Stereo / Mono | | Recording Format | LPCM, MP3 | | Bit-Depth | 16 | | Bit-Rate | 48 kbps - 192 kbps | | Sample Rate | 44.1 kHz | | Recording Time | LP Stereo: 21.5 Hours Recording in LPCM Format
MP3 Stereo: 238 Hours Recording in MP3 Format
MP3 Stereo: 159 Hours Recording in MP3 Format MP3 Recording: 238 hours at 128 kbps, 159 hours at 192 kbps | | One-Click Recording | Yes | | Voice Activated Recording | Yes | | Microphone Type | Internal Stereo | | Frequency Response | 95 Hz - 14 kHz @ 44.1 kHz Sample Rate / 48 kbps MP3
95 Hz - 16 kHz @ 44.1 kHz Sample Rate / 128 kbps MP3
95 Hz - 20 kHz @ 44.1 kHz Sample Rate / 192 kbps MP3
95 Hz - 20 kHz @ 44.1 kHz Sample Rate / 16 Bit LPCM | | | | Playback Formats | MP3
PCM (WAV)
AAC
WMA | | | | Tuner | None | | Equalizer Settings | None | | Indicators | Power, Low Battery, Recording, Voice Volume, Peak | | Search | Easy Search
Track Mark | | | | Battery Type | 1 x Built-in Rechargeable Lithium-ion Battery
1 x Replaceable Lithium-Ion Polymer Battery Replaceable battery installed in included remote | | Battery Life (approx.) | Recording: 15 Hours @ 44.1 kHz 48 Kbps MP3
Recording: 15 Hours @ 44.1 kHz 128 Kbps MP3
Recording: 15 Hours @ 44.1 kHz 192 Kbps MP3
Recording: 12 Hours @ 44.1 kHz 16 Bit LPCM | | Power Adapter | No | | | | Internal Memory | Installed: 16 GB | | USB | USB 2.0 (Micro-B) | | Dimensions (WxHxD) | 1.50 x 1.50 x .54" / 3.81 x 3.81 x 1.37 cm | | Weight | .78 oz / 22 g | | Warranty Length | Limited 1-Year Warranty | | | | Package Weight | 0.45 lb | | Box Dimensions (LxWxH) | 11.4 x 4.0 x 3.6" |
