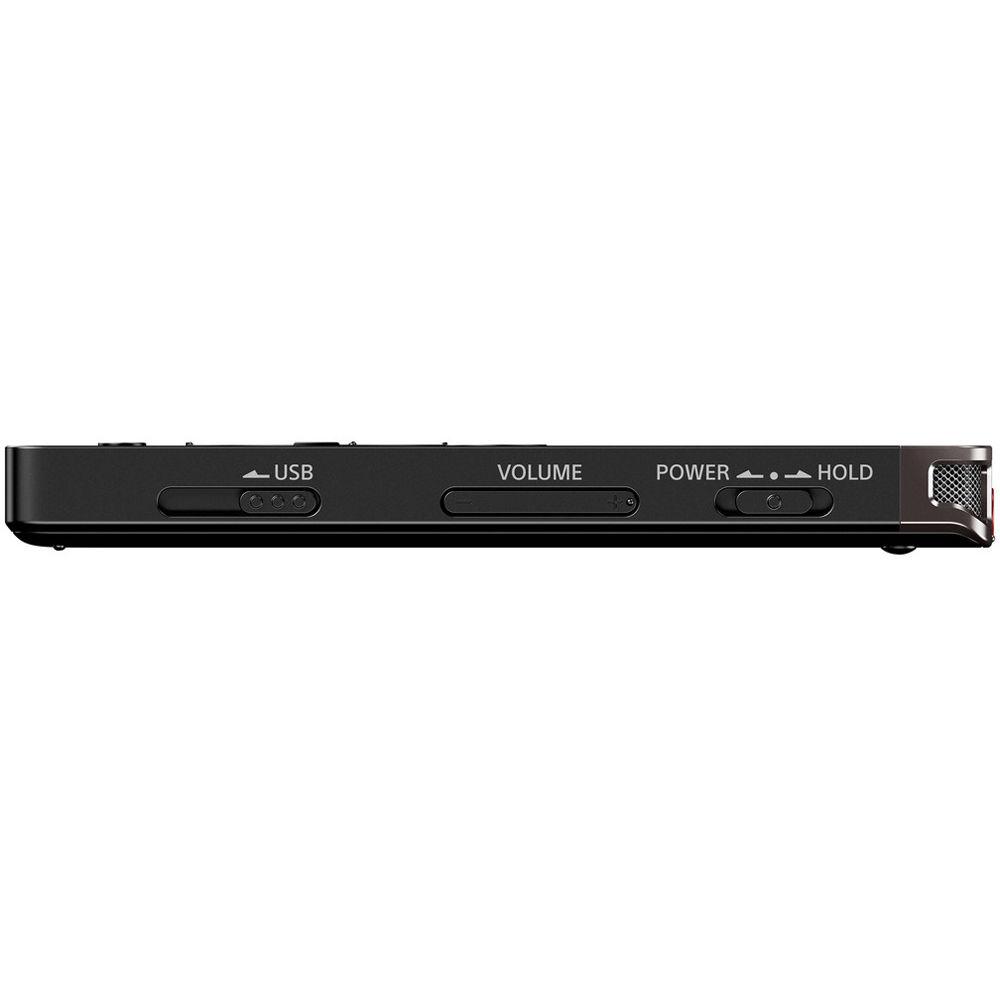

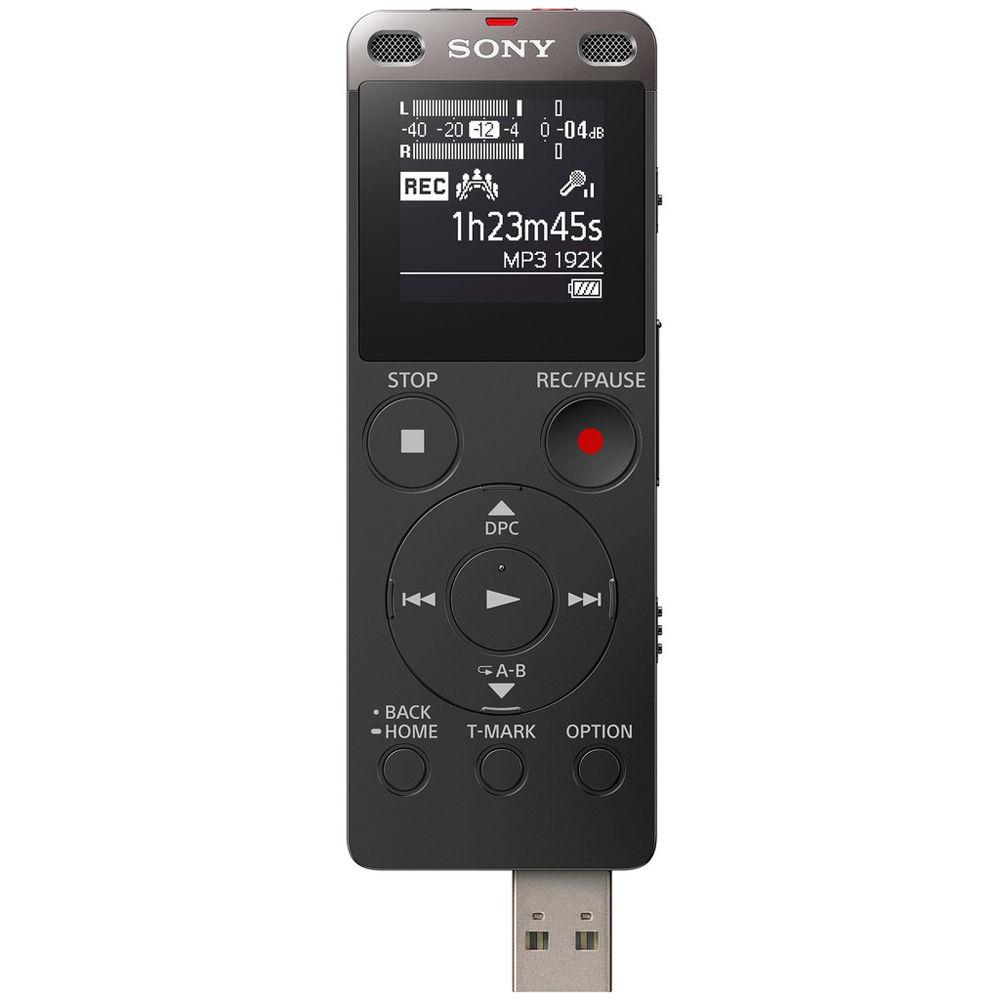

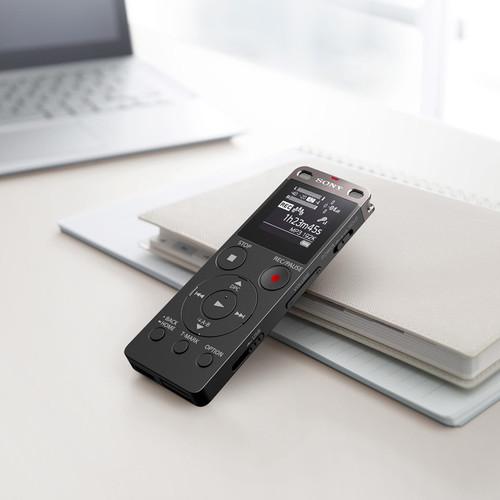

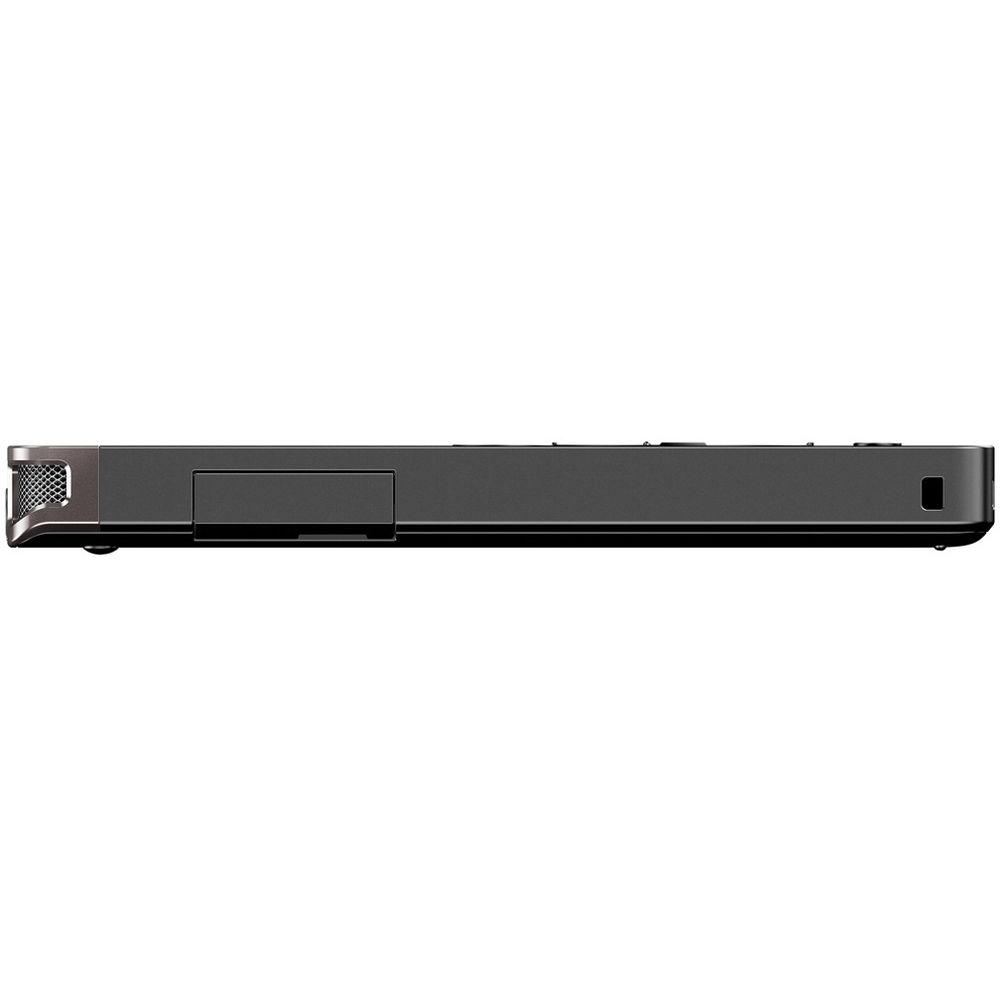

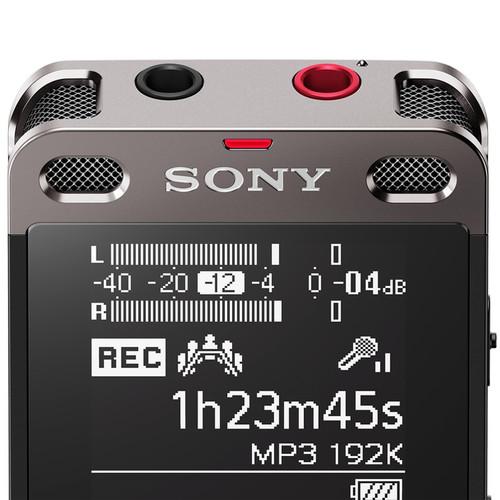

User Manual for Sony ICD-UX560 Digital Voice Recorder with Built-In USB Click to enlarge the picture
Contents of the user manual for the Sony ICD-UX560 Digital Voice Recorder with
- Product category: Handheld Voice Recorders Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Handheld Voice Recorders
 |
User manual for the Sony ICD-UX560 Digital Voice Recorder with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|

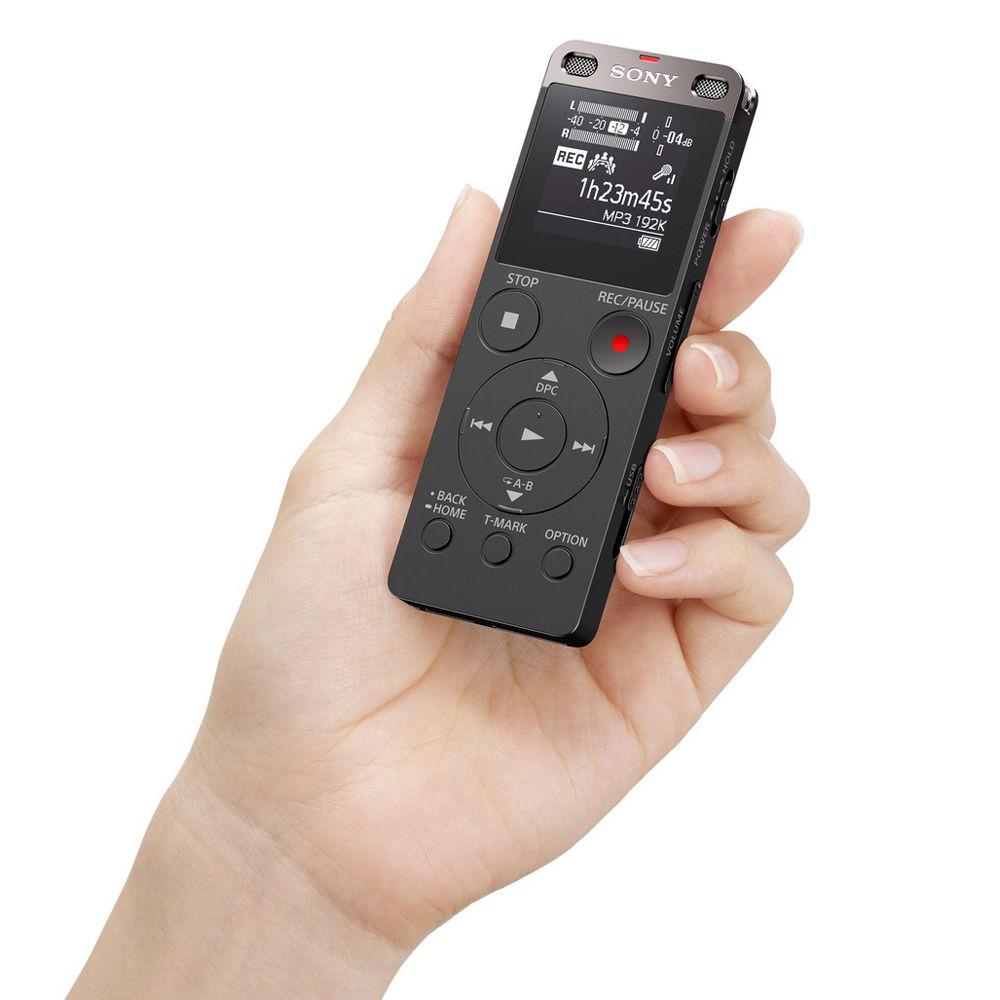

Product description The Sony ICD-UX560 is a digital voice-recording device capable of capturing audio in Linear PCM (WAV) and MP3 formats. It can operate at sample rates up to 48 kHz and resolutions up to 16-bit. Lightweight at 1.8 oz, it's a compact and portable recorder with a two-element microphone system. You can connect to computers directly via the on-board USB 2.0 port and also recharge the lithium-ion battery that sits within its enclosure. It can record up to 39.75 hours in a 192 kb/s MP3 format to it's internal memory, and it automatically adjusts how sensitive the microphone should be based on the sound-level coming in. - Notable Features
-
- 4GB of built-in storage, expandable via microSD (SDHC/SDXC) cards
- Focus and wide microphone modes to suit applications such as lectures and meetings

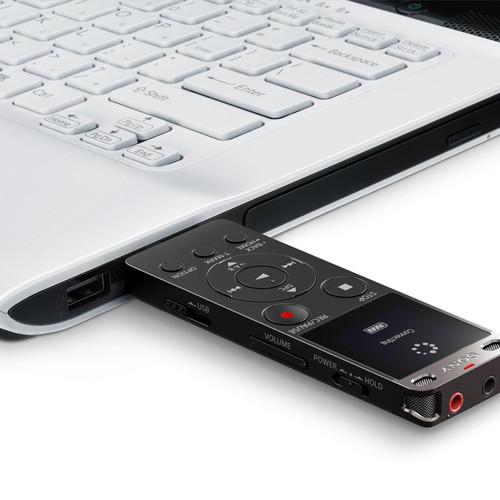

- USB for easy connection to Mac or PC
- Built-in lithium-ion battery with 3-minute Quick Charge for 1 hour of recording
UPC: 027242889385 In the Box Sony ICD-UX560 Digital Voice Recorder with Built-In USB Limited 90-Day Warranty on Labor Limited 1-Year Warranty on Parts More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony ICD-UX560 Digital Voice Recorder with Built-In USB in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony ICDUX560 Specs | | | Type | Digital | | Mode | Stereo | | Recording Format | LPCM, MP3 | | Bit-Depth | 16 | | Bit-Rate | 32 kbps - 320 kbps
16 -bit | | Sample Rate | 11.025 kHz - 48 kHz | | One-Click Recording | No | | Voice Activated Recording | Yes | | Microphone Type | Internal Stereo - 2 Elements | | Microphone Sensitivity | Manual SENS Setting
Auto SENS Setting
High/Low
Medium | | Frequency Response | 50 Hz - 20 kHz @ 44.1 kHz Sample Rate / 16 Bit LPCM | | | | Playback Formats | MP3
PCM (WAV)
AAC
WMA | | Bit-Rate | MP3: 32 - 256 Kbps

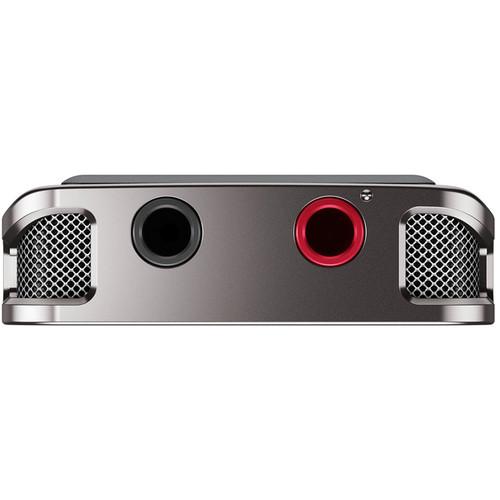

WMA: 32 - 192 Kbps | | Speaker | Yes | | Speaker Size | 0.63" / 16 mm | | Power Output | 150 mW | | | | Indicators | Power, Low Battery, Recording, Voice Volume, Peak | | Erase Protect | Yes | | On Screen Clock | Yes | | Safety Lock | No | | Search | Track Mark | | | | Battery Type | 1 x Built-in Rechargeable Lithium-ion Battery | | Power Adapter | No | | | | Internal Memory | Installed: Flash Memory - 4 GB | | Compatible Memory Cards | microSD | | Connectors | 1/8" mini Female Microphone In
1/8" mini Female Headphone Out | | USB | USB 2.0 (A) | | Operating System Support | Windows, macOS/OS X | | Dimensions (WxHxD) | 1.44 x 4.00 x .41" / 36.6 x 101.5 x 10.5 mm | | Weight | 1.83 oz / 52 g | | | | Package Weight | 0.27 lb | | Box Dimensions (LxWxH) | 6.2 x 4.3 x 1.1" |
