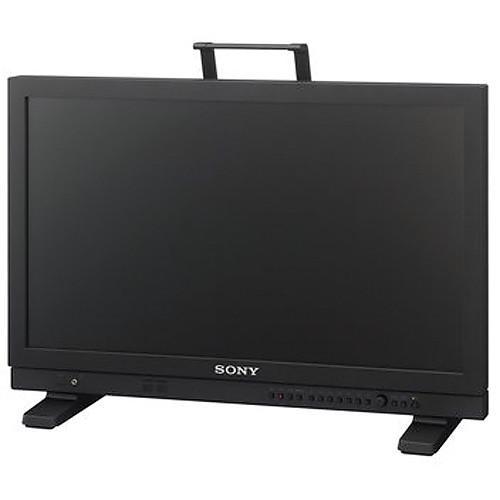

Product description The Sony LMD-A220 22" LCD Production Monitor is a portable, 1920 x 1080 resolution monitor for on set, studio, and broadcast use. The monitor features an IPS LCD display with wide 178° horizontal and vertical viewing angles and provides 3G/HD/SD-SDI, HDMI, and composite inputs, which support NTSC/PAL, 720p, 1080i, and 1080p input signals with frames rates from 24p to 60p.
The monitor introduces several new features and upgrades from previous LMD series monitors, including a new low latency automatic I/P conversion, new video processing engine for improved image accuracy, on screen tally, and yoke mounting screw holes. The monitor also provides a wide range of professional monitoring features, such as built-in waveform and vectorscope, focus assist with adjustable colored peaking, time code display, and a Slog2 to Rec 709 LUT.
A built-in audio decoder lets you display up to 16 channels of embedded SDI audio. Audio can be monitored using the 3.5mm headphone jack on the front panel, or with the 1W built-in speaker. A composite input with loop-out provides connectivity for standard-definition analog devices and is paired with a 3.5mm stereo mini jack audio input. Two Ethernet ports provide connectivity for serial and parallel remotes; letting you control and load monitor settings via your network, as well as upgrade the monitor's software. For use in the field, there is a 12V DC power input on 4-pin XLR.
The monitor is compatible with standard VESA 100 x 100mm mounting hardware. Optional rack mount brackets are also available. Monitor feet and a handle are included. -
- IPS LCD panel with 178°/178° viewing angles
- 1920 x 1080 native resolution
- Multi format input signal support, NTSC/PAL, 1080i, and 1080p
- Frame rates from 24p to 60p
- Dual 3G/HD/SD-SDI inputs with active loop through
- HDMI input
- Composite input with loop-out
- Slog2 to 709 LUT
- Multiple color gamut display (SMPTE C, EBU, ITU-R BT.709 and Native)
- Internal waveform monitor with zoom and line select features
- Internal vectorscope with zoom
- Focus assist with adjustable colored peaking
- EIA/CEA 608 and 708 digital closed caption decoder
- Time code display
- Seven assignable function buttons
- Ethernet and parallel remote control
- Embedded audio decoding and display
- 16-channel audio monitor for SDI input
- 3.5mm stereo mini jack audio input
- Front panel 3.5mm headphone jack
- Lighted control panel
- 12 VDC power input
- Double coated paint finish
- Optional rack mount brackets
UPC: 027242875302 In the Box Sony LMD-A220 22" LCD Production Monitor AC Power Cord AC Plug Holder Handle 4 x Fixing Screw for the Handle Monitor Feet CD-ROM Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony LMD-A220 22" LCD Production Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony LMD-A220 Specs | | | Type | IPS LCD | | Backlight Technology | LED | | Screen Size (Diagonal) | 21.5" (54.6 cm) | | Effective Picture Size (H x V) | 18.74 x 10.54" (47.61 x 26.78 cm) | | Resolution | 1920 x 1080 | | Native Aspect Ratio | 16:9 | | Viewing Angle (H/V) | 178° / 178° | | Normal Scan | 0% scan | | Color Temperature | D65, D93 | | Warm-Up Time | Approx. 30 minutes | | | | Video Input | 2 x BNC, 3G/HD/SD-SDI
1 x HDMI, HDCP compliant
1 x BNC, Composite (NTSC/PAL) | | Audio Input | 1 x Stereo mini jack, -5 dBu 47 kohm or higher
| | Power Input | 1 x XLR 4-pin (male), 12 to 17 VDC (output impedance 0.05 ohm or less) | | Remote Control | 1 x Parallel remote, RJ-45 modular connector 8-pin
1 x Serial remote, RJ-45 modular connector (ETHERNET, 10BASE-T/100BASE-TX) | | | | Video Output | 2 x BNC, 3G/HD/SD-SDI, Output signal amplitude: 800 mVp-p ±10%
Output impedance: 75 ohm unbalanced
1 x BNC, Composite (NTSC/PAL) loop-though, 75 ohm automatic terminal function | | Audio Output | 1 x Stereo mini jack, audio monitor output
1 x Stereo mini jack, headphone output
1 x 1.0 W monaural speaker | | | | Formats | 3G-SDI (10-bit 4:4:4 YCbCr and 4:4:4 RGB supported)
1080PsF 24/25/30
1080p 24/25/30/
1080i 50/60
720p 50/60
3G-SDI (10-bit 4:2:2 YCbCr supported)
1080p 50/60
HD/SD-SDI
1080PsF 24/25
1080p 24/25/30
1080i 50/60
720p 24/25/30/50/60
575/50i (PAL)
480/60i (NTSC)
HDMI
1080p 24/25/30/50/60
1080i 50/60
720p 50/60
640x480/60p
576/50p
480/60p
575/50i (PAL)
480/60i (NTSC)
Note: 1080/25PsF, 30PsF are displayed as 1080/25PsF, 30PsF on the screen if the payload ID is added to the video signal, or displayed as 1080/50i, 60i if the ID is not added. | | PC Signal Compatibility | HDMI input:
640 x 480: 25.175 MHz, fH 31.5 kHz, fV 60 Hz
1280 x 768: 68.25 MHz, fH 47.4 kHz, fV 60 Hz
1280 x 1024: 108 MHz, fH 64 kHz, fV 60 Hz
1360 x 768: 85.5 MHz, fH 47.7 kHz, fV 60 Hz
1440 x 900: 88.75 MHz, fH 55.5 kHz, fV 60 Hz
1680 x 1050: 119 MHz, fH 64.7 kHz, fV 60 Hz
| | | | Power | 100 to 240 VAC, 0.5 to 0.4 A, 50/60 Hz
12 to 17 VDC (4-pin XLR) | | Power Consumption | Approx. 47 W (max.)
Approx. 43 W (average power consumption in the default status) | | Inrush Current | Maximum possible inrush current at initial switch-on (voltage changes caused by manual switching):
45 a peak, 5 A r.m.s (240 VAC)
Inrush current after a mains interruption of 5 seconds (voltage changes caused at zero-crossing):
15 A peak, 3 A r.m.s. (240 VAC) | | Operating Temperature | 32 to 95°F (0 to 35°C)
Recommended temperature: 68 to 86°F (20 to 30°C) | | Operating Humidity | 30 to 85% (no condensation) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Storage Humidity | 0 to 90% | | Pressure Tolerance | 700 hPa to 1060 hPa | | VESA Mounting | 100 x 100 mm | | Dimensions (H x W x D) | Without feet: 13.3 x 20.4 x 2.6" (338.0 x 517.8 x 67.2 mm)
With feet: 14.2 x 20.4 x 6.5" (360.5 x 517.8 x 165.0 mm) | | Weight | Approx. 11.9 lb (5.4 kg) | | | | Package Weight | 18.0 lb | | Box Dimensions (LxWxH) | 24.0 x 18.9 x 10.5" |
