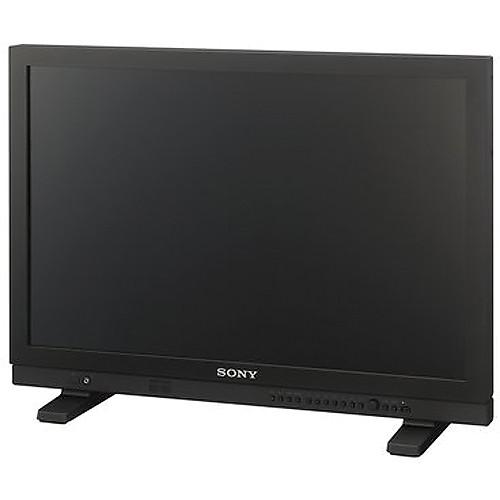

Product description The Sony LMD-A240 24" LCD Production Monitor is a portable, 1920 x 1200 resolution monitor for on set, studio, and broadcast use. The monitor features an IPS LCD display with wide 178° horizontal and vertical viewing angles and provides 3G/HD/SD-SDI, HDMI, and composite inputs, which support NTSC/PAL, 720p, 1080i, and 1080p input signals with frames rates from 24p to 60p.
The monitor introduces several new features and upgrades from previous LMD series monitors, including a new low latency automatic I/P conversion, new video processing engine for improved image accuracy, on screen tally, and yoke mounting screw holes. The monitor also provides a wide range of professional monitoring features, such as built-in waveform and vectorscope, focus assist with adjustable colored peaking, time code display, and a Slog2 to Rec 709 LUT.
A built-in audio decoder lets you display up to 16 channels of embedded SDI audio. Audio can be monitored using the 3.5mm headphone jack on the front panel, or with the 1W built-in speaker. A composite input with loop-out provides connectivity for standard-definition analog devices and is paired with a 3.5mm stereo mini jack audio input. Two Ethernet ports provide connectivity for serial and parallel remotes; letting you control and load monitor settings via your network, as well as upgrade the monitor's software. For use in the field, there is a 12V DC power input on 4-pin XLR.
The monitor is compatible with standard VESA 100 x 100mm mounting hardware. Optional rack mount brackets are also available. Monitor feet are included. -
- IPS LCD panel with 178°/178° viewing angles
- 1920 x 1200 native resolution
- Multi format input signal support, NTSC/PAL, 1080i, and 1080p
- Frame rates from 24p to 60p
- Dual 3G/HD/SD-SDI inputs with active loop through
- HDMI input
- Composite input with loop-out
- Slog2 to 709 LUT
- Multiple color gamut display (SMPTE C, EBU, ITU-R BT.709 and Native)
- Internal waveform monitor with zoom and line select features
- Internal vectorscope with zoom
- Focus assist with adjustable colored peaking
- EIA/CEA 608 and 708 digital closed caption decoder
- Time code display
- Seven assignable function buttons
- Ethernet and parallel remote control
- Embedded audio decoding and display
- 16-channel audio monitor for SDI input
- 3.5mm stereo mini jack audio input
- Front panel 3.5mm headphone jack
- Lighted control panel
- 12 VDC power input
- Double coated paint finish
- Optional rack mount brackets
UPC: 027242875296 In the Box Sony LMD-A240 24" LCD Production Monitor AC Power Cord AC Plug Holder Monitor Feet CD-ROM Limited 3-Year Warranty Brochure PDF 141.3kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony LMD-A240 24" LCD Production Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony LMD-A240 Specs | | | Panel Type | IPS-Type LCD | | Display Size | 24.1" / 61.1 cm | | Active Area | 20.41 x 12.76" / 51.84 x 32.40 cm | | Screen Resolution | 1920 x 1200 | | Aspect Ratio | 16:10 | | Viewing Angle | Horizontal: 178° (89/89)
Vertical: 178° (89/89) | | Image Controls | Color Temperature Selection, Focus Peaking, Screen Markers, Waveform | | | | Video | 2 x BNC (3G-SDI) Output
1 x BNC (Composite) Output
2 x BNC (3G-SDI) Input
1 x HDMI Type A Input
1 x BNC (Composite) Input | | Audio | 1 x 3.5 mm Input
1 x 3.5 mm Monitor Output
1 x 3.5 mm Headphone Output | | Built-In Speaker | 1 x 1 W | | Power | 1 x 4-Pin XLR Input | | Other I/O | 1 x Parallel (8P8C)
1 x LAN (RJ45) | | Card Slot | None | | | | Video Format | SDI (10-Bit 4:4:4 RGB)
1080PsF: 24/25/30
1080p: 24/25/30
1080i: 50/60
720p: 24/25/30/50/60
PAL
NTSC
HDMI
1080p: 24/25/30/50/60
1080i: 50/60
720p: 50/60
576p: 50
480p: 60
PAL
NTSC | | PC Resolutions | 640 x 480
1280 x 768
1280 x 1024
1360 x 768
1440 x 900
1680 x 1050
1600 x 1200
1920 x 1200 | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 0.5 to 0.4 A | | DC Input Power | 12 to 17 VDC | | Battery Type | None | | Power Consumption | 51 W (Maximum)
45 W (Typical) | | | | Mounting-Hole Pattern | 100 x 100 mm | | | | Operating Humidity | 30 to 85% | | Operating Temperature | 32 to 95°F / 0 to 35°C
68 to 86°F / 20 to 30°C (Recommended) | | Storage Humidity | 0 to 90% | | Storage Temperature | -4 to 140°F / -20 to 60°C | | | | Dimensions (W x H x D) | 22.3 x 15.7 x 3.1" / 566.6 x 397.8 x 78.2 mm
22.3 x 16.5 x 6.5" / 566.6 x 420.3 x 165 mm, Including Feet | | Weight | 16.75 lb / 7.6 kg | | | | Package Weight | 20.75 lb | | Box Dimensions (LxWxH) | 25.8 x 21.0 x 10.2" |
