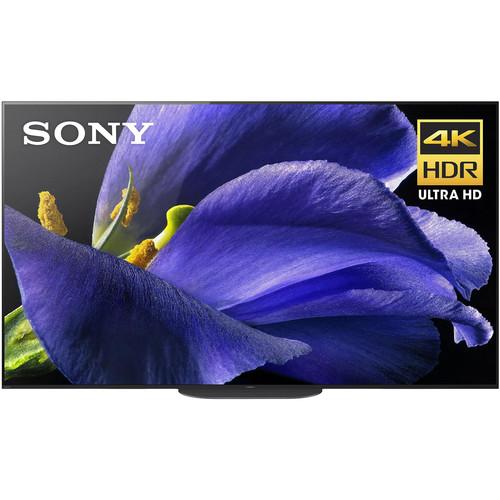

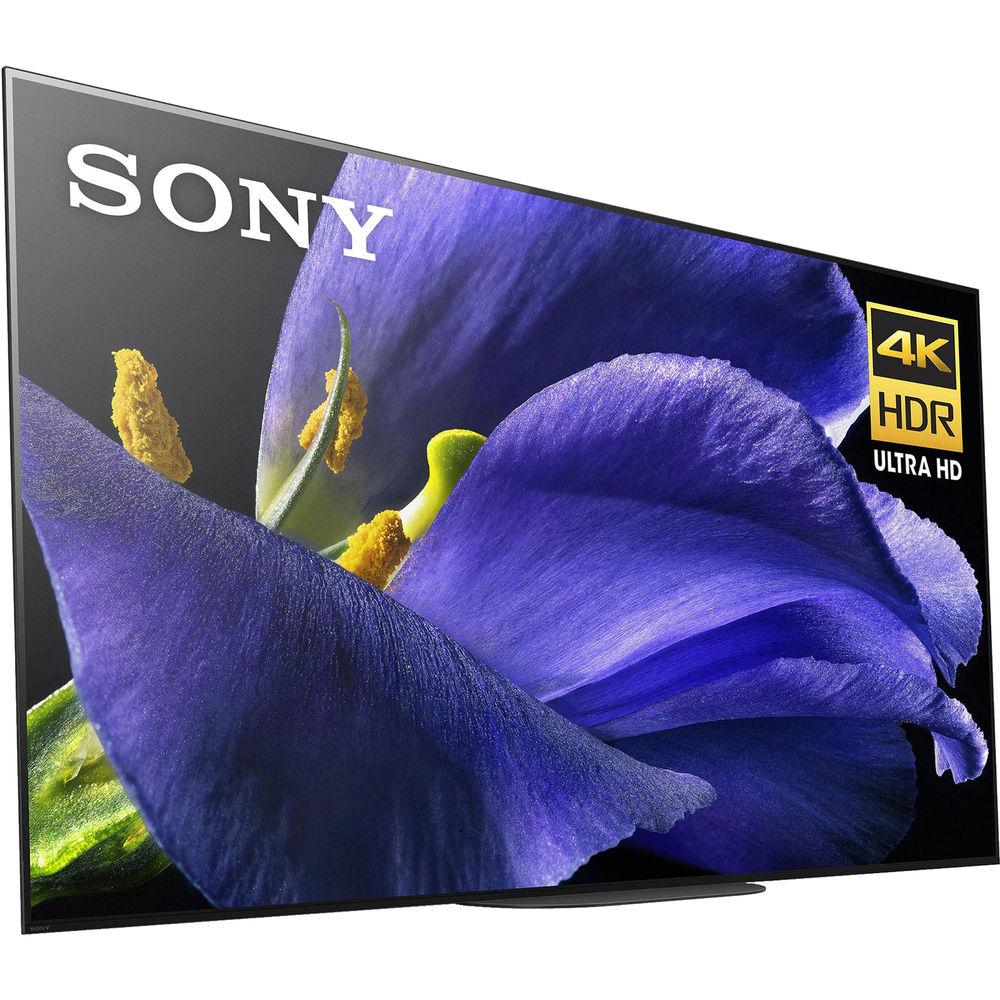

Product description The Big March TV Tournament Read More View content at four times the resolution of 1080p with the Sony MASTER A9G 77" Class HDR 4K UHD Smart OLED TV. It has a 76.7" OLED panel and incorporates Sony's Motionflow XR technology to digitally enhance fast-moving images to reduce blur. HDR10, HLG, and Dolby Vision compatibility provide a wide color gamut for compatible content.
The MASTER A9G series has built-in Wi-Fi and Ethernet connectivity to allow access to the Google Play store, your favorite apps, and internet-based content via its Android operating system, plus content sharing and screen mirroring with your other compatible smart devices such as your smartphone or tablet. The Vewd web browser is also available for download through the Google Play store. With four HDMI inputs, there are multiple options for connecting high-definition video sources. A composite video input is also available for connecting legacy equipment, while three USB ports are onboard for connecting compatible multimedia peripherals like flash drives. Note: Content acquired via certain apps may require subscription to a service. - OLED Technology
- Each pixel is its own light source, which creates the potential for the display to produce true black levels, helping to enhance contrast and overall color accuracy. The pixels are controlled by the 4K HDR Picture Processor X1 Ultimate and are further augmented by the Pixel Contrast Booster to help produce bright, vivid colors with enhanced detail and realism.
- 4K HDR Picture Processor X1 Ultimate
- The 4K HDR Picture Processor X1 Ultimate features real-time image processing for detailed images and upscaling everything you watch to near-4K HDR quality.
- 4K X-Reality PRO & Object-Based Super Resolution
- 4K X-Reality PRO and Object-Based Super Resolution use two databases to help sharpen and refine images in real time to reveal additional detail.
- IMAX Enhanced
- IMAX Enhanced certification designates that the A9G meets certain audio and video performance criteria set by a committee of IMAX and DTS engineers and A/V technical specialists. These criteria include image, sound, scale, and content quality. Onboard IMAX calibrated modes are set and approved by Hollywood colorists to help provide enhanced picture and sound for HDR UHD content.
- Dolby Vision Compatibility
- Dolby Vision is an HDR solution designed to create an immersive cinematic experience with deep black levels and vibrant colors.
- Acoustic Surface Audio+
- Thanks to two built-in actuators, audio emanates from the screen itself, helping to immerse you in your movies and TV shows.
- TRILUMINOS Display
- TRILUMINOS Display technology is engineered to map colors from a wide palette to faithfully reproduce every shade and hue.
- Super Bit Mapping HDR
- Super Bit Mapping HDR is designed to create a smooth, natural image while you watch, without color banding.
- Motionflow XR
- Motionflow XR technology is designed to enhance the speed of the OLED panel to allow fast-moving action sequences in sports and movies to be seen in lifelike quality.
- Google Assistant Built-In
- You can ask the Google Assistant to find your favorites or control the TV or other connected compatible devices using just your voice.
- Works with Amazon Alexa
- Connect your Amazon Alexa-enabled devices for seamless hands-free control of the TV. With Amazon Alexa, you can power on the TV, change channels, control the volume, and more.
- Connect with Google Home
- Your Google Home ecosystem can provide hands-free control of the TV, allowing you to find and cast your favorite videos to the TV with just your voice.
- Netflix Calibrated Mode
- This mode was developed so you could enjoy Netflix originals as the creator intended.
- Integrated Cable Management
- Hide your cables from set-top boxes and other components within the stand.
- Wide Viewing Angle
- Thanks to OLED technology, colors don't fade when the TV is viewed from an angle.
- Additional Audio Features
-
- Balance control
- Dual 31 x 45mm actuators & dual 70mm woofers
- Advanced Auto Volume
- Alternate audio (digital)
- 2-channel LPCM (48 kHz, 16-bit), Dolby Digital, Dolby Digital Plus, DTS output over HDMI eARC
- Auto Surround
- Clear Phase
- 5.1-channel LPCM input via HDMI
- S-Force Front Surround
- S-Master Digital Amplifier
- Additional Convenience Features
-
- Google Play Store for app downloads
- Auto Picture Mode
- Auto shut-off
- Analog & digital password-protected channel blocking
- Chromecast built-in
- HDMI-CEC
- i-Manual
- On/Off timer
- On-screen clock
- Parental control
- Scene Select
- Digital & analog show/hide channels
- Sleep timer
- Accepts English, French, German, Hebrew, Italian, Russian, Spanish, Vietnamese, and Japanese text input
- FAT16, FAT32, exFAT, NTFS USB support
- Voice search with built-in mic
- RS-232C control
- Illumination LED
- Additional Network Features
-
- Home Network Client & Home Network Renderer
- Vewd internet browser-capable
- Related Info
- Screen mirroring via Miracast (for B2B use only)
- Dual-band (2.4/5 GHz) Wi-Fi 5 (802.11a/b/g/n/ac)
- Additional Video Features
-
- sRGB color space
- 24p True Cinema
- 4:3 Default
- Auto Wide
- Frame blinking
- Dynamic Contrast Enhancer
- Face Area Detection
- Live Color technology
- Motionflow XR with Auto Mode
- Precision Color Mapping
- CineMotion/Film Mode/Cinema Drive
- Additional Features
-
- Dynamic backlight control
- Power saving modes
- LightSensor technology
- Analog & digital closed captioning
- Hotel Mode menu
- HDCP 2.3 compatibility for all HDMI inputs
- Bluetooth 4.2 HID, HOGP, SPP, A2DP, AVRCP
- 16GB of storage
In the Box Sony MASTER A9G 77" Class HDR 4K UHD Smart OLED TV Voice Remote Control with Batteries IR Blaster Stand Assembly 6.6' AC Power Cord Limited 1-Year Warranty The Top 8 TVs of 2018 Richard Risitano 12/20/2018 The B&H Television Buying Guide Lawrence Neves 01/31/2018 Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony MASTER A9G 77" Class HDR 4K UHD Smart OLED TV in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

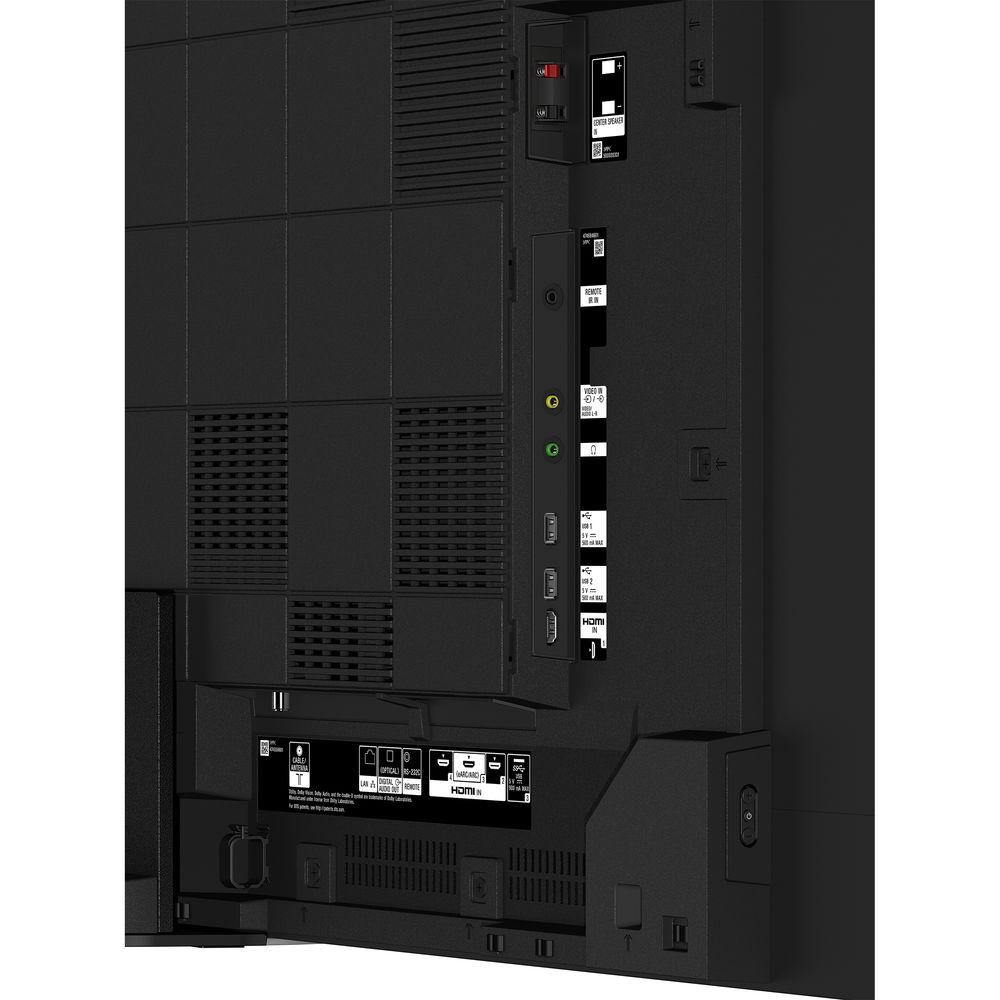

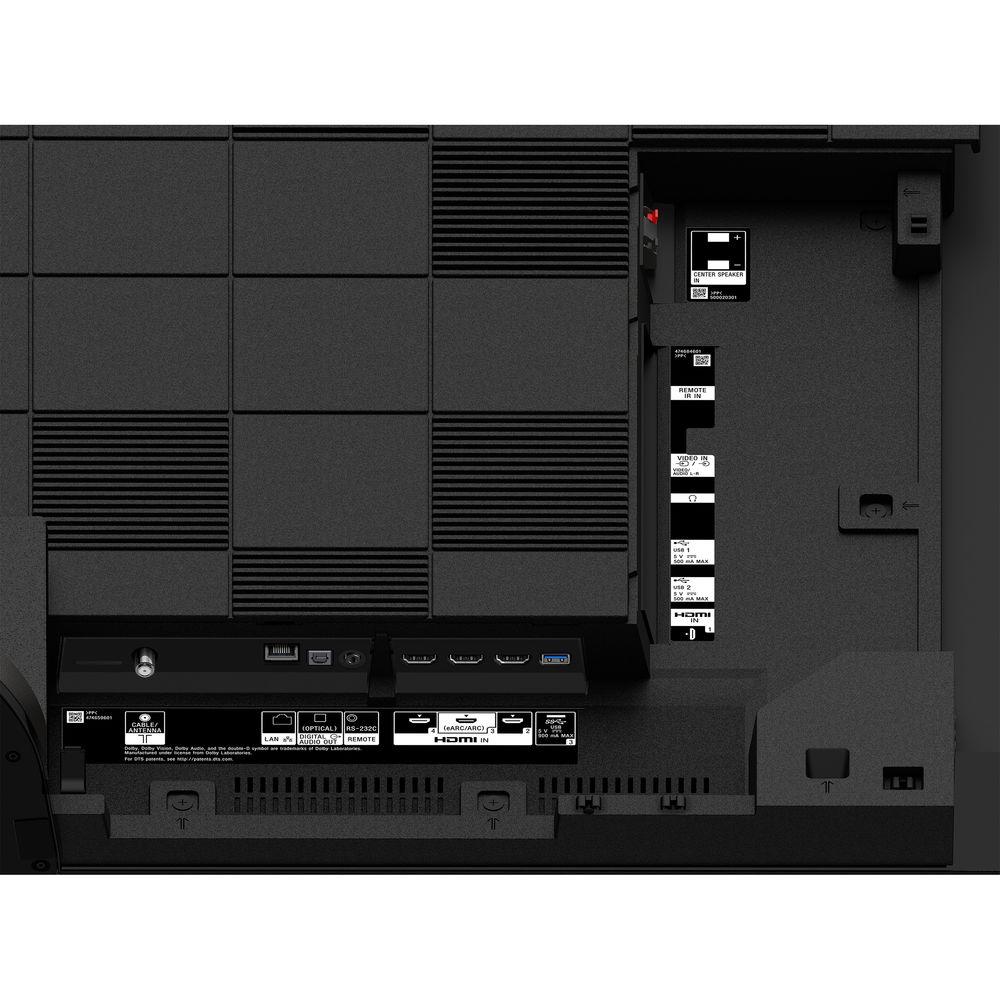

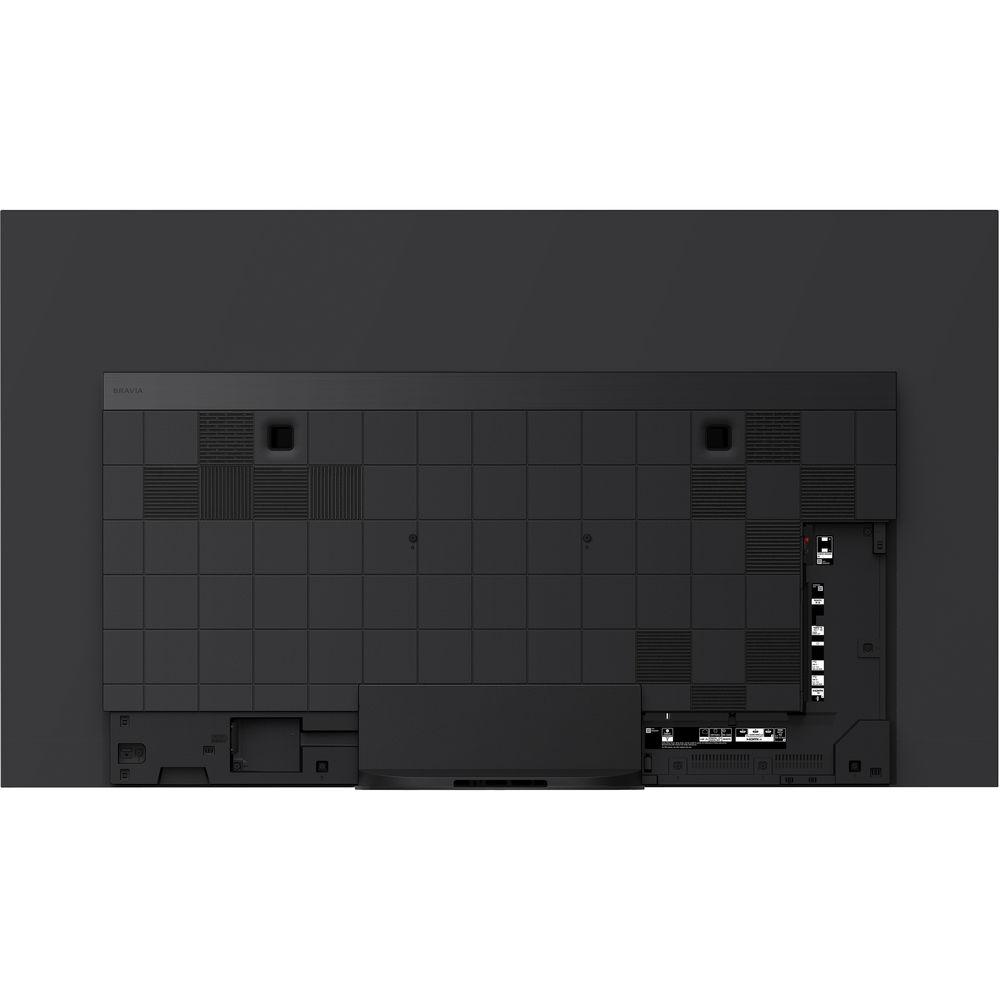

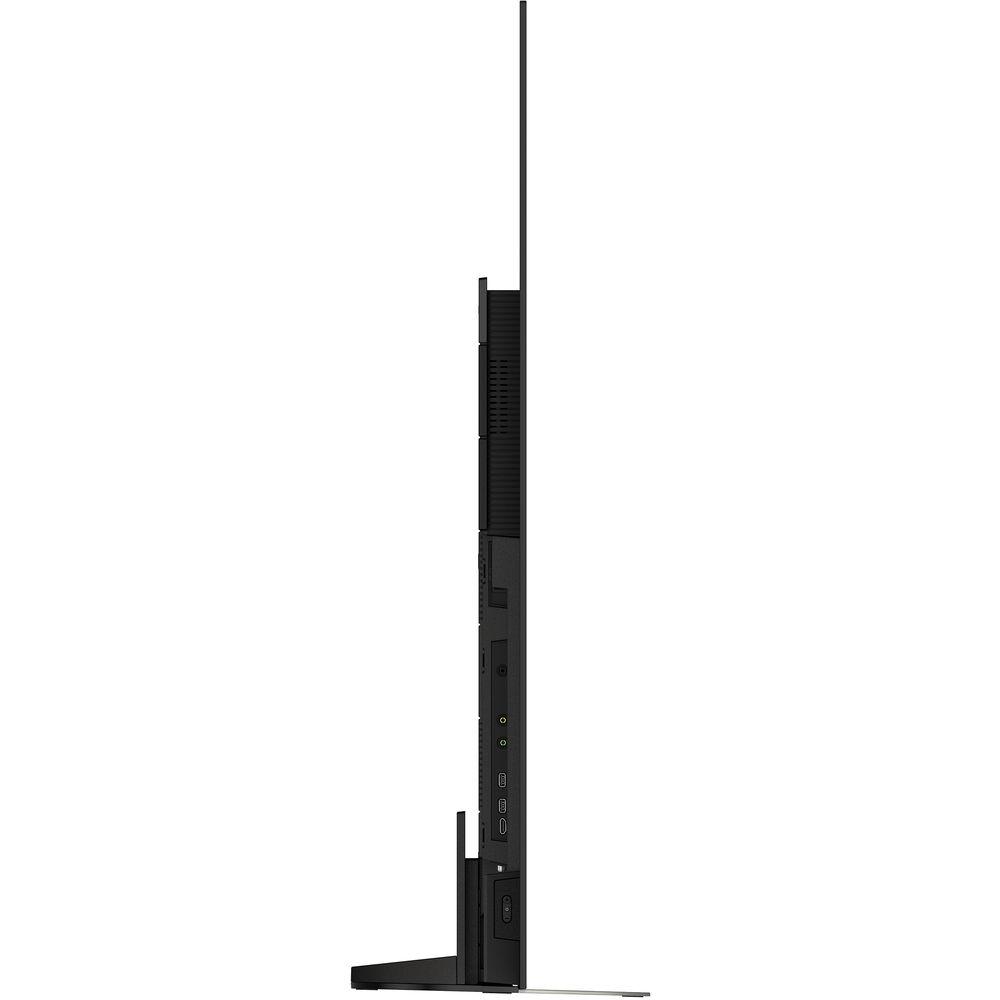

Technical parametersSony A9G Specs | | | Screen Size (Diagonal) | 76.7" | | Panel Type | OLED | | Aspect Ratio | 16:9 | | Pixel Resolution | 3840 x 2160 | | HDR Compatibility | HDR10, Dolby Vision, Hybrid Log Gamma | | Viewing Angle (H x V) | 178 x 178° | | | | Video System | NTSC | | TV Tuner | Yes - ATSC, Clear QAM | | | | Primary Connectivity Location | Display | | Input Ports | 3 x HDMI – Audio, Video (Bottom)
1 x HDMI – Audio, Video (Side)
1 x RCA Composite – Video (Side)
1 x RCA Stereo (L/R) – Audio (Side) | | Output Ports | 1 x TOSLINK Optical – Audio (Bottom)
1 x 1/8" / 3.5 mm – Audio, Headphone (Side) | | USB Ports | 2 x USB (Version Unspecified) – Audio, Photo, Video (Side)
1 x USB (Version Unspecified) – Audio, Photo, Video (Bottom) | | Ethernet | LAN | | Control | RS-232C via DE9 | | | | Sound | Stereo | | Subwoofer | None | | Power | 60 W | | Dolby Digital | Yes | | | | Virtual Assistant Support | Amazon Alexa, Google Assistant | | Operating System | Android 8 | | Wi-Fi | Built-In | | Picture Modes | Cinema, Custom, Game, Graphics, Photo, Sports, Standard, Vivid | | Sound Modes | Cinema
Music
Sport
Standard | | Media Player | 3GPP
ASF
AVCHD
AVI
FLAC
MOV
MP3
MP4
MPEG1
MPEG2PS
MPEG2TS
MPEG4
VP8
WAV
WEBM
WMA
WMV
Xvid | | Supported Languages | English
French
Spanish | | Remote Control | Yes | | Wall Mounting | 300 x 300mm | | | | Power Requirements | 120 VAC, 60 Hz | | Power Consumption | Operational: 653.0 W
Standby: 0.5 W | | Dimensions (W x H x D) | 67.8 x 39.2 x 1.9" / 1721.0 x 996.0 x 49.0 mm Without stand
67.8 x 39.4 x 11.9" / 1721.0 x 1001.0 x 302.0 mm With stand | | Stand Dimensions | 19.69" / 500 mm (Width) | | Weight | 77.8 lb / 35.29 kg Without stand
87.5 lb / 39.69 kg With stand |
