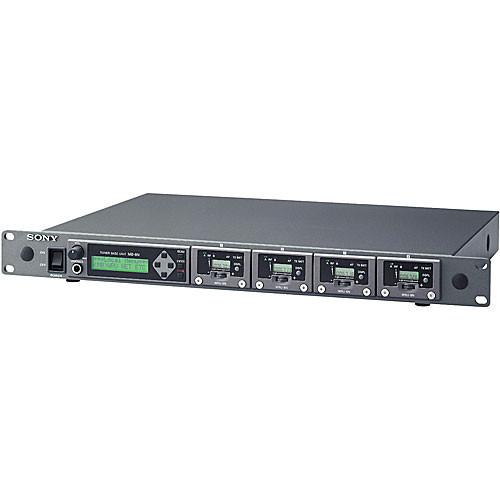

User Manual for Sony MB-8N 9F Tuner Base for WRU-8N Wireless Tuner Modules Click to enlarge the picture
Contents of the user manual for the Sony MB-8N 9F Tuner Base for
- Product category: Wireless Receivers Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Wireless Receivers
|
User manual for the Sony MB-8N 9F Tuner Base for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description The Sony MB-8N/9F Tuner Base is a wireless microphone tuner module base that eliminates the need for multiple wireless receivers. The MB-8N/9F accommodates up to four Sony WRU-8N tuner modules that feature 188 user selectable UHF frequencies, LCD display and much more.A built-in antenna splitter allows up to four MB-8N/9F Tuner Bases to be daisy-chained for simultaneous operation of up to 16 tuner modules and wireless microphone transmitters. The supplied PC control software enables full control of up to 49 tuner modules via PC. The MB-8N/9F Tuner Base is an ideal solution for theaters, sound stages, houses-of-worship and anywhere multiple wireless microphones are to be used simultaneously. - Accommodates Four WRU-8N Tuner Modules
- The Sony MB-8N/9F accommodates up to four WRU-8N tuner modules which feature 188 selectable UHF frequencies, comprehensive LCD display and more.
- Built-In Antenna Splitter
- A built-in antenna splitter allows up to four MB-8N/9F to be daisy-chained for simultaneous operation of up to 16 tuner modules and wireless microphone transmitters.
- XLR Audio Outputs
- Four balanced XLR outputs end discrete signal from each of the tuner modules.
- PC Control Software
- The supplied PC control software enables full control of up to 49 tuner modules via PC.
UPC: 027242695658 In the Box Sony MB-8N/9F Tuner Base for WRU-8N Wireless Tuner Modules Power Cord CD-Rom with PC Control Software 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony MB-8N 9F Tuner Base for WRU-8N Wireless Tuner Modules in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony MB-8N/9F Specs | Type of Receiver | UHF Four Bay Tuner Base | | RF Carrier Frequency Range | UHF-TV channels 30-69 | | Approx. Working Range | Not Specified By Manufacturer | | Overall Frequency Response | 40Hz to 20kHz | | Signal-to-Noise Ratio | Distortion: 1.0% or less | | # Of Channels | 188 (per tuner module) | | Type of Output(s) | XLR-3 pin type (x 4) balanced | | Headphone Monitoring | TRS 1/4" Phone with level control | | Power Requirements | AC 100 to 240V, 50/60Hz
DC 10 to 24V | | Battery Type/Approx. Life | Not Applicable | | Display | LCD (tuner modules) | | Mounting Options | 19-inch Rackmount | | Antenna Type | Inputs: BNC-R type (x 2), 50 ohm (nominal)
Outputs: (for cascade connection): BNC-R type (x 2), 50 ohm(nominal) | | Dimensions (WxHxD) | 18.97 x 1.73 x 11.81" (482 x 44 x 300mm) | | Weight | 8 lb 6 oz (3.7 kg) | | | | Package Weight | 10.55 lb | | Box Dimensions (LxWxH) | 21.0 x 16.5 x 4.5" |
