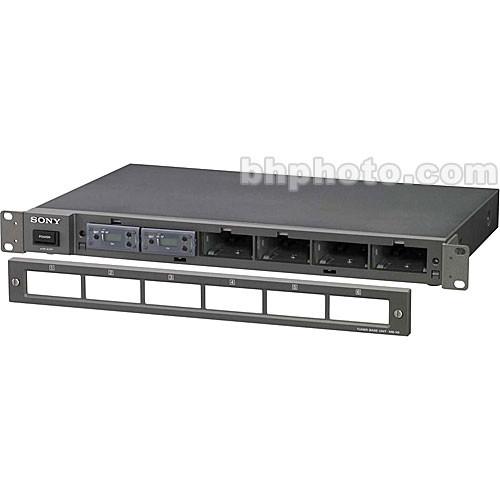

User Manual for Sony MB-X6 Modular Rack for Six WRU-806A and URX-M1 UHF Tuner Modules Click to enlarge the picture
Contents of the user manual for the Sony MB-X6 Modular Rack for Six
- Product category: Wireless Receivers Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Wireless Receivers
|
User manual for the Sony MB-X6 Modular Rack for Six contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description The Sony MB-X6 UHF Tuner Base Unit features a modular design that conveniently accommodates up to six WRU-806A and URX-M1 tuner modules. Up to six transmitters may be used simultaneously with six tuner modules installed. The rear panel provides six XLR (mic/line selectable) outputs and a stereo mix output. The MB-X6 features a single 19" rack space design and operates on channels 30 through 69. Note: For system compatibility, the component's frequency MUST match your existing system/component frequency. - Wide Frequency Range
- This MB-X6 tuner base operates in UHF-TV channels 30 through 69. WL-800 series wireless systems are compatible.
- Up to Six Tuner Modules
- Up to six WRU-806 or URX-M1 may be installed for simultaneous operation of up to 6 wireless transmitters.
- Internal Active Antenna Divider
- Built-in antenna divider sends an amplified signal to all six channels with optional AN-820A antennas.
- Antenna Gain Switch
- An antenna gain switch adjusts antenna sensitivity to prevent overload of antenna section of receiver.
- Output Level Switch
- Selects mic or line operating level for all outputs.
UPC: 027242687479 In the Box Sony MB-X6 Modular Rack for Six WRU-806A and URX-M1 UHF Tuner Modules Passive Antennas for Rear Mounting (with Provision for Front Mounting) Power Cord 2 x K-1314 Wave Antennas 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony MB-X6 Modular Rack for Six WRU-806A and URX-M1 UHF Tuner Modules in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony MB-X6 Specs | Type of Receiver | Rack Mount Housing Designed to Accommodate 6 Individual (WRU-806) Receivers | | RF Carrier Frequency Range | Not Specified by Manufacturer | | Approx. Working Range | Not Specified by Manufacturer | | Overall Frequency Response | 100 - 15 kHz | | Signal-to-Noise Ratio | +60 dB (A weighted) | | # Of Channels | 94 | | Type of Outputs | 6 Individual Balanced XLR Outputs and 1 Balanced XLR 'Mix' Output (switchable mic/line) | | Headphone Monitoring | No | | Power Requirements | AC 120V | | Battery Type/Approx. Life | Not Applicable, Unit Does NOT Operate on Batteries | | Display | LCD Display Found on Each Optional WRU806A Wireless Receiver Modules | | Mounting Options | Rack/Table Top Mount | | Antenna Type | Passive Antennas with BNC-R Type Connectors | | Dimensions (WxHxD) | 18.97 x 1.73 x 11.22" (482 x 44 x 285mm) | | Weight | 12 lbs 2 oz (5.5 kg) | | | | Package Weight | 14.8 lb | | Box Dimensions (LxWxH) | 21.2 x 14.6 x 6.5" |
