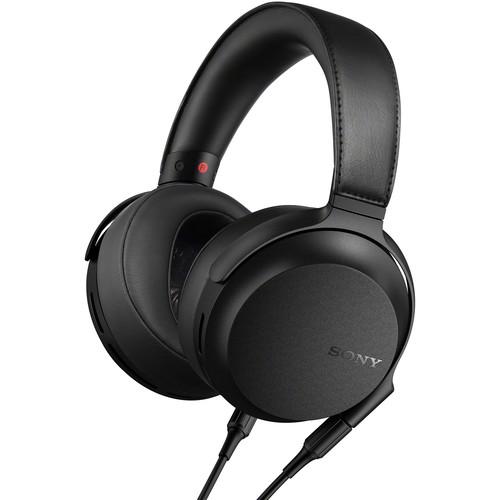

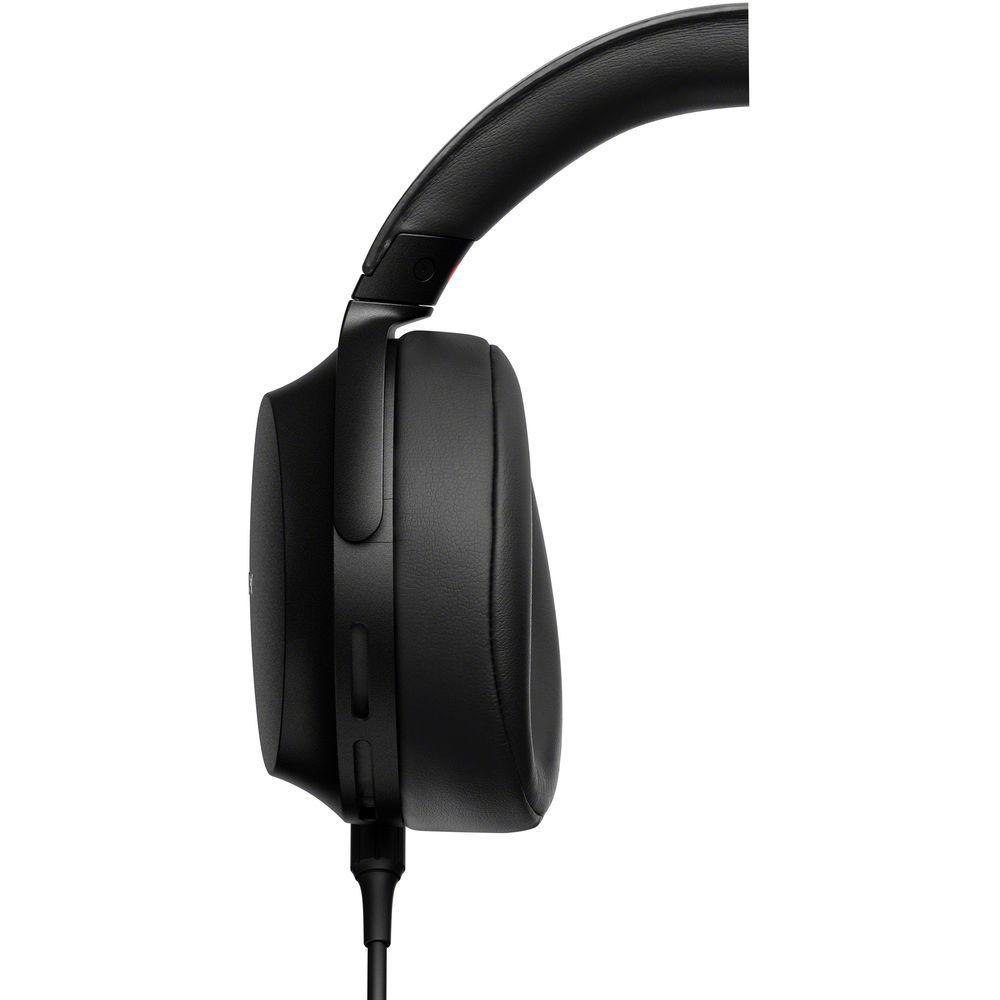

User Manual for Sony MDR-Z7M2 Circumaural Closed-Back Headphones Click to enlarge the picture
Contents of the user manual for the Sony MDR-Z7M2 Circumaural Closed-Back Headphones
- Product category: Headphones Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Headphones
 |
User manual for the Sony MDR-Z7M2 Circumaural Closed-Back Headphones contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|

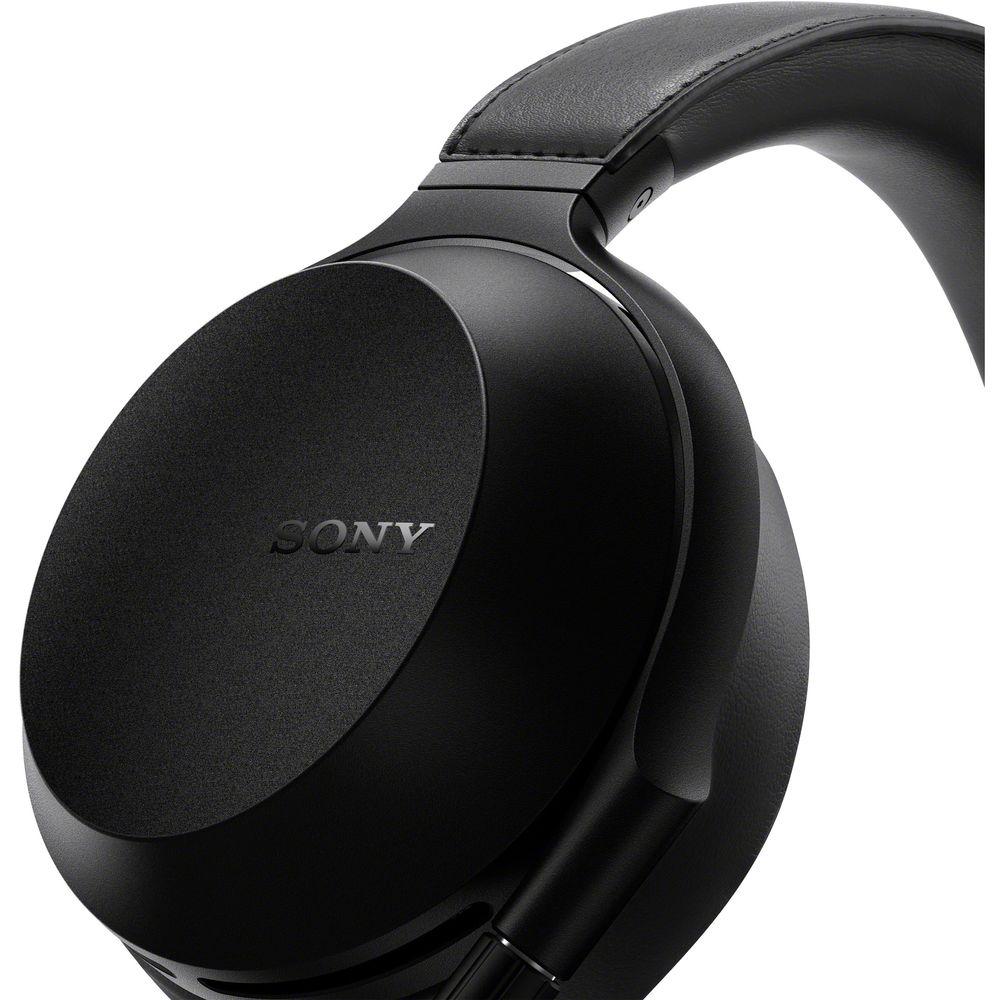

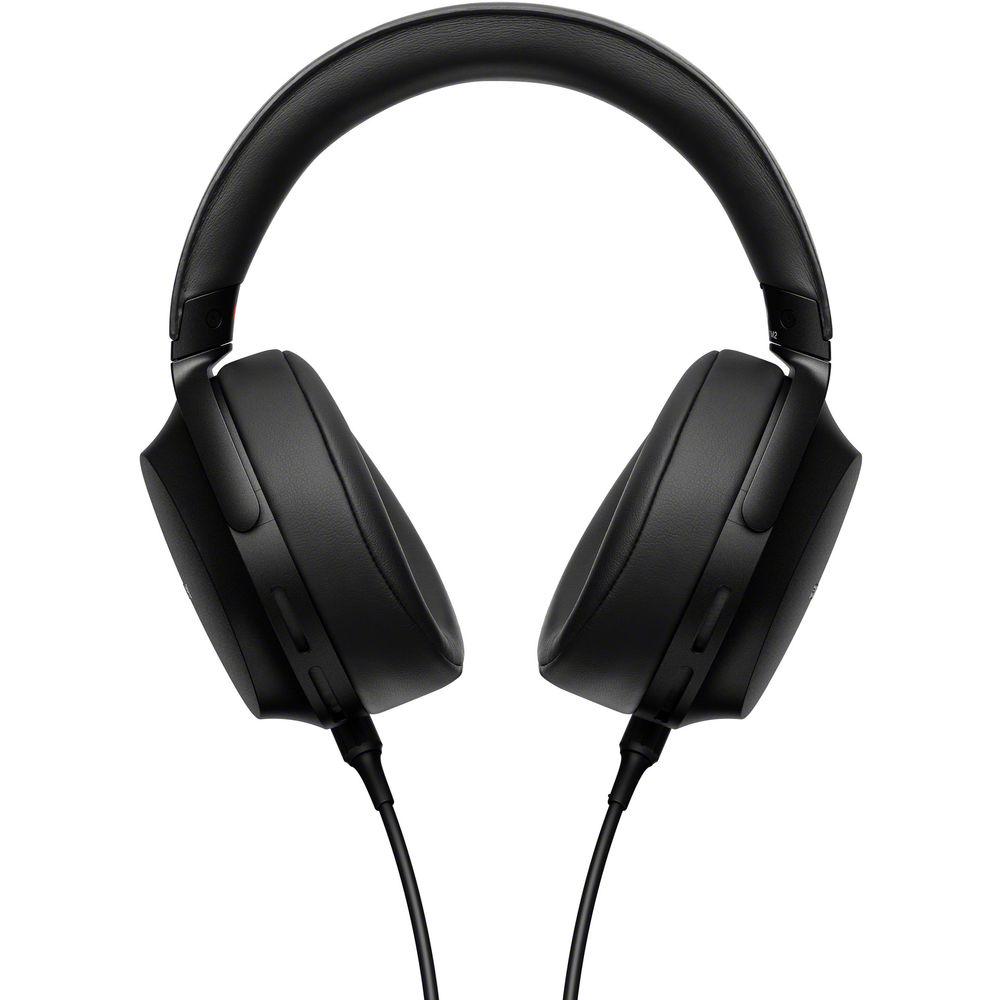

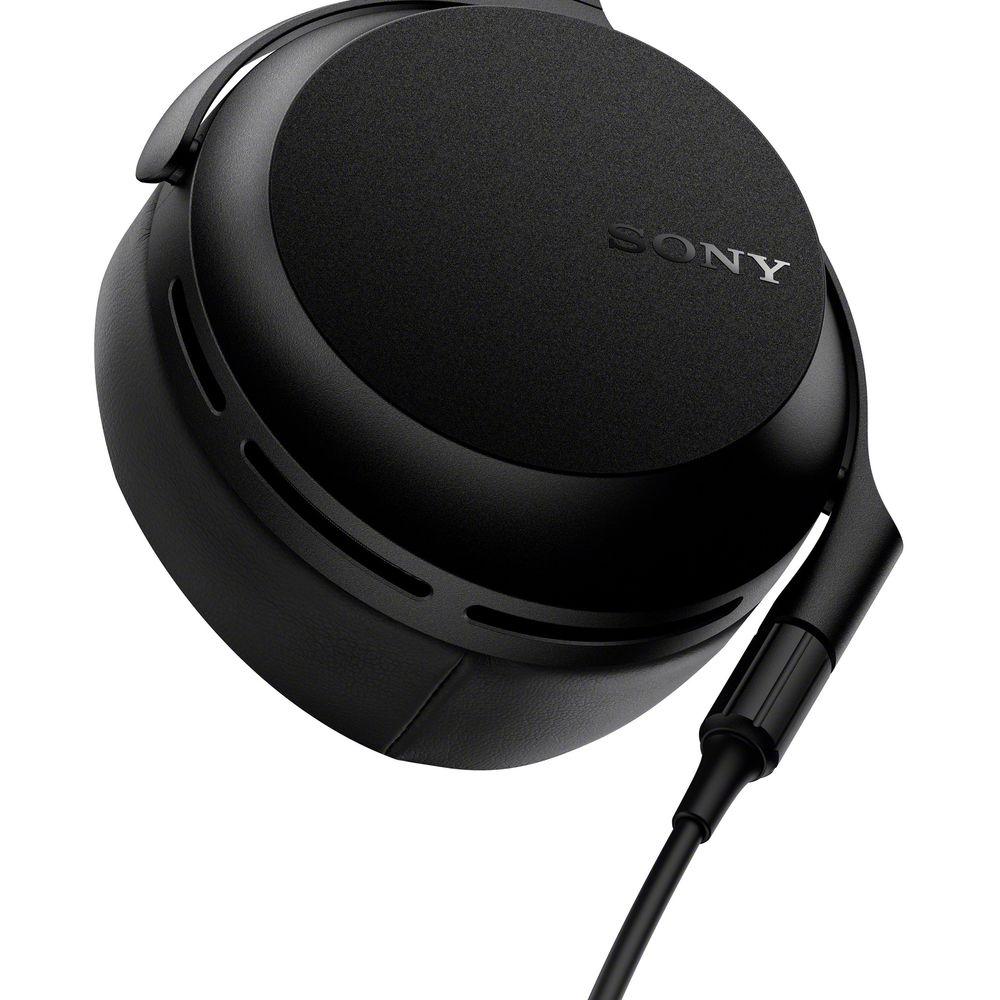

Product description The MDR-Z7M2 Circumaural Closed-Back Headphones from Sony features 2.76" HD drivers, aluminum-coated liquid crystal polymer diaphragms, Fibonacci-patterned grilles, and large neodymium magnets, allowing you to lose yourself in the music you love. They can be used to enjoy enhanced sound quality and reproduction of three-dimensional, spatial sound with hours of listening comfort. The MDR-Z7M2's drivers are designed to cover your ears and produce a plane wave front, which is like that in a natural sound field. The frequency response is 4 Hz to 100 kHz, making every note sound clear across the sound stage. Other features include a smoother high-frequency response, ergonomic earpads, and silver-coated oxygen-free copper cables. Two detachable Y-type cables are included: a 9.84' cable with a gold-plated 3.5mm stereo mini plug, and a 3.94' silver-coated cable with an L-shaped, gold-plated 4.4mm balanced standard plug. - Premium Sound with High-Resolution Audio
- By digitally capturing music at a higher rate than CD, High-Resolution Audio allows you to get closer to the original studio recording and enjoy your music just as the artist intended.
- Bigger Dynamic Neodymium Magnets
- With a newly developed magnetic circuit and bigger magnet (double the size of the MDR-Z7), the MDR-Z7M2 establishes more driving power and a fast response to high-resolution signals, which results in sharp clarity of sound.

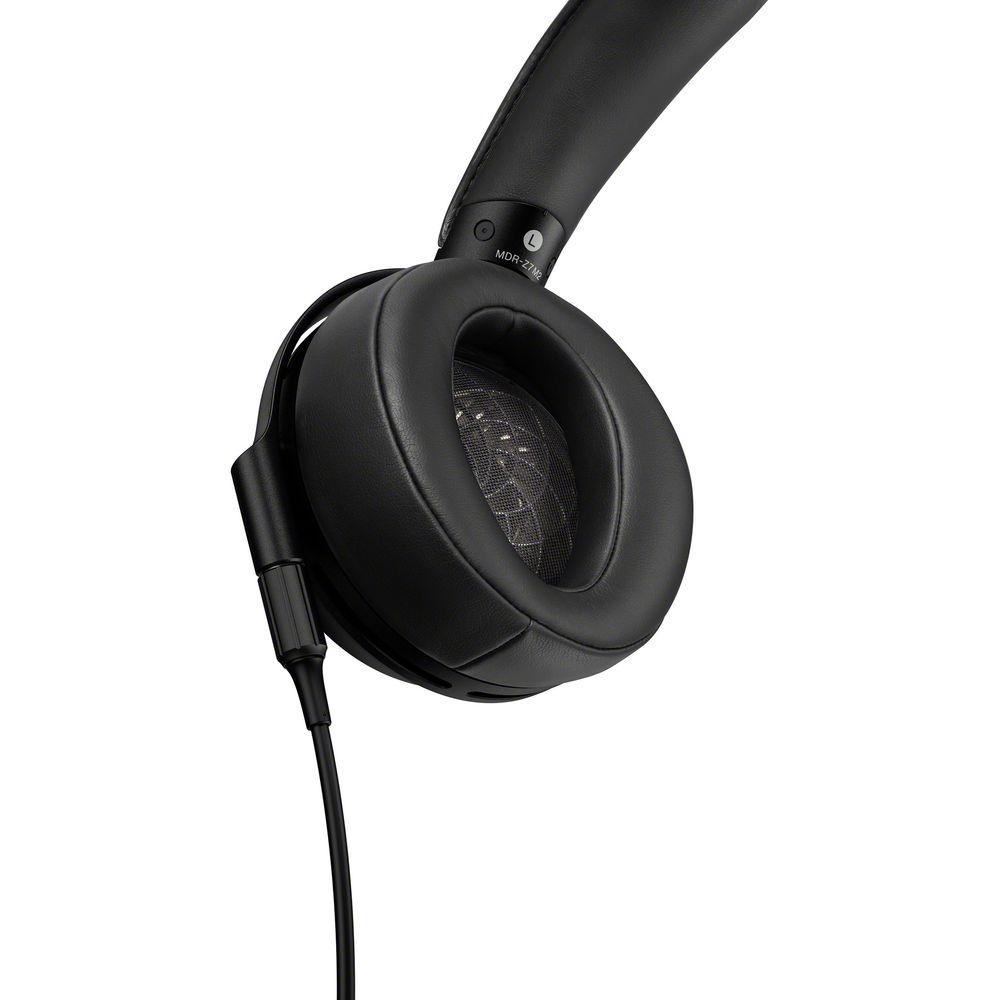

- Ergonomic Earpads
- A combination of three-dimensionally sewn synthetic leather surfaces and very thick low-repulsion urethane foam cushion provides an ergonomic shape to fit to the unevenness of the head and gives even pressure throughout the area. This reduces sound leakage by increasing the air-tightness and delivers a natural, heavy bass.
- 2.76" HD Driver Units
- The large diameter 2.76" HD drivers are designed to cover most people's ears, producing a plane wave front like that in a natural sound field, and reproduce frequencies from 4 Hz to 100 kHz. Every note stays precise and clear across a spacious sound stage, reproducing the emotion and energy of the original recording, with true vocal clarity and precise bass response.

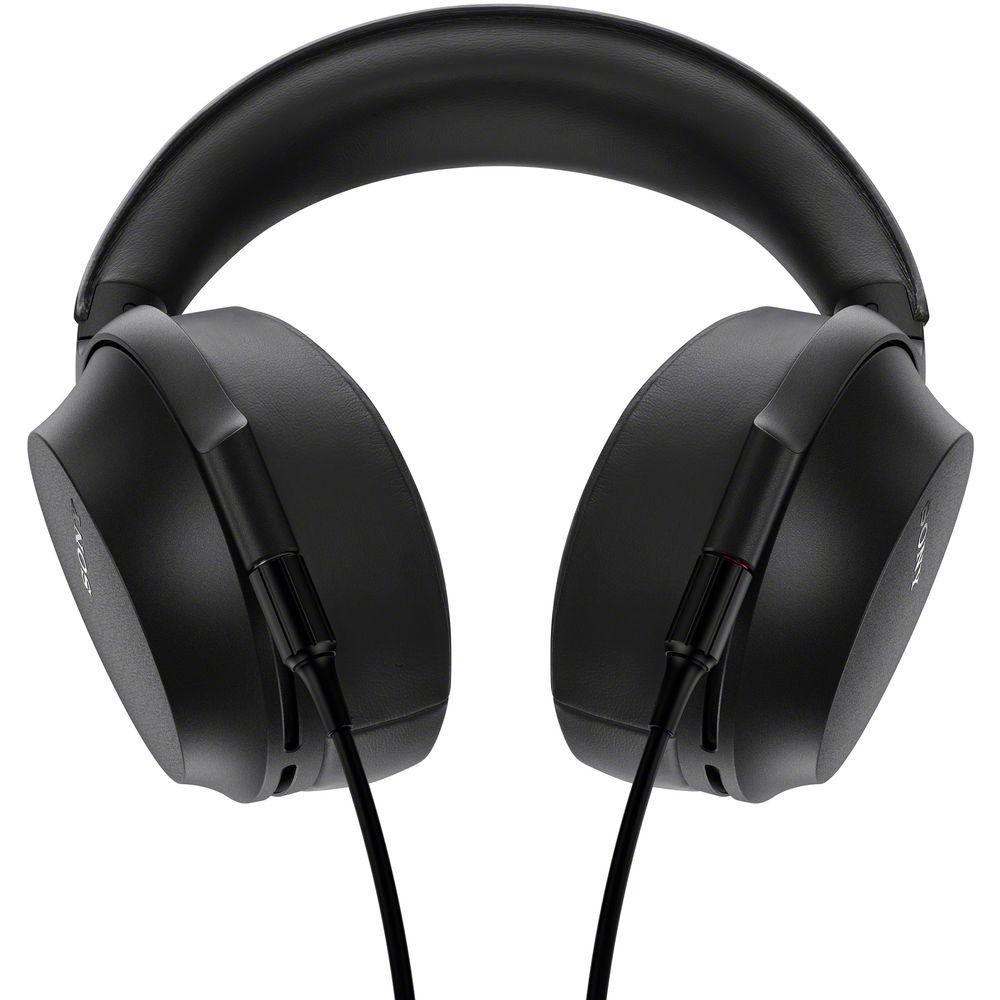

- 4.4mm Balanced Cable Connection
- Enjoy clear, precise, and dynamic sound with a 4.4mm balanced connection cable, which separates left and right sound signals and reduces noise from the output signal.
- Silver-Coated, Oxygen-Free Copper Cable
- Silver-coated, oxygen-free copper cables minimize resistance and signal-transmission loss. The result is less sound degradation, finer detail, and smoother treble sounds.

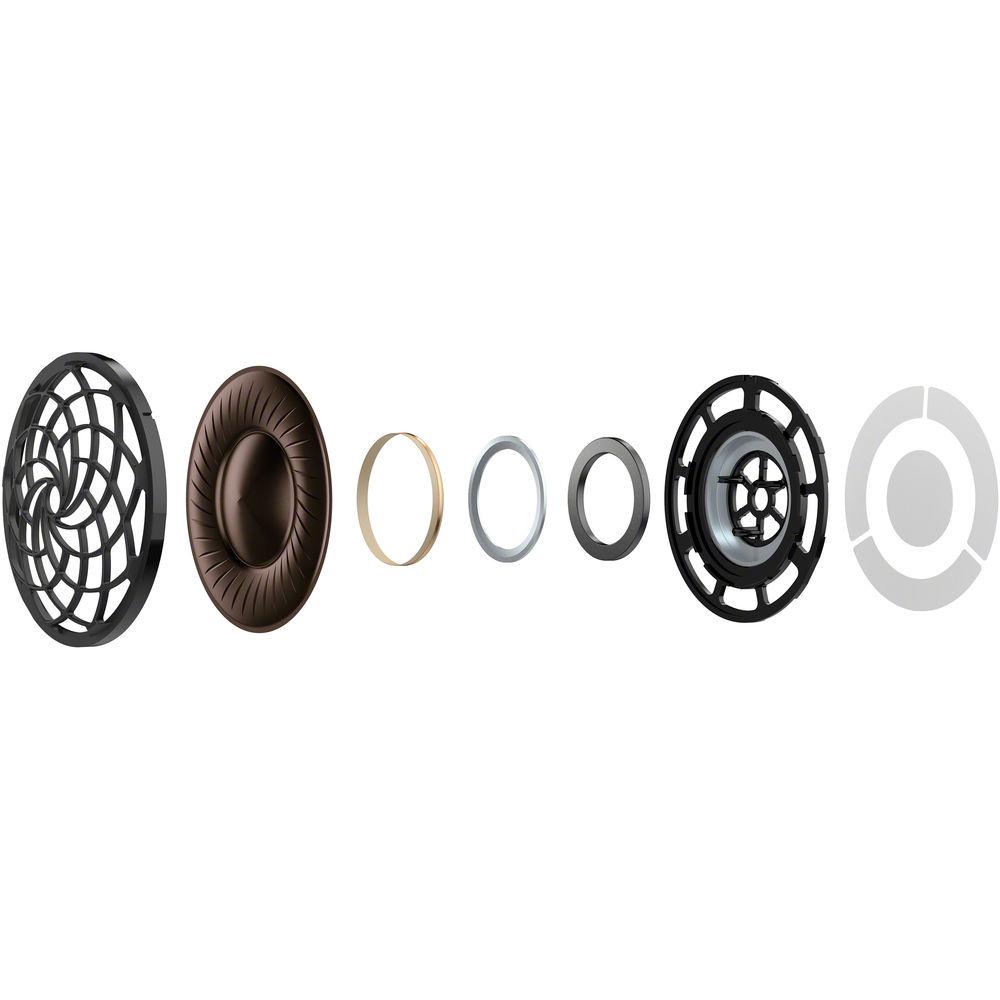

- Fibonacci-Patterned Grilles for Smooth Ultra-Highs
- The Fibonacci-patterned grilles inherited from the MDR-Z1R reproduce the intended sound properties smoothly. They are made of stiff resin to achieve both thinness and strength and minimize sound damping from the grilles at ultra-high frequencies.
- Aluminum-Coated LCP Diaphragm for More Precision
- An aluminum-coated liquid crystal polymer diaphragm gives a more consistent and precise sound across the entire frequency range. Combining aluminum and LCP, material-specific resonance is canceled and delivers natural sound with low coloration.

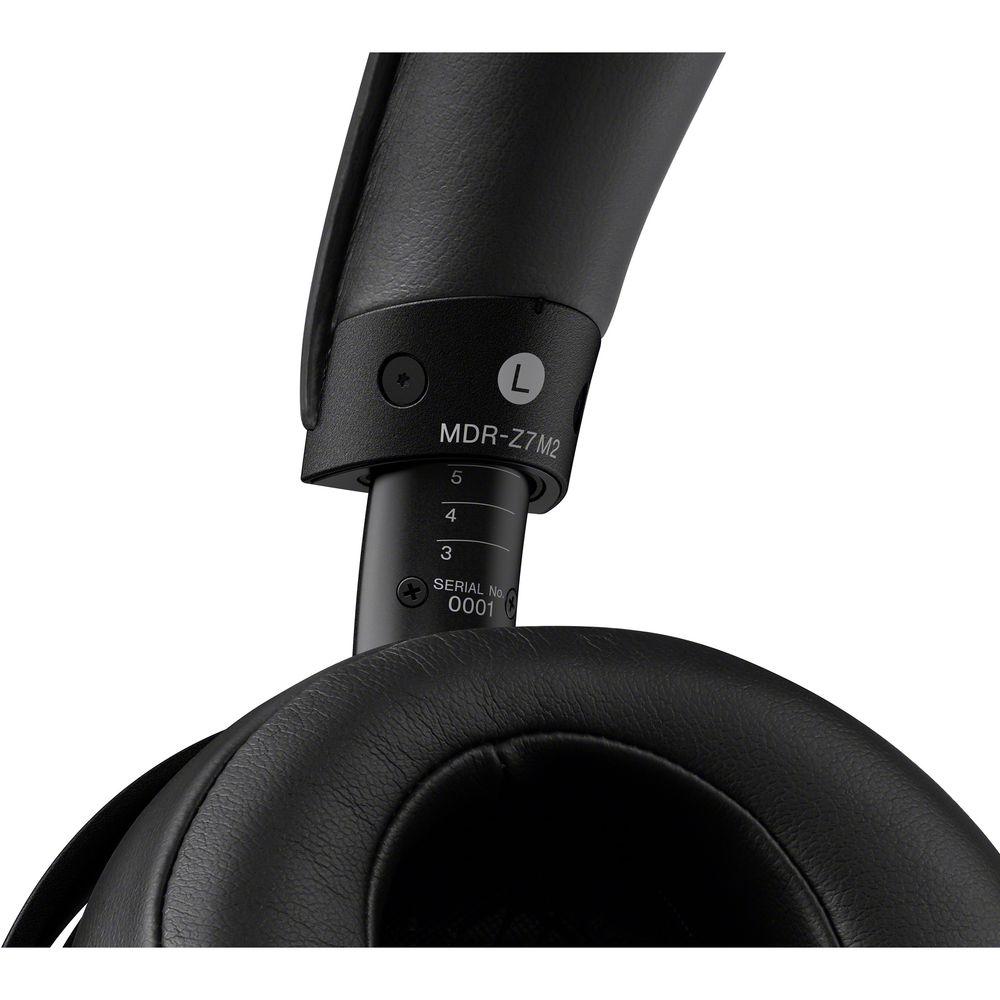

- Aluminum-Alloyed Hanger and Slider
- Aluminum alloy is used for hangers and sliders that form the backbone of the headphones. They are both lightweight and ensure long-lasting durability over the years.

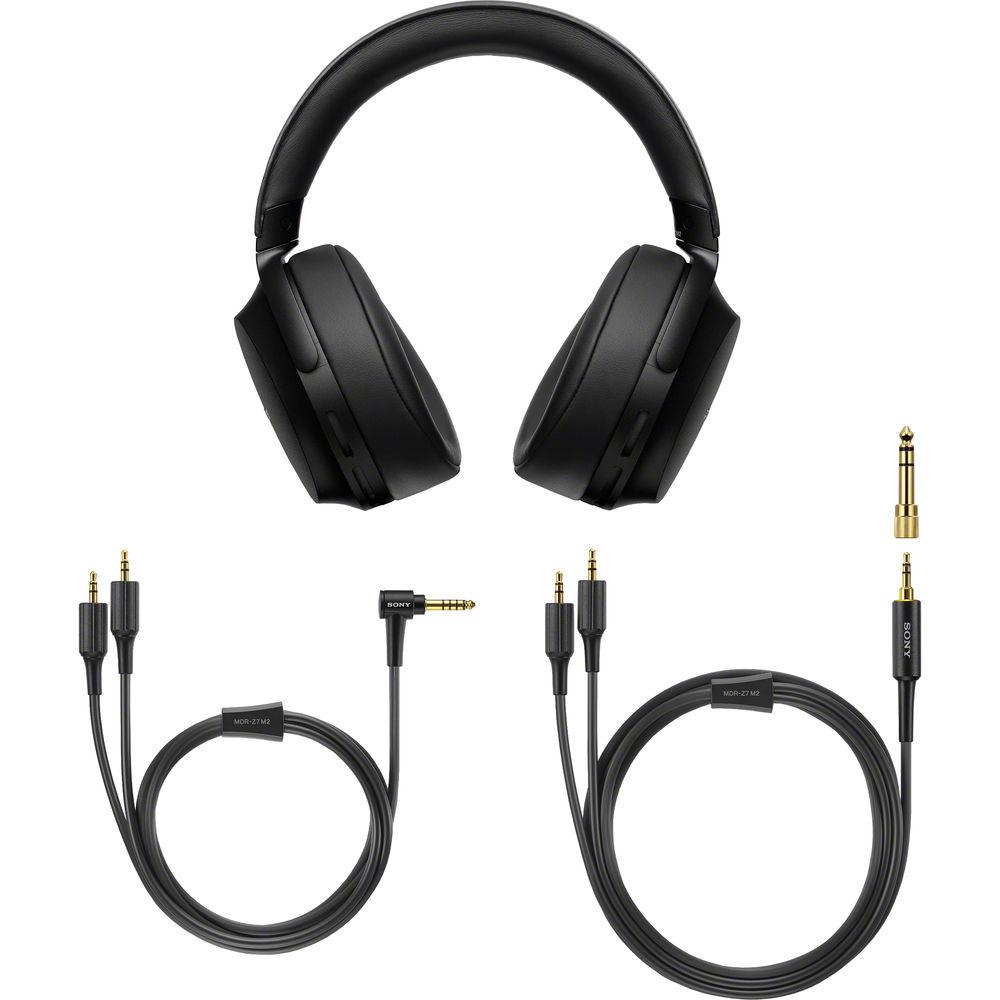

UPC: 027242913059 In the Box Sony MDR-Z7M2 Circumaural Closed-Back Headphones 4.4mm Balanced Cable (3.94') 3.5mm Cable (9.84') 1/8" Stereo Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony MDR-Z7M2 Circumaural Closed-Back Headphones in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony MDR-Z7M2 Specs | | | Driver Size | 2.76" / 70.10 mm | | Driver Type | Dynamic | | Magnet Type | Neodymium | | Voice Coil | Copper-Clad Aluminum Wire | | Design | Over-Ear (Circumaural) | | Earcup Style | Closed-Back | | | | Frequency Response | 4 Hz to 100 kHz | | Sensitivity | 98 dB | | Impedance | 56 Ohms | | Foldable | No | | | | Audio Connector | 4.4 mm TRS Right-Angled
1/8" / 3.5 mm TRS Straight | | Connector Plating | Gold | | Adapter (Included) | 1/4" TRS | | | | Design | Y-Type | | Color | Black | | Detachable | Yes | | In-Line Remote/Microphone | None | | Type | Oxygen-Free Copper | | Cable Length | 9.8' / 2.99 m (Unbalanced)
3.94' / 1.20 m (Balanced) | | | | Weight | 12.0 oz / 340 g without Cable | | | | Package Weight | 2.675 lb | | Box Dimensions (LxWxH) | 9.1 x 8.5 x 4.9" |
