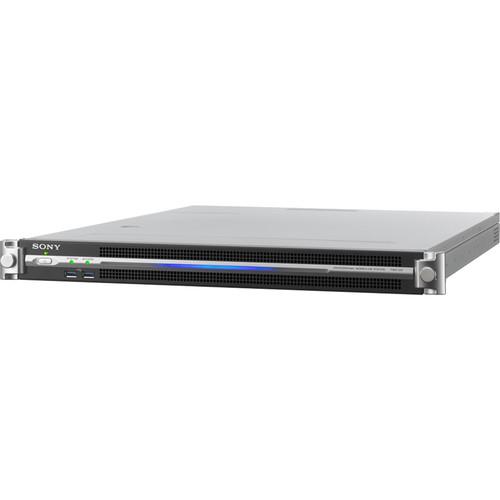

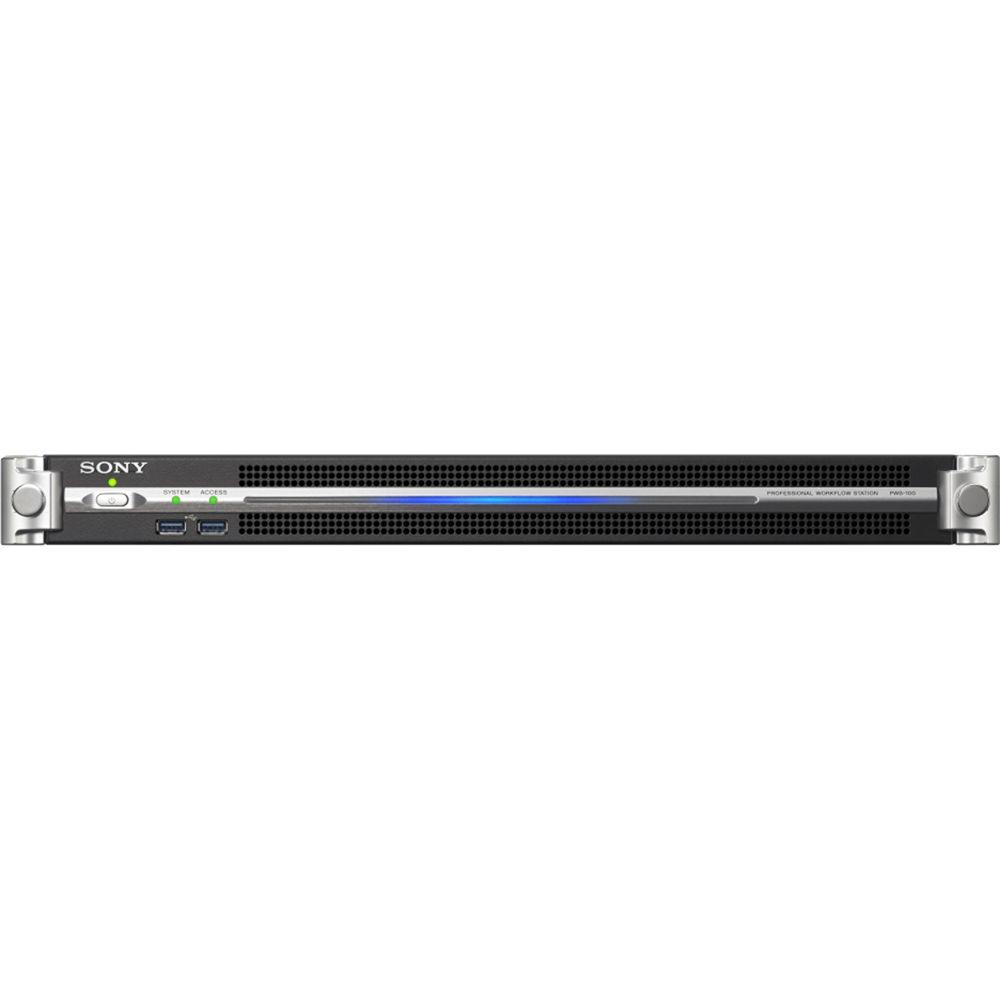

Product description Provided by third party: The PWS-100MG1 is a 1RU media gateway workstation, that controls 4K and HD file transfers between the PWS-4400 4K/HD multi-port AV storage unit and external media. It can be used for the browsing, archiving, and retrieving of files from external media. The application supports media transfer between the PWS-4400 and external media, external USB hard drives, SxS memory media and professional disc. It is also possible to ISO record your incoming material in real time from the PWS-4400 to an external connected memory device.
- Key Features
-
- File transfers between PWS-4400 and external media
- Multi-port inputs/outputs
- Real-time 4K video material transfers
- Watched folder
- File transfers between PWS-4400 and external media
- The PWS-100MG1 provides access to external media, such as optical disc archive, hard drives, SxS memory media and professional disc.
- Multi-port inputs/outputs, including six USB 3.0 ports, HDMI and two LAN network ports

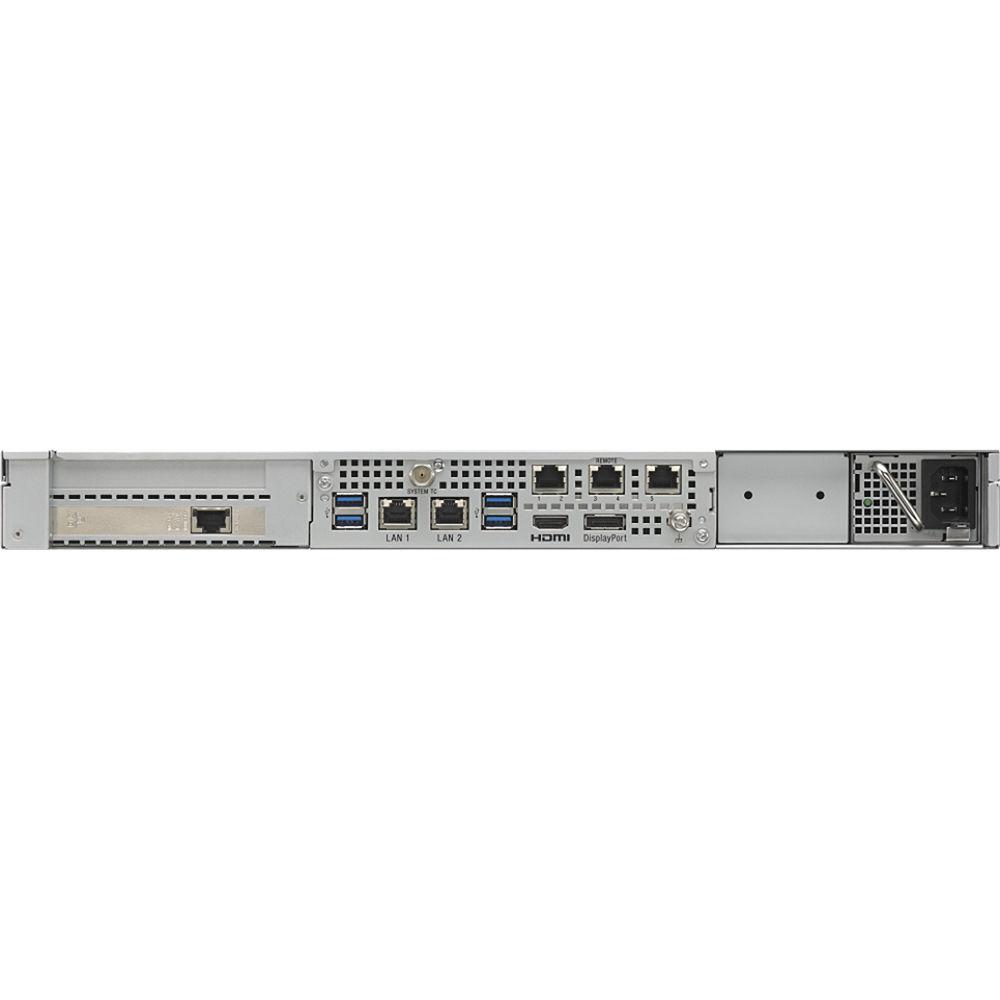

- The PWS-100MG1 has six USB 3.0 ports, that allow you to connect USB hard drives. It also provides three RJ-45 (10GBase-T, 1000Base-T, 100Base-TX), one HDMI port and one DisplayPort connector for display support.
- Real-time 4K video material transfers
- The 10G interface card is provided for real-time 4K video material transfer between the PWS-4400 and external back-up devices.
- Watched folder
- The unit allows you to retrieve media to the PWS-4400 automatically, when clips are put on to a watched folder on a NLE material server.
Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony Media Gateway Workstation in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony PWS-100MG1 Specs | | | Type | Media gateway workstation | | Width | 17.3 in | | Depth | 25.2 in | | Height | 1.7 in | | Weight | 30.86 lbs | | | | Nominal Voltage | AC 120/230 V | | Frequency | 50/60 Hz | | Max Power Consumption | 235 W | | | | Terminals | (4) x USB 3.0 - 9 pin USB Type A
(2) x network - RJ-45
(1) x HDMI output - 19 pin HDMI Type A
(1) x DisplayPort output - 20 pin DisplayPort
(3) x remote control bus | | | | Min Operating Temperature | 41
