User Manual for Sony MHC-M20 Bluetooth Wireless Music System Click to enlarge the picture
Contents of the user manual for the Sony MHC-M20 Bluetooth Wireless Music System
- Product category: Mini Hi-Fi Systems Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony Mini Hi-Fi Systems
 |
User manual for the Sony MHC-M20 Bluetooth Wireless Music System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|

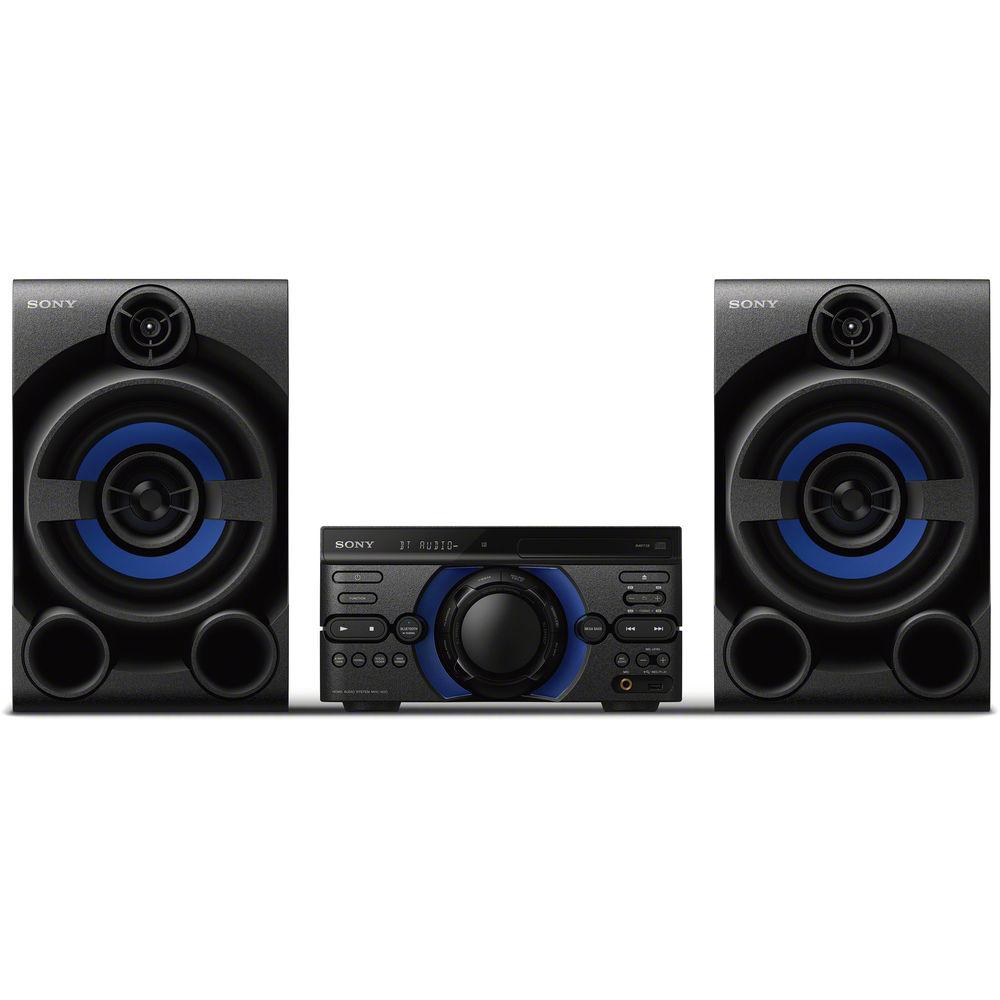

Product description Enjoy stereo sound and Bluetooth wireless streaming with the Sony MHC-M20 Bluetooth Wireless Music System. It features an RCA audio input for traditional wired devices and a USB input for MP3 playback from compatible drives. The built-in CD player supports playback of MP3 files, and the system has an integrated FM tuner with 20 presets available.
The speakers have a 2-way bass reflex design with a 2" tweeter and 8" woofer in each. Karaoke and DJ sound effect features are built-in to add more variety to your party. Additionally, the MHC-M20 can wirelessly link with other compatible speakers and music systems for synchronized playback throughout the house. - Karaoke Capable
- A mic input lets you plug in and sing along.
- LDAC Music Streaming
- Stream high-resolution audio with LDAC and Bluetooth technology.
- Digital Sound Enhancement Engine (DSEE)
- The DSEE is designed to restore audio quality in compressed digital music.
- Wireless Party Chain
- Enjoy more powerful sound by connecting up to 50 compatible speakers via Bluetooth.
- Wireless Control from Your Phone
- The Sony | Music Center app lets you control music and sound settings straight from your compatible phone. The Fiestable app lets you activate DJ and karaoke modes and share your party status on social media. You can also make changes with the flick of your wrist thanks to motion control. Both apps are available for iOS via the App Store and for Android from Google Play.
- Football Mode
- Shift the MHC-M20 into Football Mode to enjoy a simulated stadium experience. Choosing "narration off" minimizes narration volume and accentuates crowd audio.
- S-Force Front Surround
- This technology is designed to reproduce a virtual surround acoustic field to create more immersive audio.
- Shared Control
- You and your friends can pair up to three compatible smartphones simultaneously using Bluetooth technology, enabling you all to play tracks from your music library.
- DJ Effects
- Four different effects help set the stage for your party: Flanger creates a deep flanging effect similar to the roar of a jet engine; WAH (available via apps) automatically moves the frequency of a filter up or down; Isolator singles out a specific frequency band; and PAN (available via apps) sweeps the sound across speakers. You can use DJ effects with the feistable app and gesture control, making it easier to get creative with your party playlists.
- Plug-and-Play USB Port
- Play tracks stored on your USB device, or make your own custom playlists with direct CD-to-USB recording.
- Built-In CD Player
- Play your favorite albums and compilation discs with the built-in CD player, which is compatible with CD-R and CD-RW discs in addition to prerecorded CDs.
- Additional Features
-
- iAP over Bluetooth
- Emotion EQ music equalizer
- Mega Bass
- Video EQ modes include MOVIE, GAME, DRAMA, and NEWS
- Fiesta Mode
- ClearAudio+
- Karaoke features include vocal fader, key control, scoring, mic volume, echo, guide vocal (via apps), and voice changer
- Sleep timer
- Tray lock & child lock
UPC: 027242908987 In the Box Sony MHC-M20 Bluetooth Wireless Music System Remote Control 2 x AAA Batteries FM Lead Antenna AC Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony MHC-M20 Bluetooth Wireless Music System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony MHCM20 Specs | | | Amplifier Power | Minimum RMS: 35 W per channel @ 4 Ohms, 150 Hz to 20 kHz, ≤0.7% THD, from 250 mW to rated output | | CD Player | Yes | | Disc Playback Formats | CD, CD-R, CD-RW, MP3 | | Laser | Continuous Output: <44.6 μW | | Frequency Response | CD Player: 20 Hz to 20 kHz | | Bluetooth Specification | Version: 4.2
Maximum Number of Registered Devices: 8
Maximum Number of Simultaneous Connections (Multipoint): 3
Power Class: 2
Range: Up to 33' / 10 m
Frequency Band: 2.4 GHz (2.4 to 2.4835 GHz)
Modulation Method: FHSS
Compatible Profiles: A2DP (SINK), AVRCP 1.3, SPP
Supported Codecs: SBC, AAC, LDAC | | Inputs | 1 x stereo RCA pair (2 V, 47 kOhms)
1 x USB Type-A (front, 1 A)
1 x 1/4" / 6.35 mm microphone (front, 1 mV sensitivity, 10 kOhms) | | Speaker Connectors | 1 x proprietary speaker output pair | | Additional Connections | 1 x FM antenna input | | USB Playback Formats | MP3 32/44.1/48 kHz, 32 to 320 kbps (VBR); WMA 44.1 kHz, 48 to 192 kbps (CBR/VBR); AAC 44.1 kHz, 48 to 320 kbps (CBR/VBR); WAV 44.1/48 kHz (16 bit); M4A; MP4; 3GP | | FM Tuner | Yes | | Tuning Range | 87.5 to 108 MHz (100 kHz step) | | Presets | 20 | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Power Requirements | 120 VAC, 60 Hz | | Power Consumption (Active) | 70 W | | Power Consumption (Standby) | 0.5 W | | Dimensions (W x H x D) | 13.25 x 6.88 x 12.25" / 335 x 172 x 310 mm (approximately) | | Weight | 6 lb / 2.72 kg | | | | Design | 2-way | | Rated Impedance | 4 Ohms | | Cabinet | Bass reflex | | Woofers | 1x 8" / 200 mm cone woofer per speaker | | Tweeter | 1x 2" / 50 mm cone tweeter per speaker | | Dimensions (W x H x D) | 10.13 x 16 x 8.75" / 257.2 x 406.4 x 222.3 mm (approximately) | | Weight | 11.25 lb / 5.1 kg each | | | | Package Weight | 32.95 lb | | Box Dimensions (LxWxH) | 27.5 x 19.5 x 14.5" |
