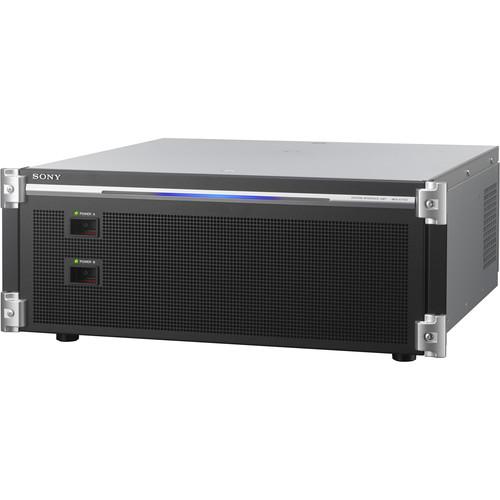

Product description The Sony MKS-X7700 System Interface Unit is used in the ICP-X7000 Control Panel. It features serial tally and tally/GPI interfaces, along with a remote interface that supports various protocols. It also features six additional slots for adding more Tally/GPI outputs and serial remote interfaces. In the Box Sony MKS-X7700 System Interface Unit for ICP-X7000 Control Panel Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony MKS-X7700 System Interface Unit for ICP-X7000 Control Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony MKSX7700 Specs | | | LAN | 1 x RJ45, 1000BASE-T (MVS LAN)
1 x RJ45, 1000BASE-T (UTIL LAN) | | Tally | Serial: 2 x 9-Pin D-Sub, RS-422A | | TALLY/GPI | 2 x 37-Pin D-Sub, TTL level inputs (34 each) | | Remote | 4 x 9-Pin D-Sub, RS-422A, various protocols | | Bus | 1 x BNC, S-Bus protocol | | Optional | Additional MKS-X7701 tally/GPI outputs and MKS-X7702 serial remote connection interface boards (a mixed configuration of four optional boards is available for six slots) These optional interface boards are sold separately. | | | | Power Requirement | 100 to 240 VAC ±10%, 50/60 Hz (power cord not included) | | Power Consumption | 0.5 to 1 A | | Inrush Current | Maximum 90 A (at peak) / 20 A rms (240 VAC) | | | | Operating Temperature | 41 to 104°F (5 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Operating Humidity | 10 to 90% Non-condensing | | Dimensions (W x H x D) | 19.0 x 7.0 x 19.3" (482 x 176 x 486 mm) | | Weight | 33.1 lb (15 kg) Fully loaded |
