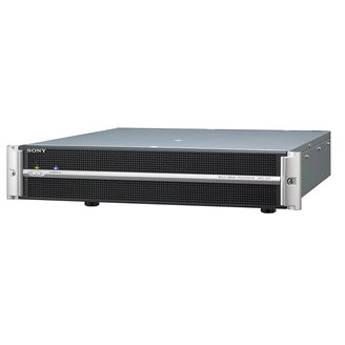

Product description The Sony MPE-200 Stereo Image Processor is a multi-image processing platform that simplifies 3D workflows when combined with optional software. The high-speed processor that can perform signal processing of HD live image inputs, correct stereo source misalignment, and output signals all in real time. Equipped with a high-performance Cell Broadband Engine microprocessor and RSX graphics processor, the MPE-200 receives up to four HD/SDI signal inputs and has four matching HD/SDI outputs. It can be easily integrated with Sony cameras and switchers to automate 3D stereo image correction and reduce discomfort when switching between images with widely different depth content.
Several software applications can be installed together in a single MPE-200 Stereo Image Processor, and you can switch between these applications as required via a computer GUI. The MPE-200 platform line-up includes the optional MPES-3D01 Stereo Image Processor Software, MPES-3DQC1 3D Quality Control Software, and MPES-2D3D1 2D/3D Converter Software for enhancing 3D production creativity and productivity. Other highly sophisticated solutions include the MPES-FX01 Programmable Effector Software for advanced and striking visual effects and the MPES-VC01 Virtual Camera Solution Software for virtual panoramic images. Multiple software applications and application data can be stored to the MPE-200's 160GB internal HDD. - High-performance microprocessing engine
- Supports various HD video signal formats
- Two Ethernet connections for connecting to a Sony MVS-switcher network for signal processing in combination with MVS switchers and to connect with client PC
- Can store multiple software applications and application data on its 160GB internal HDD
- Real-time correction and control of set-up errors, preserving the integrity of 3D images, and reducing set-up times and dependency on expensive, computer-controlled camera rigs
- Sony Cell Processor technology works with multiple Full HD images, making it suitable for real-time 3D optimization
- Built-in waveform monitoring for comparing output from a pair of stereo cameras
- Allows more accurate stereo zoom control with camera pairs
- Controls multiple 3D production processors using a graphical PC interface
In the Box Sony MPE-200 Stereo Image Processor Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony MPE-200 Stereo Image Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony MPE200 Specs | | | CPU | Cell Broadband Engine | | Cache Memory | 512 KB (PPU) | | Clock Speed | 3.2 GHz | | GPU | RSX "Reality Synthesizer" | | GPU Memory | 256 MB | | | | Internal Drives | 160 GB, Serial ATA 2.5" | | | | Video Formats | With optional MPES-3D01 Stereo Image Processor Software:
1080i 50/59.94
1080PsF 23.98/24/25/29.97
720p 50/59.94
With optional MPES-3DQC1 3D Quality Control Software:
1080i 50/59.94
1080PsF 23.98/24/25/29.97
720p 50/59.94
With optional MPES-2D3D1 2D/3D Converter Software:
1080i 50/59.94
1080PsF 23.98/25/29.97
720p 50/59.94
With optional MPES-FX01 Programmable Effector Software:
1080i 50/59.94
1080PsF 23.98/29.97
720p 50/59.94
With optional MPES-VC01 Virtual Camera Solution Software:
1080i 50/59.94
1080PsF 25/29.97
720p 59.94 | | | | Network (1/2) | RJ-45, 10BASE-T / 100BASE-TX / 1000BASE-T | | USB | 2 x USB Type A | | RS-232C | 1 x D-sub 9-pin (male), data transfer rate: 38.4 Kb/s | | HD-SDI Input | 4 x BNC, 75 Ω
Signal Format: SMPTE 292M standard
Signaling Rate: 1.5 Gb/s
Cable Length: Approximately 328' (100 m) (when using 5C-FB cable Belden 1694 equivalent) | | HD-SDI Output | 4 x BNC, 75 Ω
Signal Format: SMPTE 292M standard
Signaling Rate: 1.5 Gb/s | | Reference Input | 1 x BNC, 75 Ω termination
HD tri-level sync / SD black burst, Tri-level sync is not supported for the 720p format | | | | Power Requirements | 100 to 127 VAC, 200 to 240 VAC, 50/60 Hz | | Current Consumption | 100 to 127 V: 4 A, 200 to 240 V: 2 A | | Operating Humidity | 20 to 90% (no condensation) | | Operating Temperature | 41 to 104°F (5 to 40°C) | | Storage Temperature | -4 to +140°F (-20 to 60°C) | | Dimensions (W x H x D) | 17.38 x 3.50 x 19.38" (44.0 x 8.8 x 49.0 cm) | | Weight | Approx. 25.35 lb (11.50 kg) |
