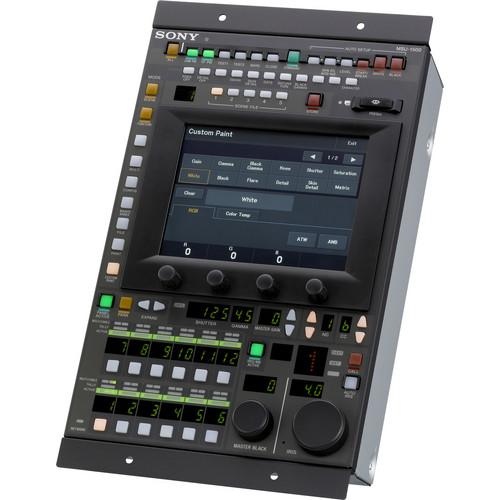

User Manual for Sony MSU-1500 Master Setup Unit Click to enlarge the picture
Contents of the user manual for the Sony MSU-1500 Master Setup Unit
- Product category: RCPs & MCPs Sony
- Brand: Sony
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sony RCPs & MCPs
|
User manual for the Sony MSU-1500 Master Setup Unit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sony product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sony user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sony product will considerably shorten its lifespan!
|
Product description The Sony MSU-1500 Master Setup Unit is a vertically oriented control panel designed for camera configuration and maintenance. Control of multiple camera systems is possible via an optional CNU-700 Camera Command Network Unit or using an Ethernet LAN--which allows control of up to 96 cameras. - Large and Flexible System Configuration
- The MSU-1500 is part of a family of products that provides flexibility in the configuration of large and small camera control systems.
- Ethernet LAN Capability
- The MSU-1500 supports interconnectivity using an Ethernet LAN as well as a CNU-700.
- Customizable Switch and Menu
- MSU-1500 users can map any function to an assignable switch or menu item.
In the Box Sony MSU-1500 Master Setup Unit (Vertical Type) 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sony MSU-1500 Master Setup Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSony MSU1500 Specs | Input and Output Connectors | Ethernet: 8-pin RJ-45 (x1)
CCU/CNU: 8-pin Multi-connector, female (x1)
AUX: 8-pin Multi-connector, female (x1)
EXT I/O: 50-pin D-Sub, female (x1)
AC IN: 3-pin (x1)
DC IN: 4-pin (x1) | | Power Supply | 100-240VAC, 50/60 Hz, 0.35 A (max)
10.5-17VDC, 1.2 A (max) | | Operating Temperature | 41° to 104°F (5° to 40°C) | | Dimensions (WxHxD) | 8.13 x 14 x 2.75" (20.4 x 35.4 x 6.7 cm) | | Weight | 7.9 lbs (3.6kg) | | | | Package Weight | 10.95 lb | | Box Dimensions (LxWxH) | 19.0 x 12.0 x 10.0" |
